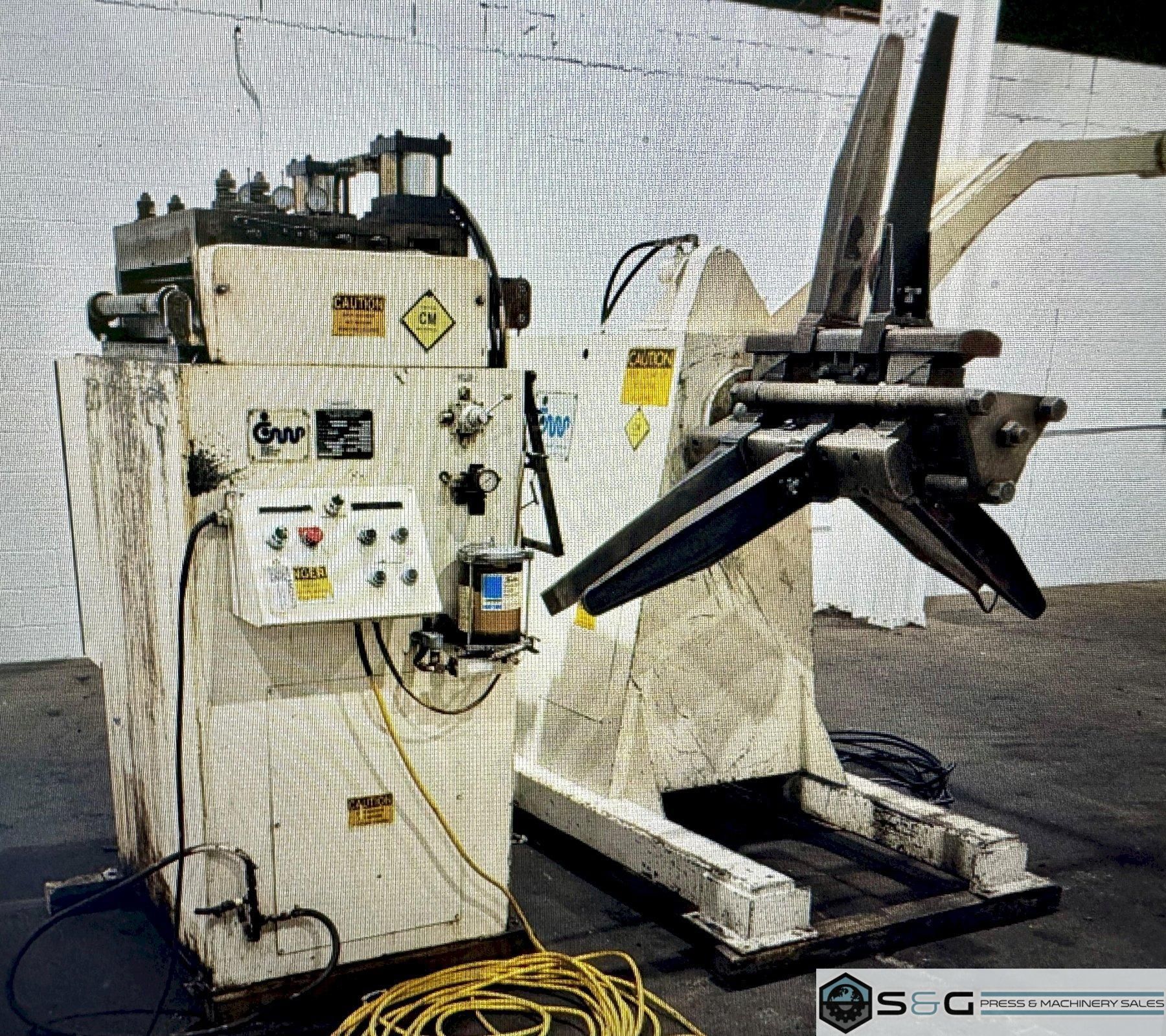

15,000 lbs. x 24" CWP Coil Reel and CWP Powered Straightener

CWP Coil Reel And Straightener Combination 15,000 Lbs. x 24" Wide
Coil weight capacity: 15,000 Lbs.
Coil width capacity: 24"
Max stock thickness capacity: .187"
Expansion range: 17.5" - 22.5"
Coil OD Capacity: 72"
Right To Left Feed Direction

Equipment and Features
Coil Reel Model No. 5R-24
Serial Number C513
Three leaf mandrel with hydraulic expansion
Threading drive for mandrel jog forward and reverse
Air brake (adjustable tensioning)
Coil hold down arm
Powered Straightener Model No. 24C
Serial Number C 512
Pinch rolls with air operated open / close
Seven straightening rolls
Individual upper straightening roll adjustments
Adjustable stock width edge guides
1200 IPM Speed
Automatic lubrication system
Operator's control station
Jog forward and reverse
Auto / Run cycle
Emergency stop button
