Used Minster Press For Sale - 150 ton Minster Piece-Maker Model P2-150-60 Geared, Year 1996

150-ton Minster P2-150-60 Geared Press For Sale
"Piece-Maker" Straight Side Metal Stamping Press
Year 1996 - Can be Seen Under Power!

Standard Press Specifications

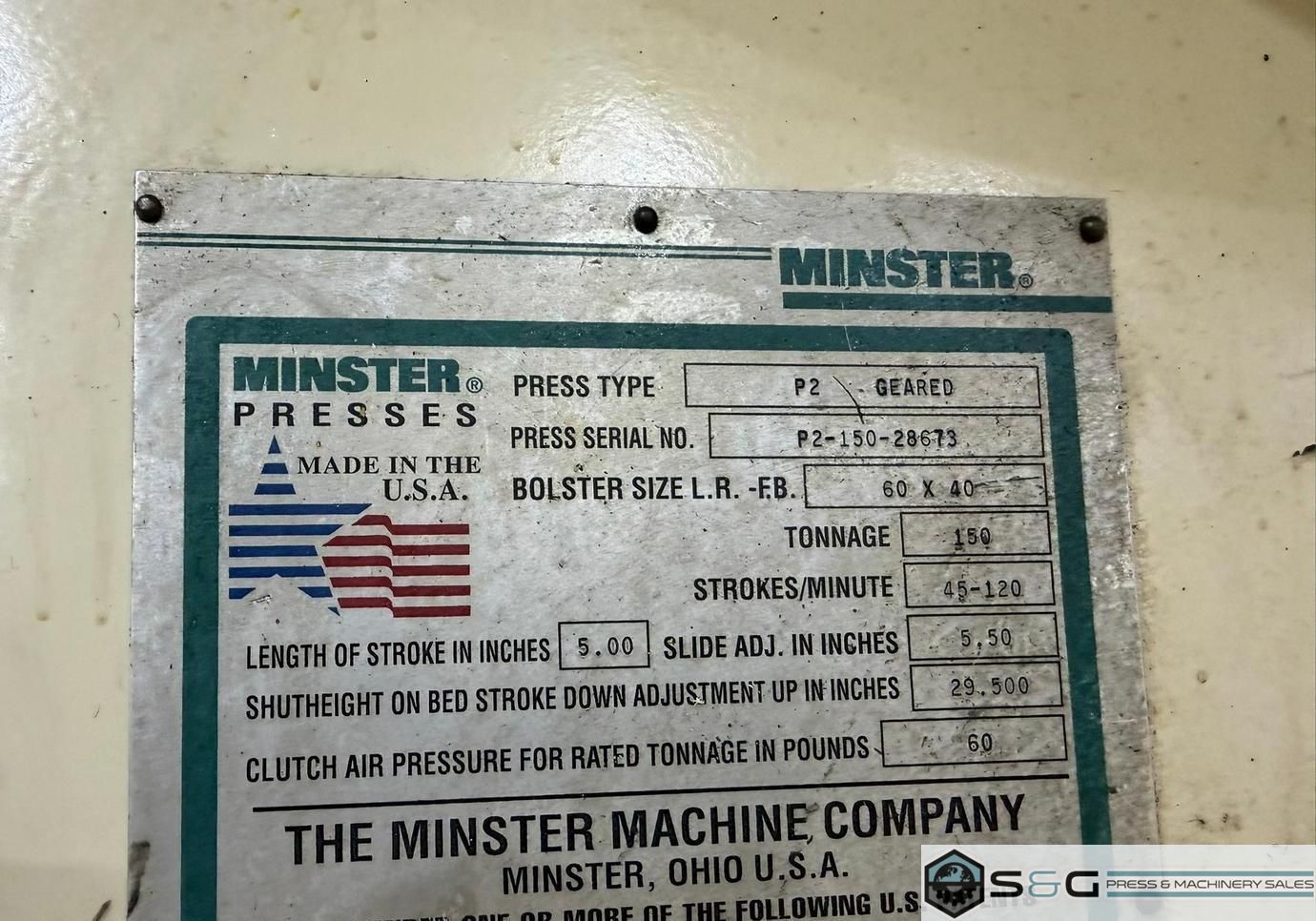

Minster Press Serial Number P2-28673 Geared
150-ton Capacity
5" Stroke
29.5" Shut Height on Bed (SDAU)
23.5" Shut Height on Bolster (SDAU)
5.5" Motorized Adjustment
60" LR x 40" FB Bed Area
60" LR x 40" FB Slide Area
45-120 Variable Stroke Per Minute

Equipment and Features
Minster Combination Pneumatic Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrications System
Single Geared
Air Operated Flywheel Brake
Two Point Eccentric Shaft
Eight adjustable bronze gibs
T-Slotted Ram
25 HP, 1800 RPM, 60 Cycle Main Motor
Hydraulic Tie Rod Nuts
Press Controls Include:
Toledo Transducer PW4 Load Analyzer with four (4) strain links mounted on uprights
Allen Bradley PLC-5/30 programmable controller

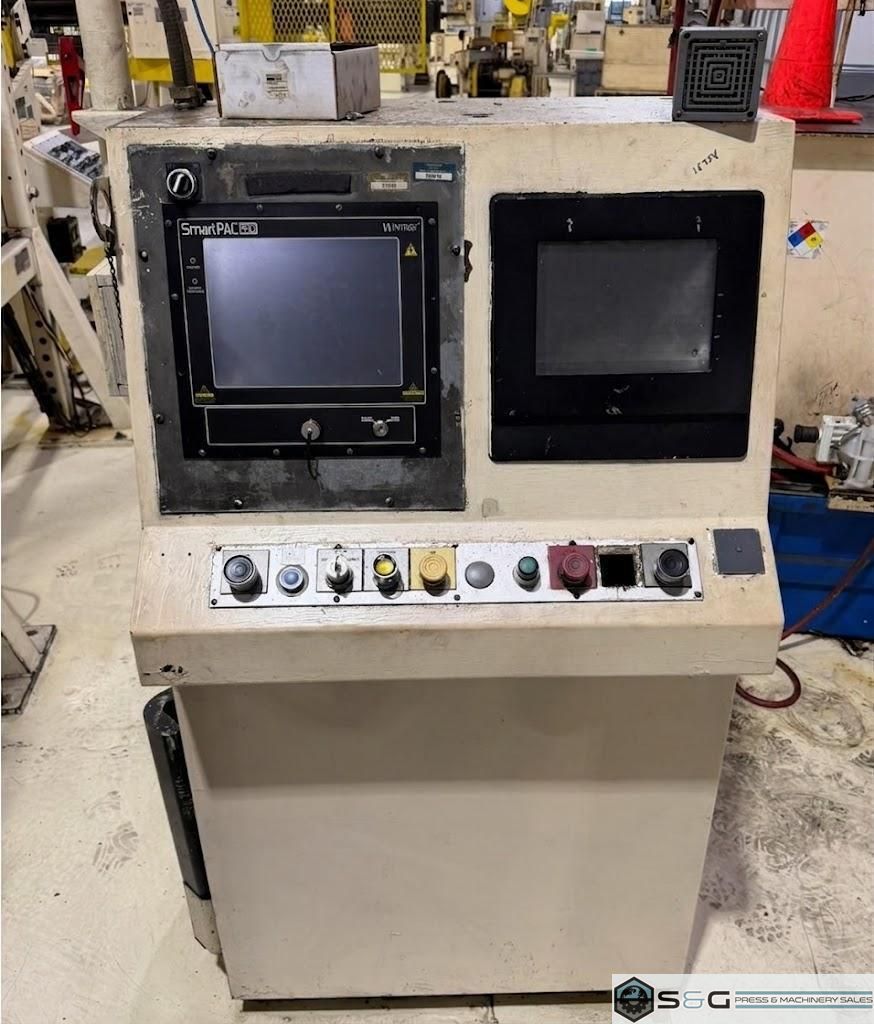

Allen Bradley "Panel View" operator interface for the press and ancillary equipment

• Tool storage (8 digit number) for 50 tools.
• Limit switch settings stored with tool number.
• Automatic press shut height and speed (SPM)  adjustment set from tool number.
• All feed parameters including feed length, feed timing to press stroke, material acceleration, stock guide width, and material pass line setting set from tool number.
• Straightener work roll and stock guide settings set from tool number.
• Programming of die protection inputs (8 channels) to match die sensing for tool number
• Programming of parts counters for tool numbers.
• Programming of auxiliary equipment timing to press stroke such as air blowoffs, spray lubrication, and die functions.
• Operator prompting and diagnostic capability.
• Controls die clamping.
