CPR-PO-15024 / CPPS-350-24 / CPRF-424
2008
3036
Used
Specifications |
|||
|---|---|---|---|
| Coil Weight | 15000 pounds |
||
| Coil Width | 24 inches |
||
| Coil Thickness | .125 inches |
||

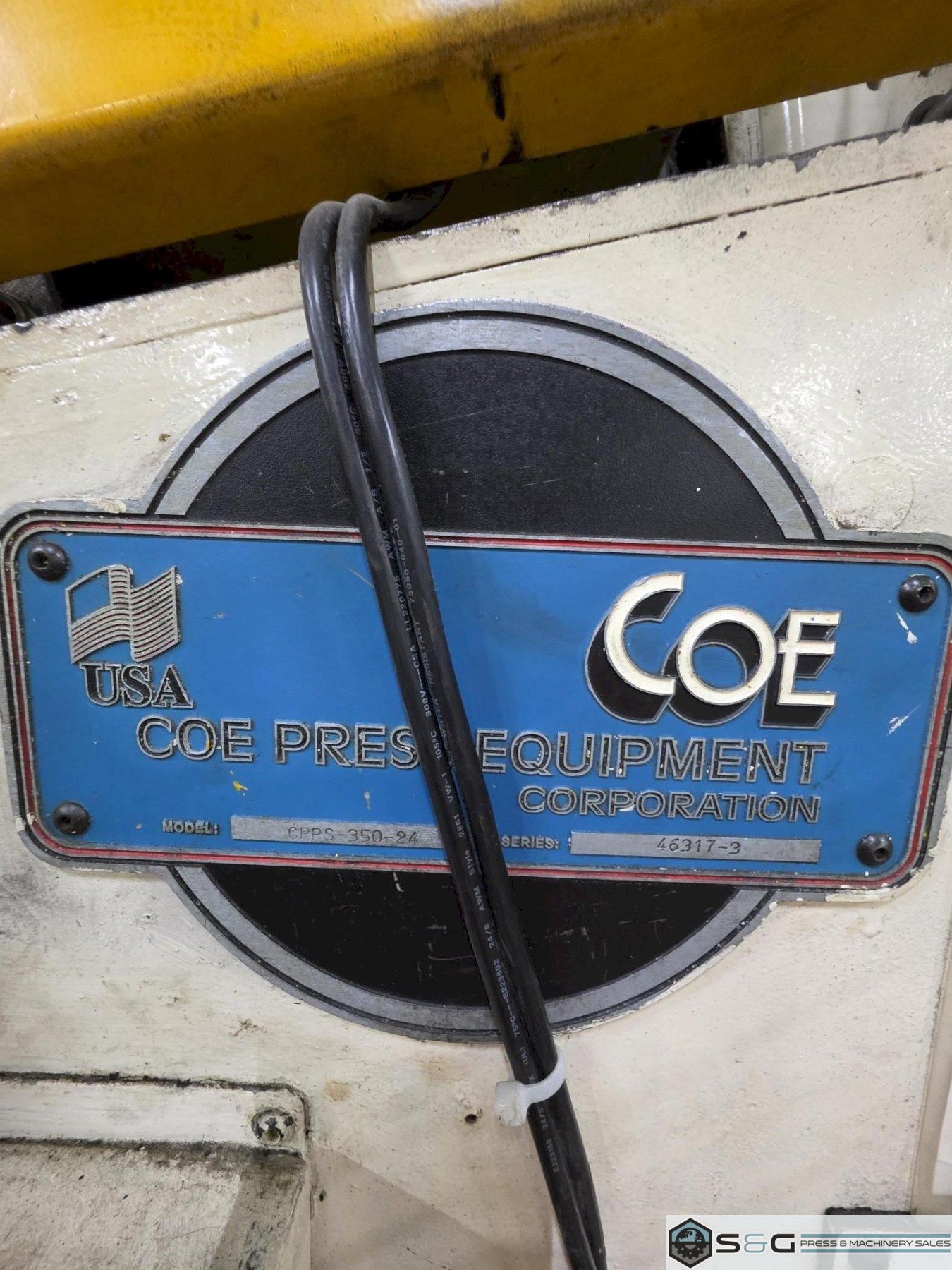

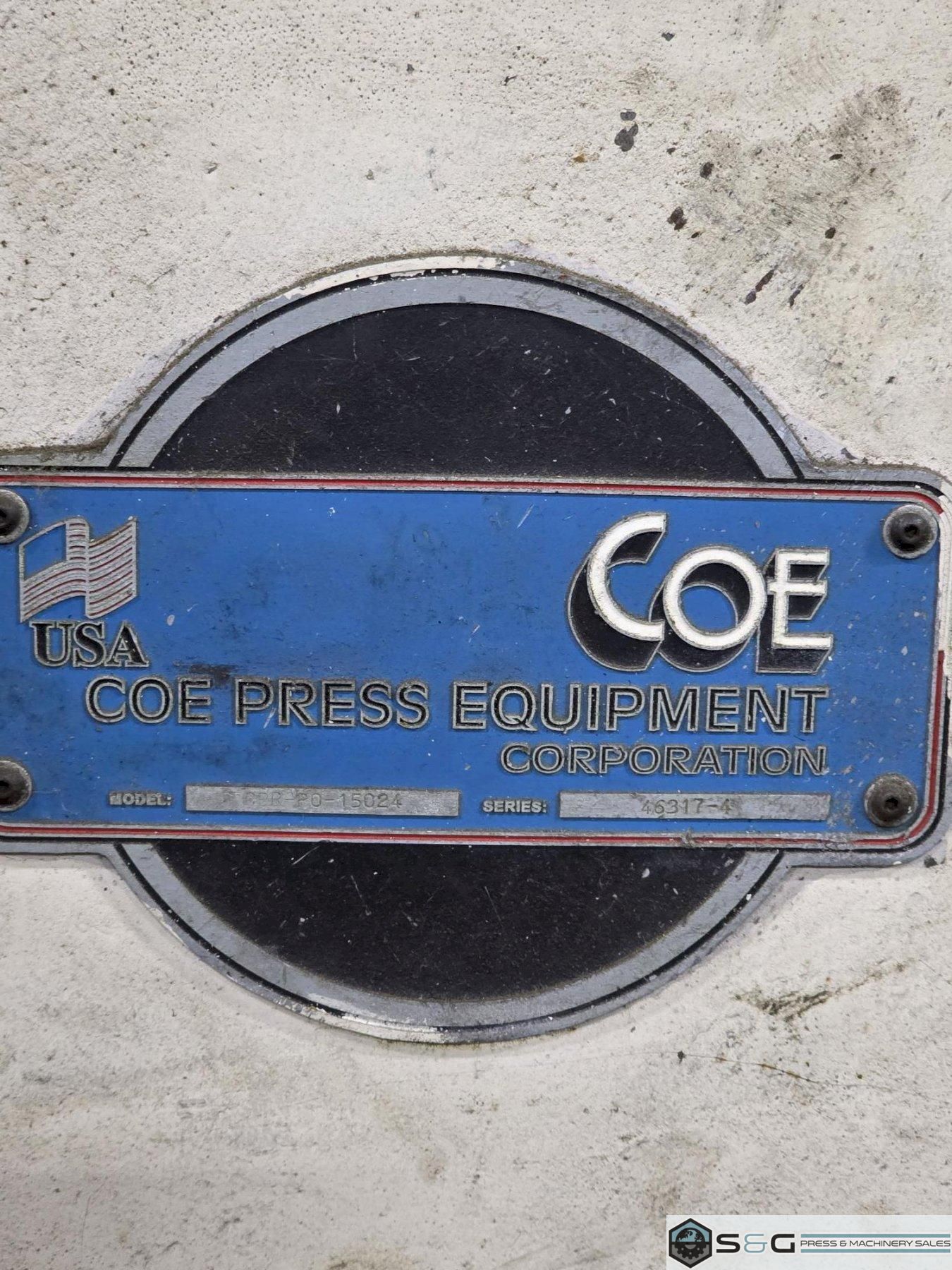

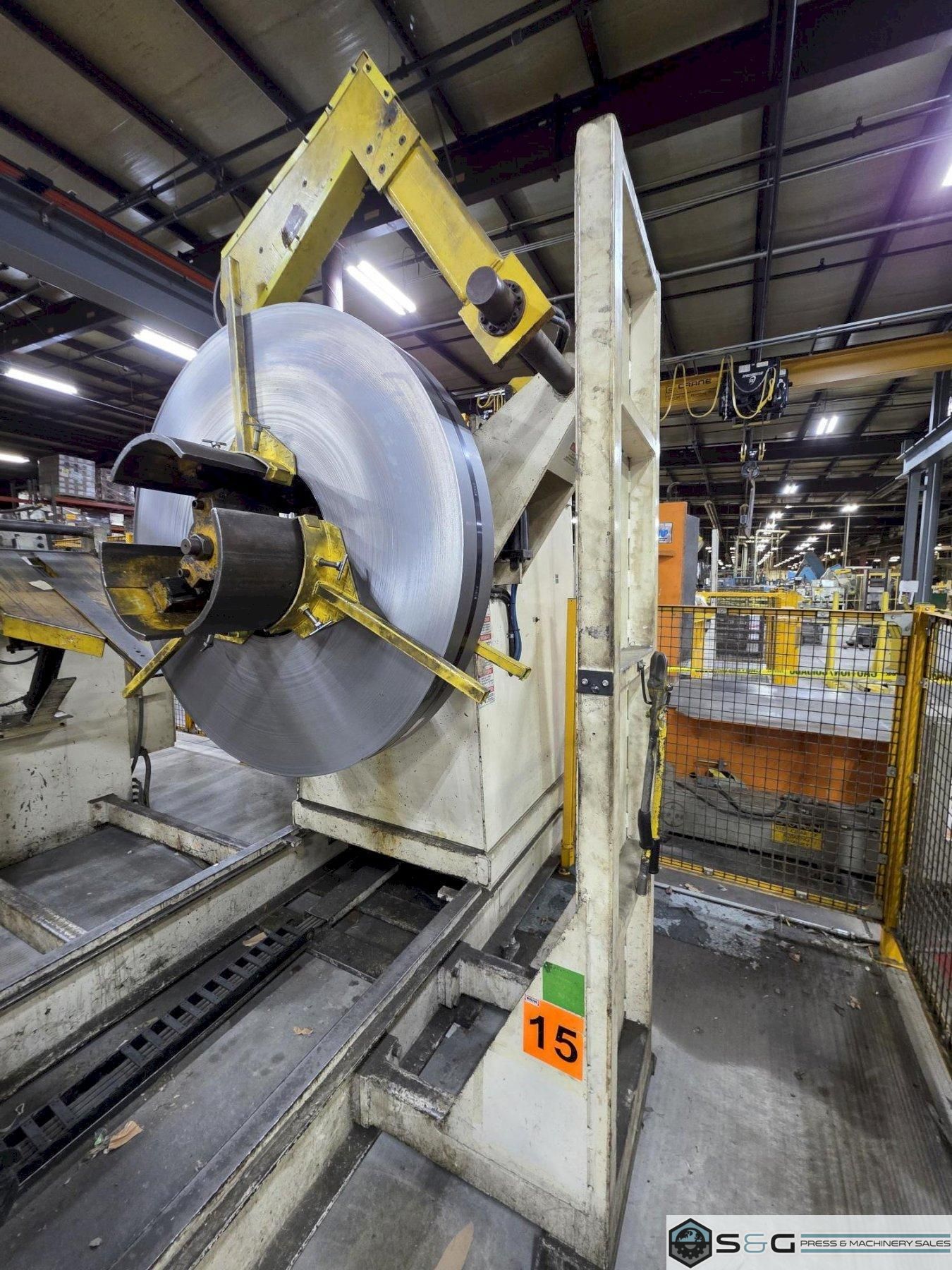

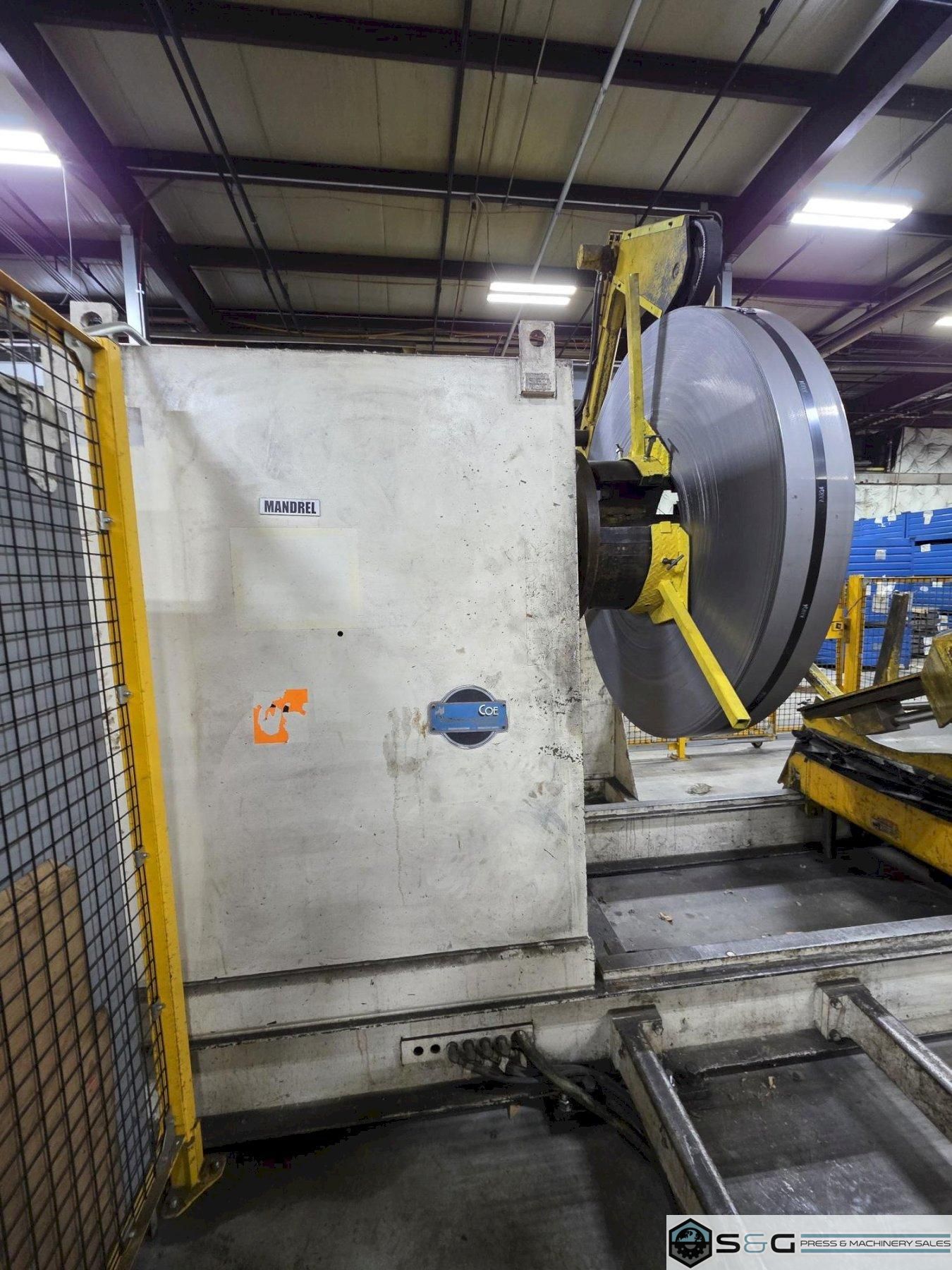

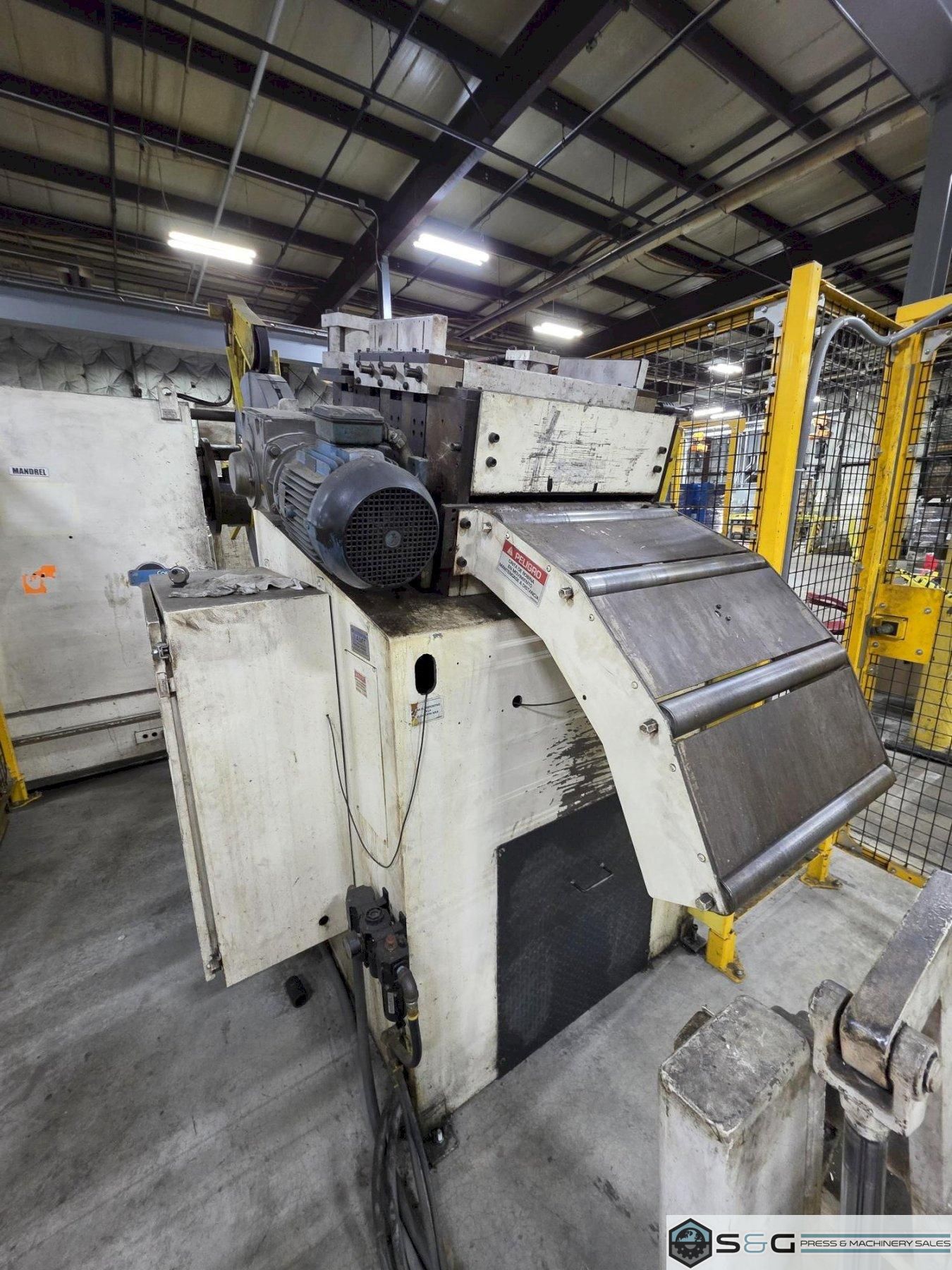

24 Inch Coe Press Equipment Coil Feed Line For SaleModels CPR-PO-15024 / CPPS-350-24 / CPRF-424Preliminary Specifications 15,000 lbs. Max Coil Weight 24" Maximum Coil Width .125" Maximum Coil Thickness at Full Width (Mild Cold Roll Steel) .100" @ 24" Wide ~ 60,000 PSI Yield .025" Minimum Thickness .210" Maximum Coil Thickness 72" Max. Coil O.D. 19-24" I.D. Expansion Range 0-80 FPM Line Speed Right To Left Feed Direction Coe Press Pull Off Coil Reel Uncoiler Model No. CPR-PO-150-24 SN/ 46317-4 Three leaf mandrel Hydraulic wedge type madrel expansion Adjustable coil keeper arms Hold Down Arm with Motorized End Wheel Thread drive for jog forward and reverse Air brake mounted on main spindle Adjustable tensioning Self contained hydraulic unit Traveling coil load car Powered lift and travel Coe Press Powered Straightener Model CPPS-350-24 SN/ 46317-3 Entry and exit pinch rolls with air operated upper pinch roll adjustments Seven straightening rolls x 3.5 inch diameter Individual upper straightening roll adjustments via screw jacks Adjustable stock width edge guides Inclined head with exit cascade loop support rollers Stock peeler - threading - debending station (PTH) Air operated coil hold down arm with motorized end wheel Air operated peeler table with spade extension Out board lubrication points Outboard air pressure regulator and gauges Common operator's station for control functions Hand held pendant for Jog forward and reverse Auto / Run cycle Loop control Coe Press Exit Thread Table Bomb bay style design Coe Press Servo Roll Feed Model CPRF-S324, Series 3 Three inch diameter feed rolls Matte chrome finish on upper and lower feed rolls 55" Passline Height +/- 3" adjustment Precision cluster gear driven feed rolls Clock spring Guard Pivoting upper feed roll assures gear mesh Air operated upper roll adjustment / pilot Heavy duty adjustable stock width edge guides Cascade loop support rollers Press mounted with heavy duty pass line adjustment AC Servo drive and controls Can be seen under power in the S&G Press and Machinery Warehouse! This heavy-duty 24-inch Coe Press Equipment conventional coil feed line is available for sale and can be inspected under power in the S&G Press and Machinery warehouse. Engineered for demanding metal stamping applications, this complete system handles material up to 24 inches wide, 0.187 inches thick at full width, and coil weights up to 15,000 lbs. The line includes a Coe CPR-PO-15024 pull-off reel featuring a traveling coil load car, hydraulic wedge-type mandrel expansion, and a powered thread drive. Material is expertly prepped by the Coe CPPS-350-24 power straightener, which utilizes a seven-roll setup, an integrated stock peeler-debender station, and air-operated pinch rolls. Precise material feeding is delivered by the Coe CPRF-324 servo roll feed, featuring matte chrome-finished rolls, precision cluster gear drive, AC servo controls, and heavy-duty pass-line adjustment. Contact us today to learn more or request pricing. |
|||
Attachments |
||
|---|---|---|
| D-9465.pdf | Download | |
Machine Tags |
||
|---|---|---|
| Coe Press Equipment For Sale, Coe Servo Feed Line For Sale, 24 inch Servo Feed, Used Coil Feed Equipment For Sale, Used Coil Feed Line | ||
