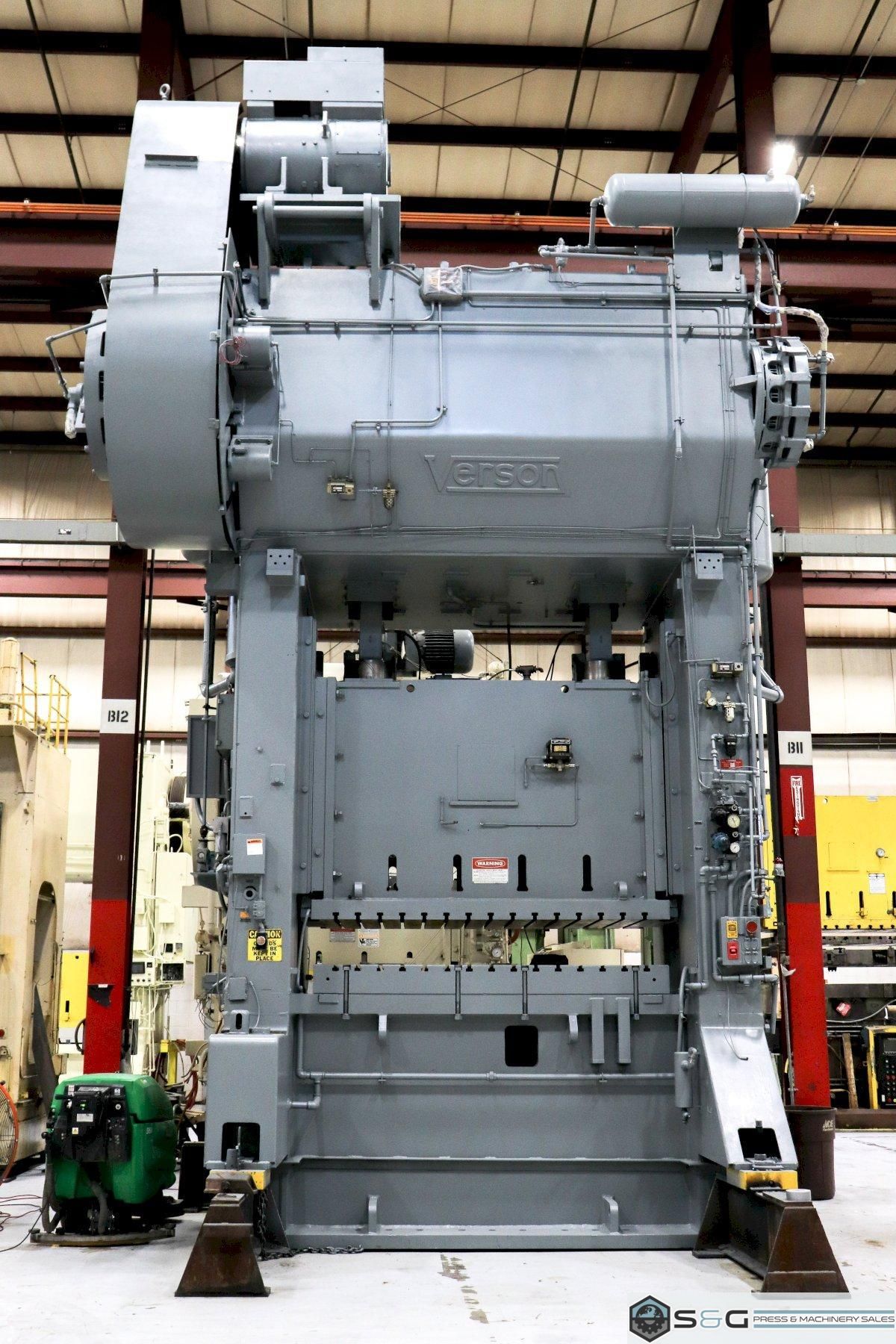

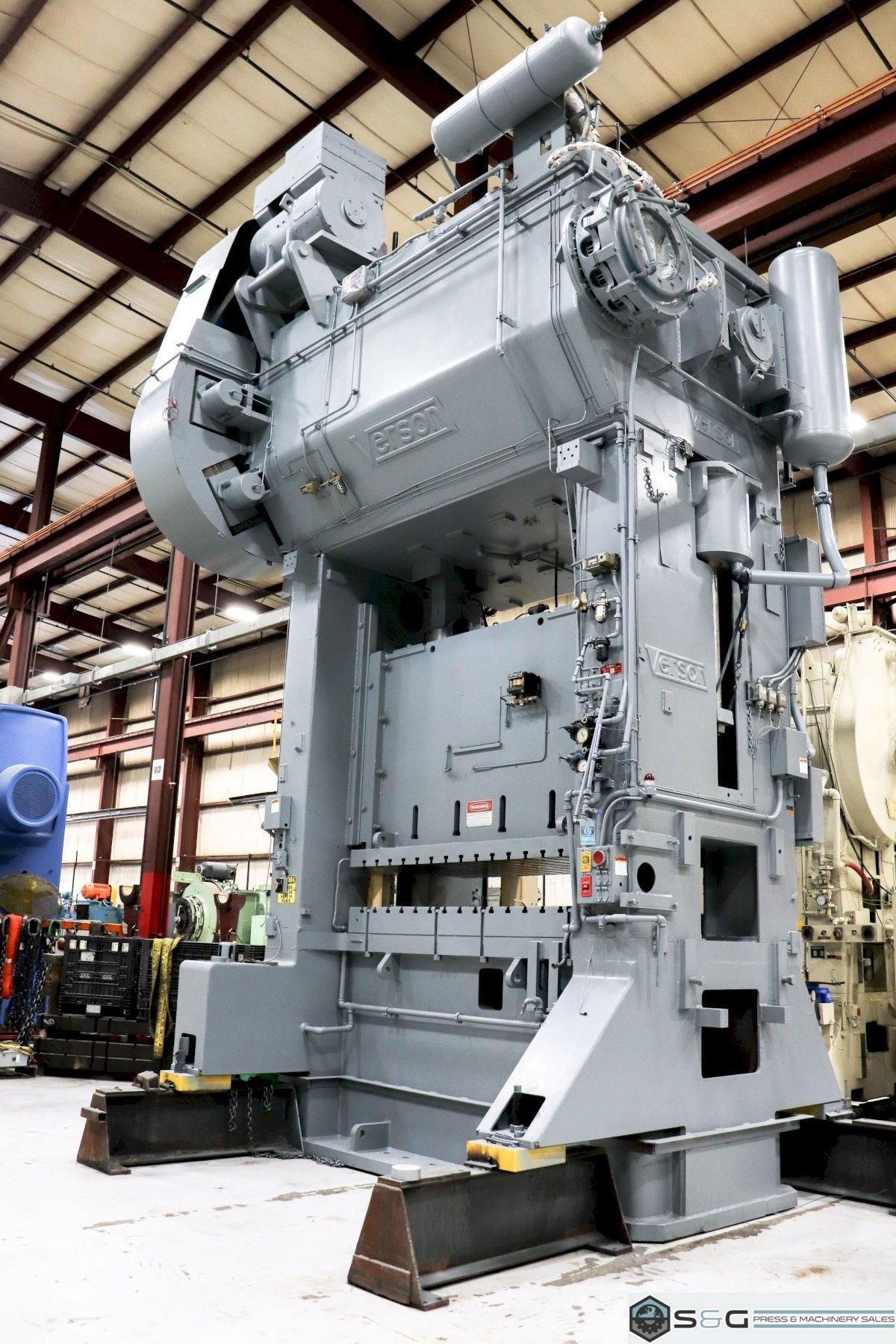

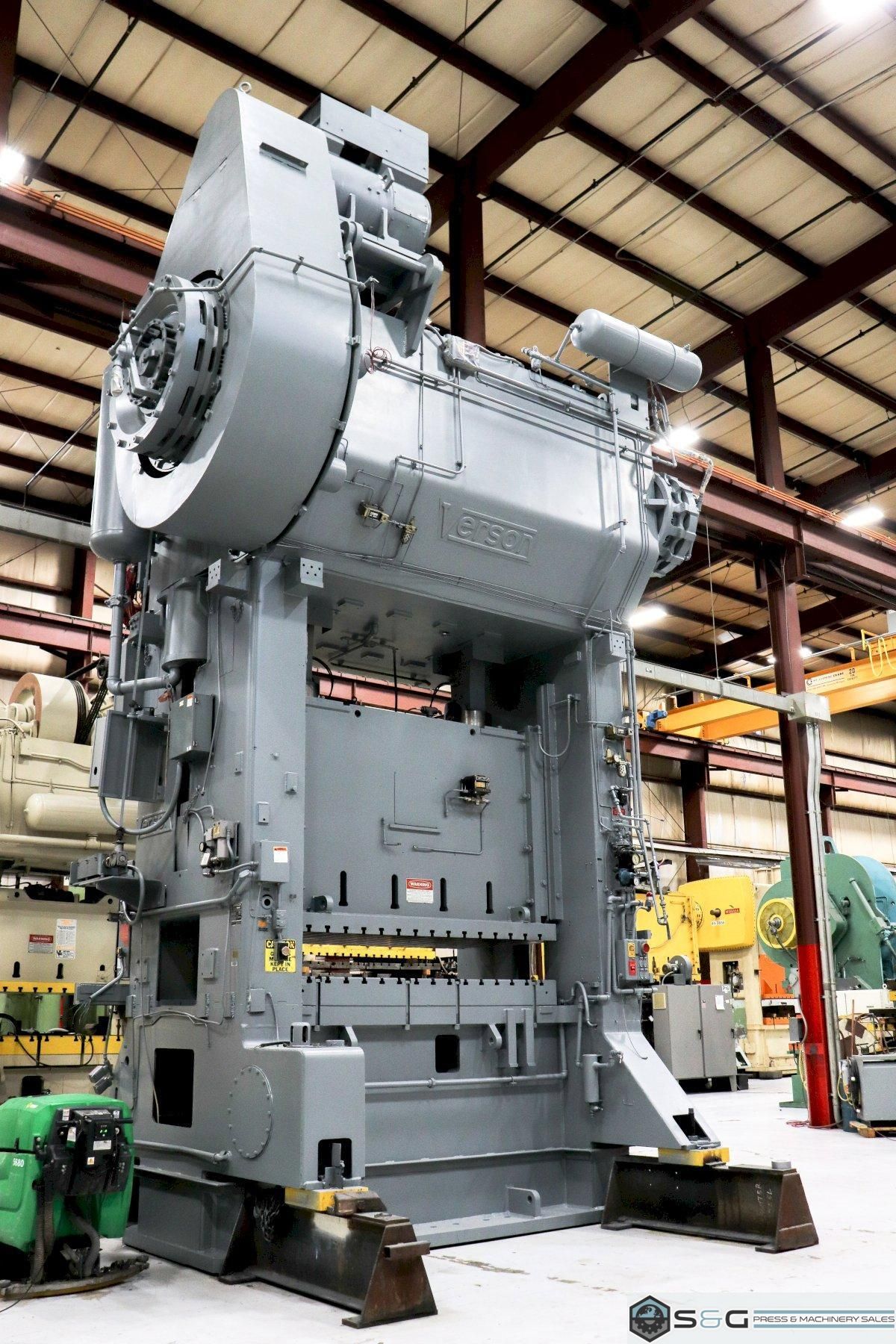

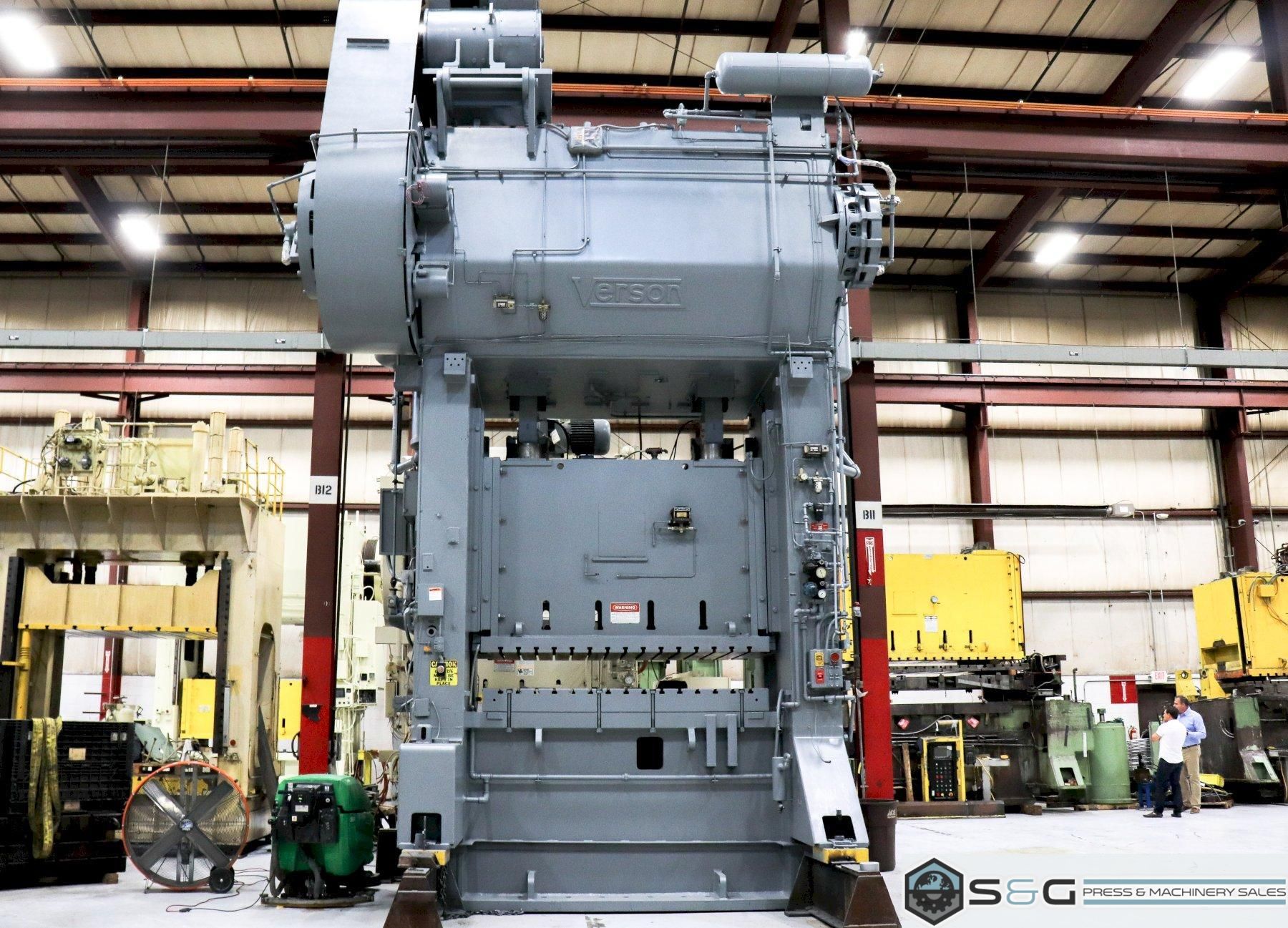

800 Ton VERSON SE2-800-96-48t Straight Side Press

Standard Specifications
800 ton Capacity
10" Stroke
32" Shut Height
5" Motorized Adjustment
96" LR x 48" FB Bed Area
96" LR x 48" FB Slide Area
20-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
8" Bolster Plate
Hydraulic Overloads
26" Wide Windows
Motors and Controls

26\'6" Floor to top of Motor
32" Pit Required
141" LR x 123" FB Footprint
