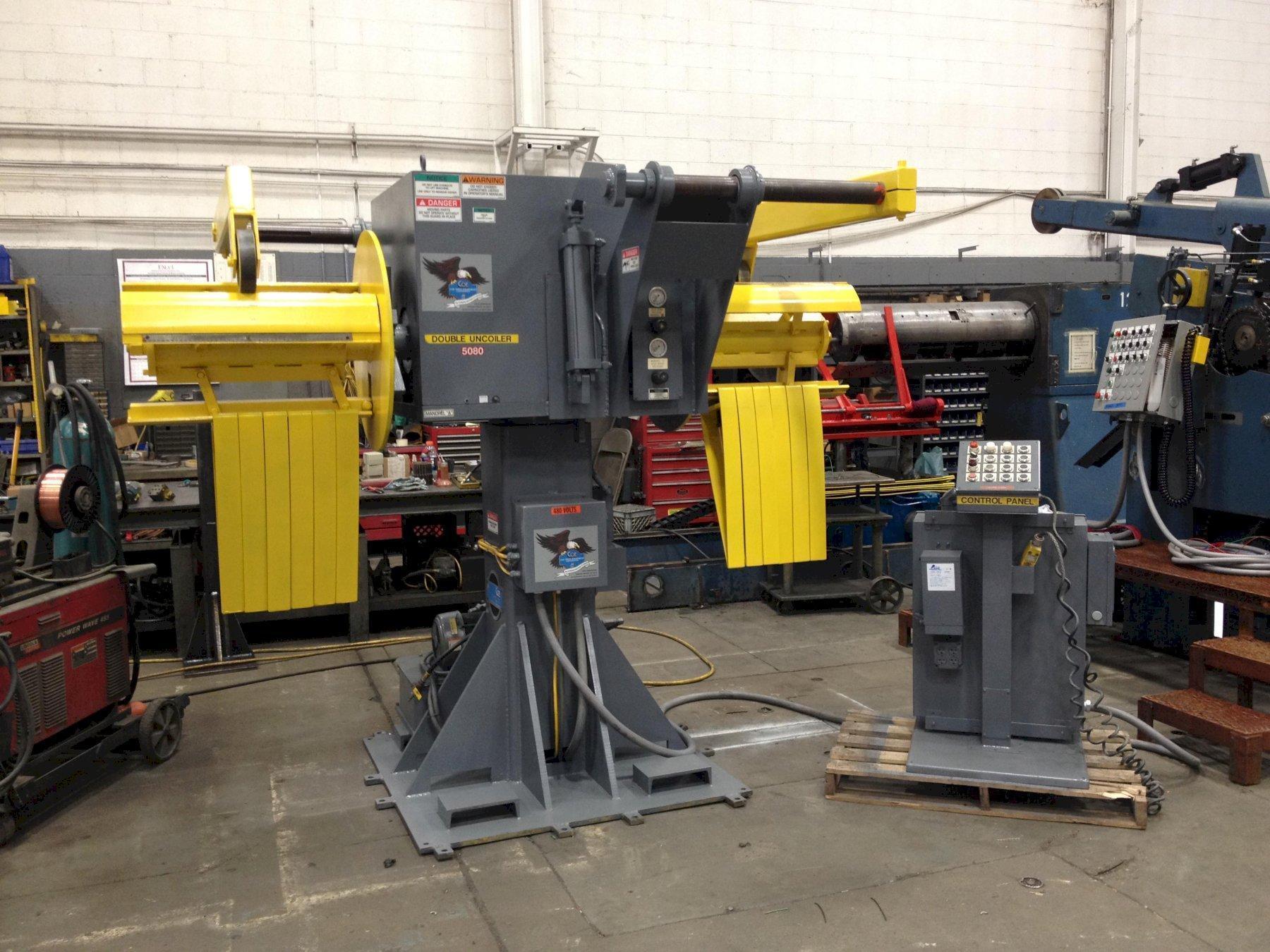

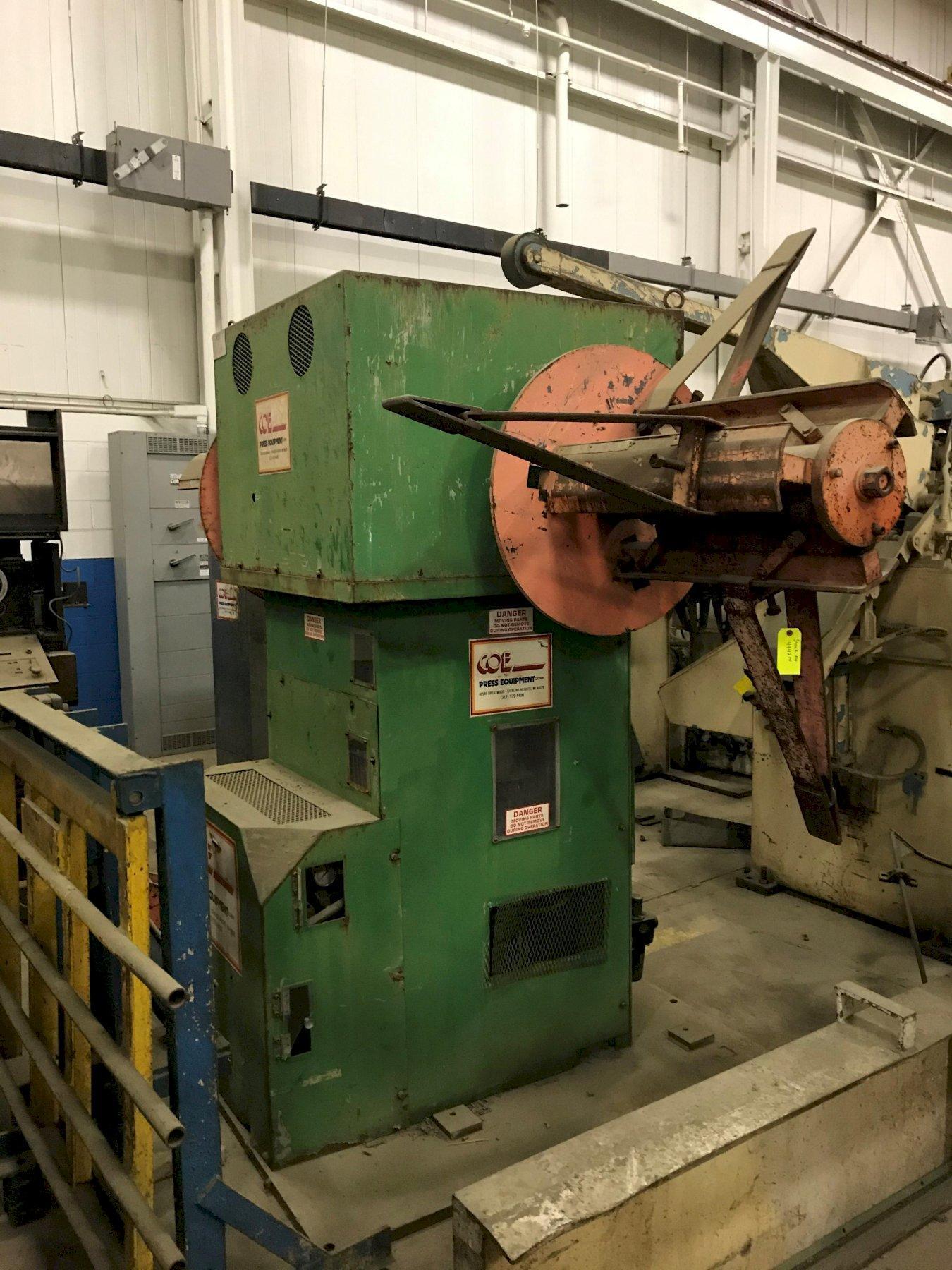

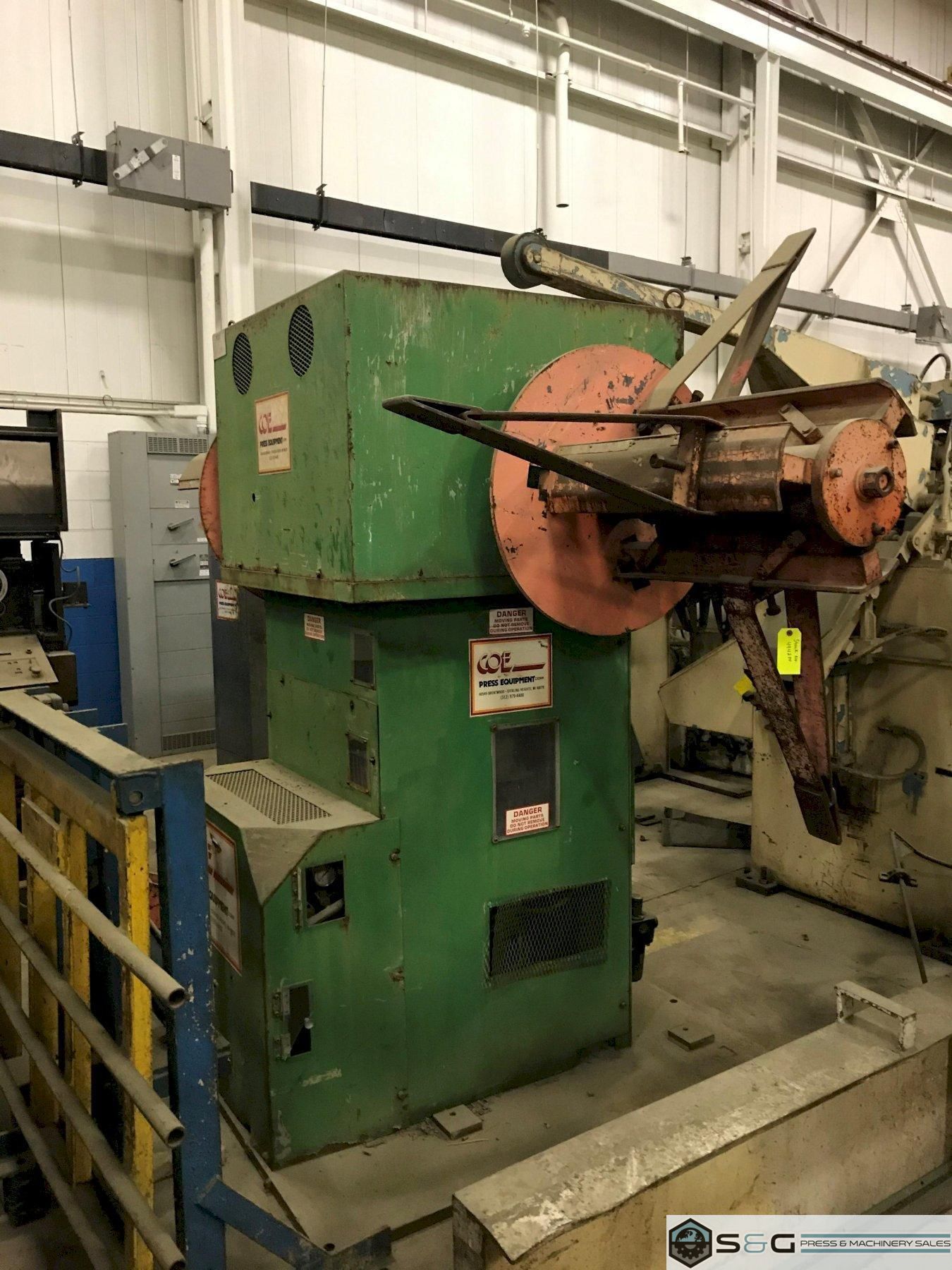

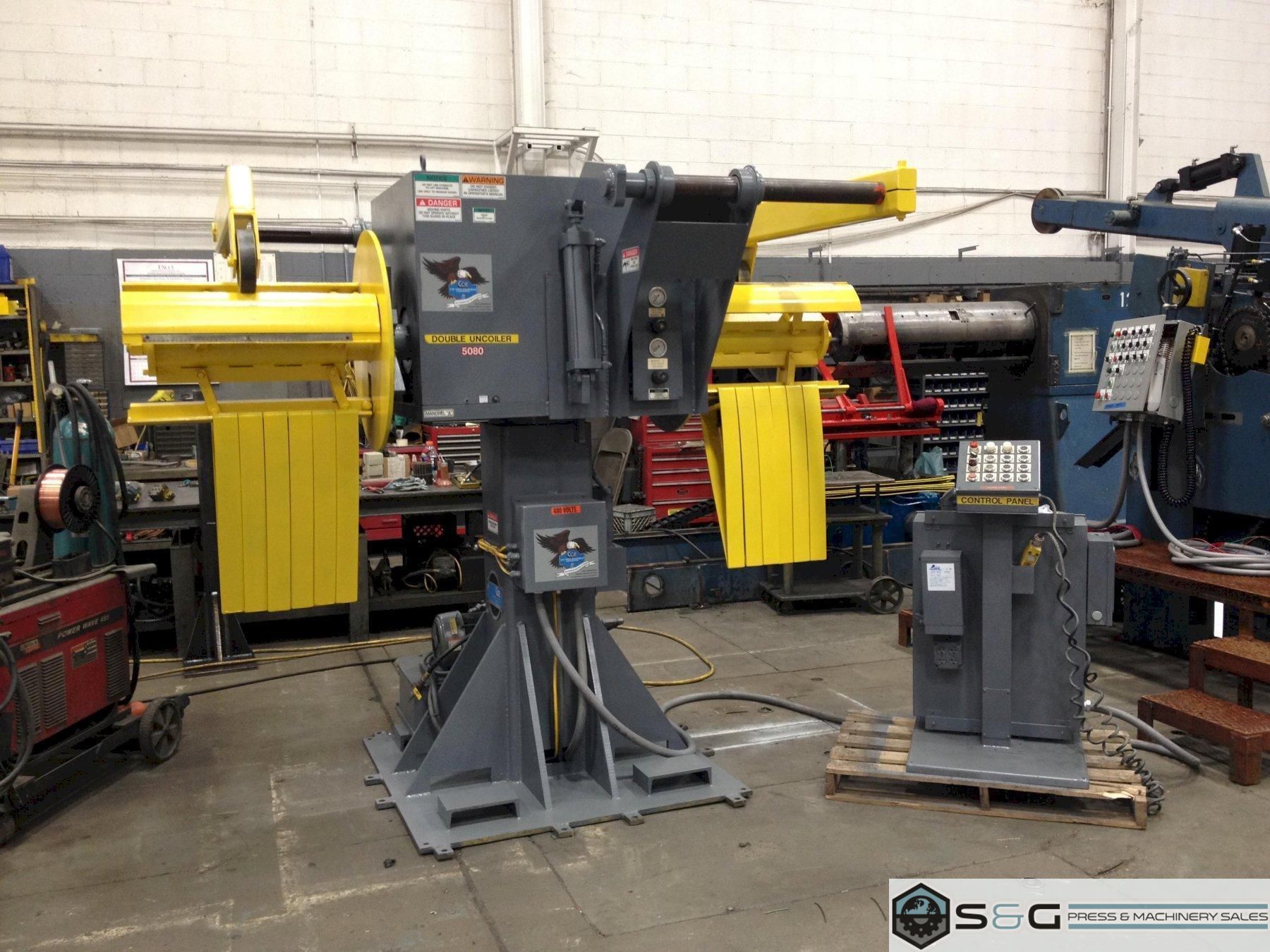

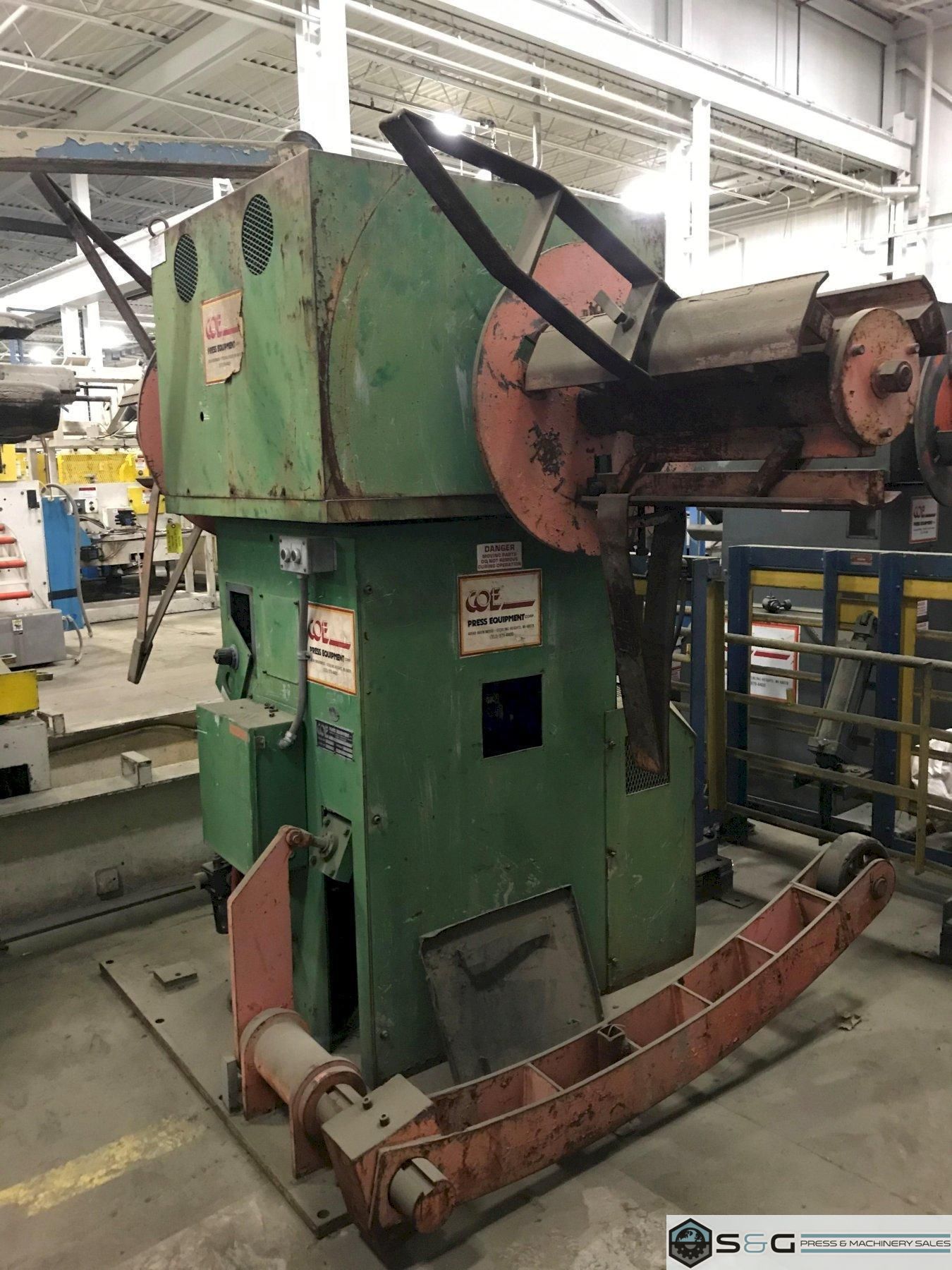

7000 Lbs. COE Model #CPR-DE-70-24, Double End Coil Reel

Standard Specification
7,000 lbs Capacity (per side)
24" Max. Coil Width
60" Max. Coil O.D.
I.D, Range (to be confirmed)

Equipment and Features
Double End Coil Reel Model No. CPR-DE-70
Three leaf mandrels
Full set of coil keeper arms
Hydraulic expansion of mandrels via push button
Air operated coil holding arm with neoprene end wheel
Air brakes mounted on main spindles
Powered arbor rotation
Locking pin for turret position
Jog forward and reverse
Pendant for jog functions
Variable speed drive system
Free standing operator's control console
Auto / Run cycle
Loop control

Reconditioned: 100% cycling Price: $44,750
As Is Price: $25,750
