4R18 / 12HDD / SMX-IV
None
2854
Used
Specifications |
|||
|---|---|---|---|
| Coil Weight | 6000 pounds |
||
| Coil Width | 12 inches |
||
| Coil Thickness | .250 inches |
||
|

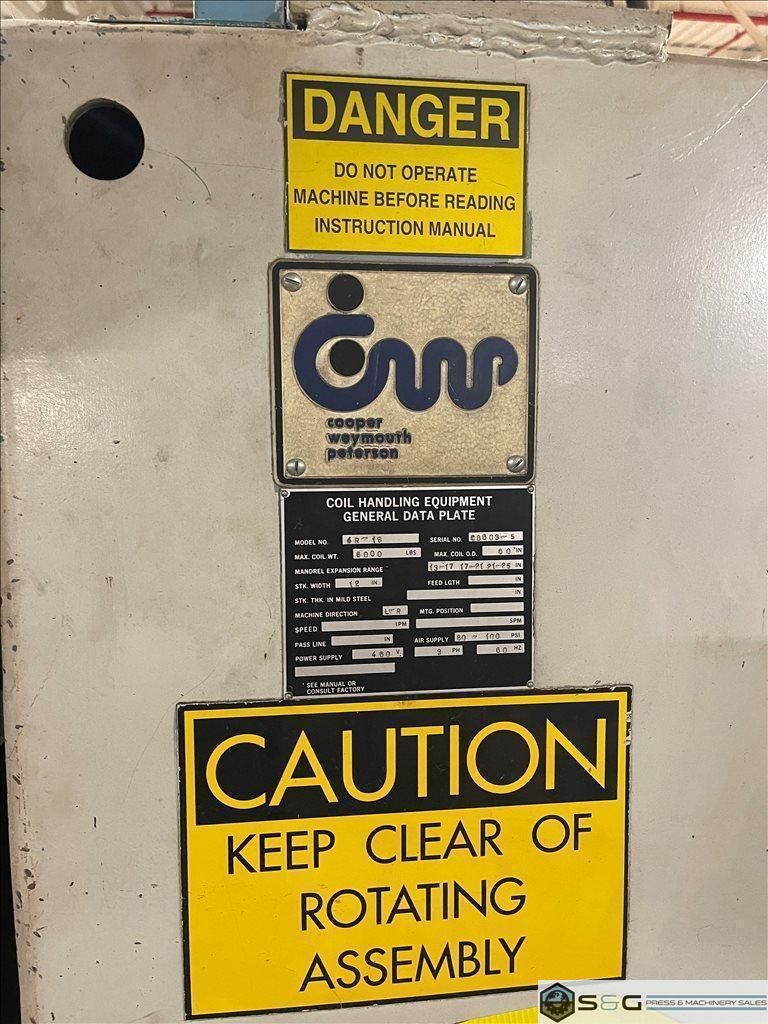

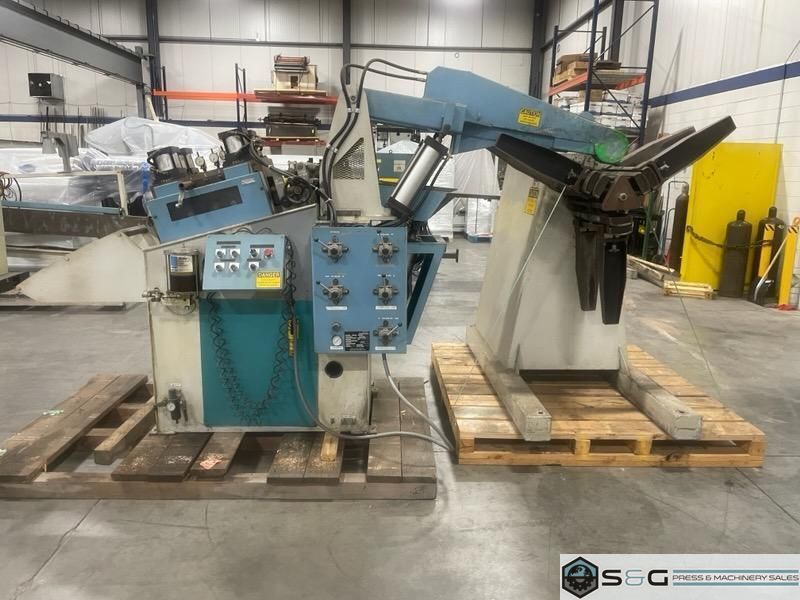

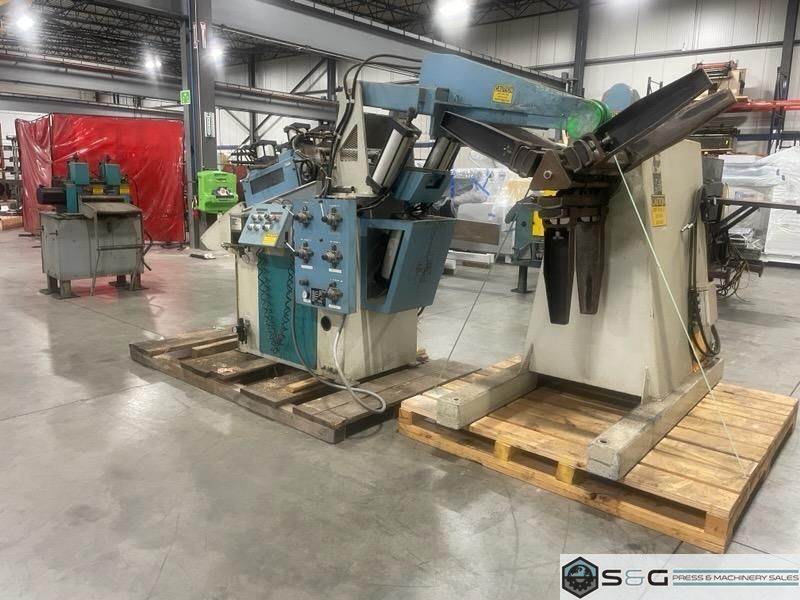

Cooper Weymouth Peterson (CWP) Coil Feed Line CWP Coil Reel Pull Off Un-coiler Model No. 4R18
Serial No. 68603-5
6,000 Lbs. Maximum Coil Capacity12" Maximum Coil Width .250" Maximum Coil Thickness at Full Width Three leaf mandrel
Full set of adjustable coil keeper arms

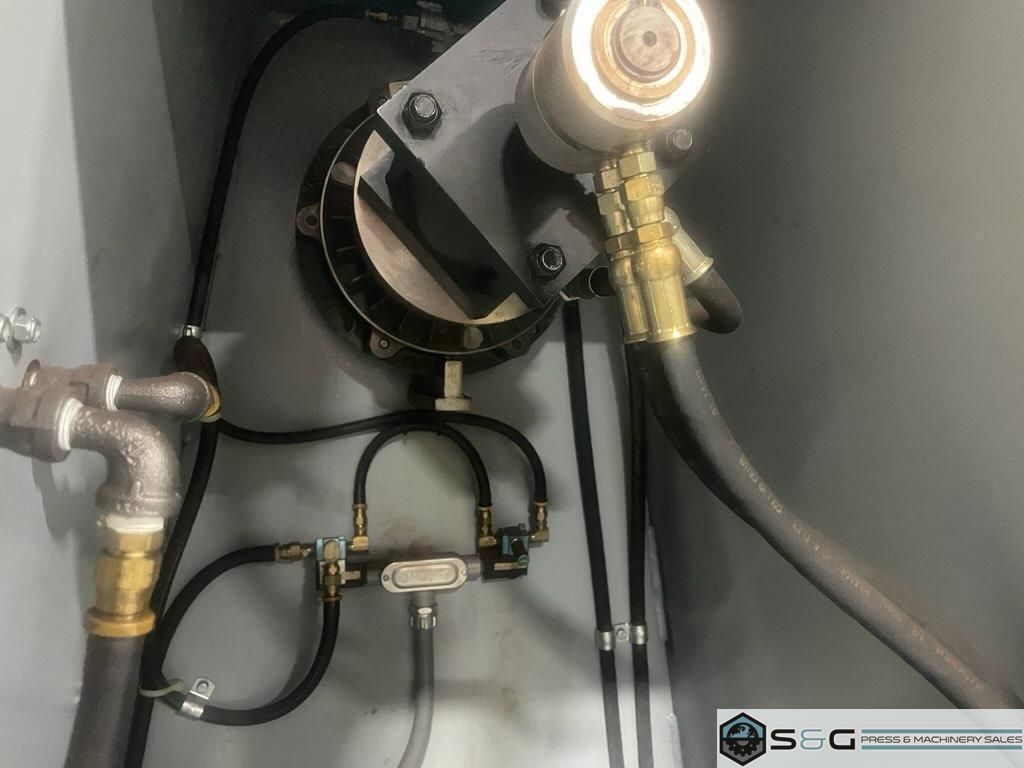

Hydraulic mandrel expansion
Expansion range: 13" - 17" / 17" - 21" with included ID risers
Hydraulic threading drive for reel jog forward and reverse
Air brake w/ adjustable pull off tensioning

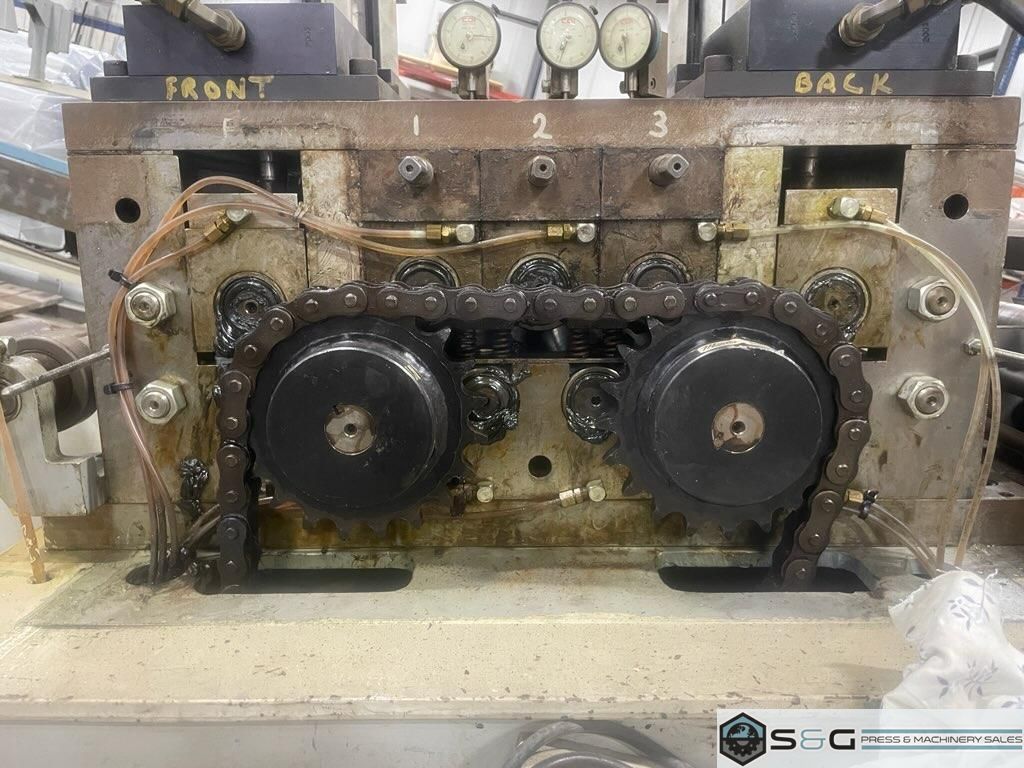

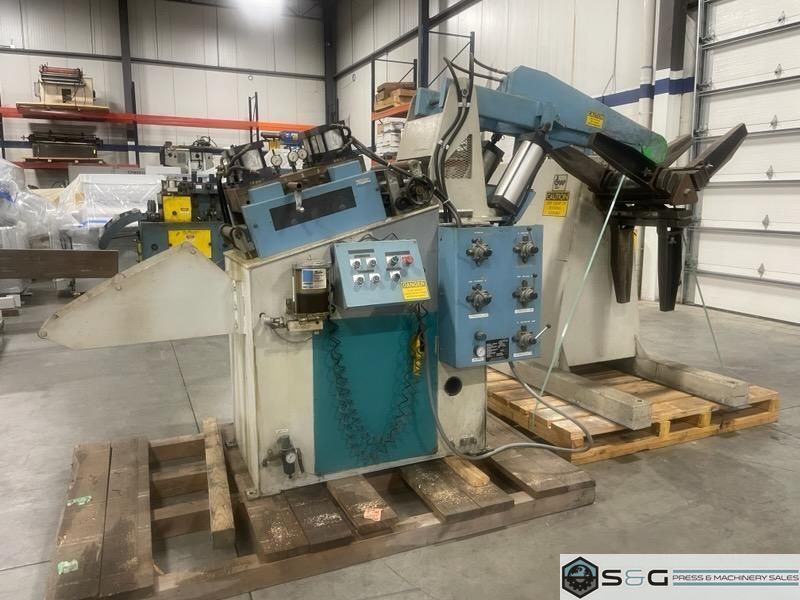

CWP Powered Coil Straightener Model No. 12HDD
Serial No.: 68603-3

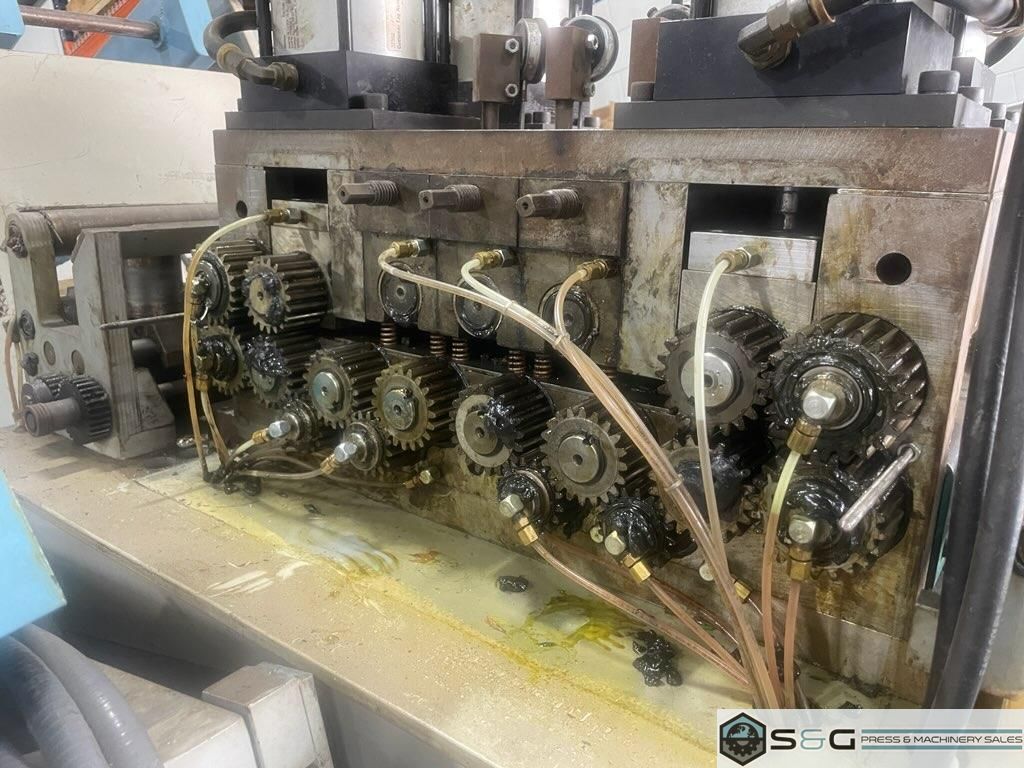

Seven straightening rolls
Entry and exit pinch rolls
Coil hold down arm with motorized end wheel
Stock peeler table with integrated stock de-bender
Adjustable stock width edge guides
Exit cascade loop support rollers
Automatic lubrication system
Operator's control station
Jog forward and reverse
Auto / Run cycle with variable speed loop control
CWP Exit Threading Table

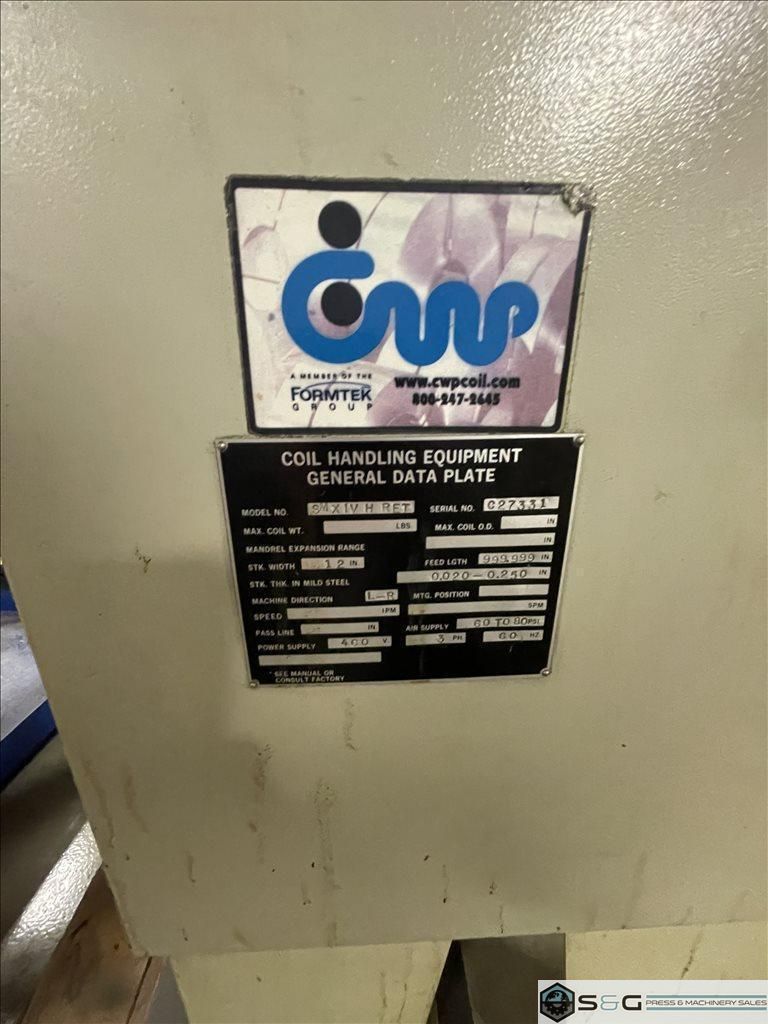

CWP Servo Roll Feed Model No. SMX-IV
Serial No. 27331
Piloting upper feed roll
Cabinet base mounted
Adjustable pass line
Entry cascade loop support rollers
Adjustable edge guides

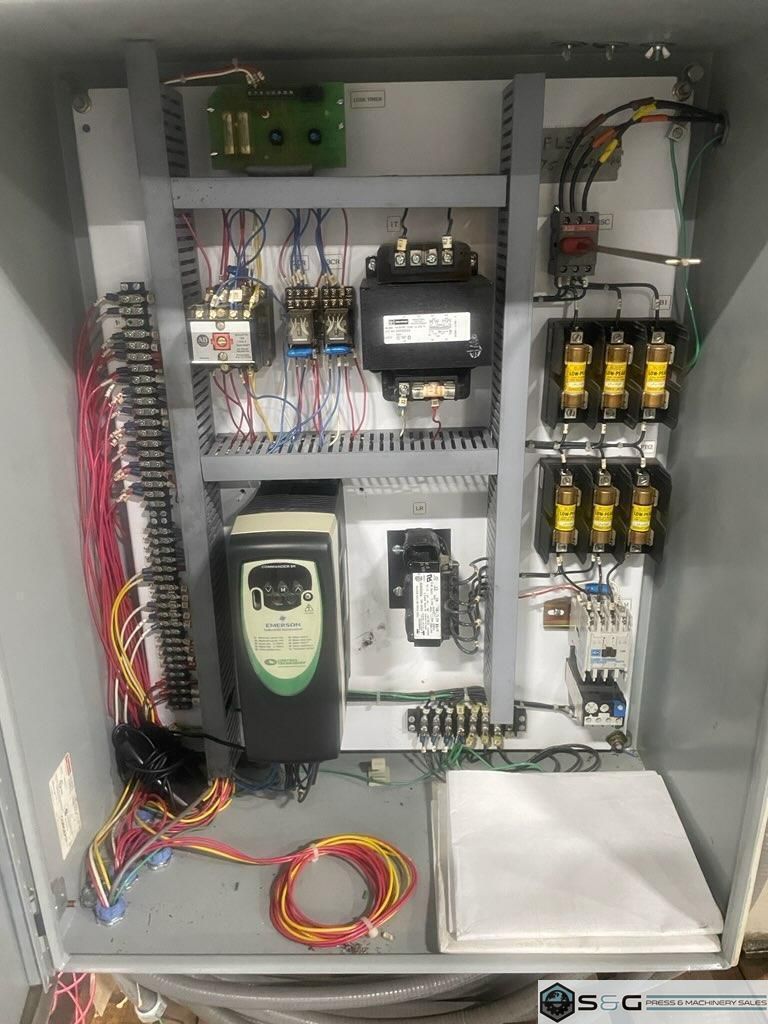

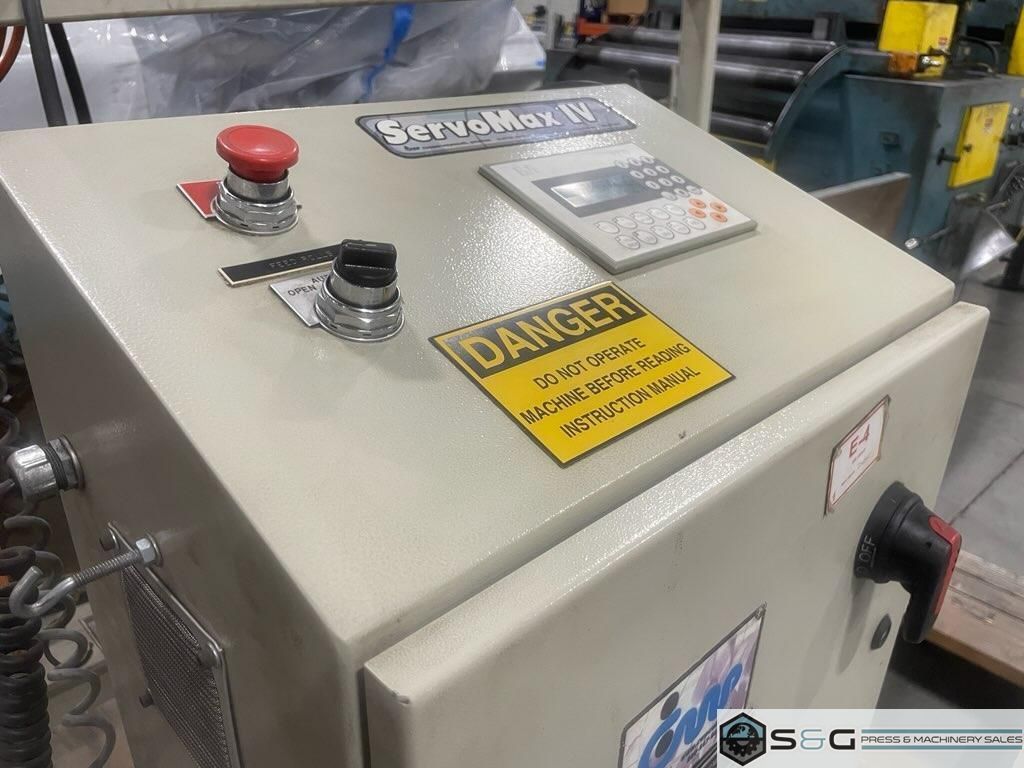

AC Servo controls
Conventional Metal Stamping Coil Feed Line from CWP Coil Feed Line For Sale |
|||
Attachments |
||
|---|---|---|
| 6000 lbs x 12" CWP Servo Coil Feed Line DWG. 1.pdf | Download | |
| 6000 lbs x 12" CWP Servo Coil Feed Line. 2.pdf | Download | |
