E2-600-84-48 Hevi-stamper
1987
2909
Used
Specifications |
|||
|---|---|---|---|
| Tonnage | 600 |
||
| Stroke | 12 inches |
||
| Shut Height | 32 inches |
||
| Adjustment | 6 inches |
||
| Bed Size | 84" LR x 48" FB |
||
| Ram Area | 84" LR x 48"FB |
||
| SPM | 0-60 VSPM |
||
|
Standard Specifications 600-ton Straight Side Mechanical Metal Stamping Press

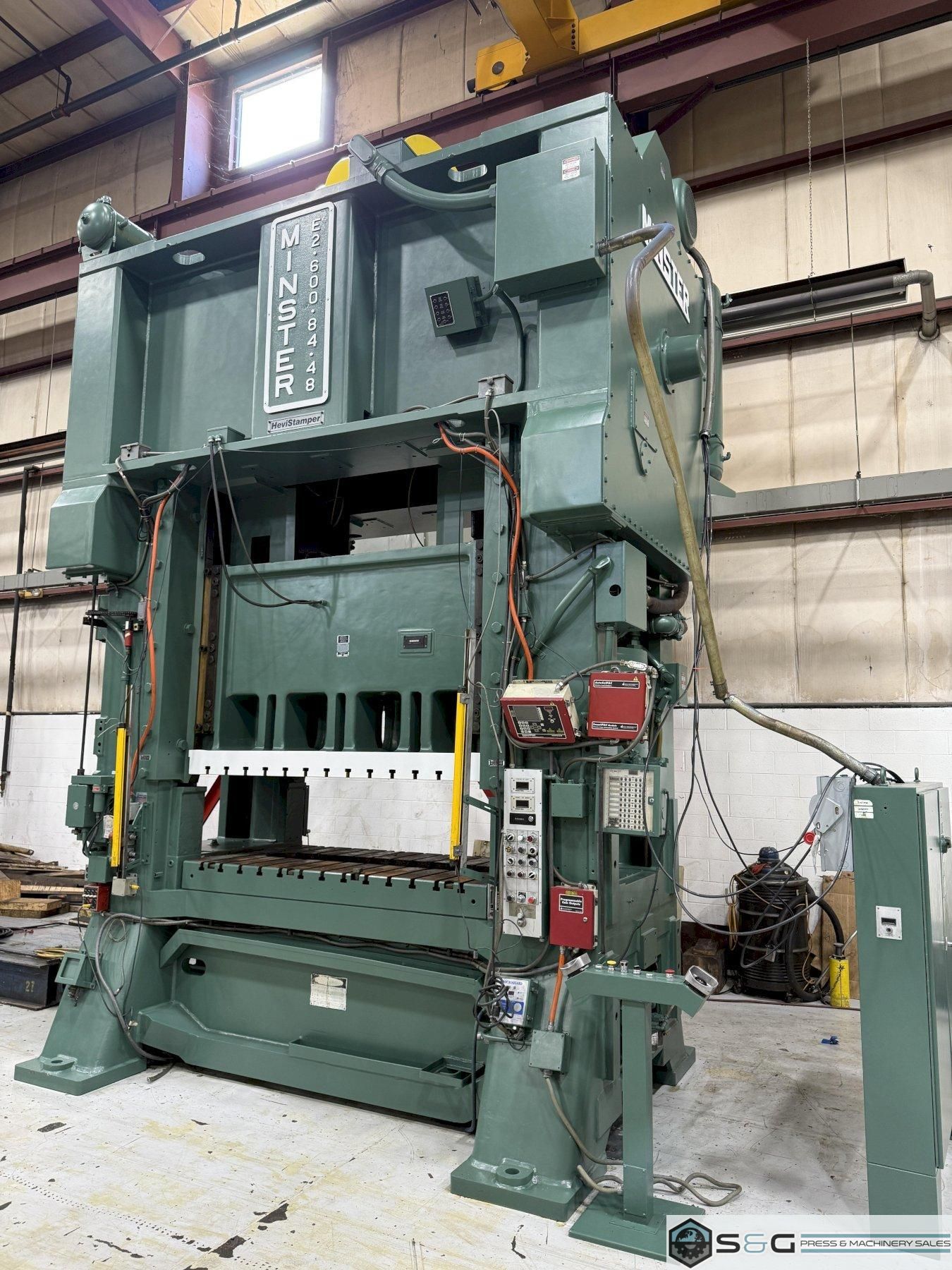

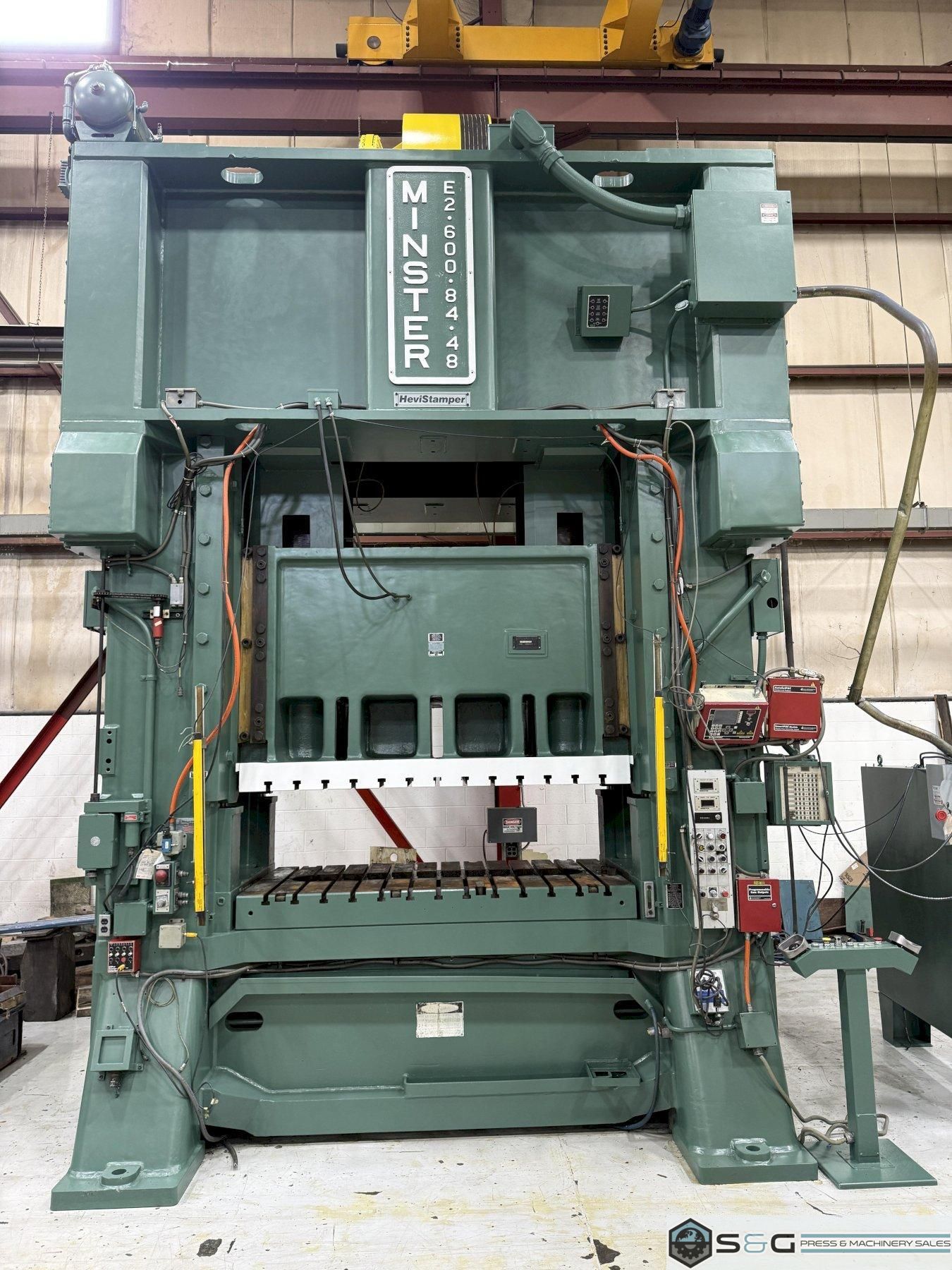

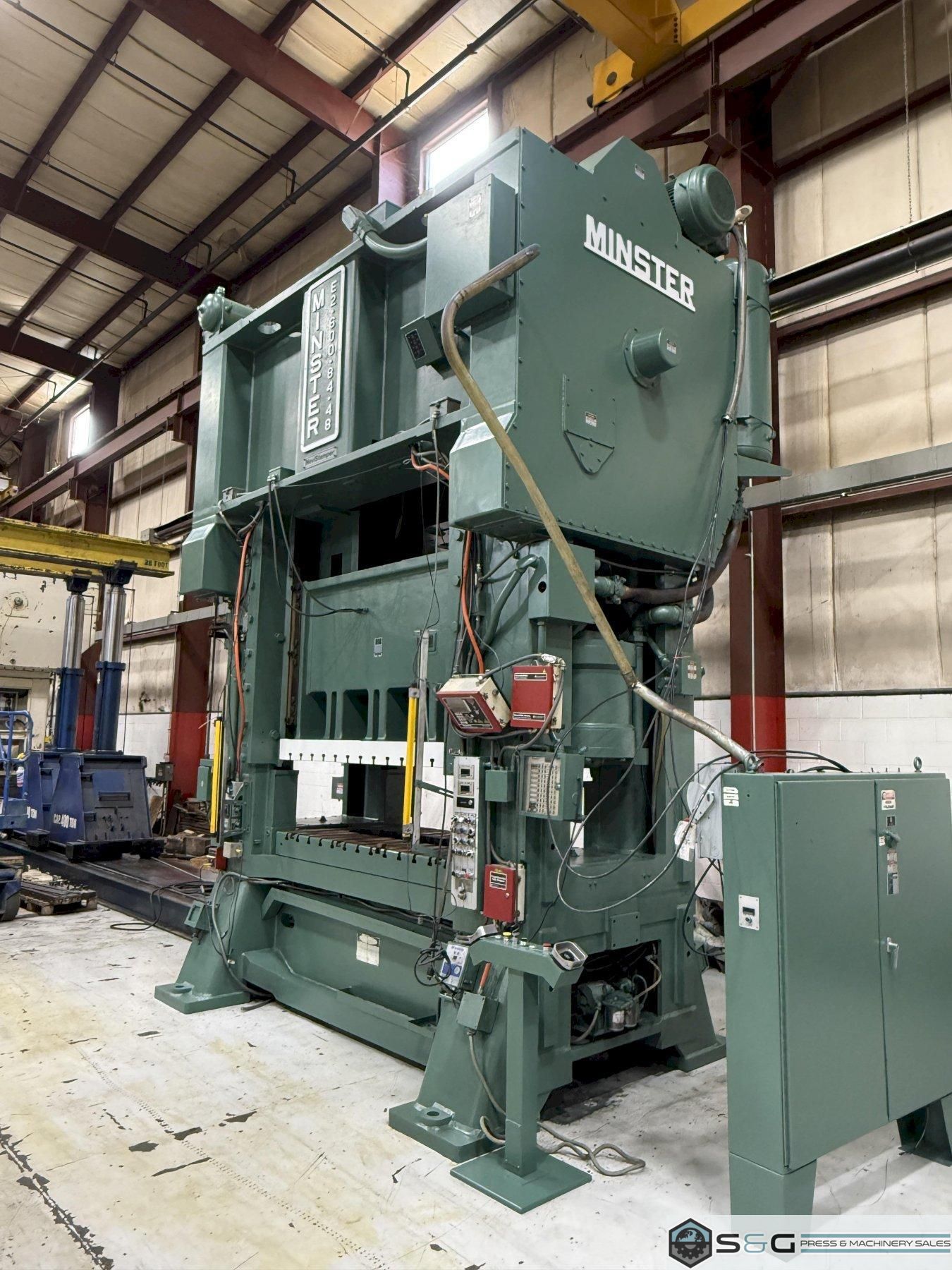

Minster Hevi-Stamper Model E2-600-84-48
600 ton Capacity
12" Stroke
32" Shut Height
25" Die Height on Bolster
6" Motorized Adjustment
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
0-60 VSPM
Equipment and Features
Air Clutch and Brake
Air Counterbalances
Monitor Flow Recirculating Lube System

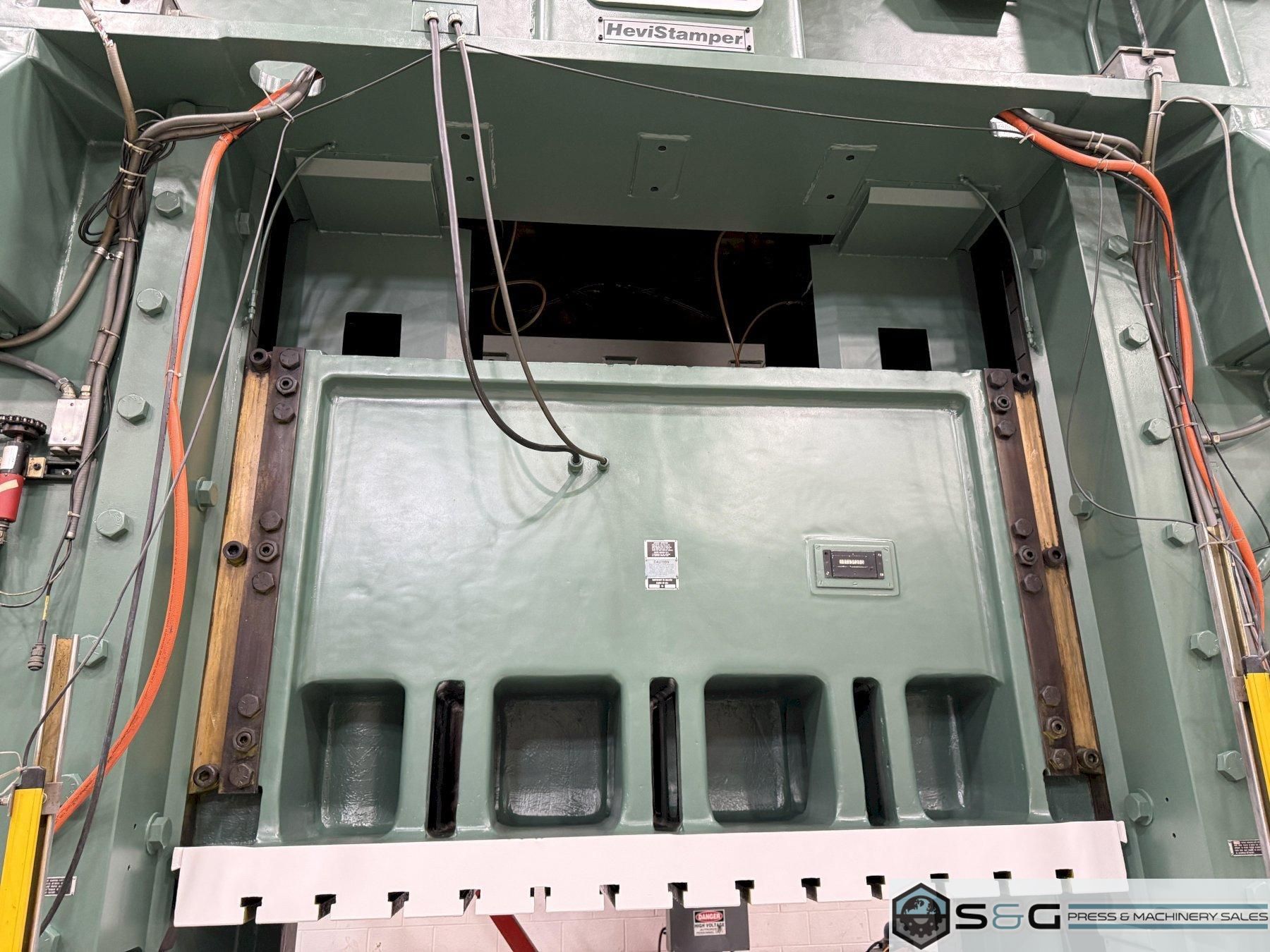

Single Geared - Twin End Drive 8 Point Adjustable Gibs 3 Crossbar Knockouts in Ram T-Slotted Ram and Bolster
Banner Light Curtains
42" Floor to Top Of Bed Wintriss Smart Pak 2 Press Control
Wintriss Die and Overload Protection Wintriss Brake Monitor
Palm Button Station
Free Standing Console Controls
33" wide Windows
100 HP / 1800 RPM Eddy Current Drive 480 volt / 3 phase / 60 Cycle Vibratory Leveling Pads
Floor Standing
Shipping Dimensions and Weight 20' 4.5" Tall x 94" Front to Back x 162.6" Width 165,000 lbs. Approx. Weight of Press Fully Assembled The 600-ton Minster E2-600-84-48 Hevi-stamper Press is widely considered the industry's best for heavy-duty stamping operations. Its robust frame, exceptional reliability, and high tonnage capacity make it ideal for forming large and complex metal components, used extensively in automotive, aerospace, and other demanding manufacturing sectors. This 600-ton Minster Hevi-Stamper Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse! Used 600-ton Mechanical Metal Stamping Press For Sale - Perfect for Progressive Die Stamping #Minster Press #Metal Stamping |
|||
Attachments |
||
|---|---|---|
| 600-ton Minster Hevi-Stamper E2-600-84-48 General Assembly Drawing.pdf | Download | |
