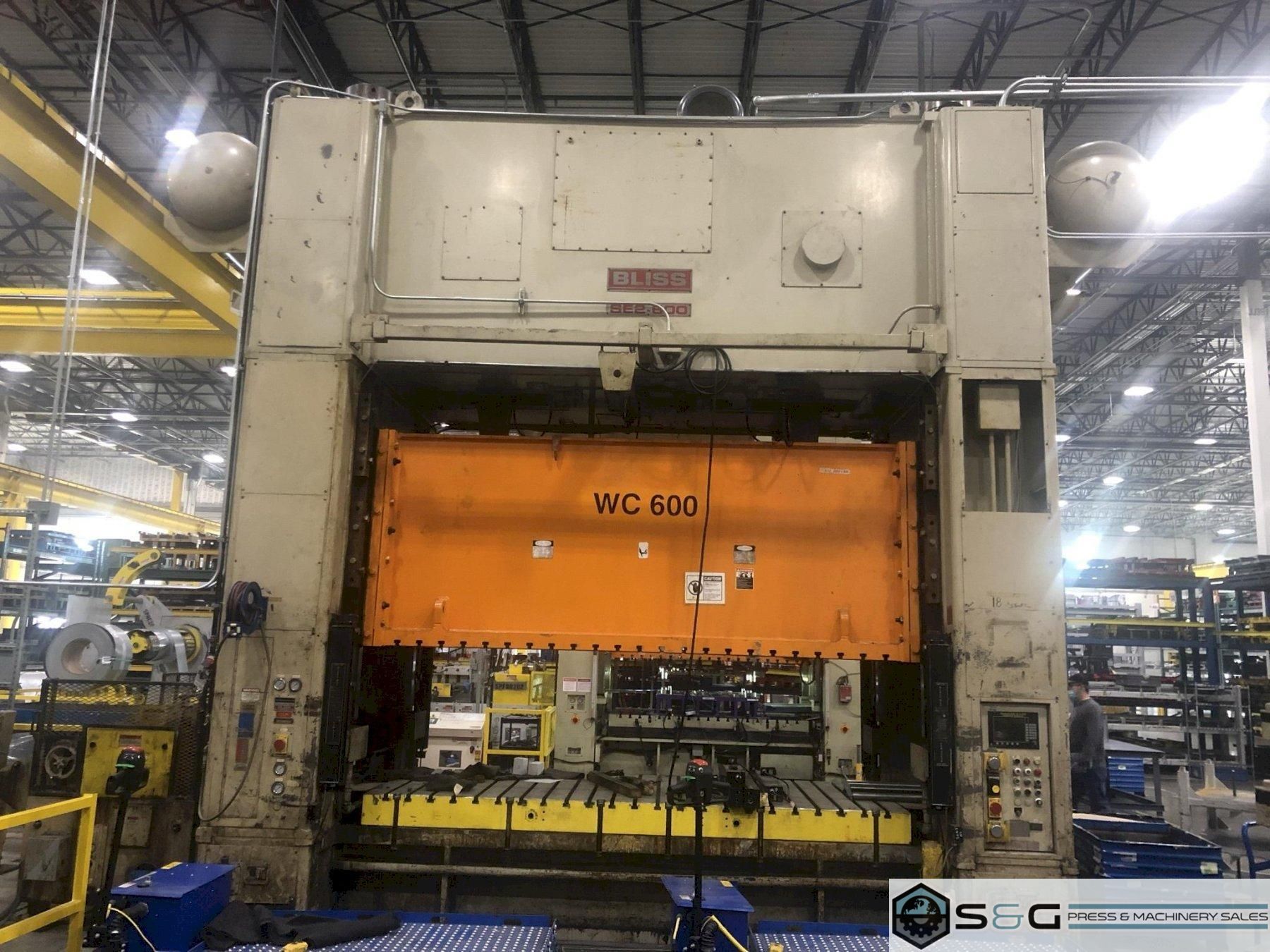

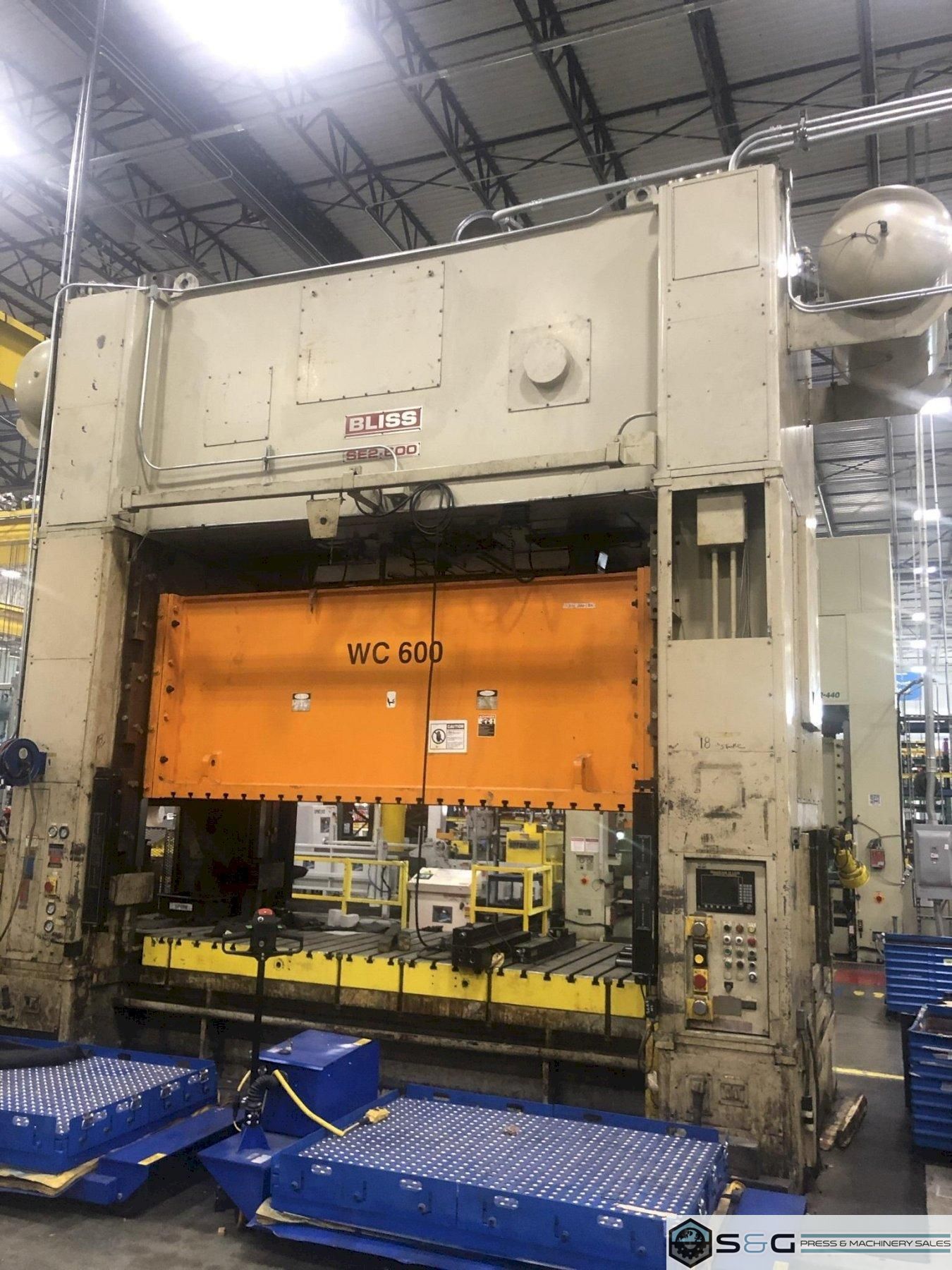

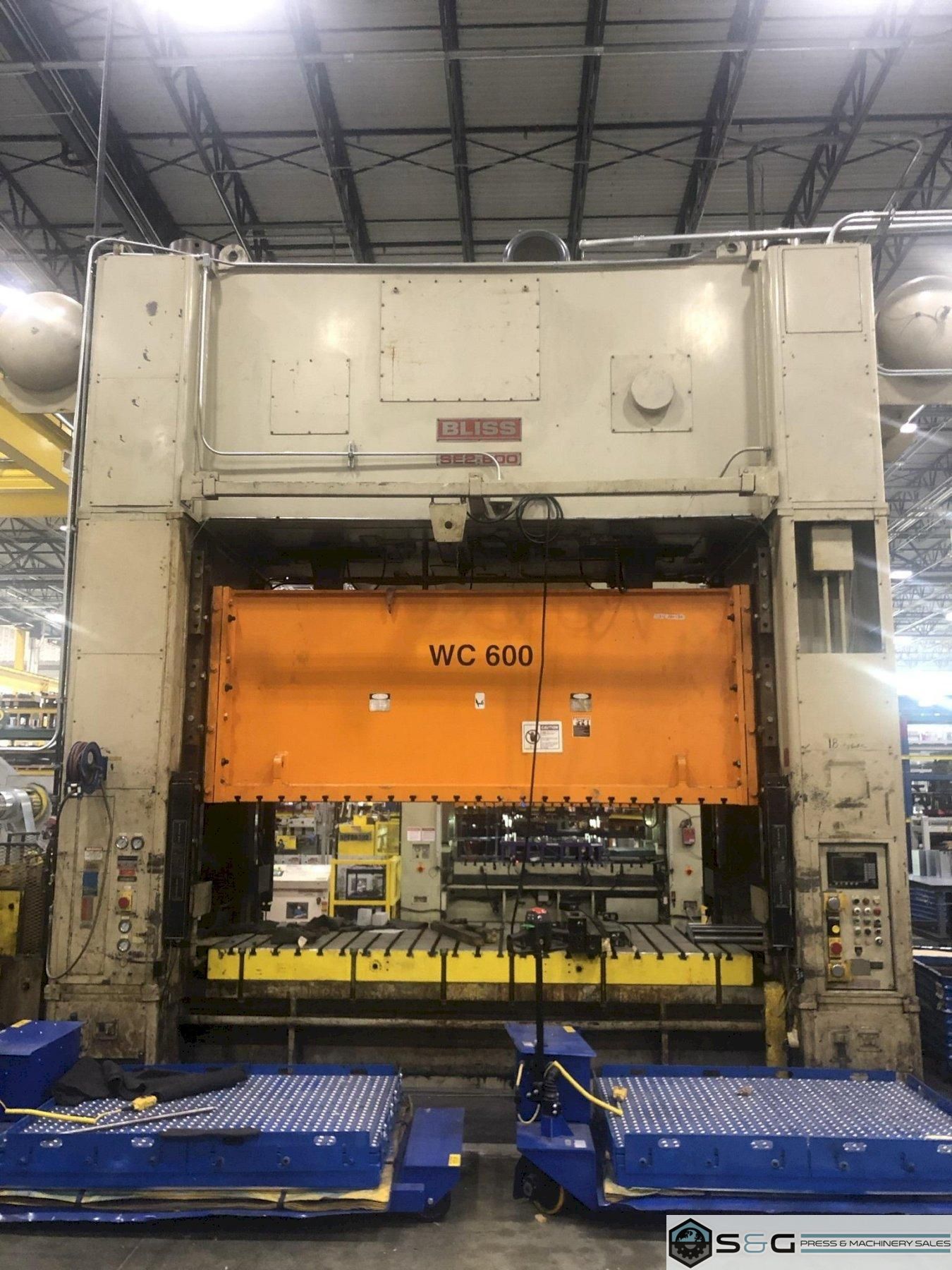

SE2-600-144-60
1997
2661
Very Good
Specifications |
|||
|---|---|---|---|
| Tonnage | 600 |
||
| Stroke | 18 inches |
||
| Shut Height | 40.5 inches |
||
| Adjustment | 12 inches |
||
| Bed Size | 144" LR x 60" FB |
||
| Ram Area | 144" LR x 60 FB |
||
| SPM | 10-30 |
||
|
Standard Specification T-Slotted Ram and Bolster
8.5" Bolster Plate
Omni Link II Press Control
Link Lite Black Max Light Curtains Front and Back 53" Wide Windows
Main Motor: 100 HP @ 560-1875 RPM
Knockout in Slides
8 Point Gibbing
Single / Inch / Continuous
Hydraulic Tie Rod Nuts
Floor to Top of Bolster 24"
Footprint: 226" LR x 98" FB
Rebuilt Crown, Ram, Air Counterbalances, Clutch and Brake in 2018! |
|||
