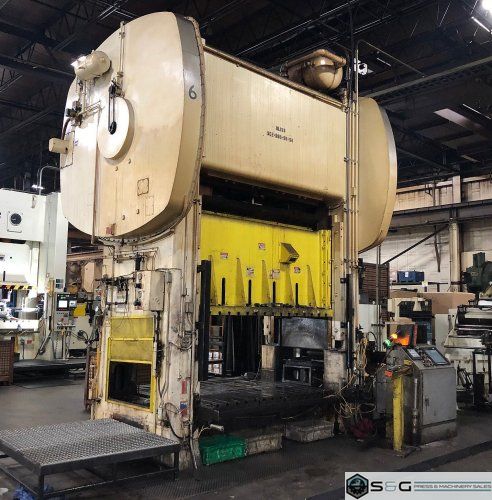

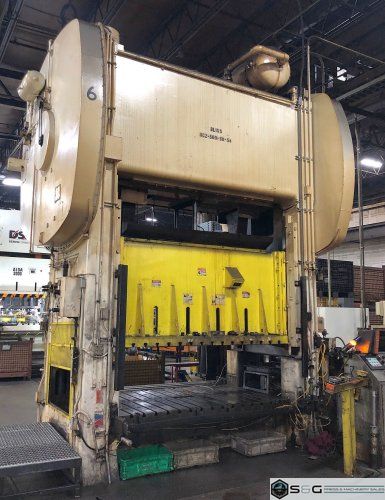

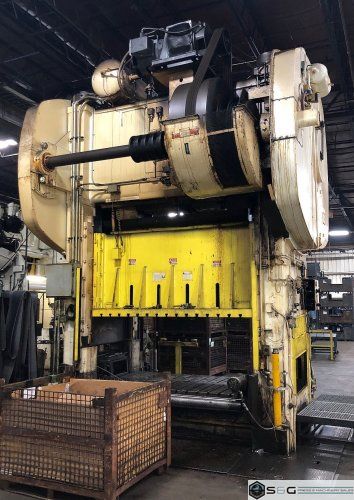

500 Ton BLISS SC2-500-96-54 Straight Side Mechanical Metal Stamping Press

Standard Specifications
Bliss Mechanical Metal Stamping Press
500 ton Capacity
12" Stroke
44" Shut Height
12" Motorized Adjustment
96" LR x 54" FB Bed Area
96" LR x 54" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
7.5" Thick Bolster Plate
Trabon Recirculating Lubrication System
Free Standing Press Control
Cieco PLC Clutch/Brake Control
Autoset Pac for Cieco Control
Eddy Current Variable Speed Drive (New in Feb. 2019)
Main Motor: 75 HP @ 1690 RPM
Set of Vibration Isolation Levelers
Knockouts in Slide
8 Point Gibbing
Single/Inch/Continuous
Motors and Controls
Hydraulic Tie Rod Nuts
Power: 440 V/3 Phase/60HZ
495" Floor to Top of Bolster
36" x 20" Windows
Floor Standing

20\'5" Overall Height
132 " LR x 102" FB Foot Print Dimensions
