500-ton Bliss SC2-500-108-60 Straight Side Mechanical Metal Stamping Press, Year 1989 Full Rebuild In Process!

Standard Specifications
500-ton Bliss Straight Side Mechanical Press
Metal Stamping Press Model# SC2-500-108-60
Full Remanufacture in Process - Complete 2025
14" Stroke
44" Shut Height (SDAU) on Bed
36" Die Height on Bolster
12" Motorized Adjustment
108" LR x 60" FB Bed Area
108" LR x 60" FB Slide Area
20-50 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube Syste
8" T-Slotted Bolster
T-Slotted Ram with Knockouts
(2) Plug in Pedestal Palm Button Stations
75 HP Dynamatic Eddy Current Drive
Hydraulic Tie Rod Nuts
Light Curtains Front and Back
37" Wide Windows
Floor Standing

Footprint: 148" x 102"
245" Max. Overall Height

Click for more 500-ton Press Options

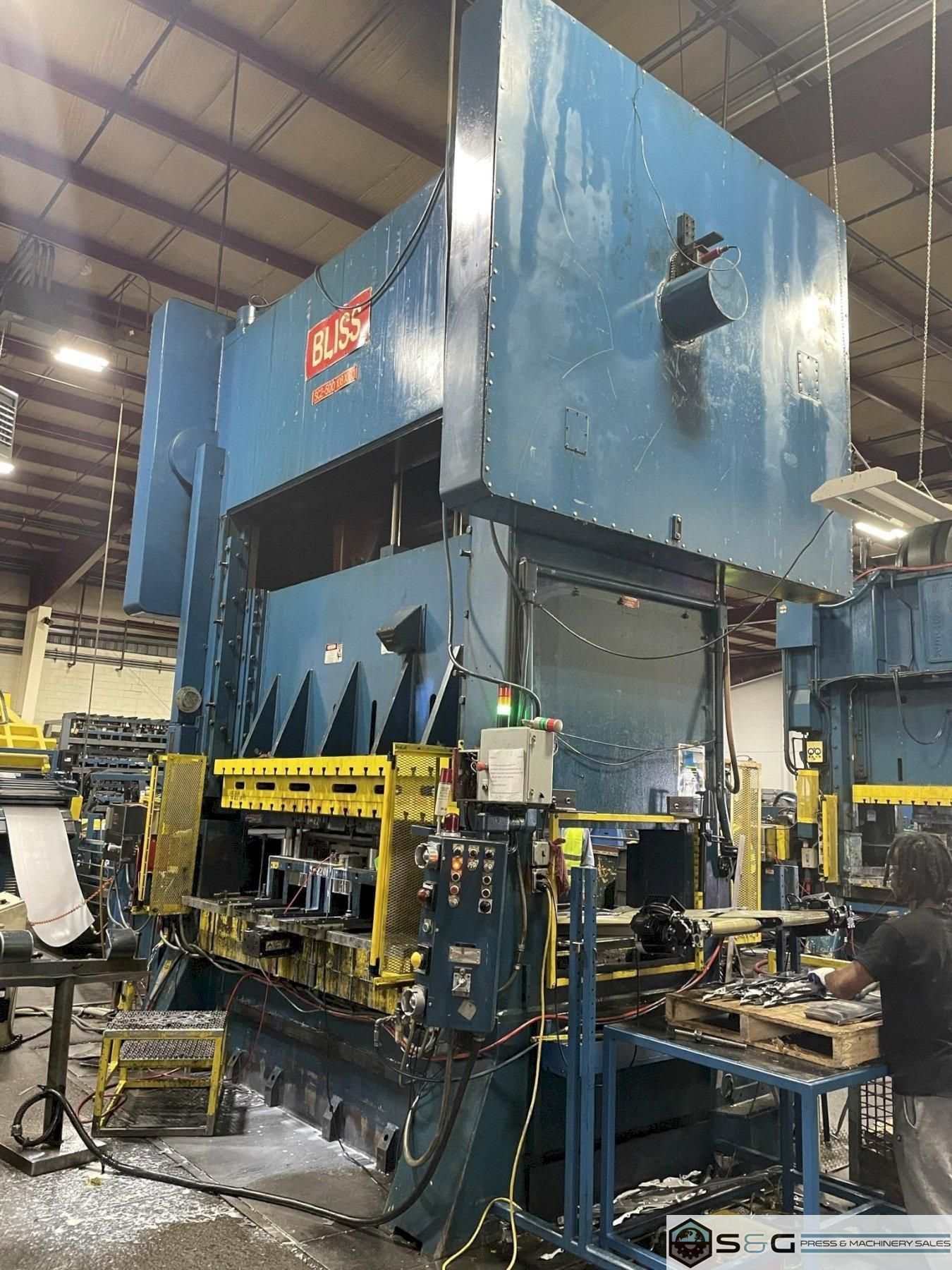

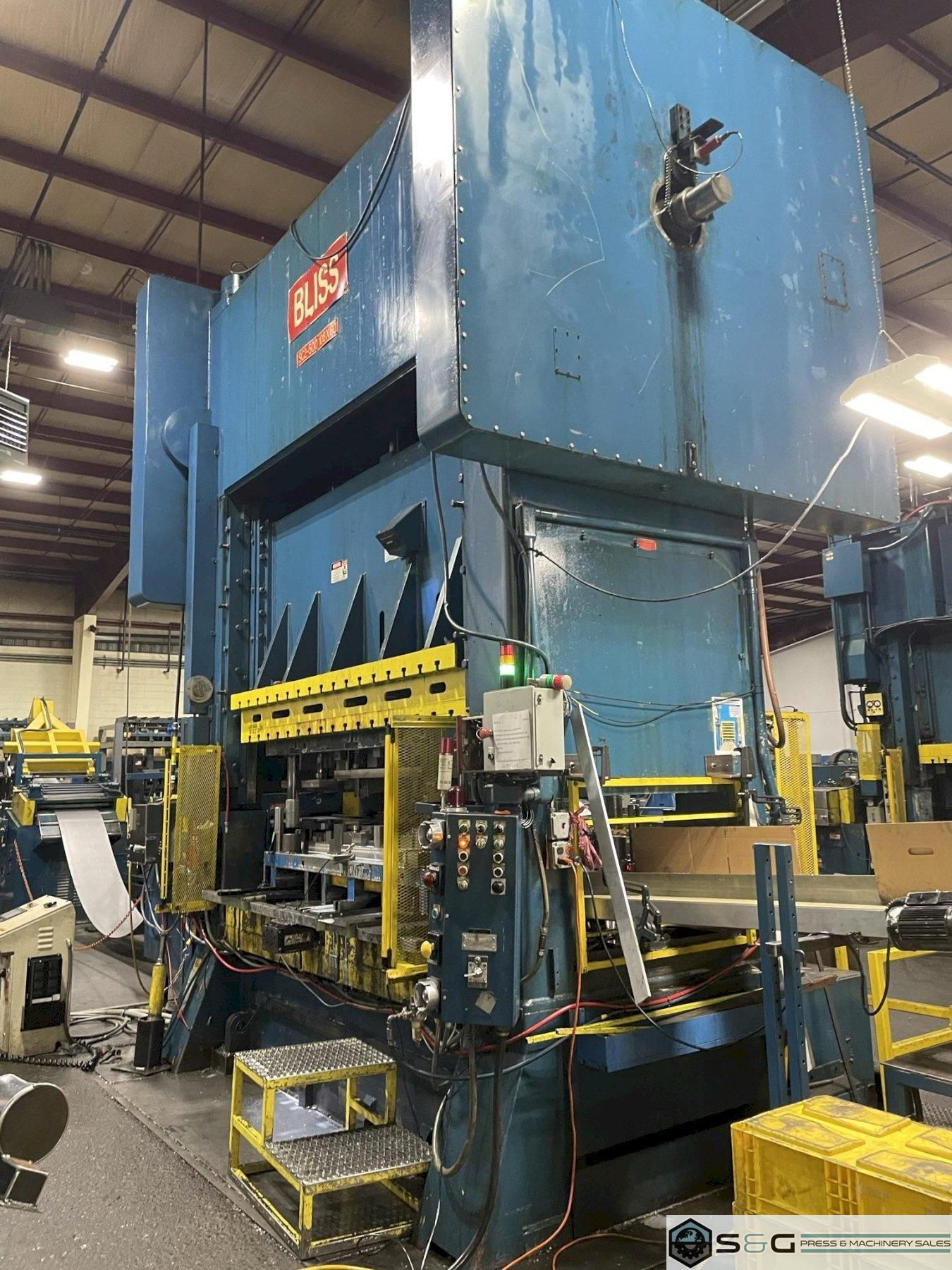

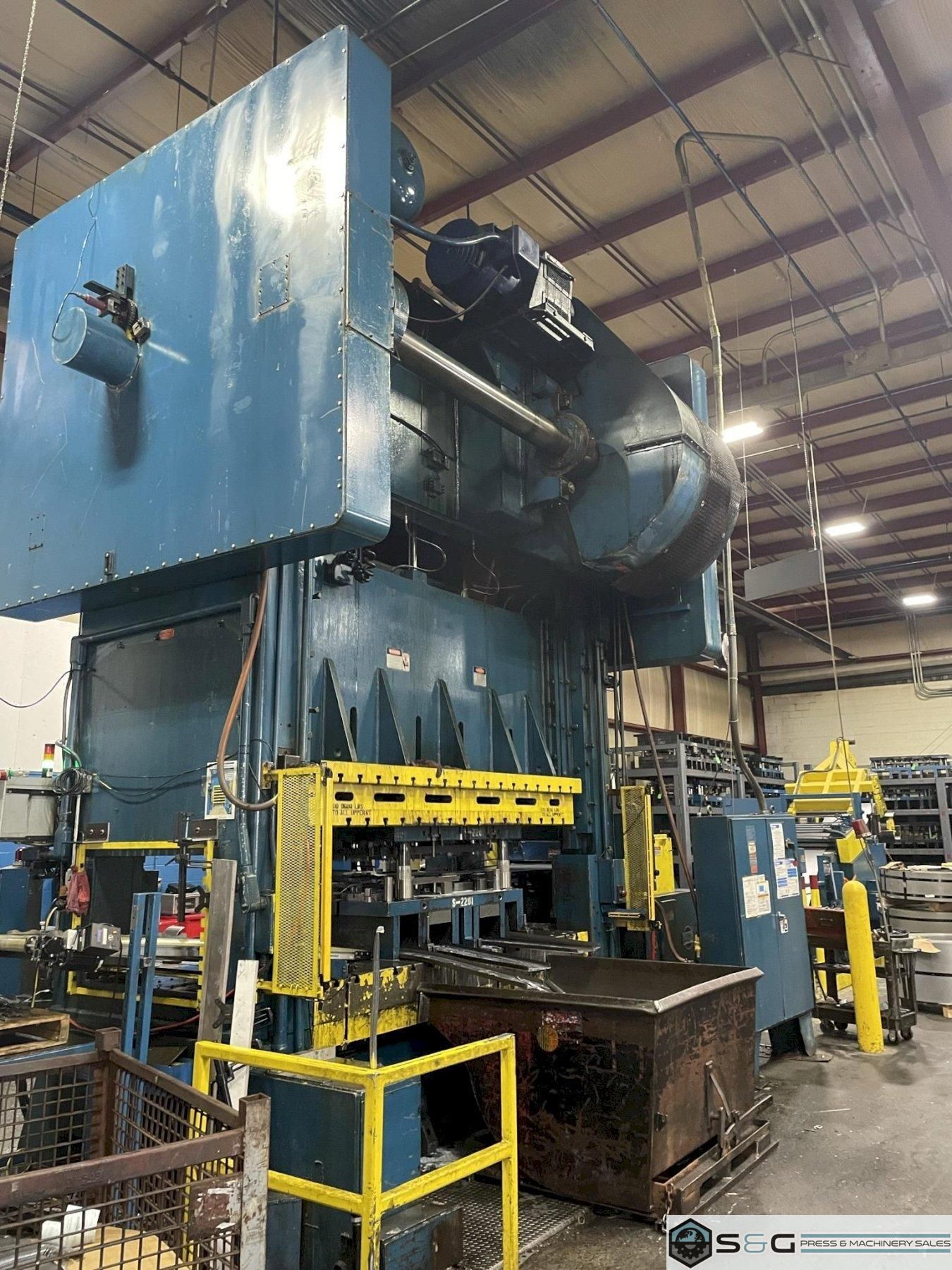

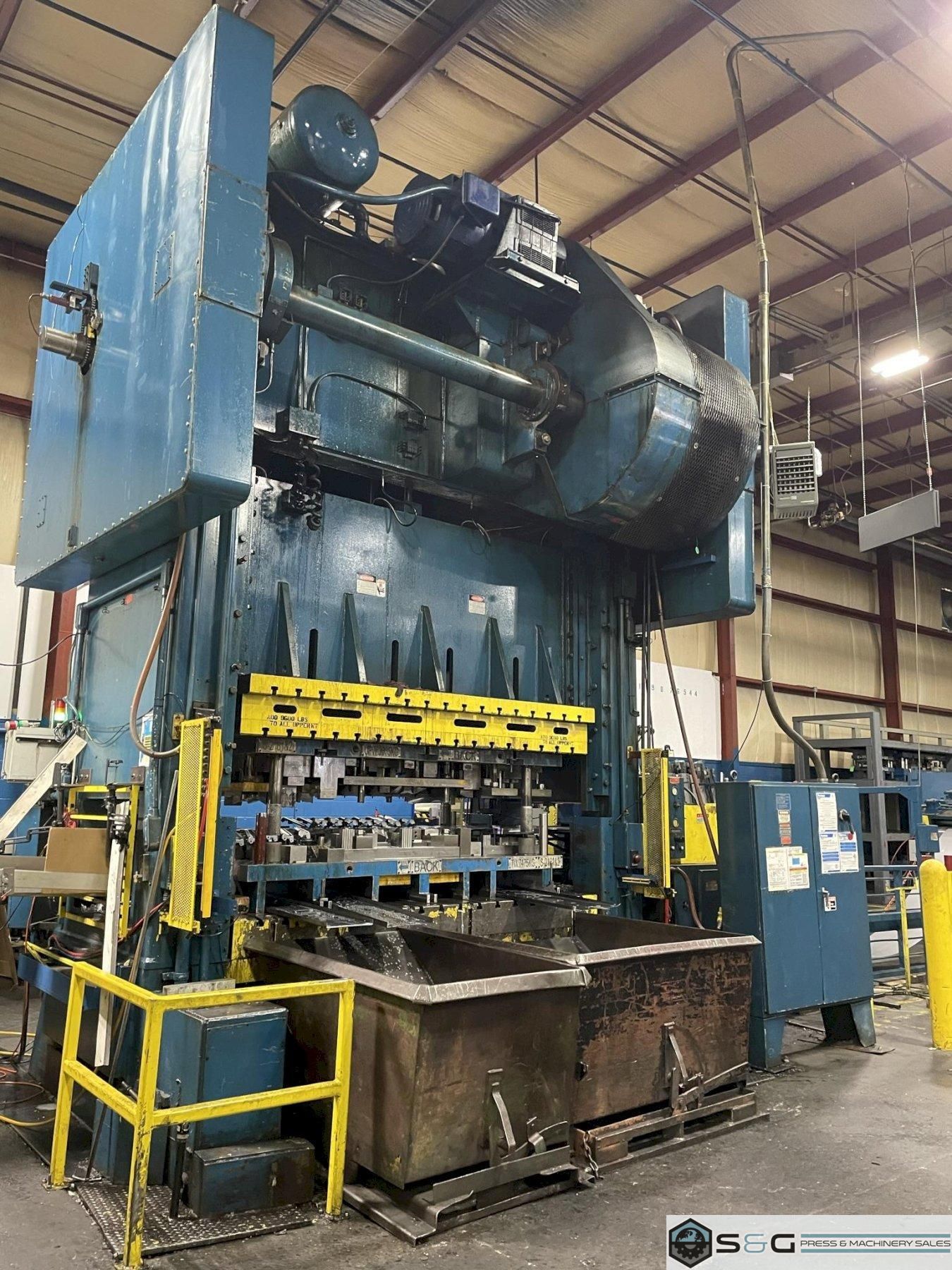

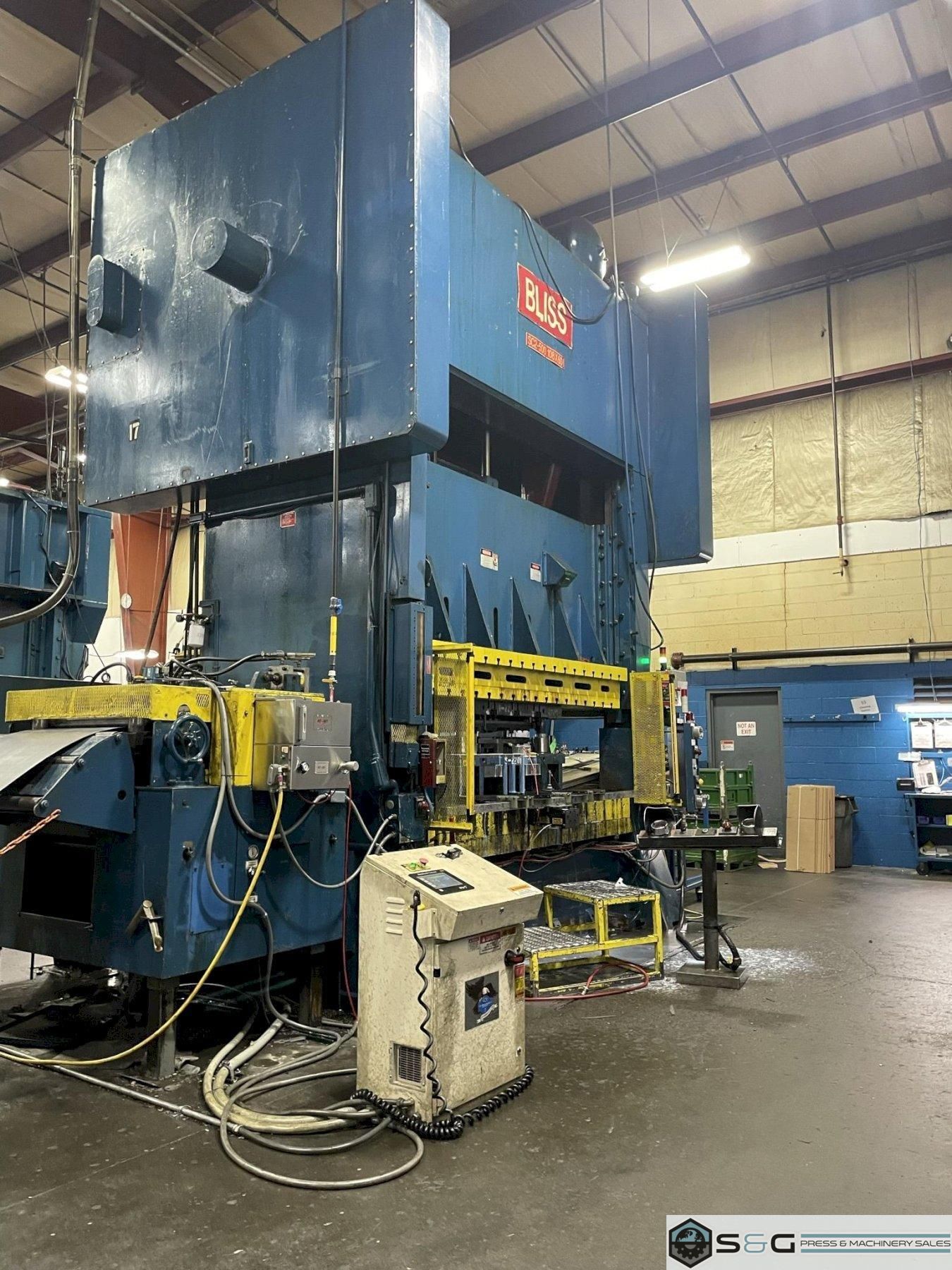

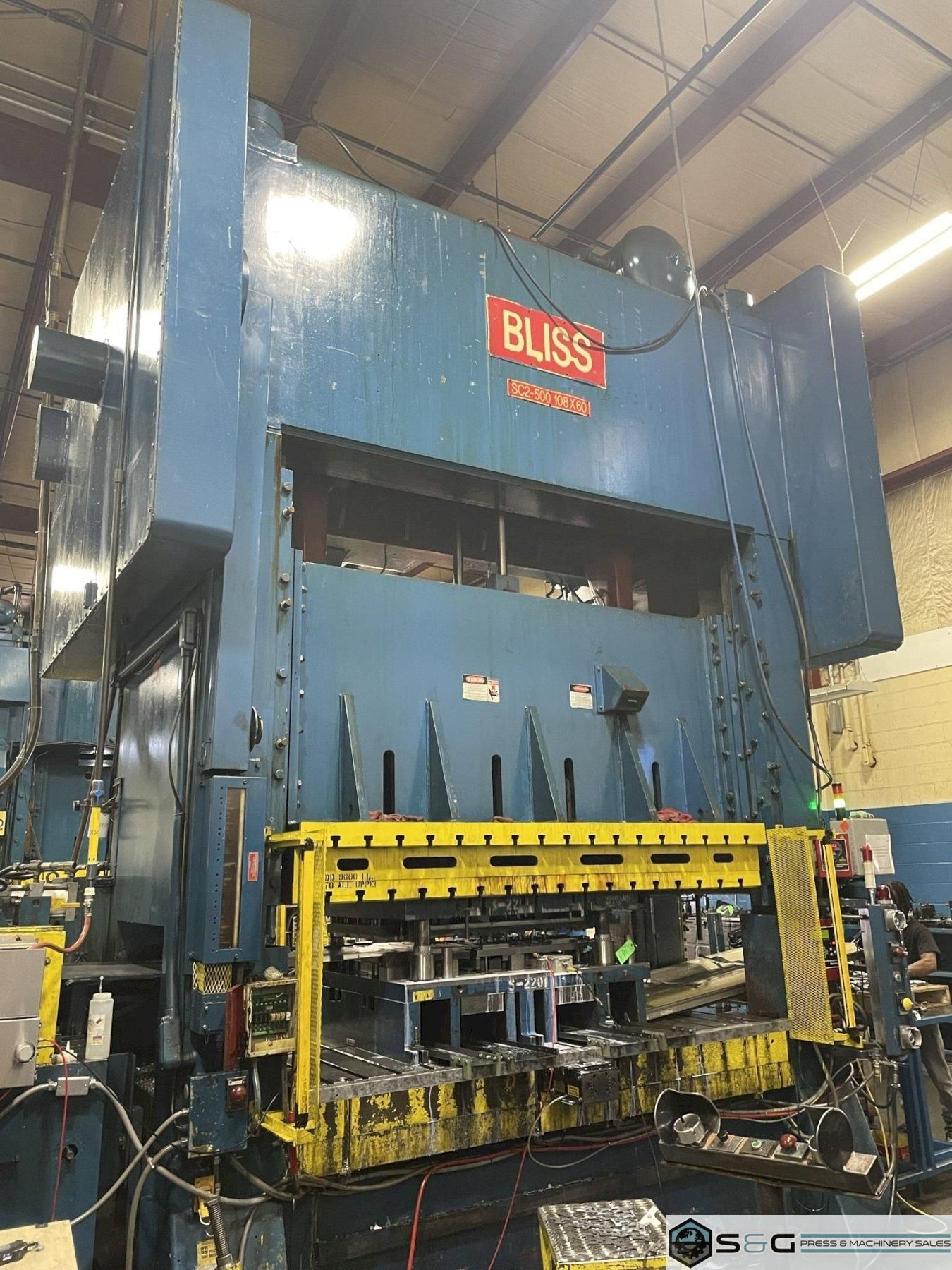

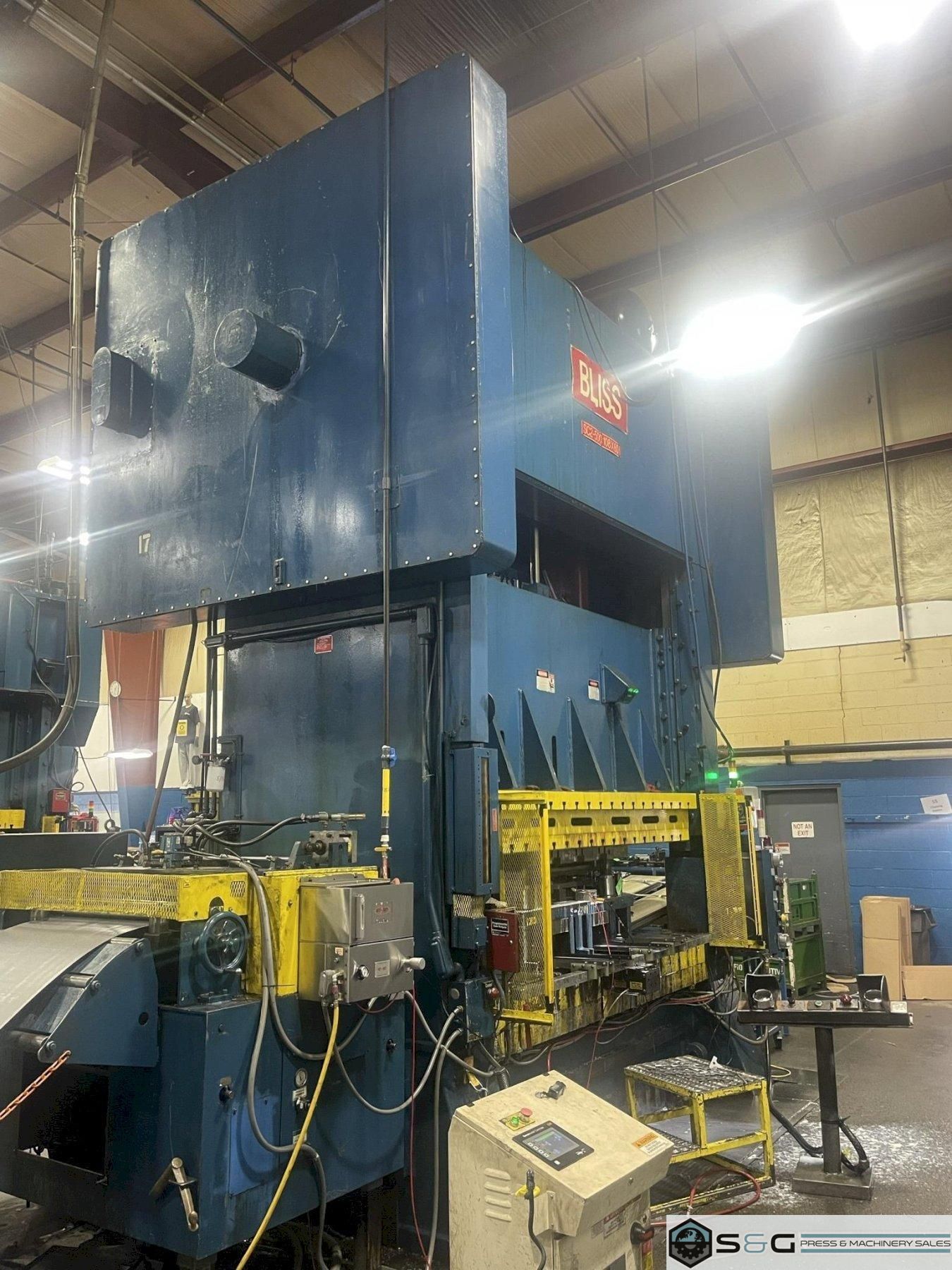

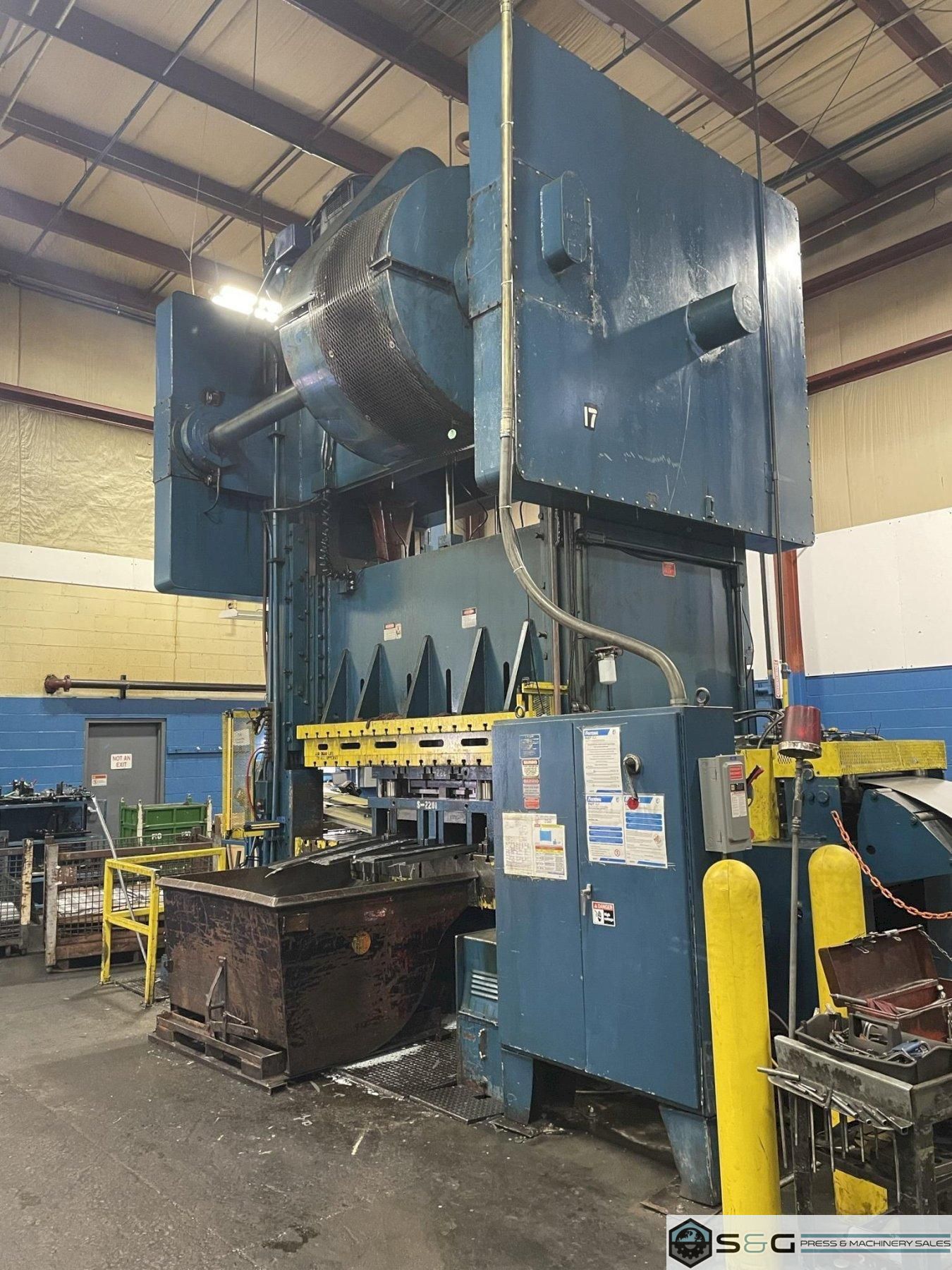

This 500-ton Bliss Rebuilt Metal Stamping Press can be seen under power upon Completion at S&G Press Warehouse.  Do not hesitate to call or email S&G Press for further details and pricing.

Now in the final stages of a complete rebuild, this 500-ton Bliss Model SC2-500-108-60 straight side mechanical press will soon be ready to boost your production. Our meticulous remanufacturing process ensures this press performs like new, offering a 14" stroke, 44" shut height, and a massive 108" x 60" bed area ideal for large stamping applications. Equipped with new light curtains, hydraulic tie rod nuts, and a powerful 75 HP drive, this press delivers both power and precision. The complete remanufacture process ensures enhanced reliability, improved safety, and maximized performance. This high-quality, reconditioned Bliss press is available for sale now, with completion slated for late 2025. Contact S&G Press for detailed specifications and to reserve this exceptional machine for your facility.
