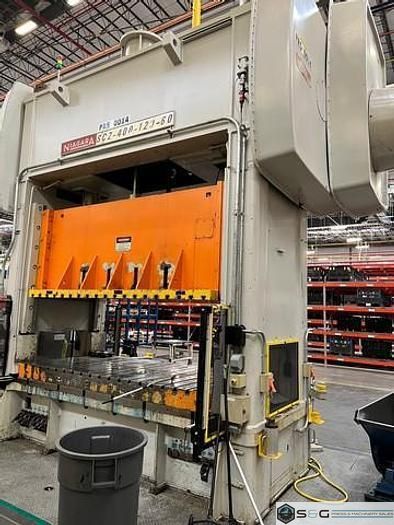

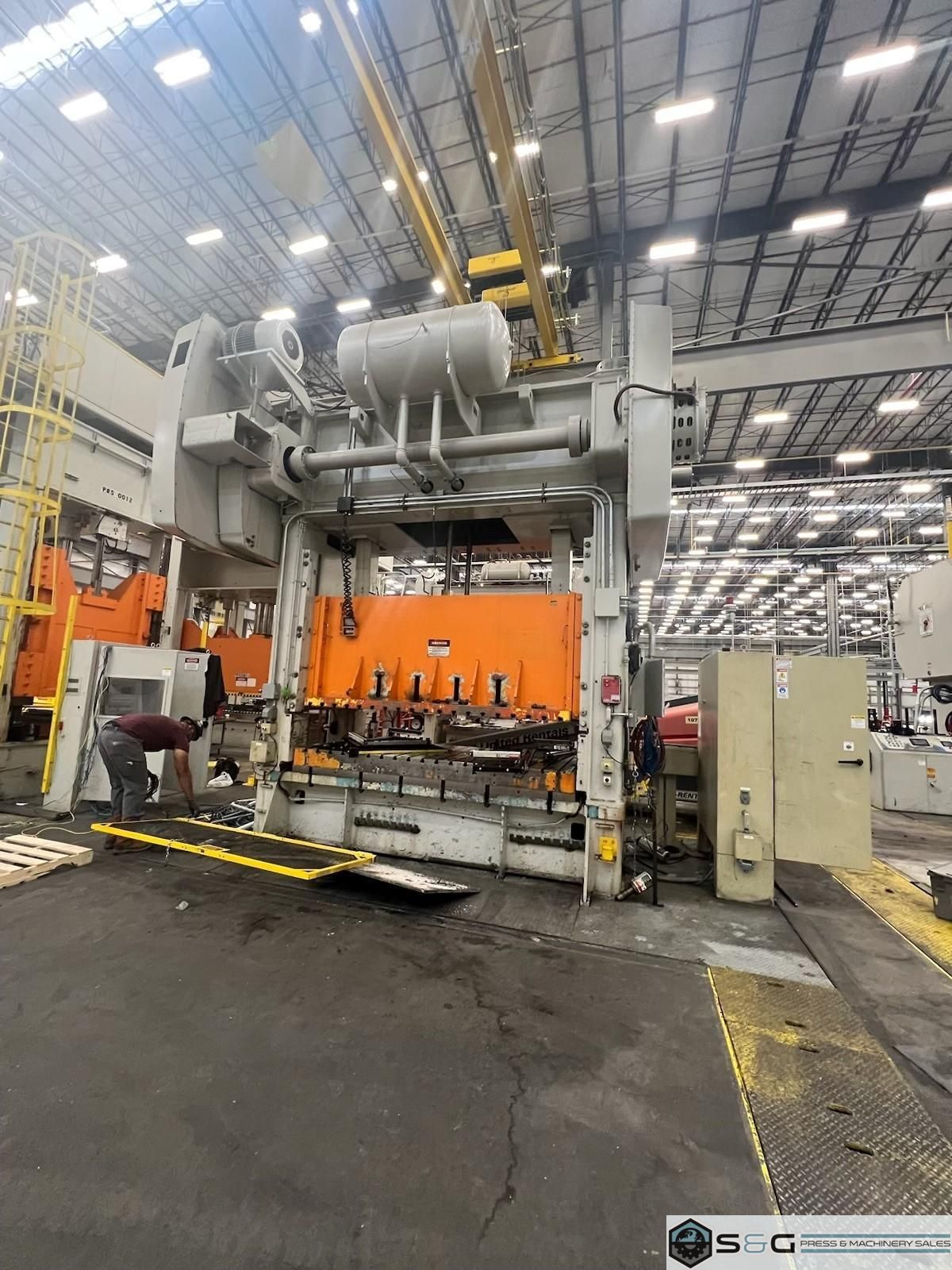

400 ton Niagara SC2-400-120-60 Straight Side Mechanical Metal Stamping Press, New 1986 Rebuilt in 2019

Type

Presses, Straight Side, Double Crank (Single Action)

Brand

NIAGARA

Model

SC2-400-120-60

Year

1986

Stock #

2803

Condition

Very Good

More 400-500 ton presses
Let's Talk

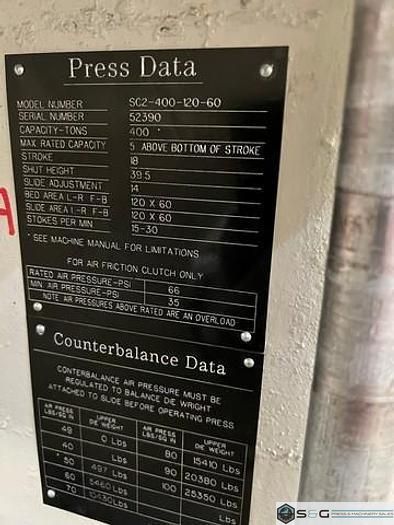

Specifications
Tonnage

400

Stroke

18 inches
Shut Height

39.5 inches
Adjustment

14 inches
Bed Size

120" LR x 60" FB

Ram Area

120" LR x 60" FB

SPM

15-30 VSPM

Standard Specifications
Niagara Mechanical Metal Stamping Press
400 ton Capacity
18" Stroke
39.5" Shut Height
14" Motorized Adjustment
120" LR x 60" FB Slide Area
120" LR x 60" FB Bed Area
15-30 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
Back Shaft Driven, Twin End Drive
T-Slotted Ram and Bolster
7" Bolster Plate (TBC)

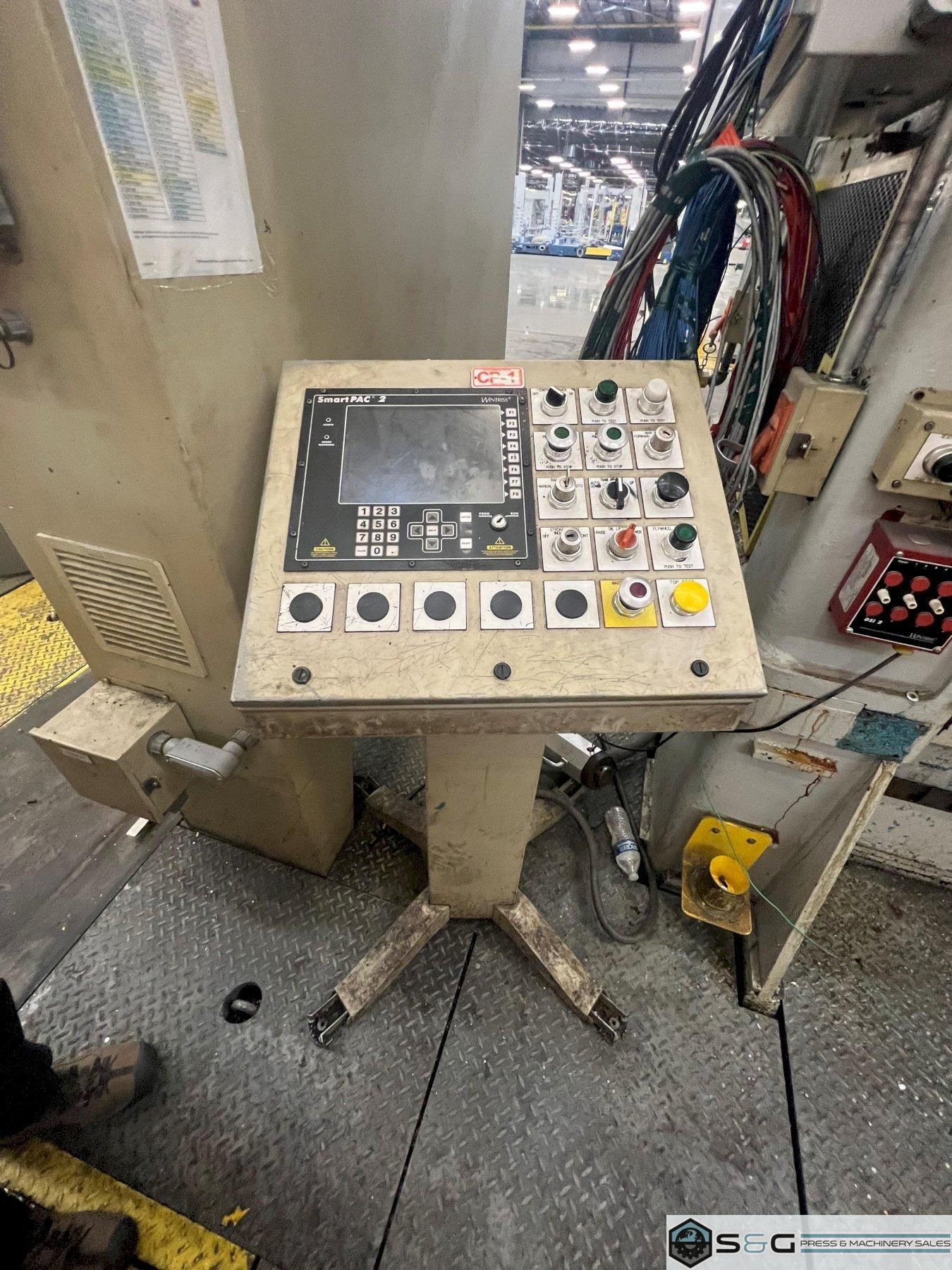

Wintriss Smart Pac 2  Press Control
Wintriss WPC 2000 Control
Wintriss Ram Pac
Wintriss Resolver
Dual Ross Air Valve
Recirculating Lubrication System
Hydraulic Tie Rod Nuts
8 Point Gibbing
37" Wide Windows
Floor Mounted Design

Dimensions
49” Floor to Top of Bed
20’1 ½ ” Overall Height
155” LR x 95” FB Footprint
160,000# approx. Overall Weight



Attachments
400 ton Niagara SC2 120x60 GA Drawing.pdf Download
