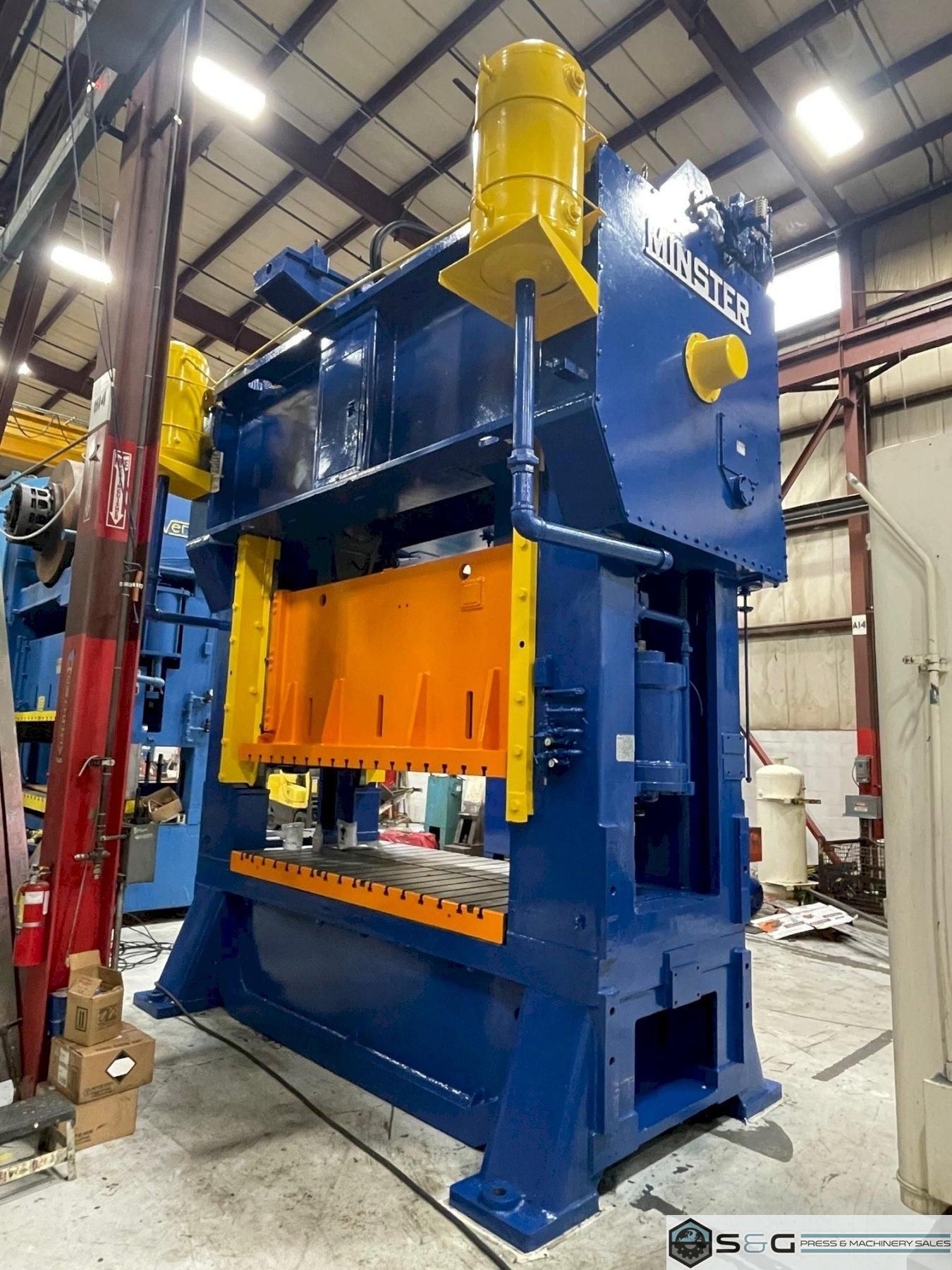

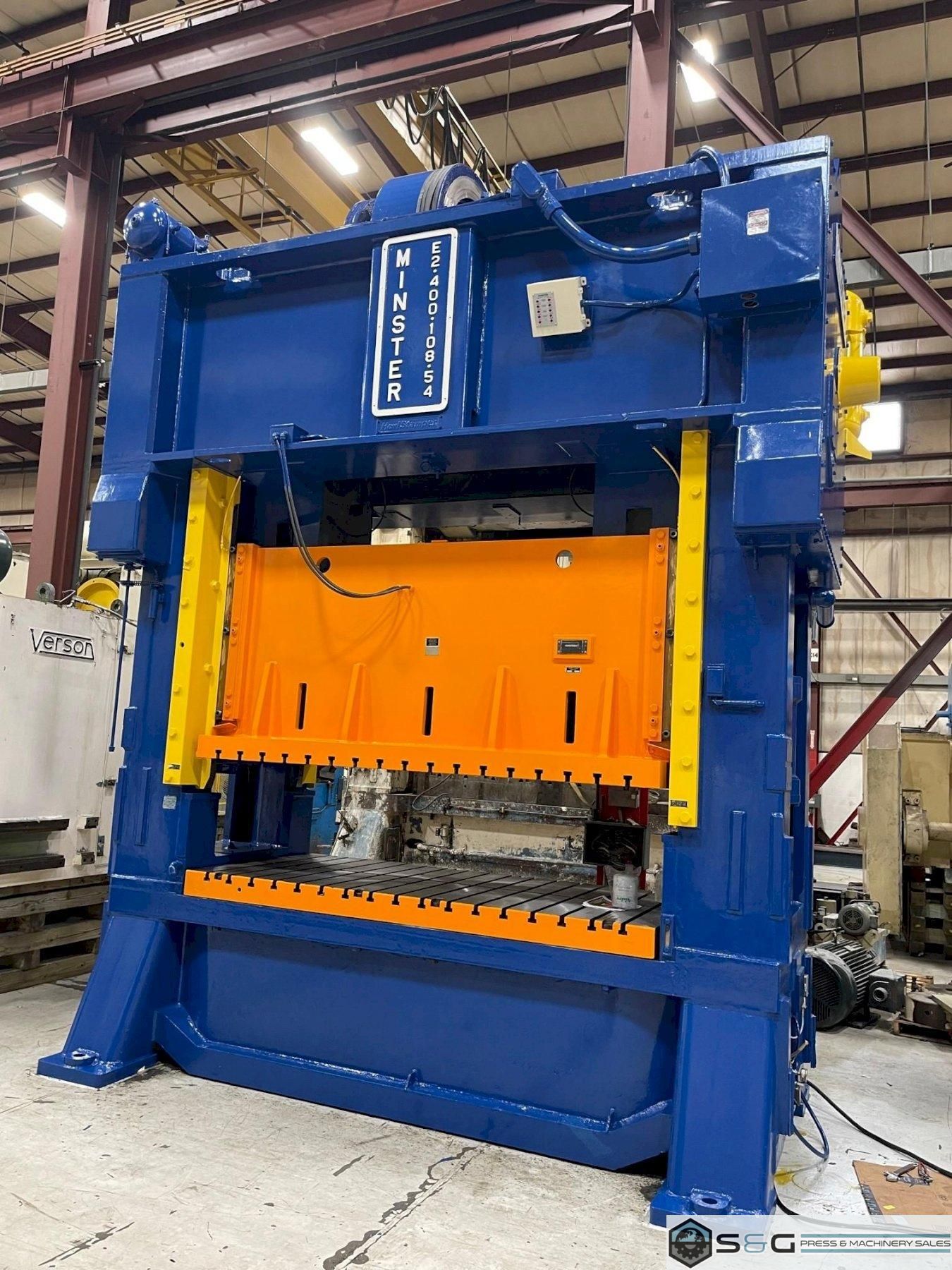

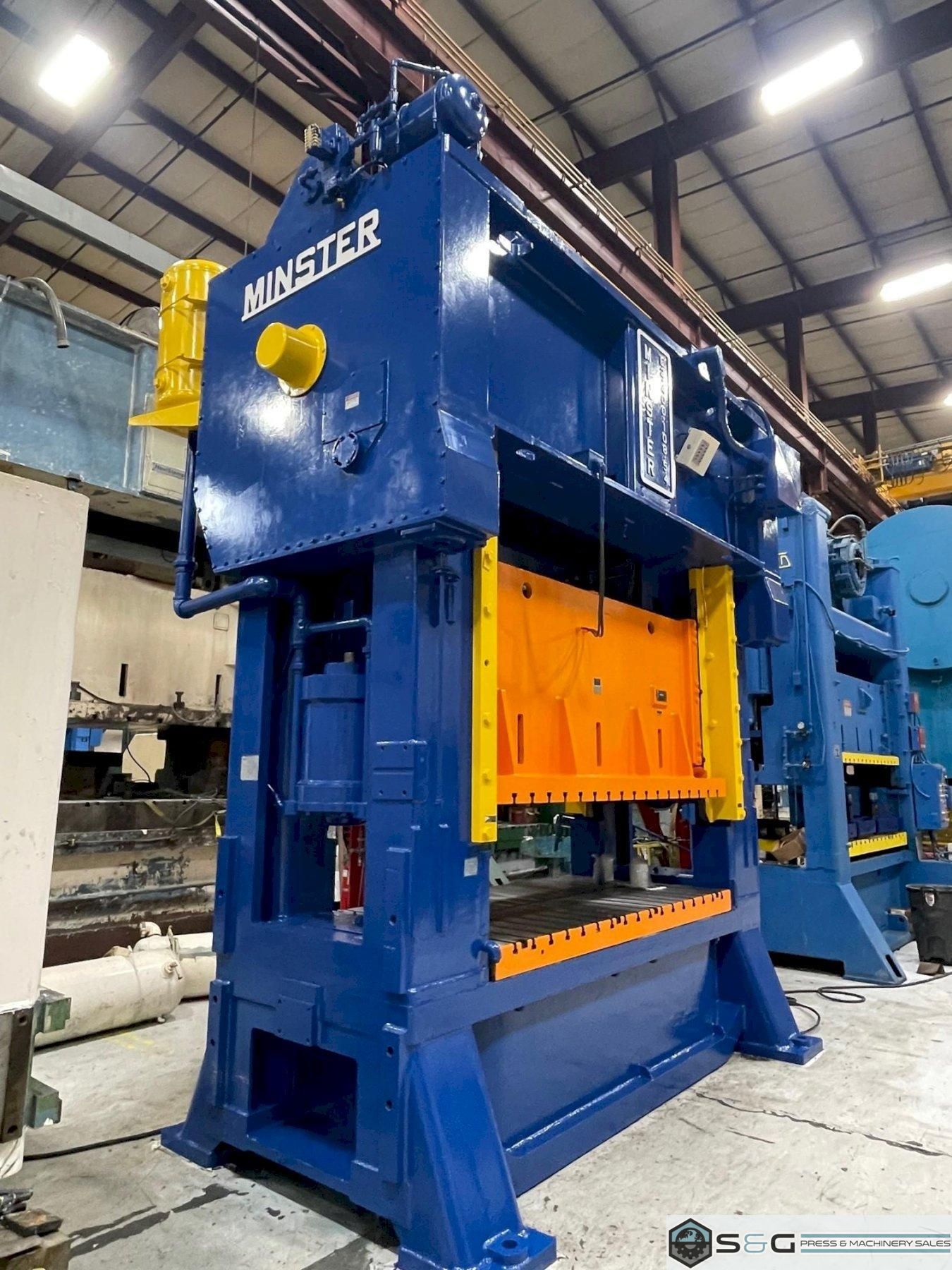

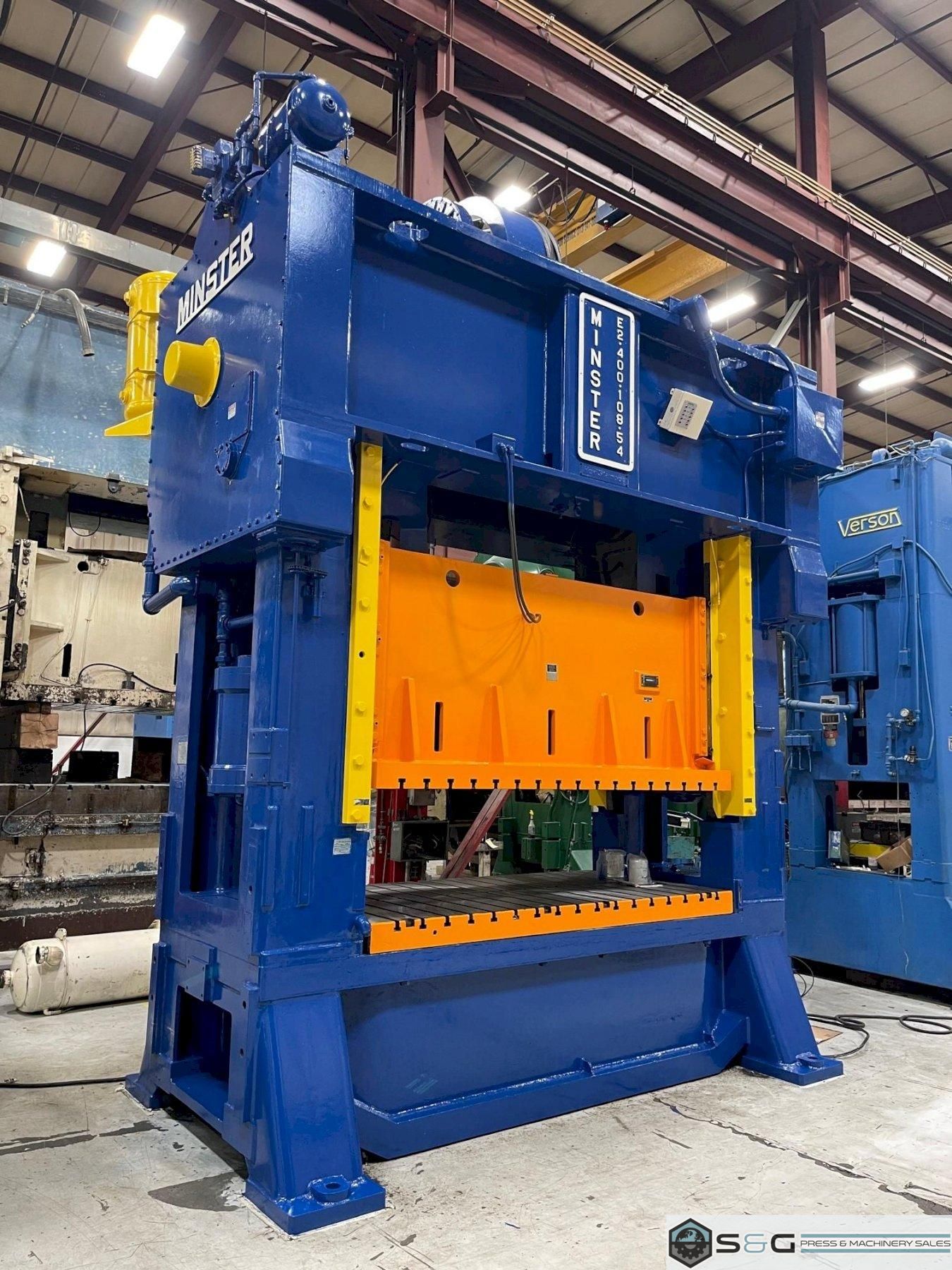

400 ton Minster E2-400-108-54 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Rebuilt

Standard Specifications
400 ton Capacity
12" Stroke
32" Shut Height
6" Motorized Adjustment
108" LR x 54" FB Bed Area
108" LR x 54" FB Slide Area
0-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Monitor Flow Recirculating Lube System
T-Slotted Ram and Bolster
6" Thick Bolster Plate
Wintriss Shadow V Light Curtains
Wintriss Autoset 1500
Vibro Dynamic Floor Pads
31" Wide Windows
Floor Standing

Overall Height:  18' 9" Tall
Footprint:  152.5" LR x 86" FB

Press is being offered with full mechanical rebuild.  For more information and details regarding the scope of work please contact your sales associate.

Can be seen under power in the S & G Press Livonia Michigan Warehouse upon completion!
