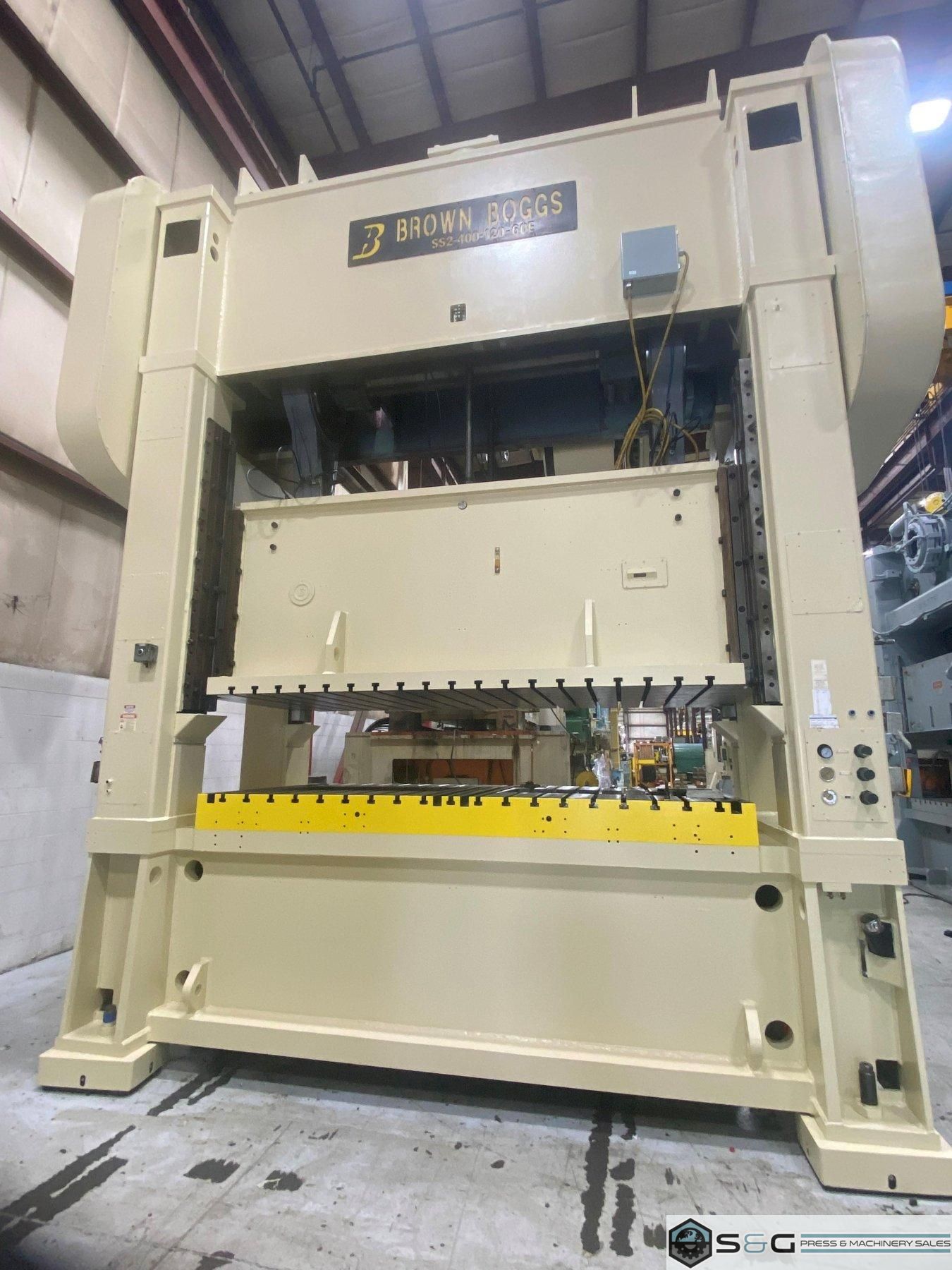

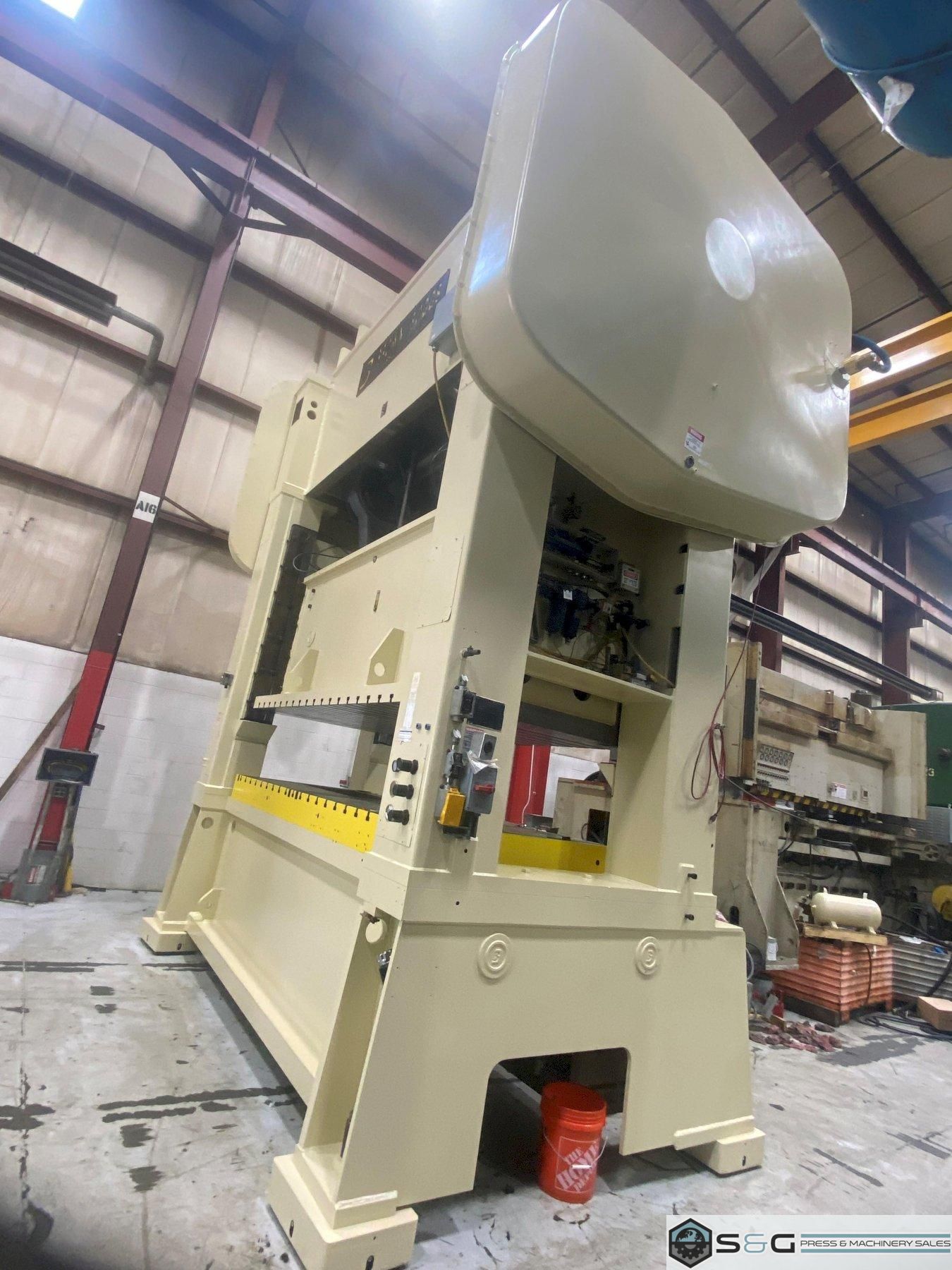

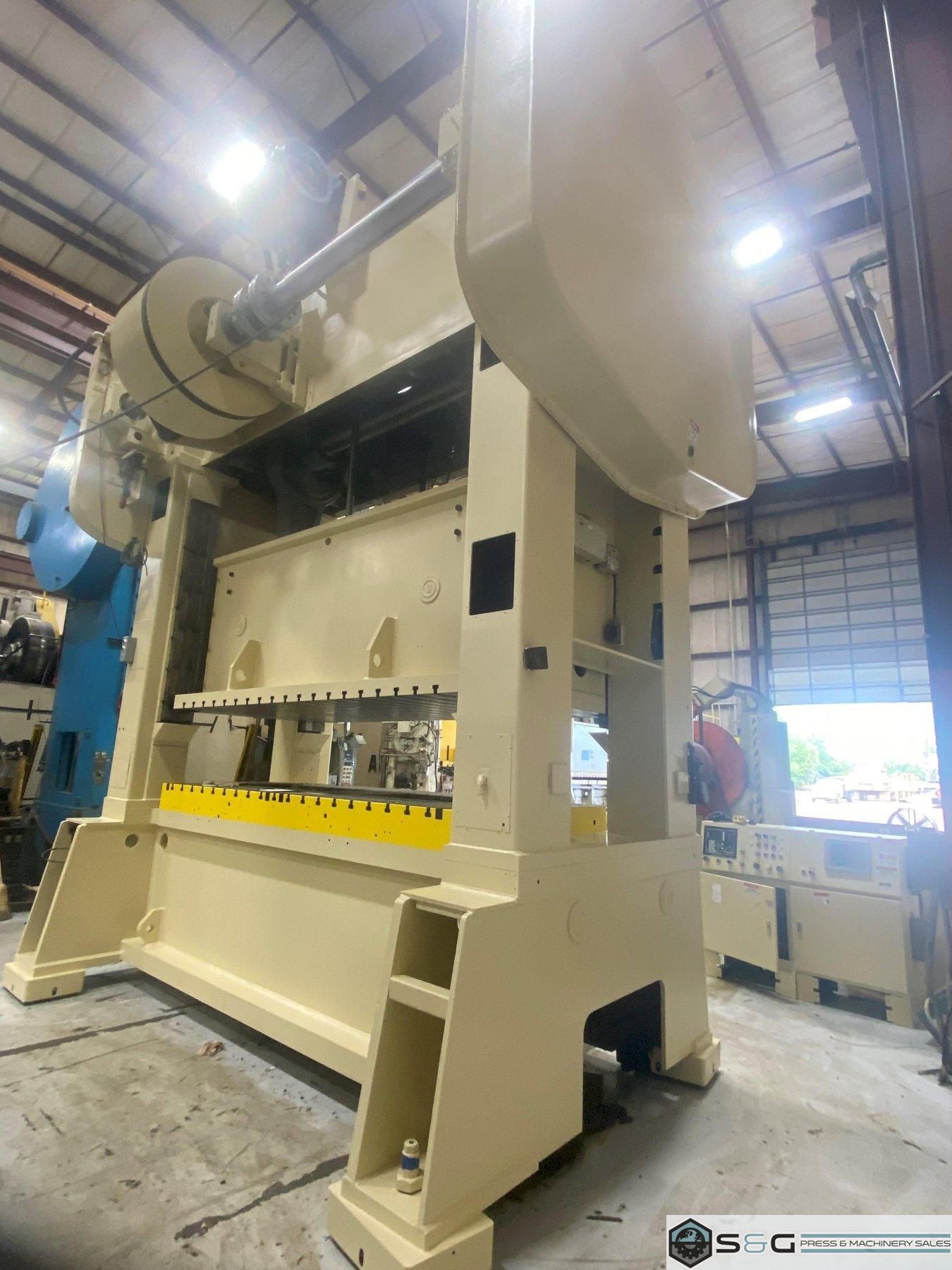

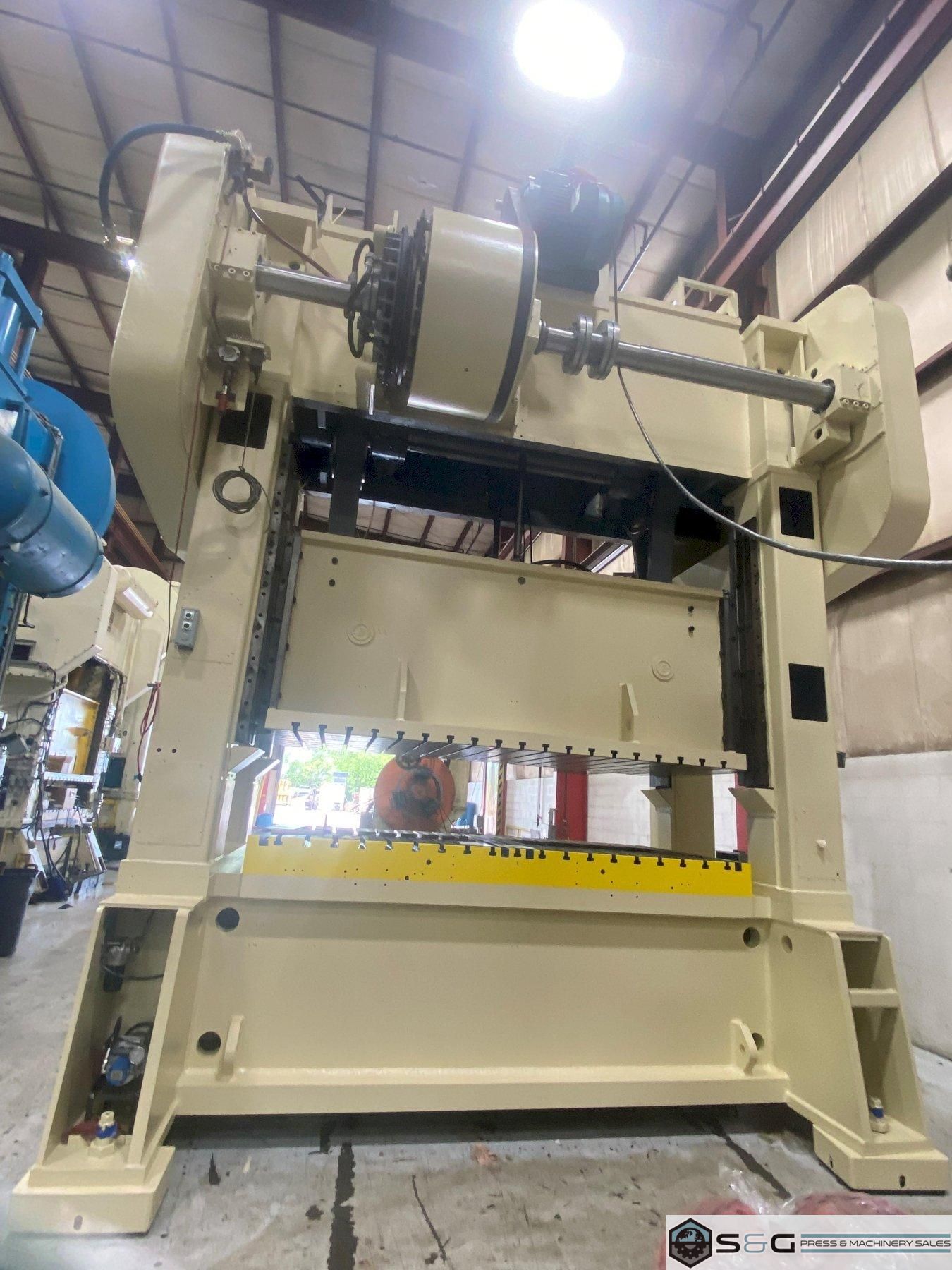

400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
  • 400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
  • 400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
  • 400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
  • 400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
  • 400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed

400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed

Type

Presses, Straight Side, Double Crank (Single Action)

Brand

BROWN & BOGGS

Model

SS2-400-120-60

Year

2008

Stock #

2816

Condition

Rebuilt

Request a Quote
More 400-500 ton presses
Let's Talk

Specifications
Tonnage

400

Stroke

12 inches
Shut Height

31 inches
Adjustment

10 inches
Bed Size

120" LR x 60" FB

Ram Area

120" LR x 60" FB

SPM

20-40 VSPM

Standard Specifications
Used Brown Boggs Press Model SS2-400-120-60
Press Rebuild  - Mechanical Straight Side Press
400 ton Capacity Press
12" Stroke
31" Die Height on Bolster
38" Shut Height on Bed
10" Motorized Adjustment
120" LR x 60" FB Bed Area
120" LR x 60" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Hydraulic Tie Rod Nuts
7" Thick Bolster Plate
40" Wide Windows
Floor Standing

Press Rebuild in process.  This 400 ton Straight Side Mechanical Metal Stamping Press can be seen under power in the S&G Press Warehouse upon completion...  FULLY REBUILT - COMPLETED AND READY TO SHIP!

Used Straight Side Double Crank Mechanical Press For Sale

We specialize in providing high-quality used metal stamping and used coil feed equipment.


Attachments
400 ton Brown Boggs Press GA Drawing.pdf Download
