Specifications |
|||
|---|---|---|---|
| Coil Weight | 25000 pounds |
||
| Coil Width | 30 inches |
||
| Coil Thickness | .060 inches |
||
|

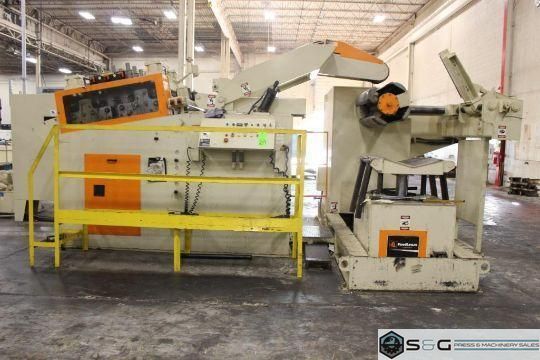

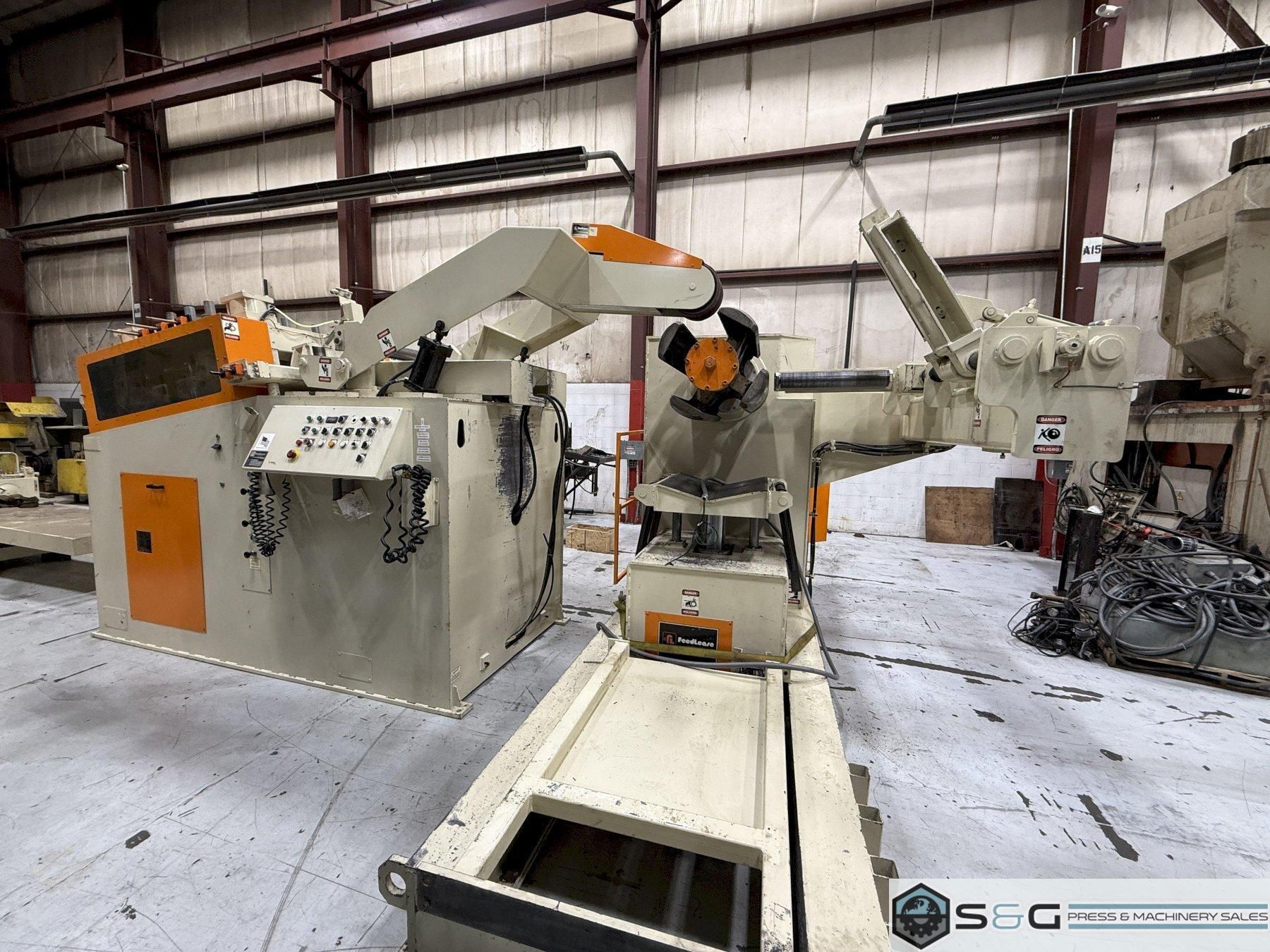

High Strength Steel Coil Feed Line Coil weight capacity: 25,000 Lb
Coil width capacity: 30"
Stock thickness capacity: .060" x 30" Wide High Strength Steel
Maximum Coil Thickness: .312" x 12" Wide High Strength Steel Expansion range: 20" - 24"
Coil O.D. Capacity: 72
Feed Lease Complete "High Strength Steel" Coil Feed Line Equipment and Features:

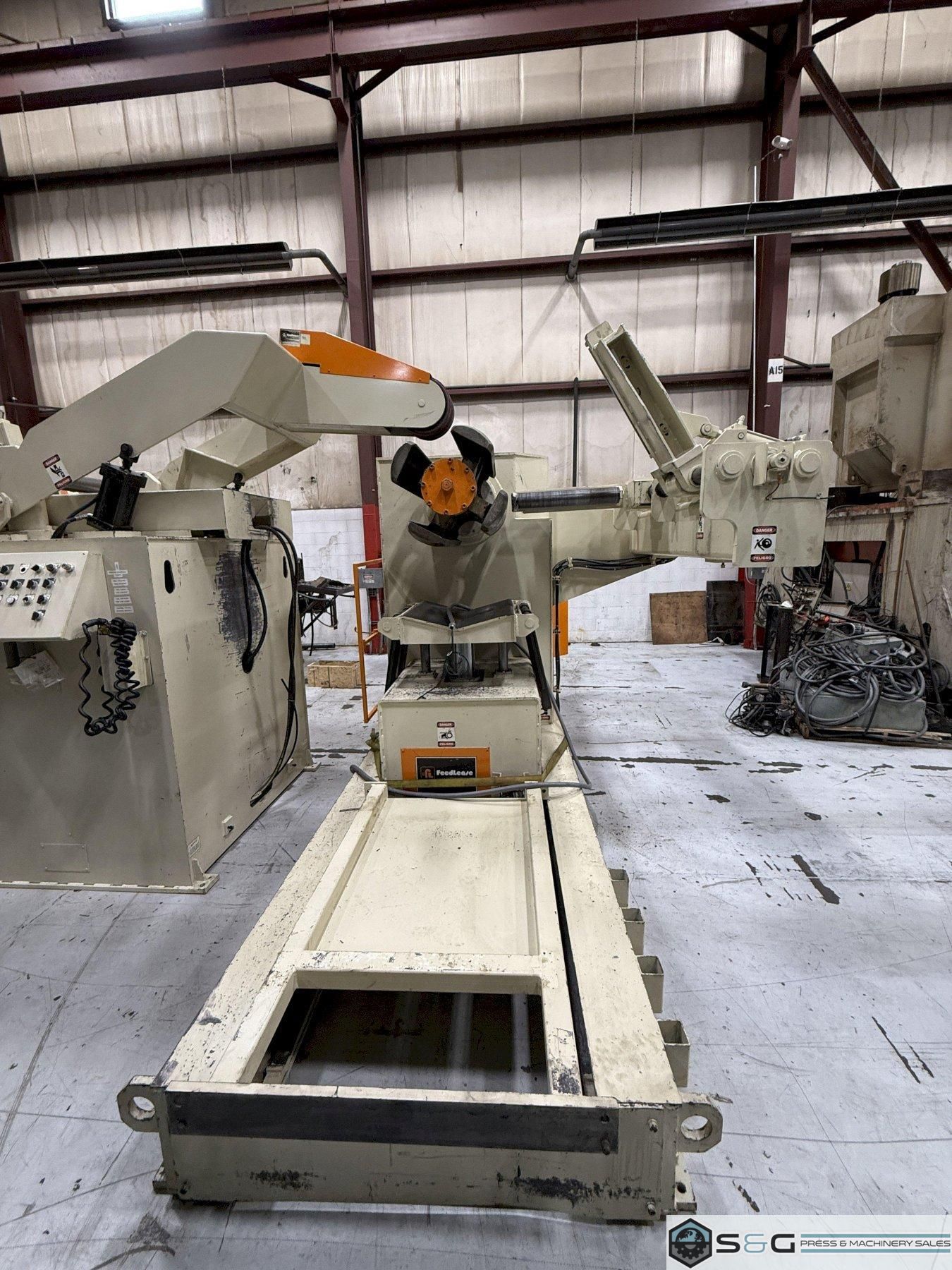

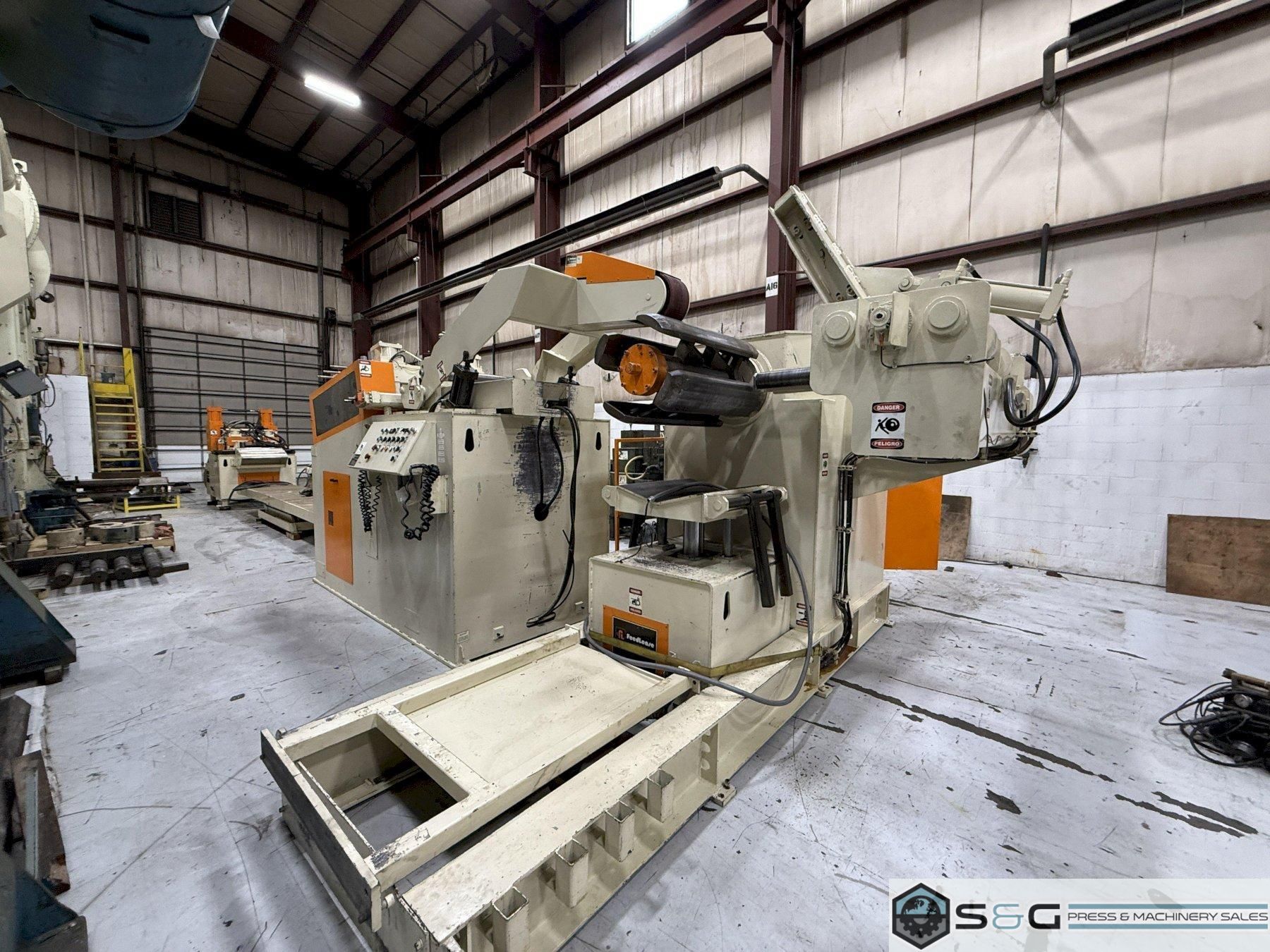

Feed Lease Coil Reel Model No.: R-25M-30, Serial No.: 5158
Four leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Air brake mounted on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse

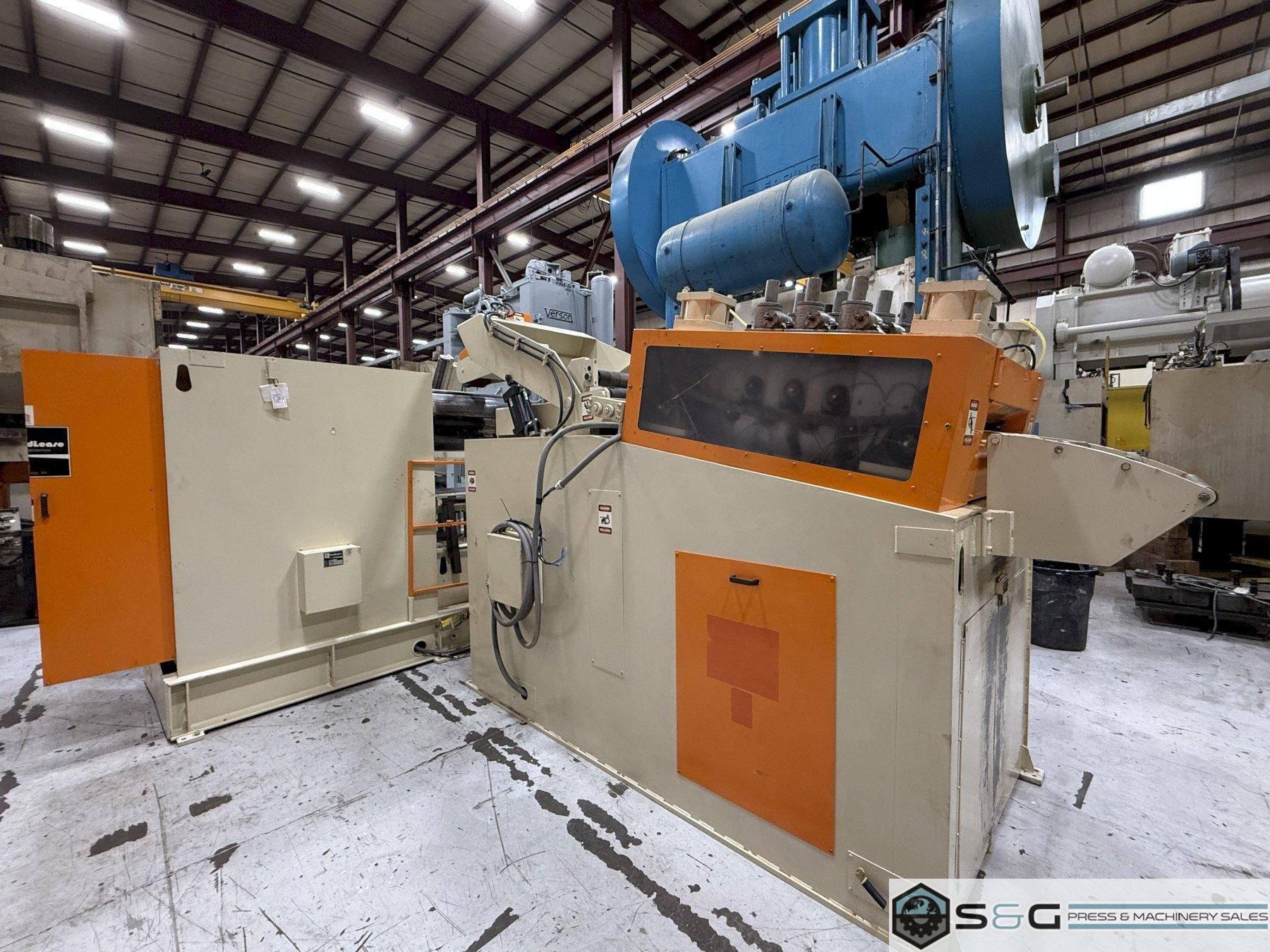

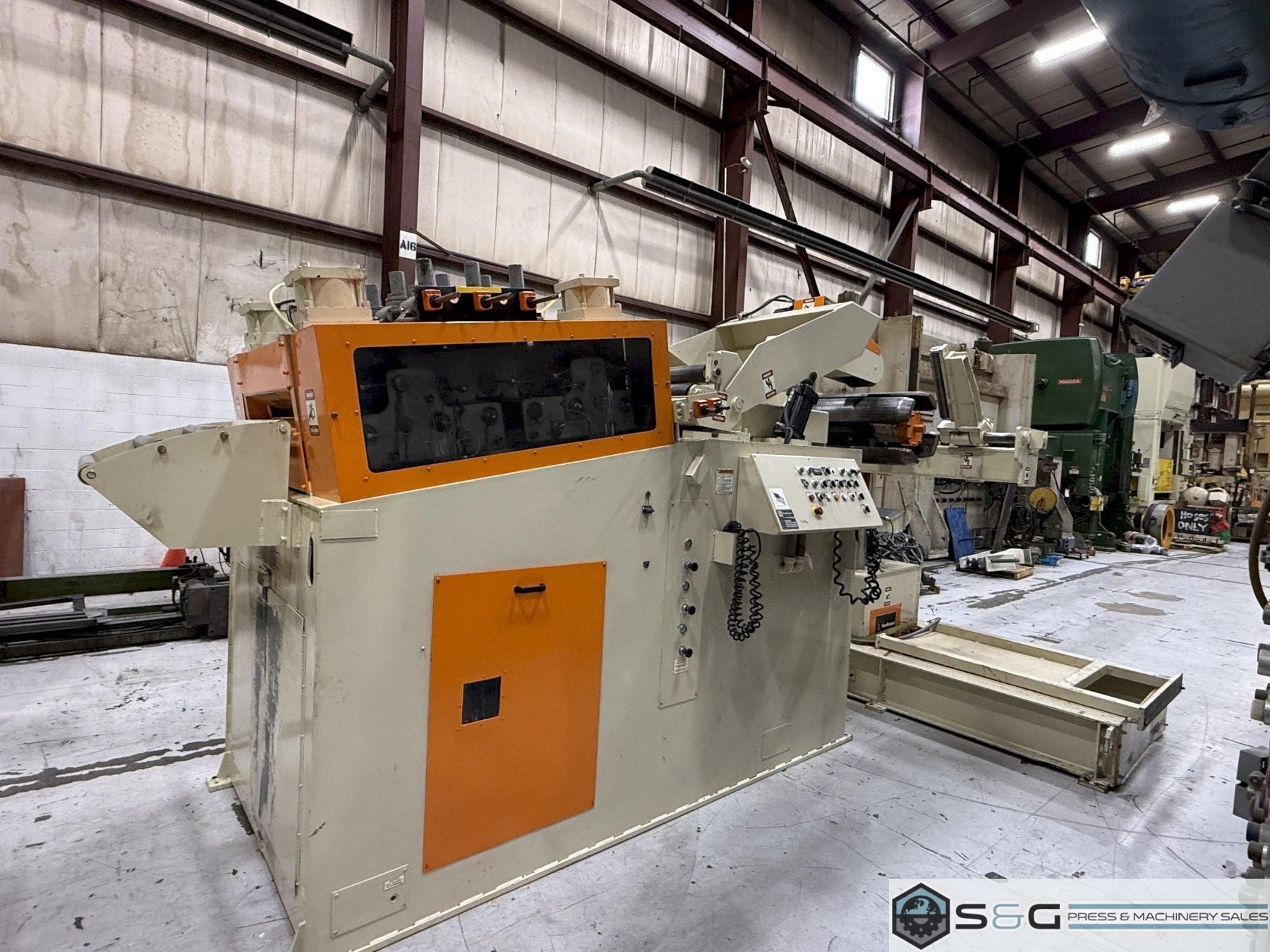

Coil Car Feed Lease Powered Coil Straightener "High Strength Steel"
Entry pinch roll assembly x 5" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 3" diameter
Motorized upper straightening roll adjustments
Roll depth display on main HMI
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Coil end-debender roll
Exit cascade loop support rollers
Automatic lubrication system
Variable speed drive
Operator's control station
Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Variable speed loop control

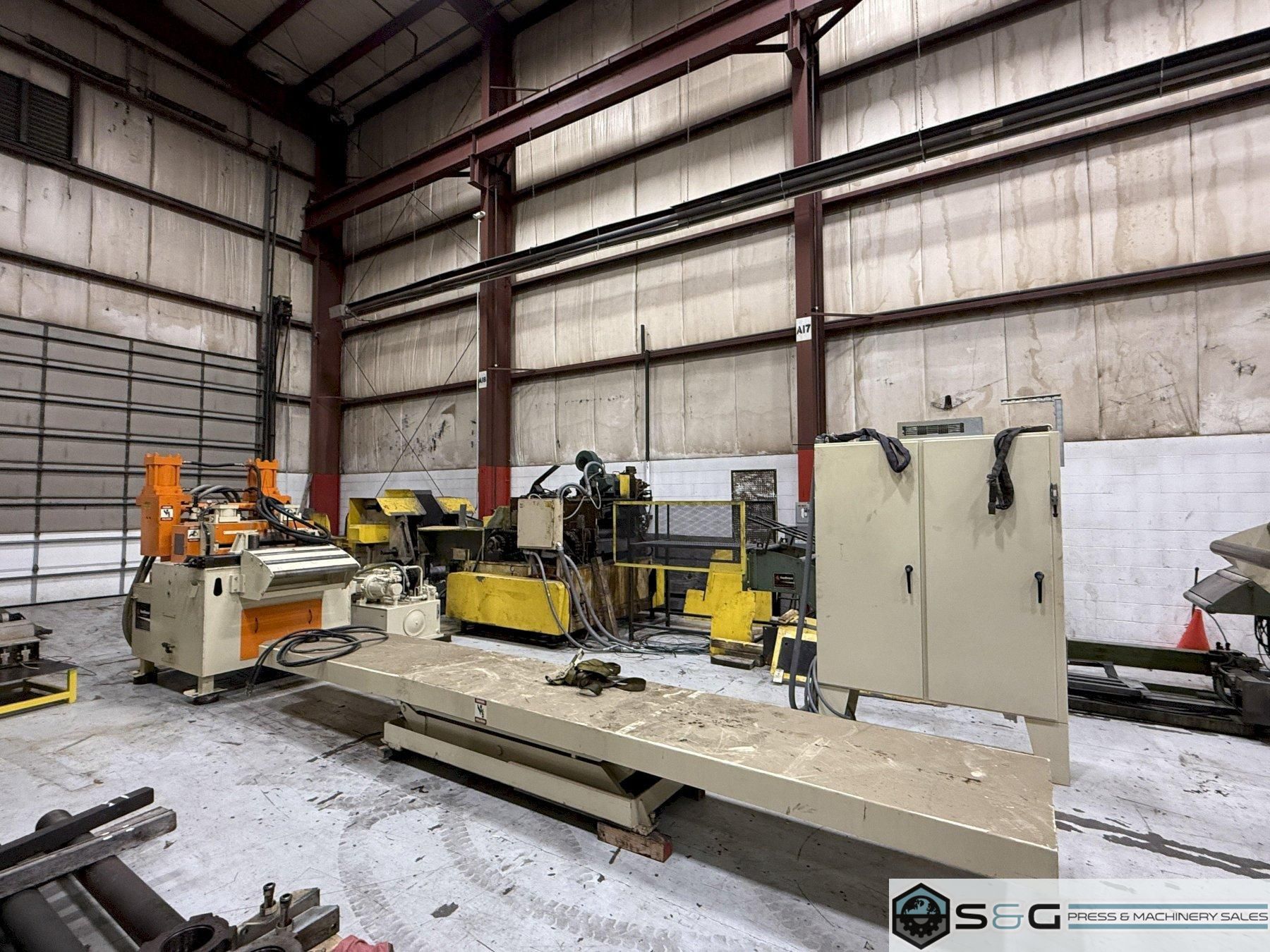

Feed Lease Threading Table
Hydraulic actuated
Bomb bay door design

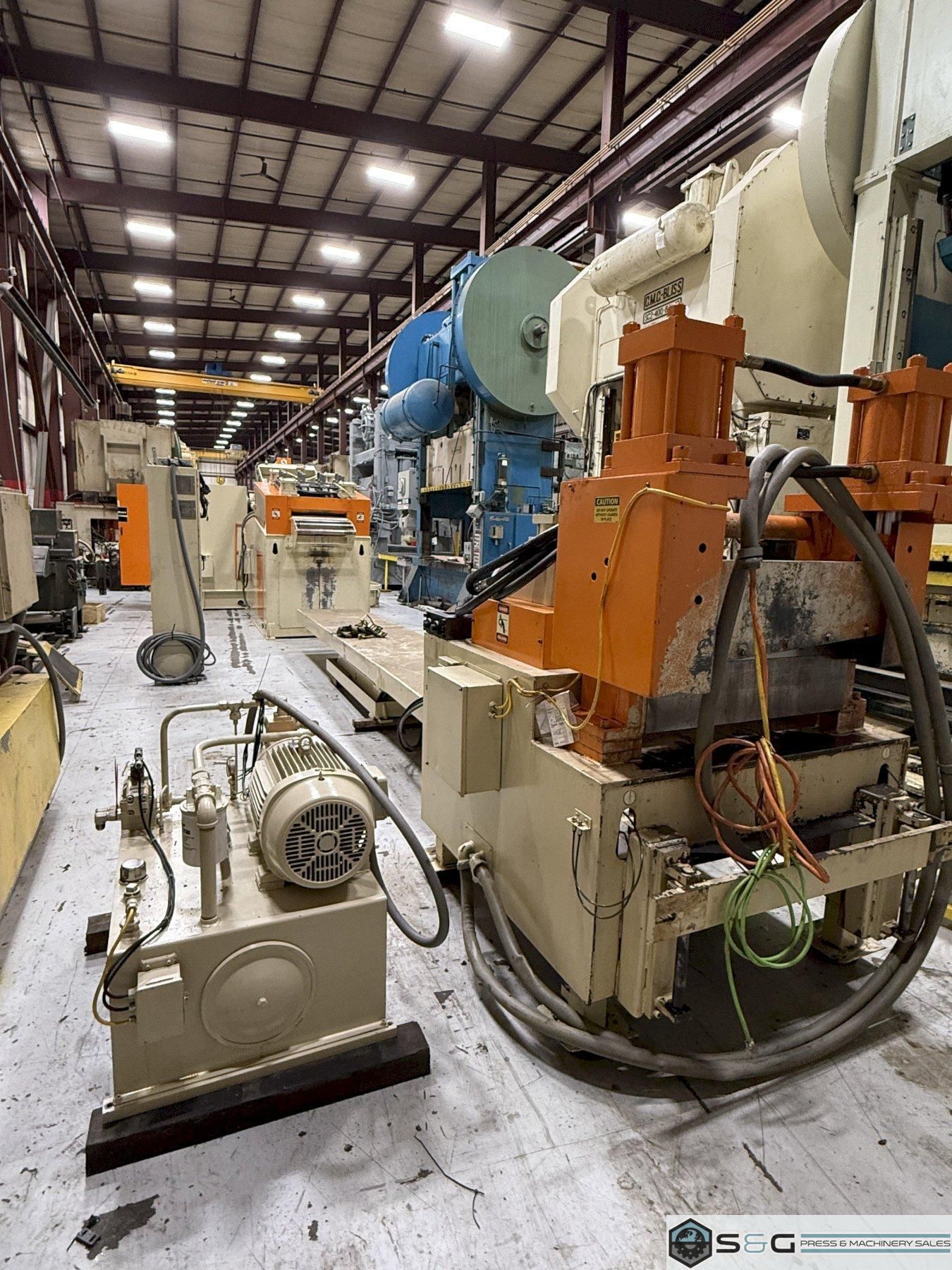

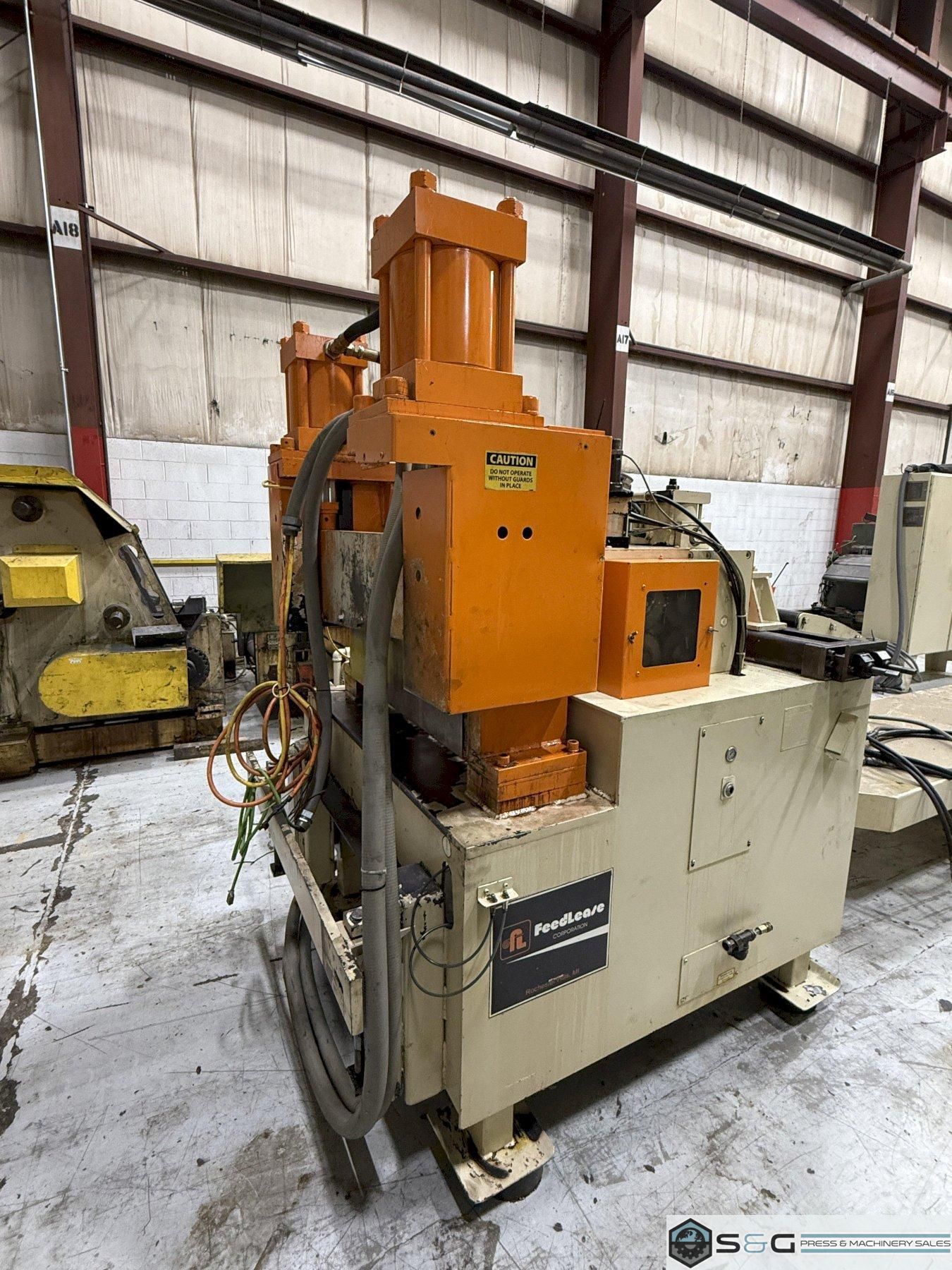

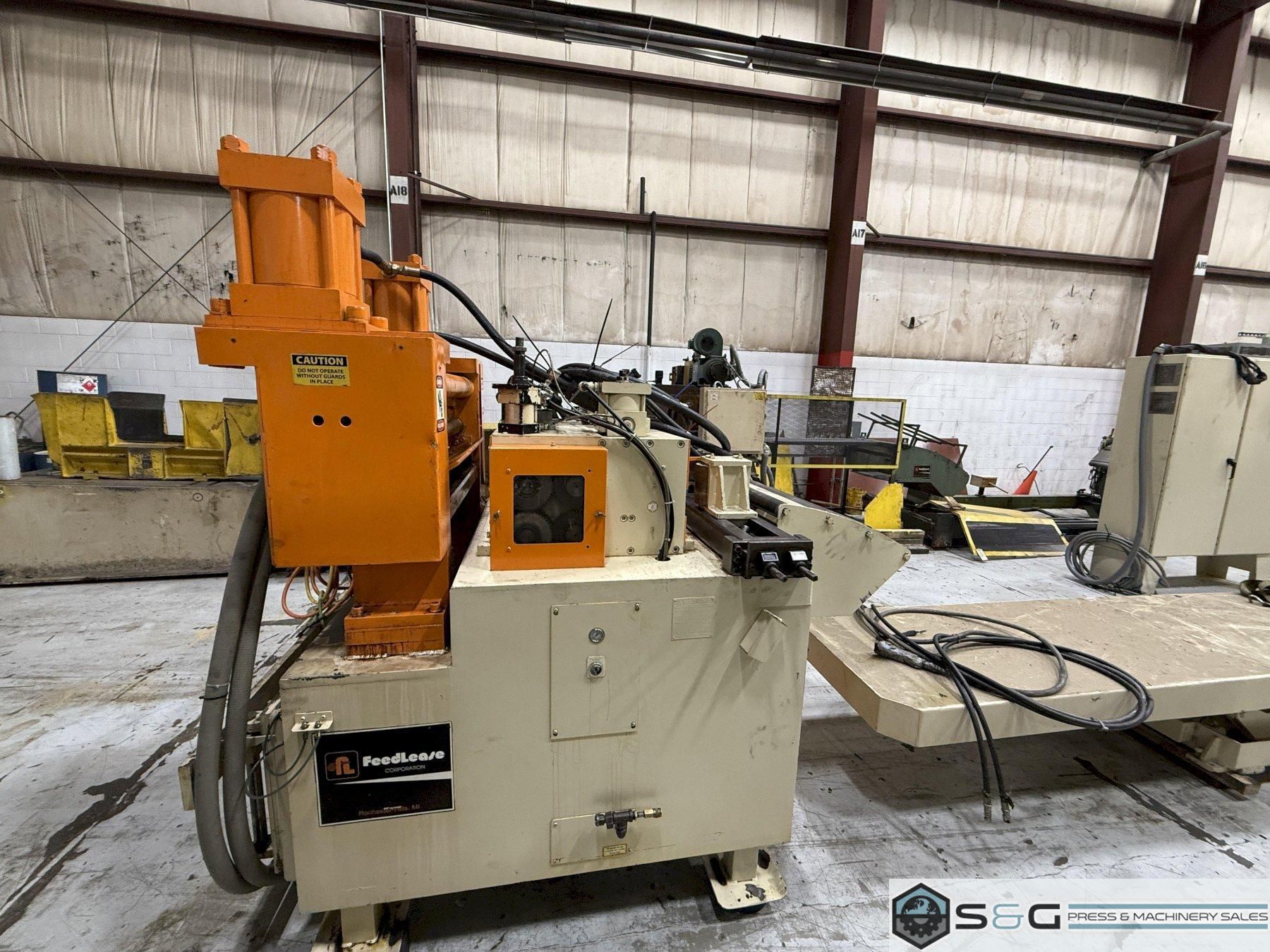

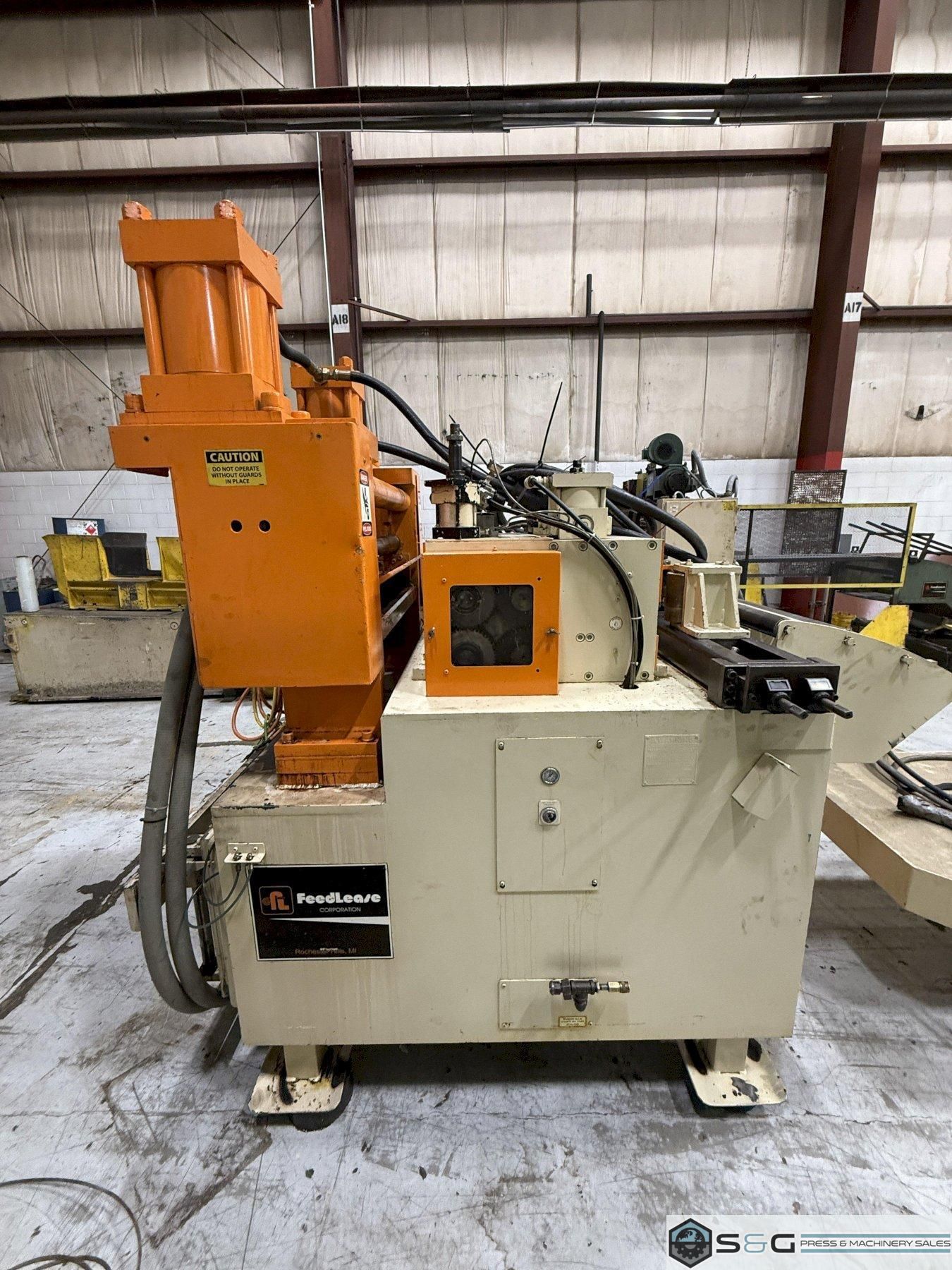

Feed Lease Servo Roll Feed
5" diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Automatic lubrication system from powered straightener
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
|
|||
