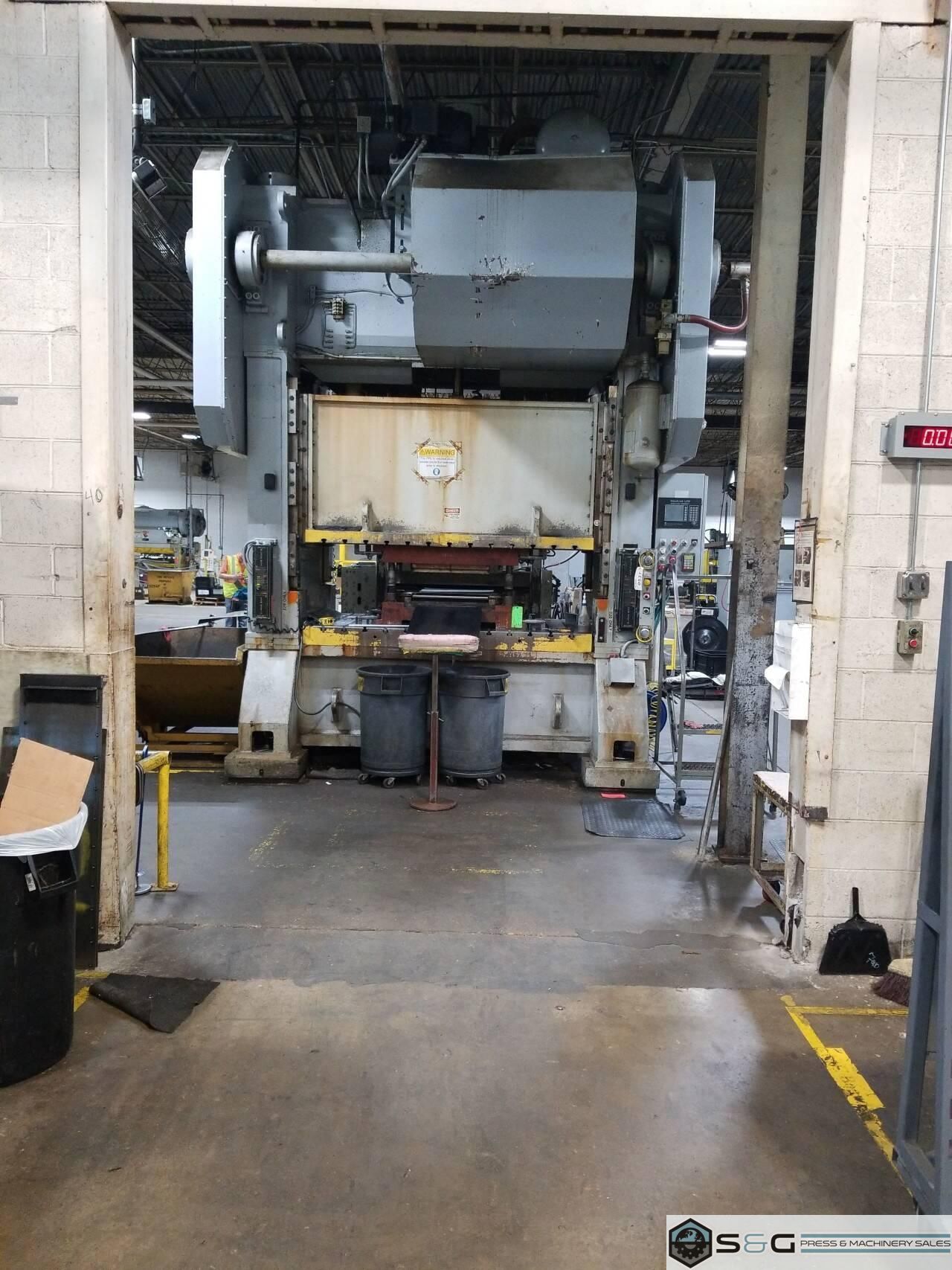

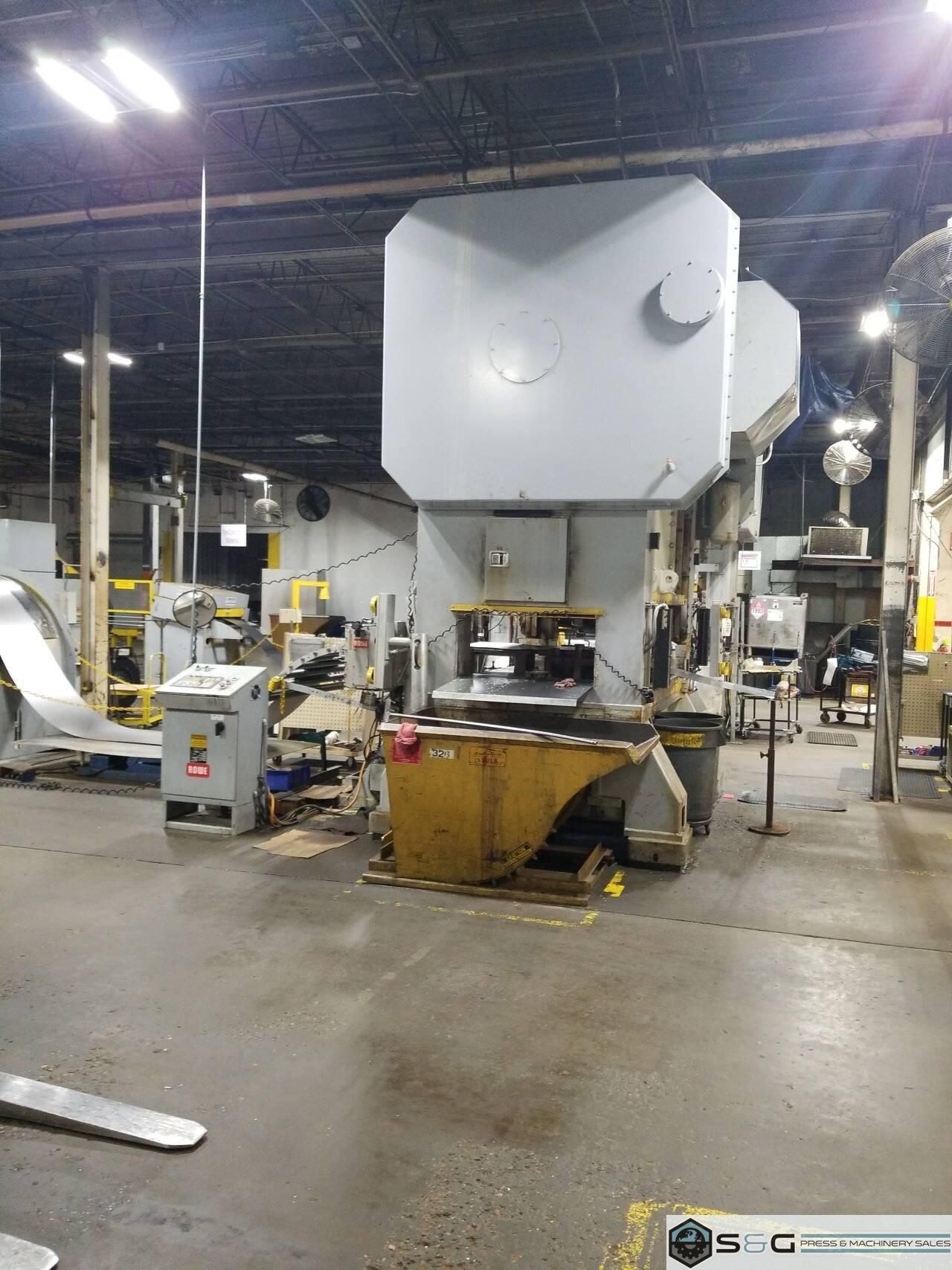

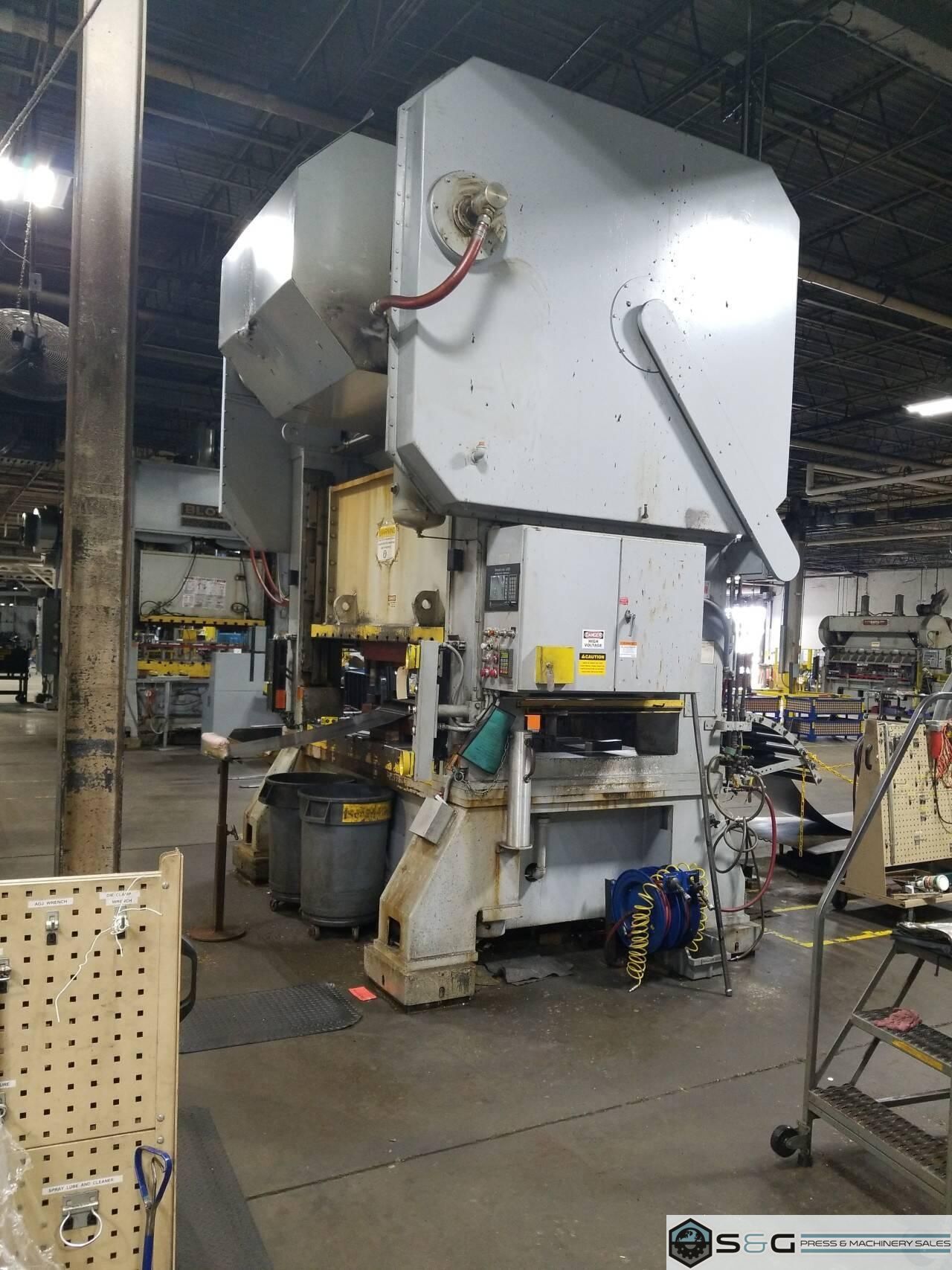

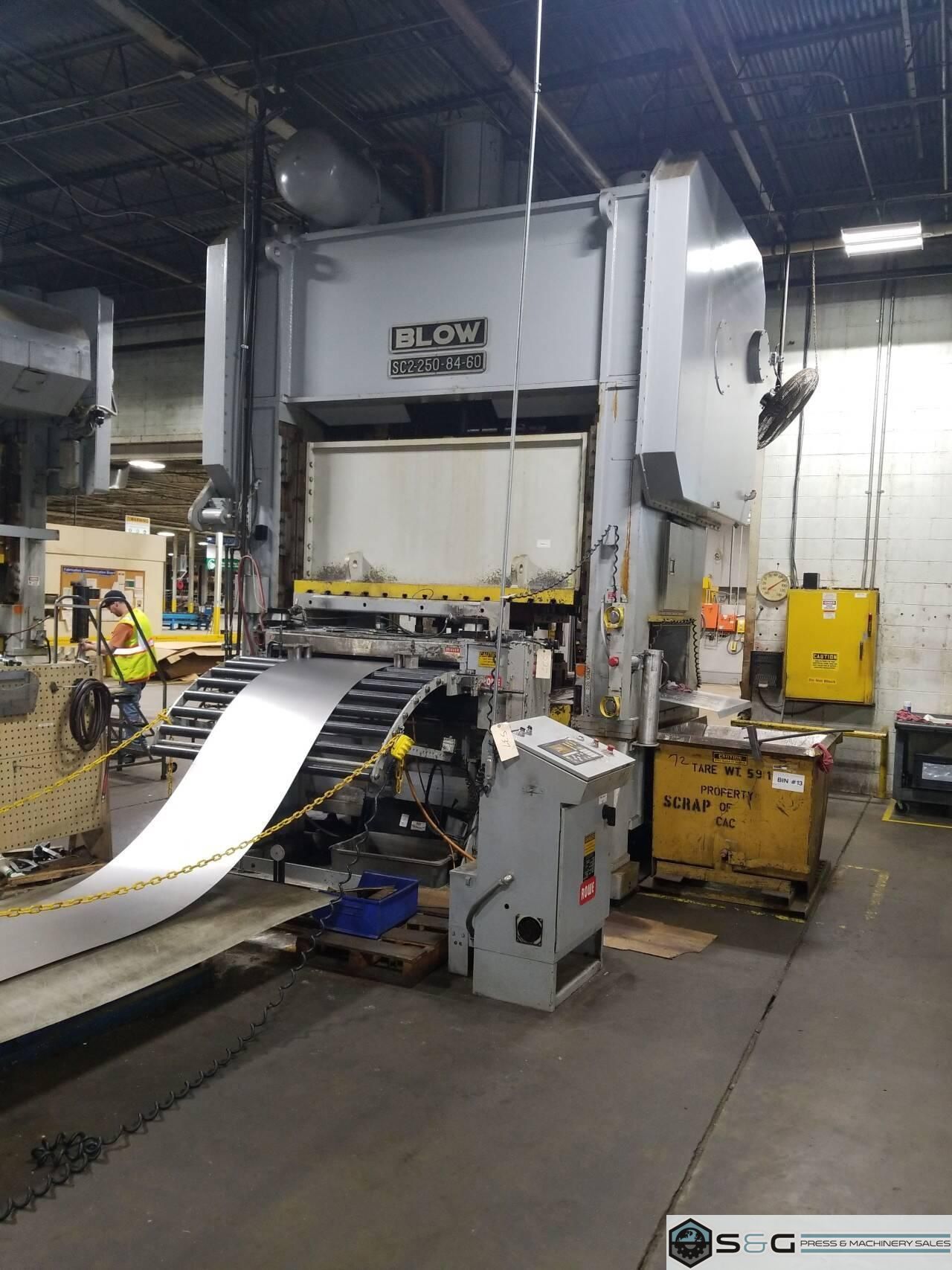

250 ton Blow SC2-250-84-60 Straight Side Mechanical Press

Brand

BLOW

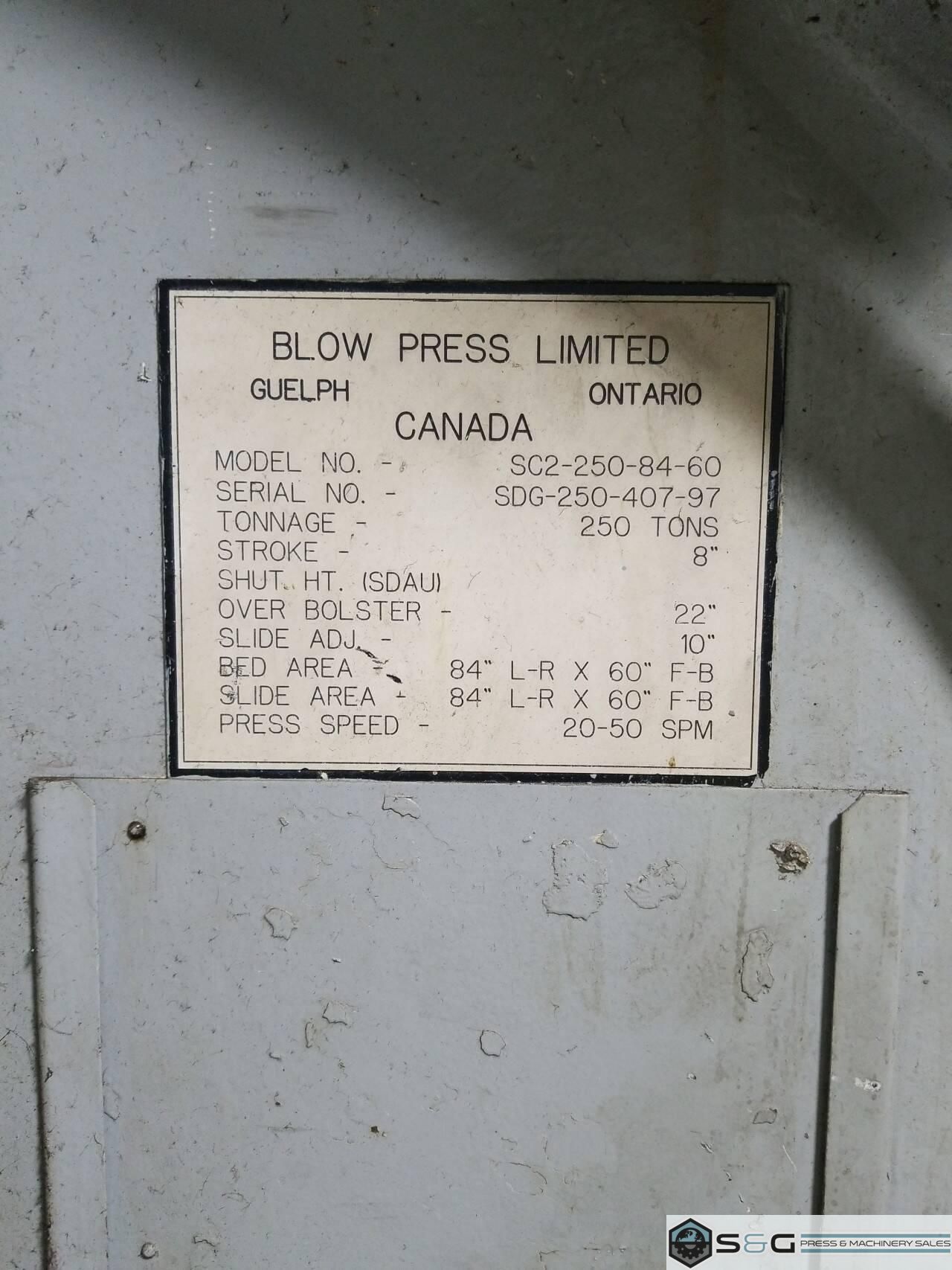

Model

SC2-250-84-60

Year

1997

Stock #

2683

Condition

Good

Specifications

Tonnage

250

Stroke

8 inches

Shut Height

28 inches

Adjustment

10 inches

Bed Size

84" LR x 60" FB

Ram Area

84" LR x 60" FB

SPM

20-50 VSPM

Standard Specifications
250 ton Capacity
8" Stroke
28" Shut Height over Bed
22" Die Height over Bolster
10" Adjustment
84" LR x 60" FB Bed Area
84" LR x 60" FB Slide Area
25-50 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
5.5" Thick Bolster
Motorized Adjustment

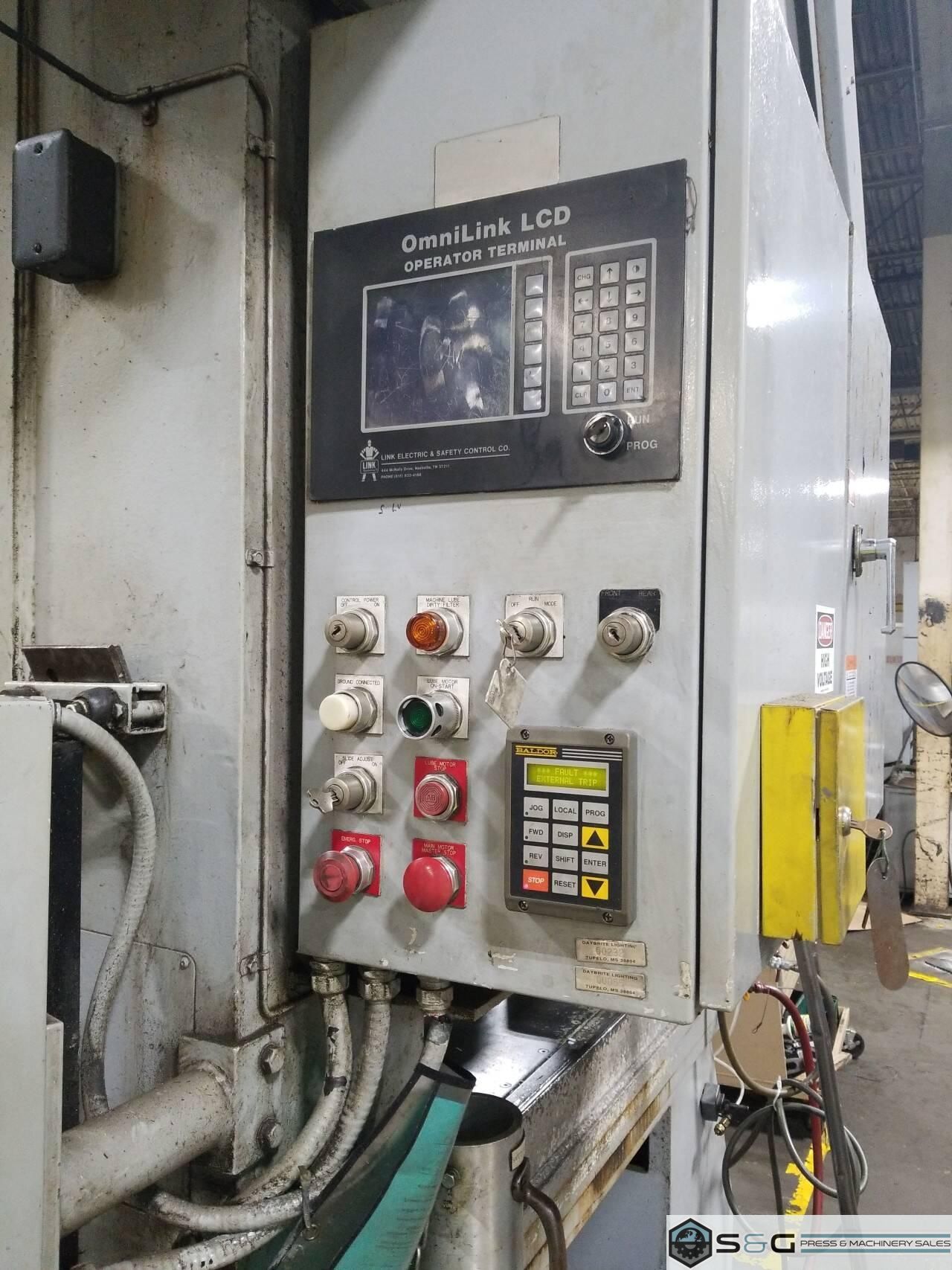

Omni Link LCD Operator Controls
Omni Link Black Max Light Curtains
40 H.P. Main Drive Motor
Vibro Dynamic Floor Pads
Palm Buttons
36" Floor to Top of Bolster (without Vibro Mounts)
38" Wide Windows
Floor Standing

185" Overall Height
116" x 85" Foot print
Can be seen under power in the S&G Press Warehouse upon request!

Attachments

250 ton Blow GA Drawing S&G Stock# 2683.pdf Download

Machine Tags

straight side press, 250 ton, Blow Press, Mechanical Press
