HD 30" Coil Feed Line
None
2905
Reconditioned
Specifications |
|||
|---|---|---|---|
| Coil Weight | 20000 pounds |
||
| Coil Width | 30 inches |
||
| Coil Thickness | .150 inches |
||
|

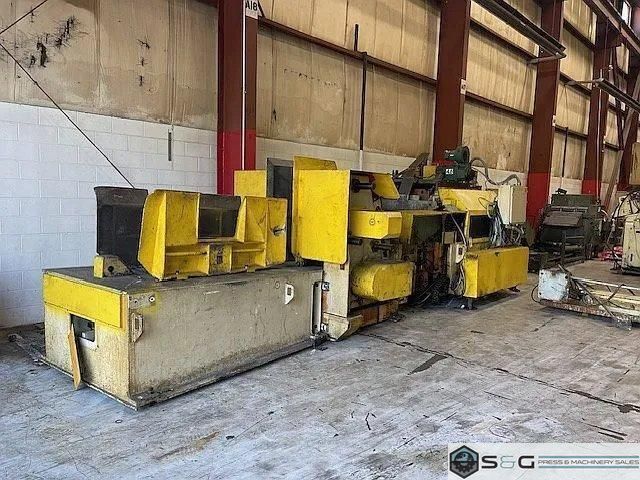

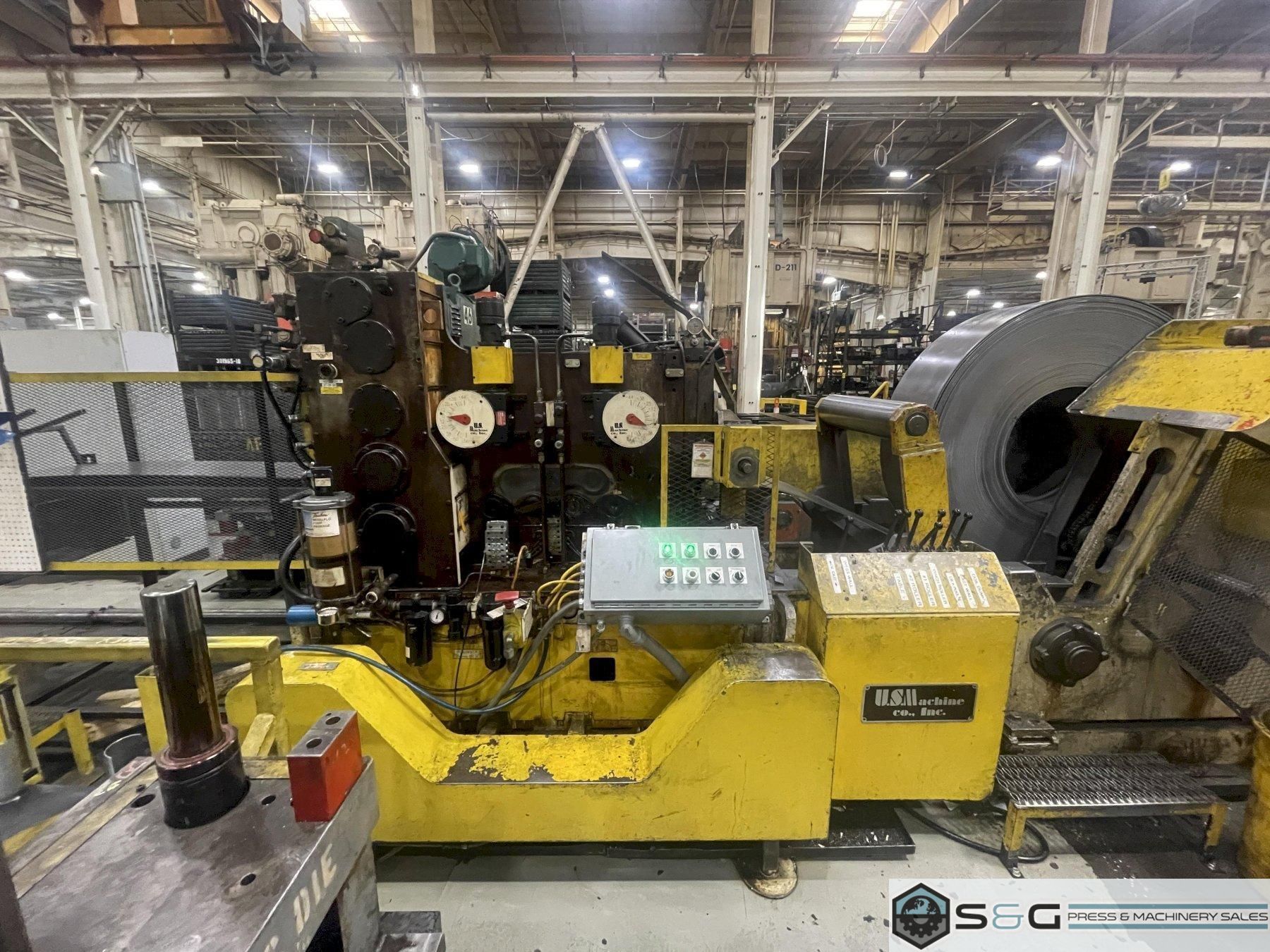

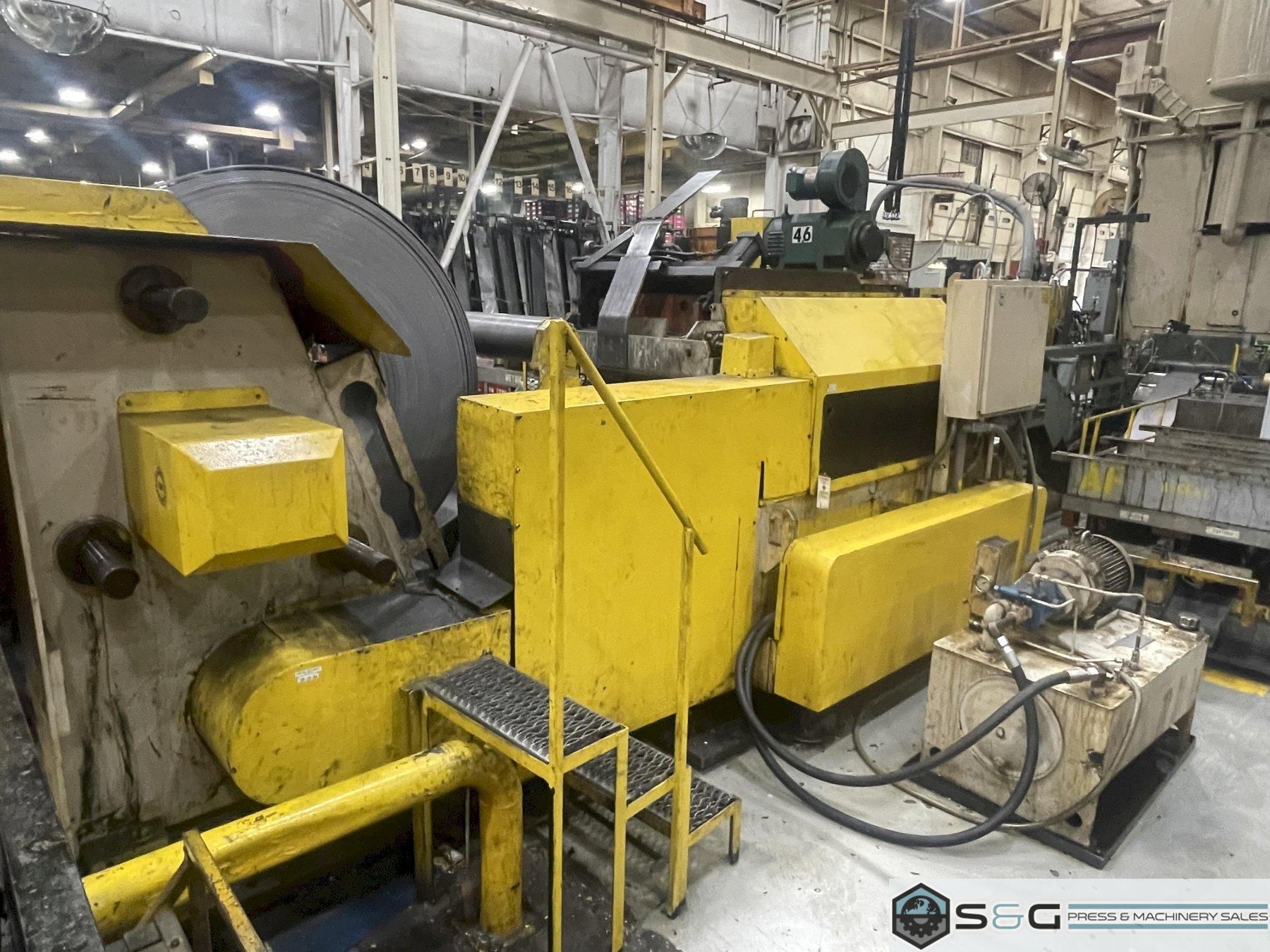

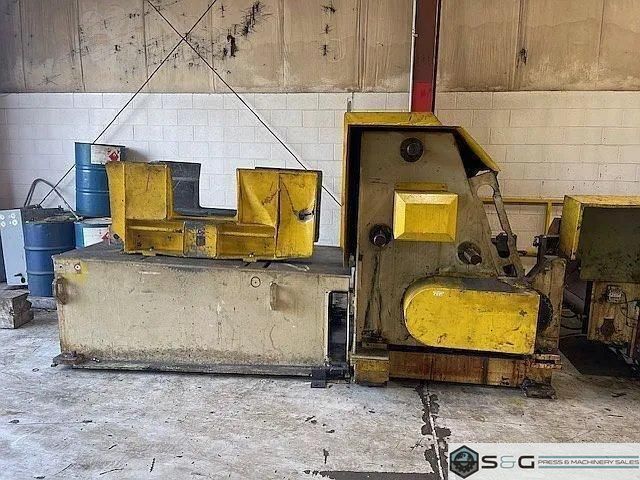

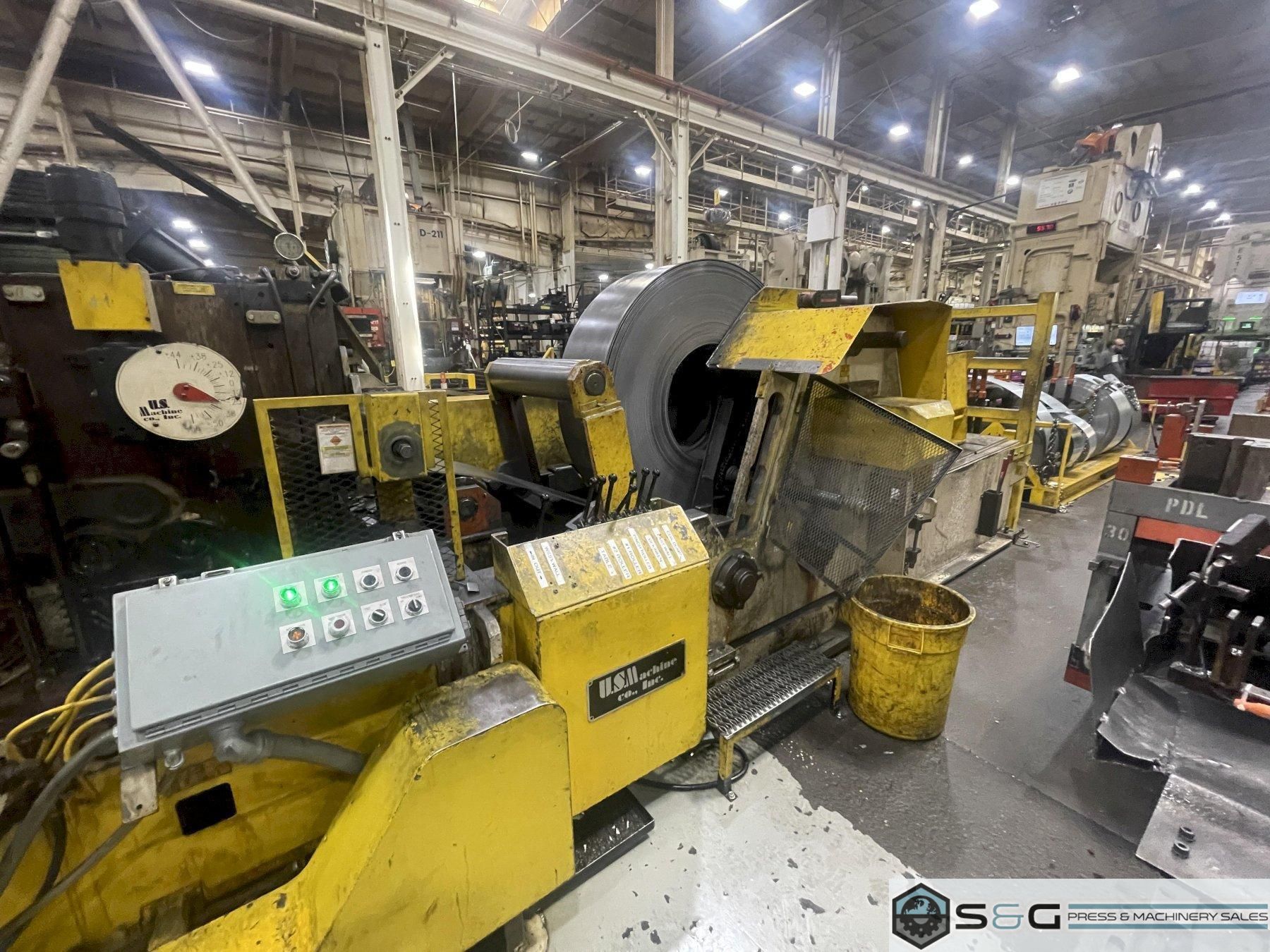

Standard Specifications US Machine Heavy Duty Coil Cradle Straightener Combination Servo Feed
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 30"
Stock thickness capacity: .150" @ 30" Wide
Stock thickness capacity: .187" @ 24" Wide
Stock thickness capacity: .300" @ 12" Wide
Stock thickness capacity: .380" @ 10" Wide
Coil O.D. Capacity: 72" US Machine Heavy Duty Coil Cradle Straightener Combination
Equipment and Features: Entry pinch rolls
Air operated entry pinch roll adjustments

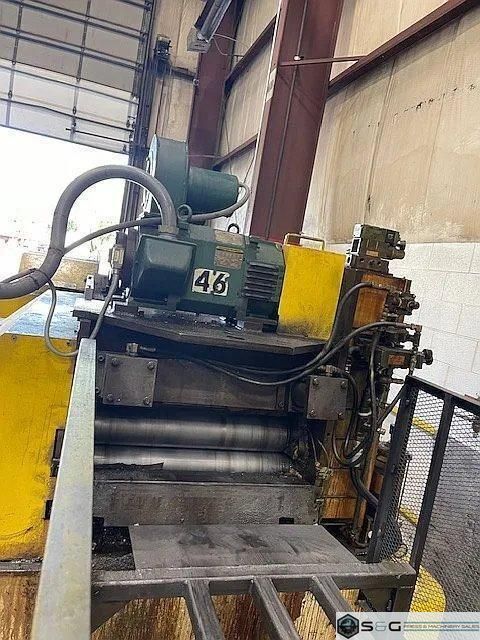

Seven straightening rolls

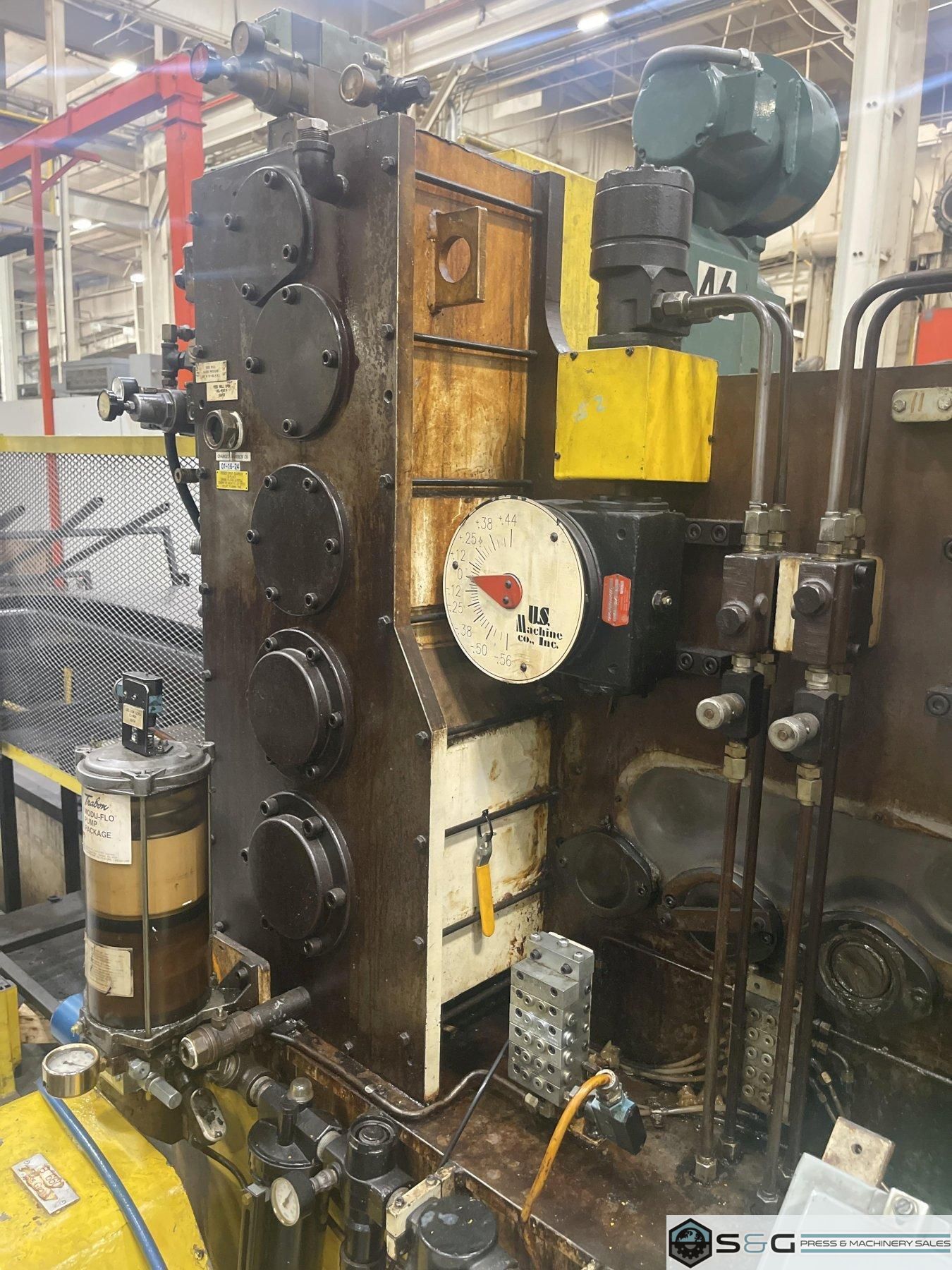

Dial indicators for upper straightening roll position
Motorized upper straightening roll adjustment
Heavy duty stock width edge guides
Powered nest rolls in coil cradle
Coil restrictor side plates
Coil restrictor side plate adjustments
Combination Coil stop peeler threading assist and de-kinker assembly
Coil storage / load ramp
Automatic lubrication system
Self contained hydraulic pump unit
Existing Updated AC VFD control system
Laser loop control
Unit offered cleaned and cycling
Pricing includes new Dallas Industries Servo Feed with Controls Techniques Controls. |
|||
