200-ton Komatsu Model E2M200 Straight Side High Speed Metal Stamping Press For Sale, 4.3" Stroke, Year 1988

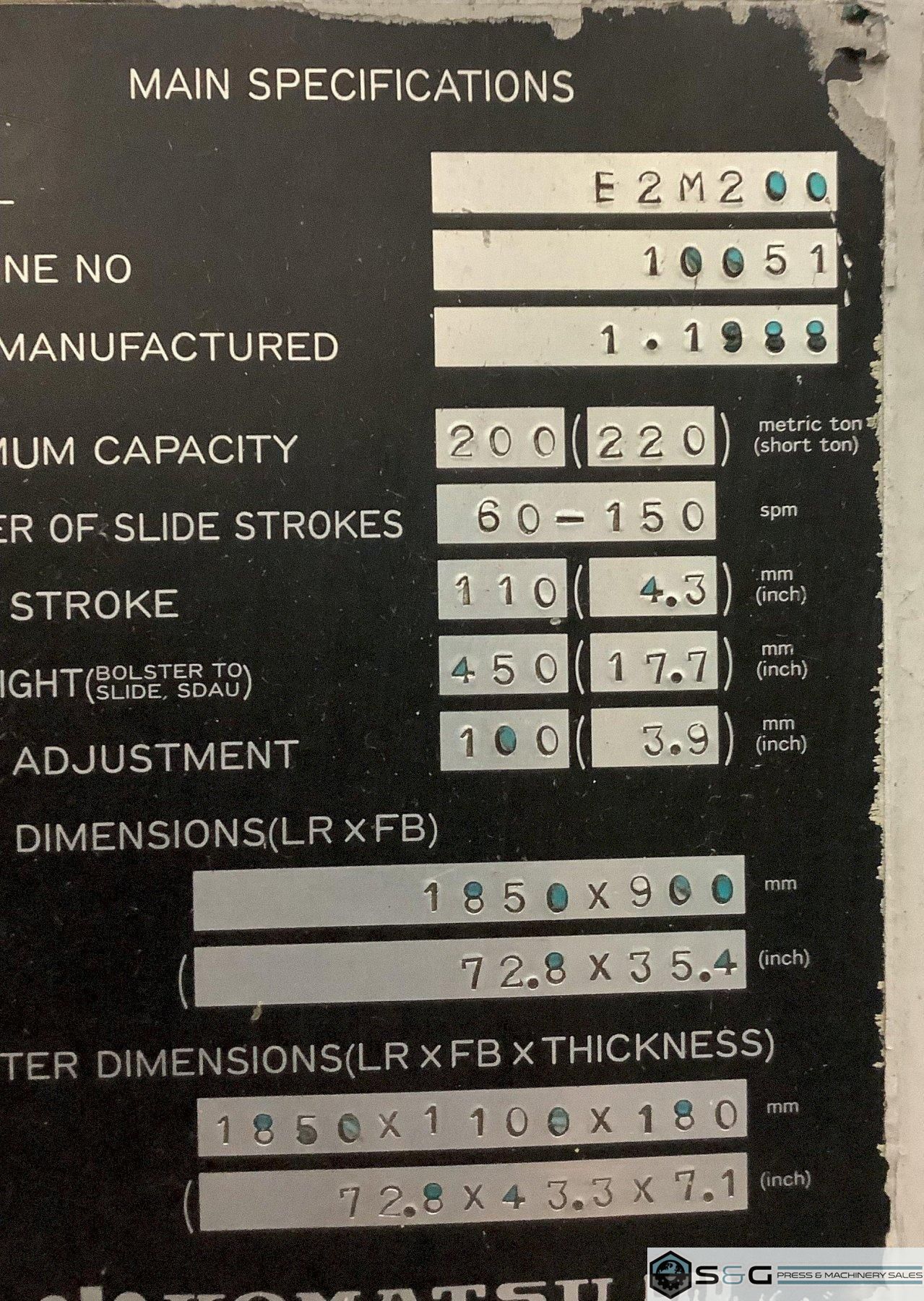

Standard Specification
Used Komatsu Metal Stamping Press
Model E2M200 sn/ 10051
200-ton Metric Capacity
220-ton US Capacity (Short)
4.3" Stroke
24.8" Shut Height on Bed
17.7" Die Height on Bolster
3.9" Motorized Adjustment
72.8" LR x 35.4" FB Slide Area
72.8" LR x 43.3" FB Bed Area
60-150 VSPM

Equipment and Features
Hydraulic Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Komatsu Press Controls
Light Curtains
Hydraulic Overload Protection
Plunger Guided to maintain parallelism and horizontal accuracy of slide for extends die life.
Unitized Frame of Cast Steel Construction
T-Stand Palm Button Station
8 Point Gibs
7.1" Thick Bolster Plate
25.6" Wide Windows
Vibro Dynamic Isolation Pads
Floor Standing

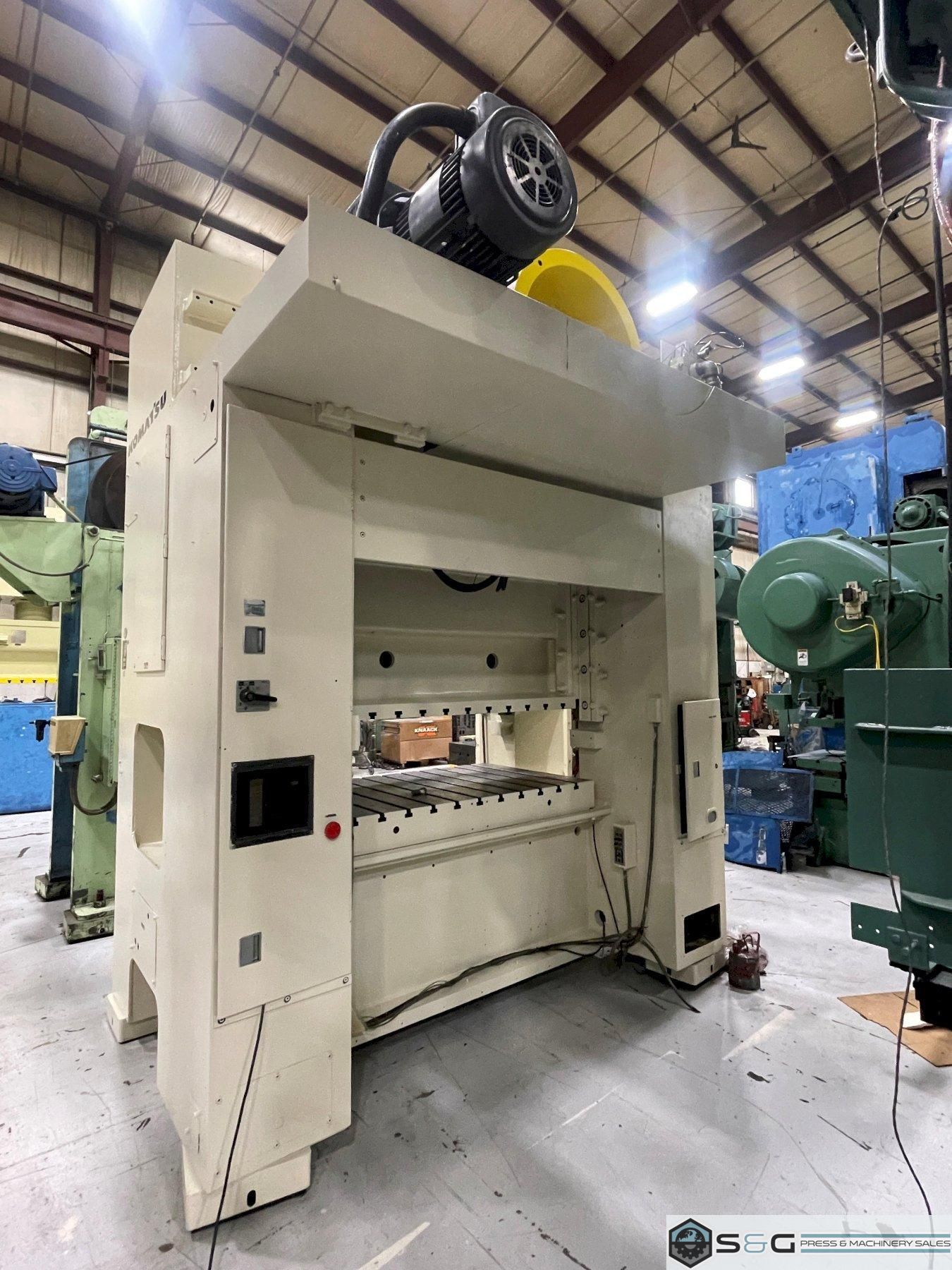

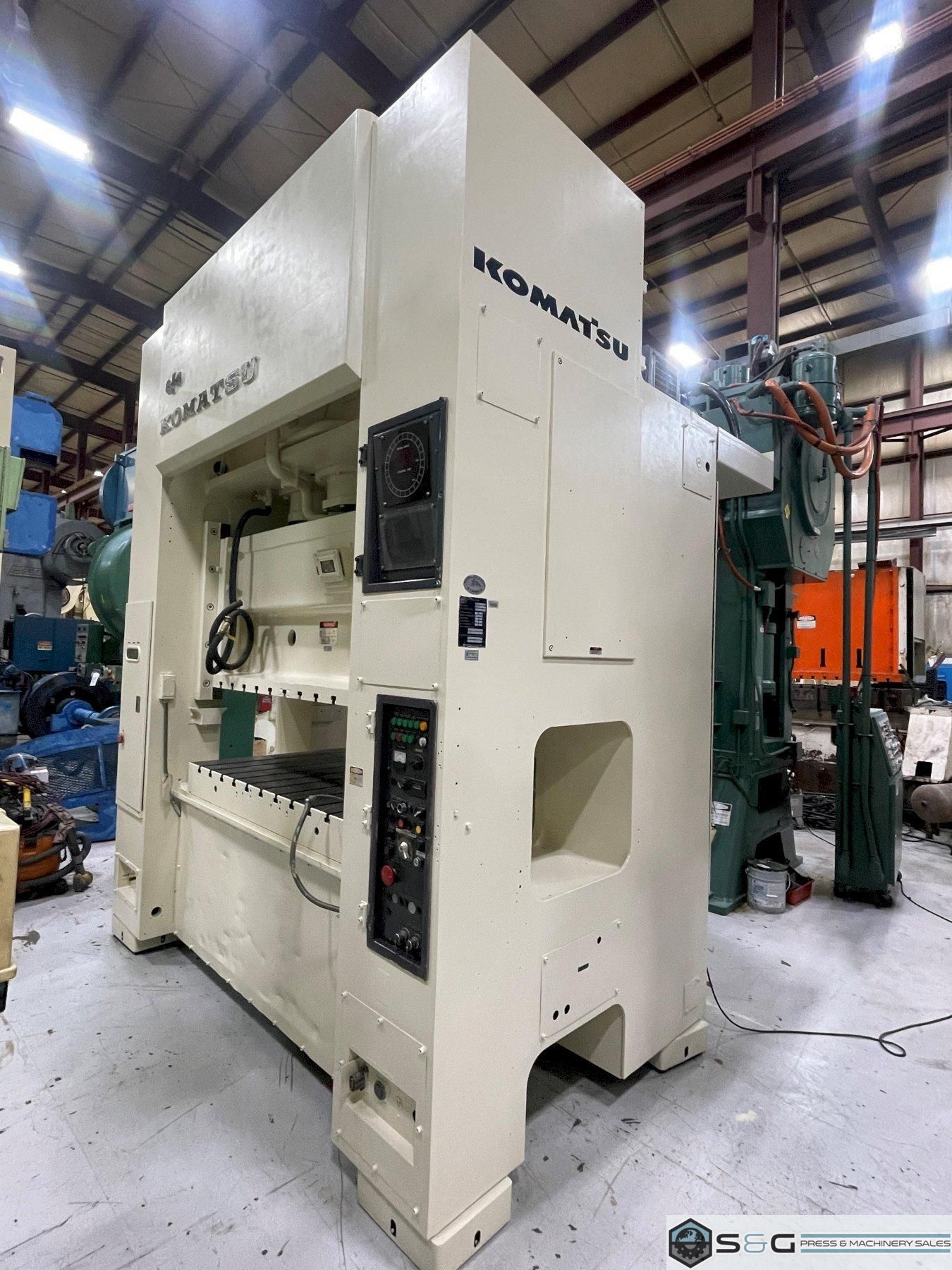

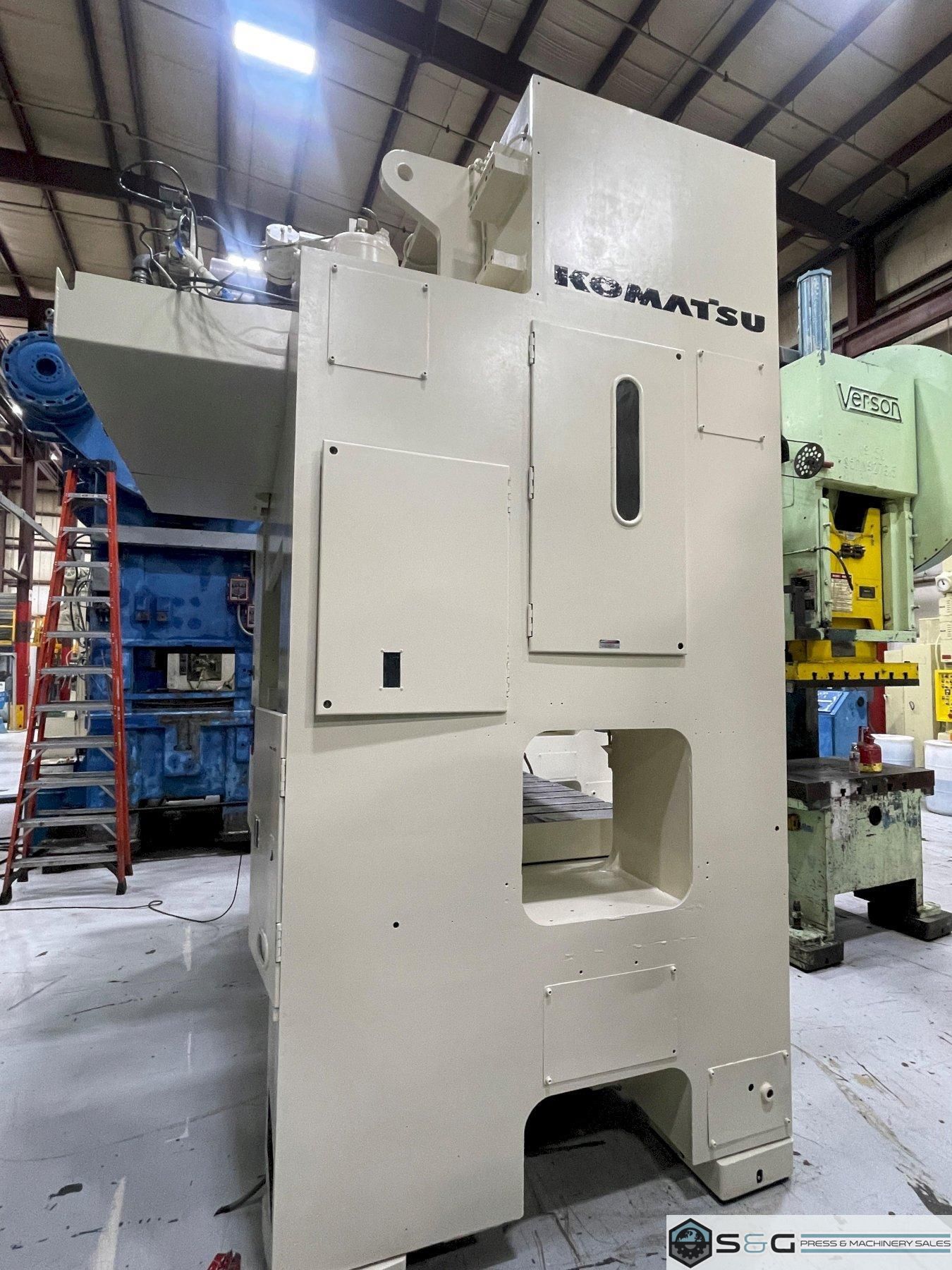

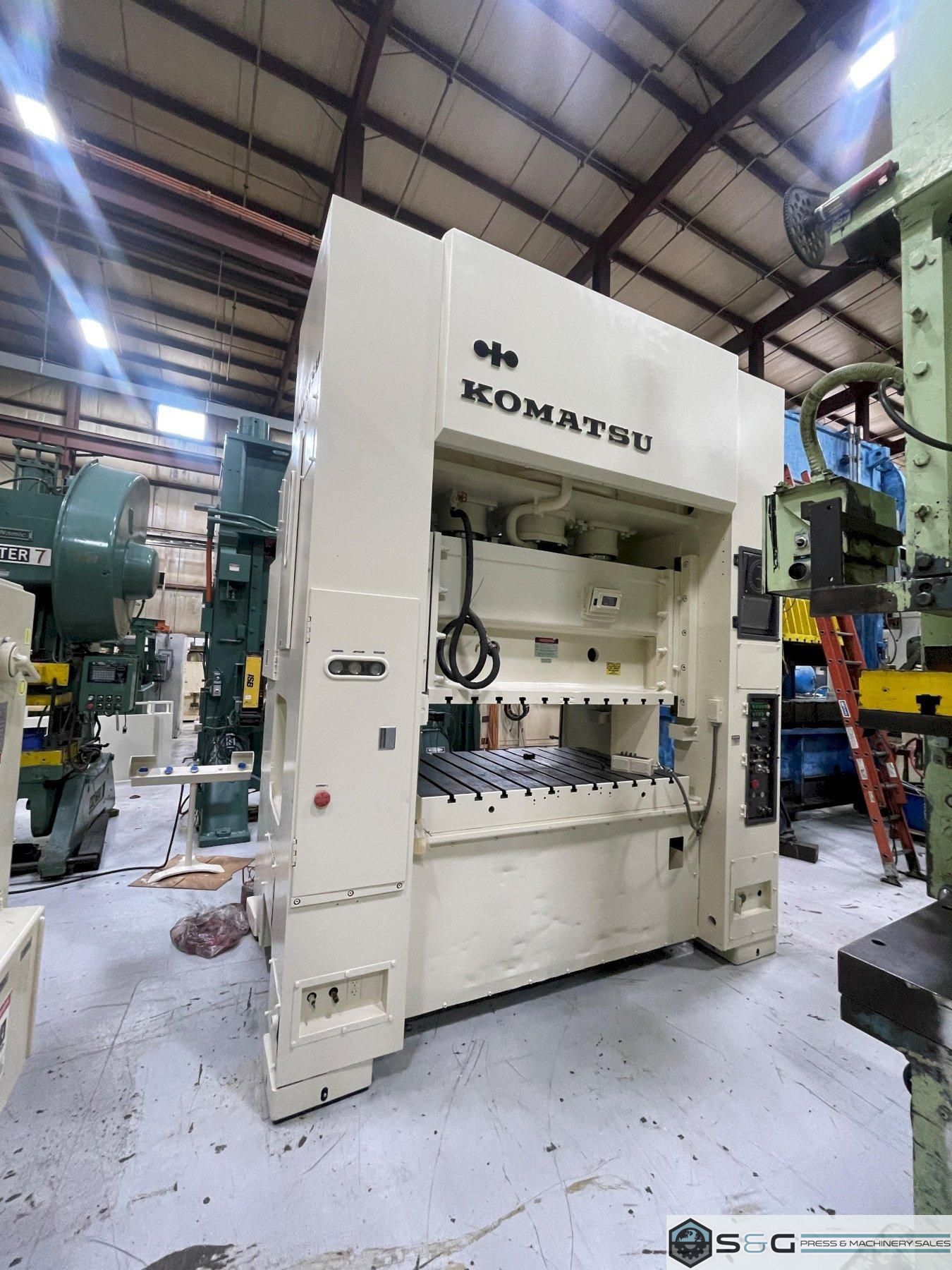

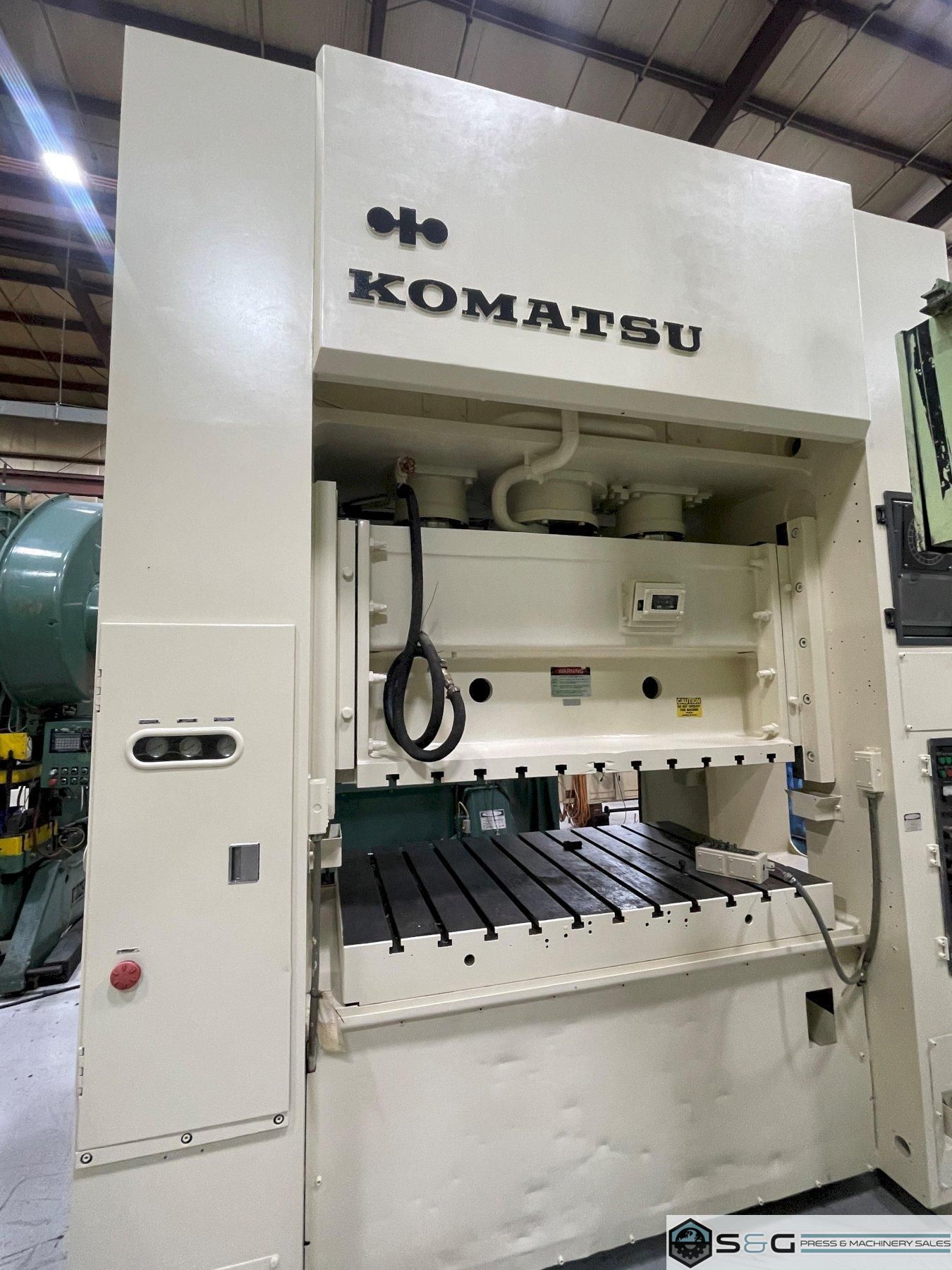

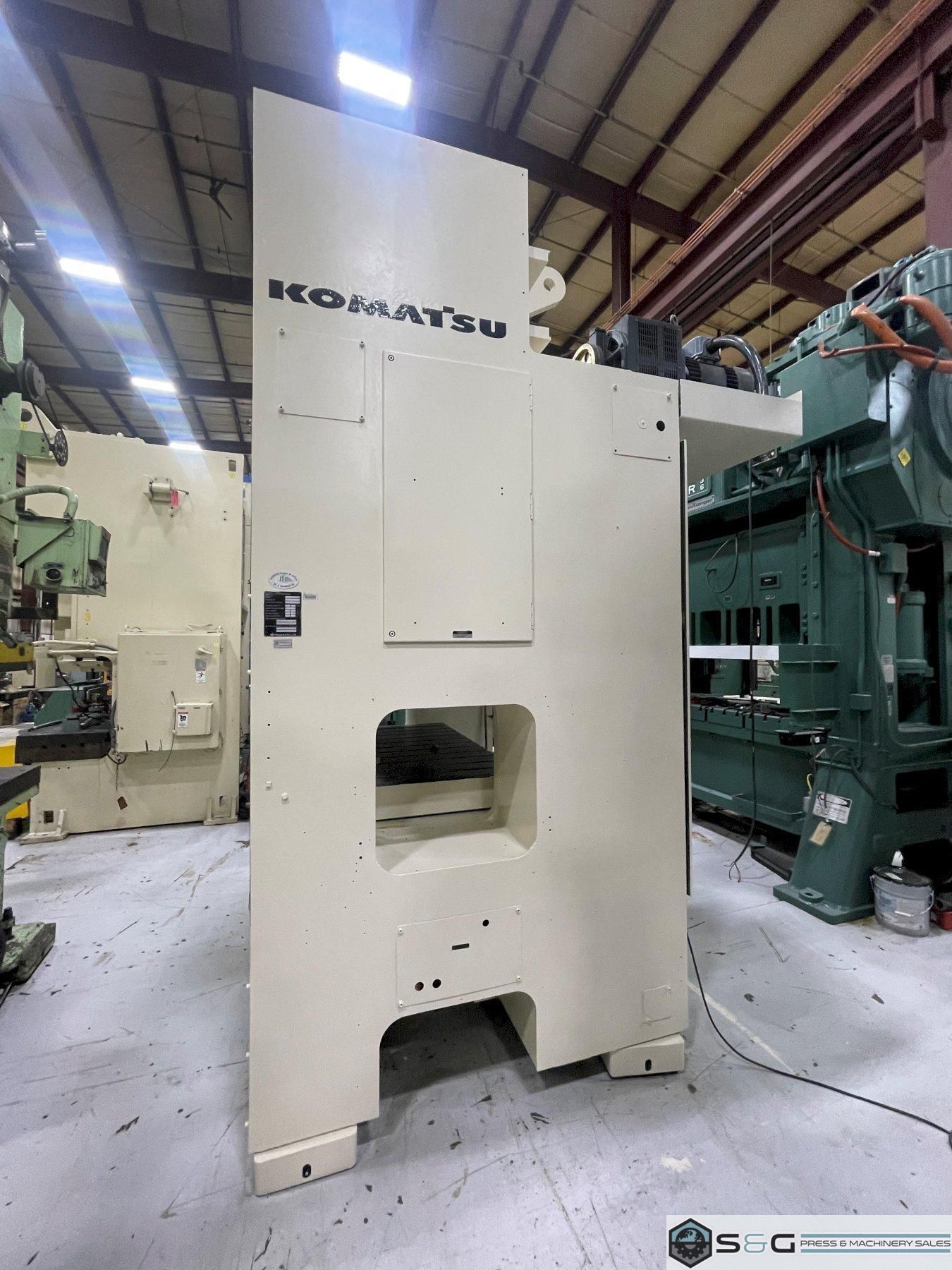

This 200-ton Komatsu Metal Stamping Press can be seen under power in the S&G Press Livonia Warehouse!

Click here for more Komatsu Press Options and here for 200-ton Press Options.

This used Komatsu E2M200 straight side mechanical metal stamping press, boasting a 220 US ton capacity, presents a valuable opportunity for manufacturers seeking reliable and efficient stamping solutions. Its 5.9-inch stroke and variable speeds up to 100 SPM provide versatility for a range of production needs. The expansive bed and slide areas accommodate sizable dies, enabling the processing of larger components. Equipped with features such as hydraulic overloads, this press ensures precision and protects tooling during demanding blanking and progressive die stamping applications. Its robust construction guarantees durability and consistent performance, making it a sound investment for long-term production efficiency. Explore this Komatsu press to enhance your Highspeed metal stamping capabilities.
