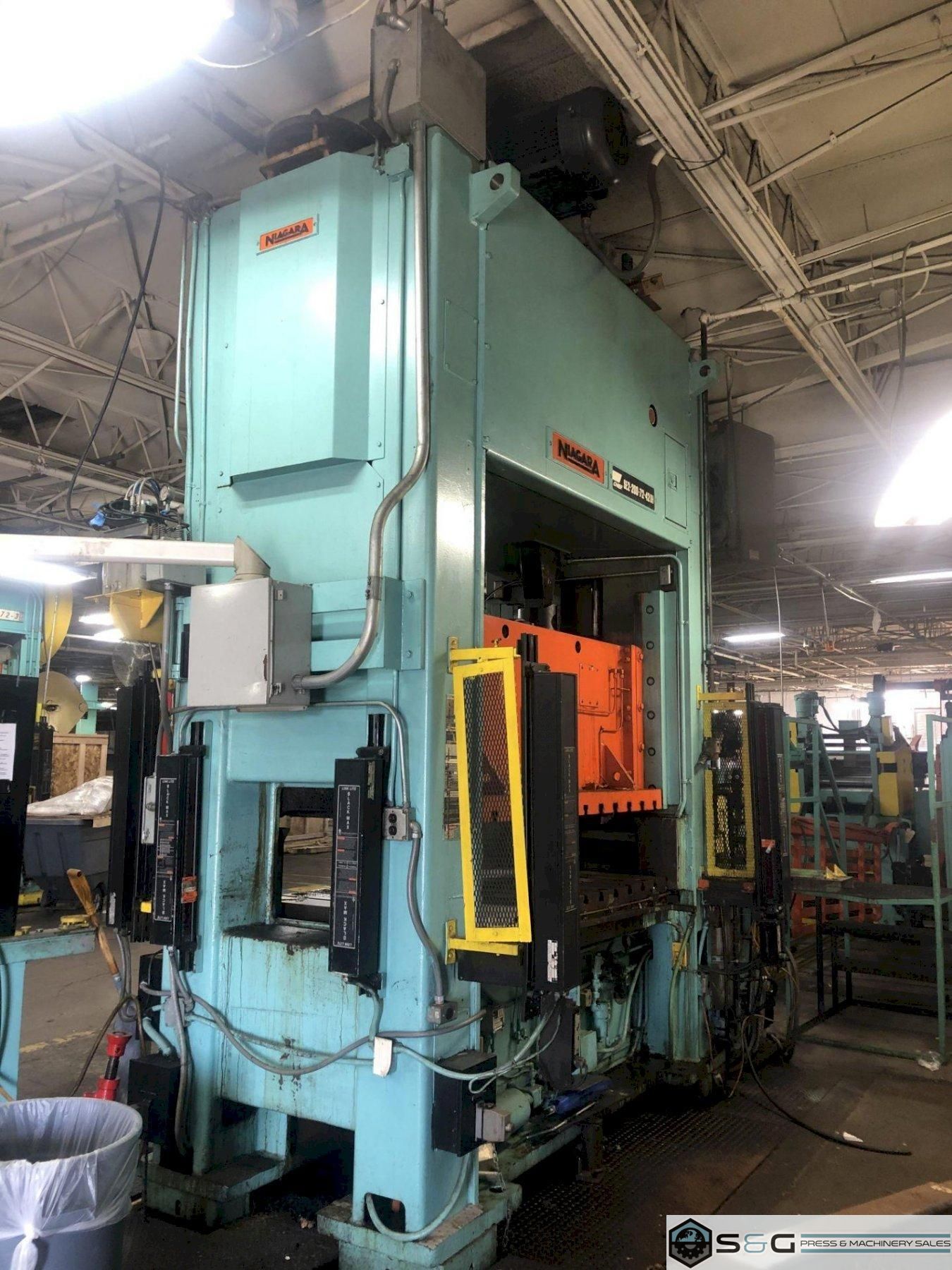

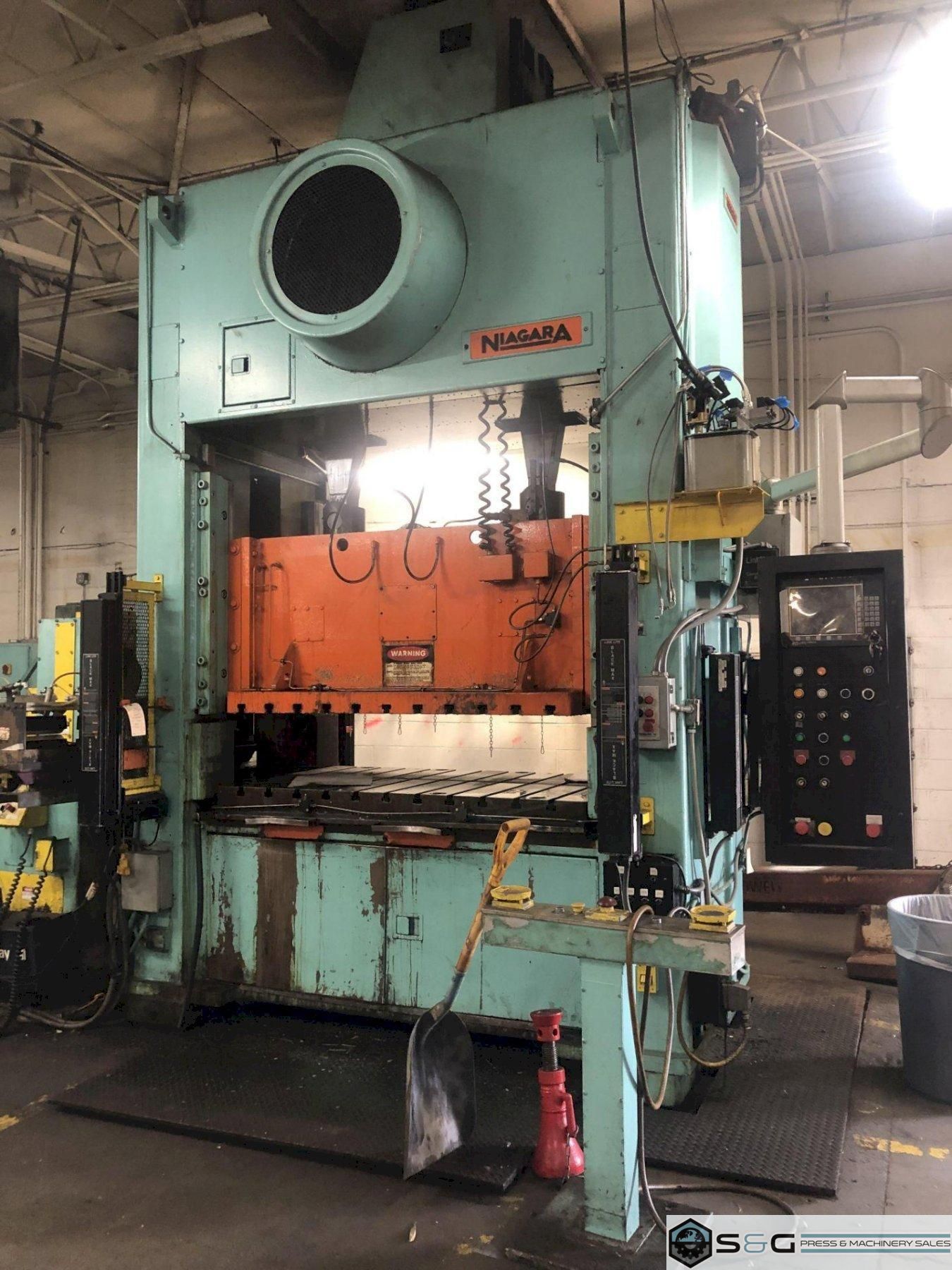

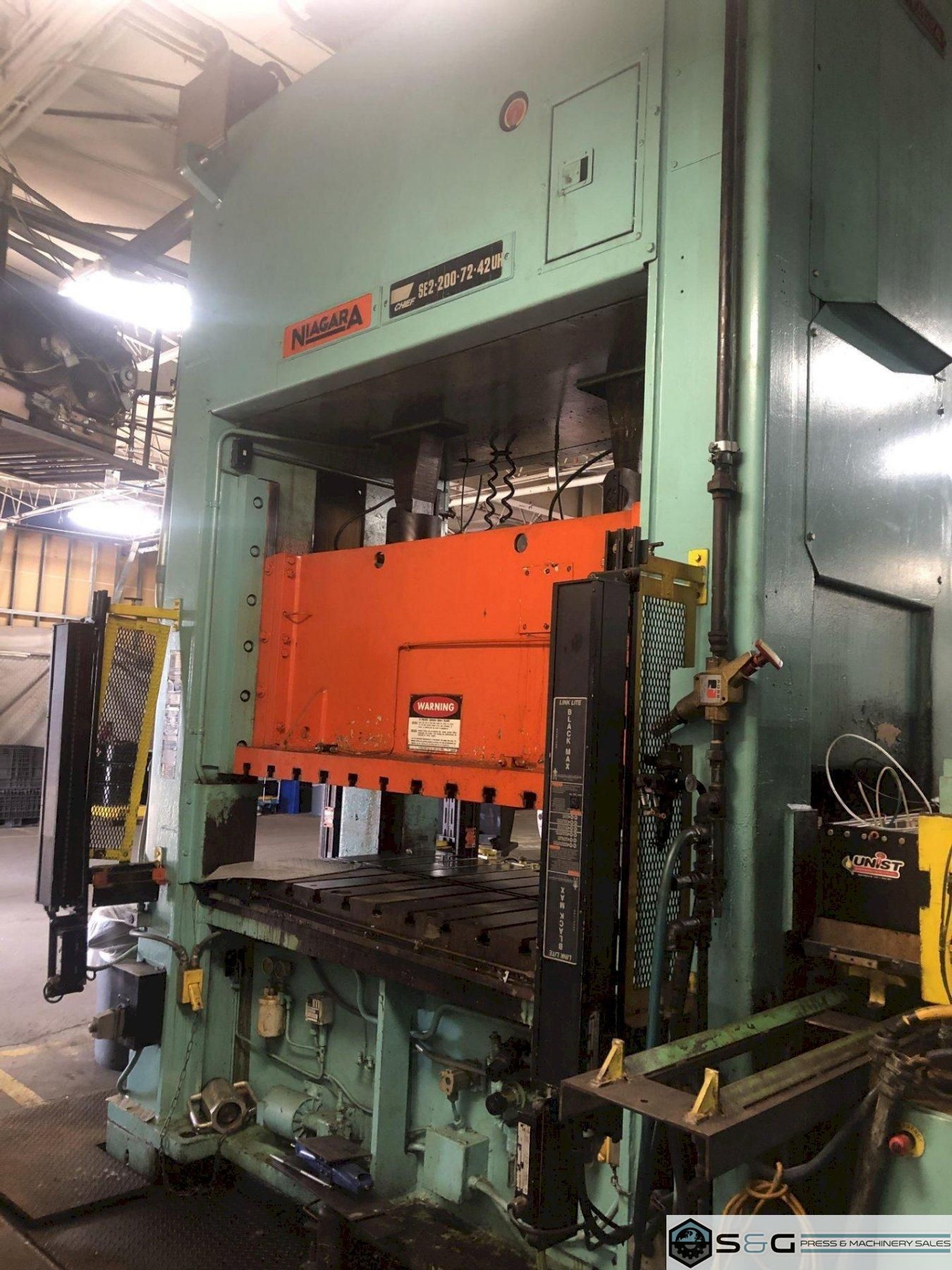

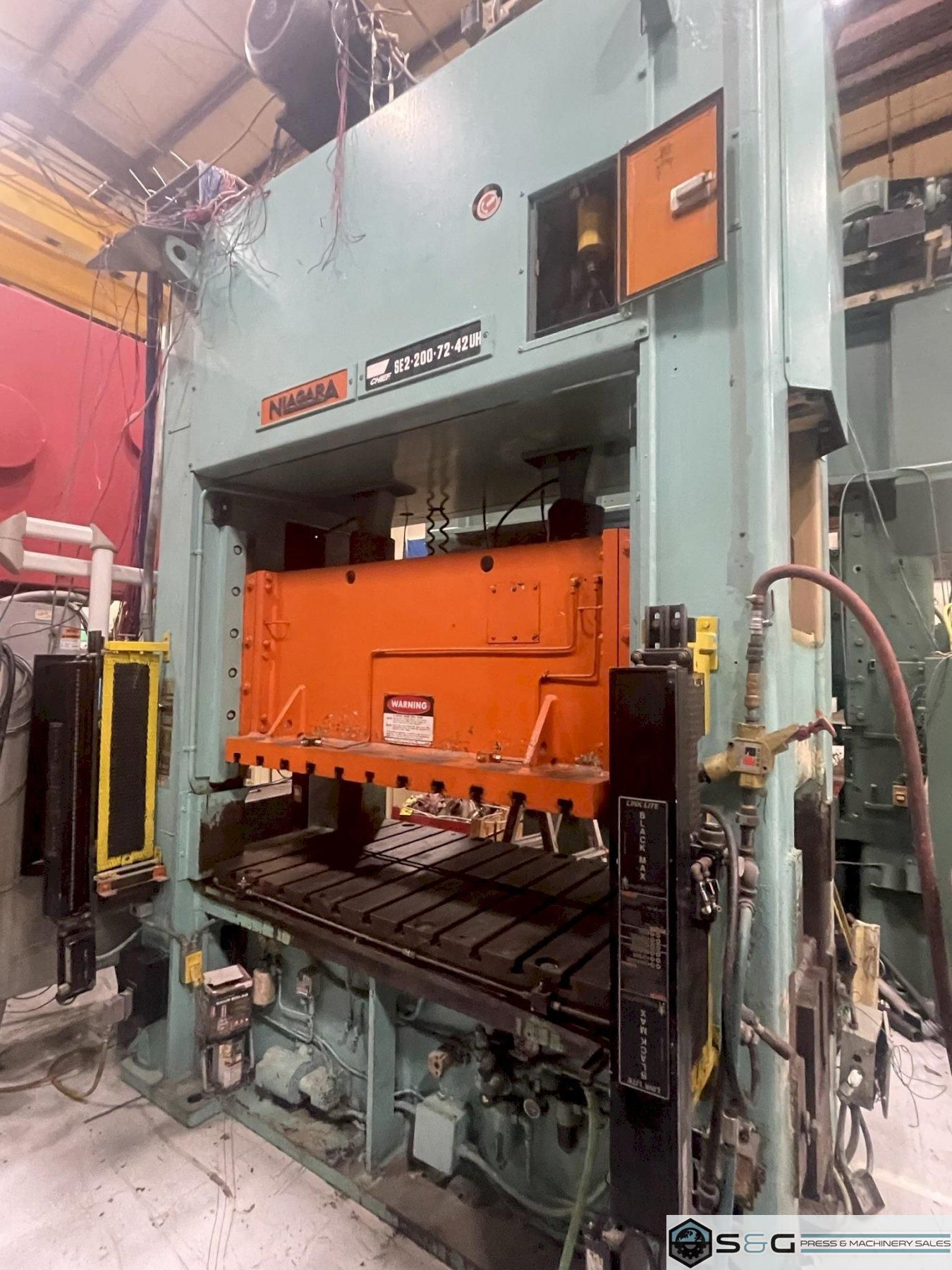

200 ton Clearing Niagara SE2-200-72-42 Straight Side Press

Model

SE2-200-72-42 UH

Year

None

Stock #

2625

Condition

Very Good

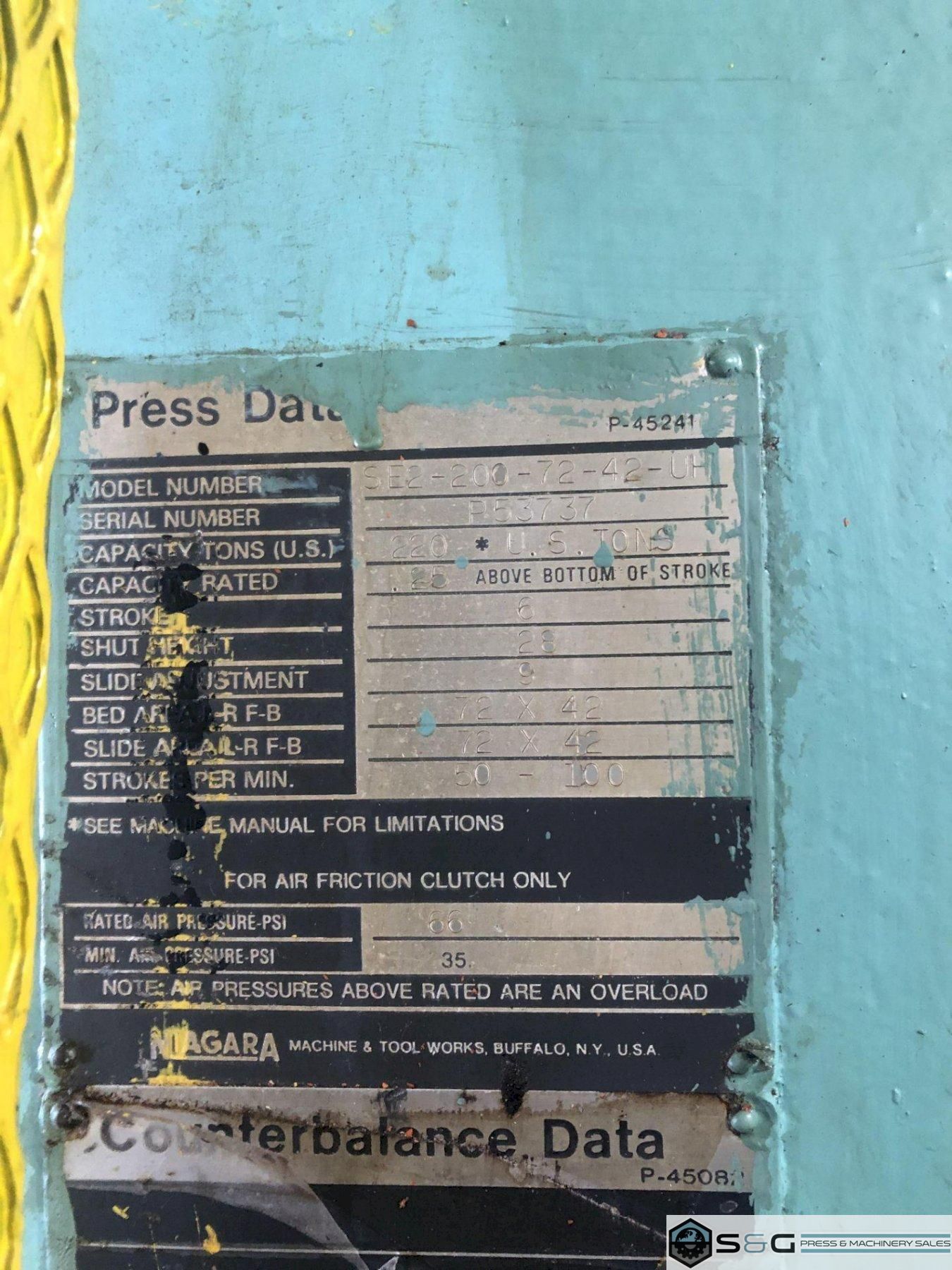

Specifications

Tonnage

200

Stroke

6 inches

Shut Height

28 inches

Adjustment

9 inches

Bed Size

72" LR x 42" FB

Ram Area

72" LR x 42" FB

SPM

50-100

Standard Specifications
200 ton Metric Capacity
220 ton Short Capacity
6" Stroke
28" Shut Height
9" Motorized Adjustment
72" LR x 42" FB Bed Area
72" LR x 42" FB Slide Area
50-100 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
8 Point Gibbing
T-Slotted Ram and Bolster

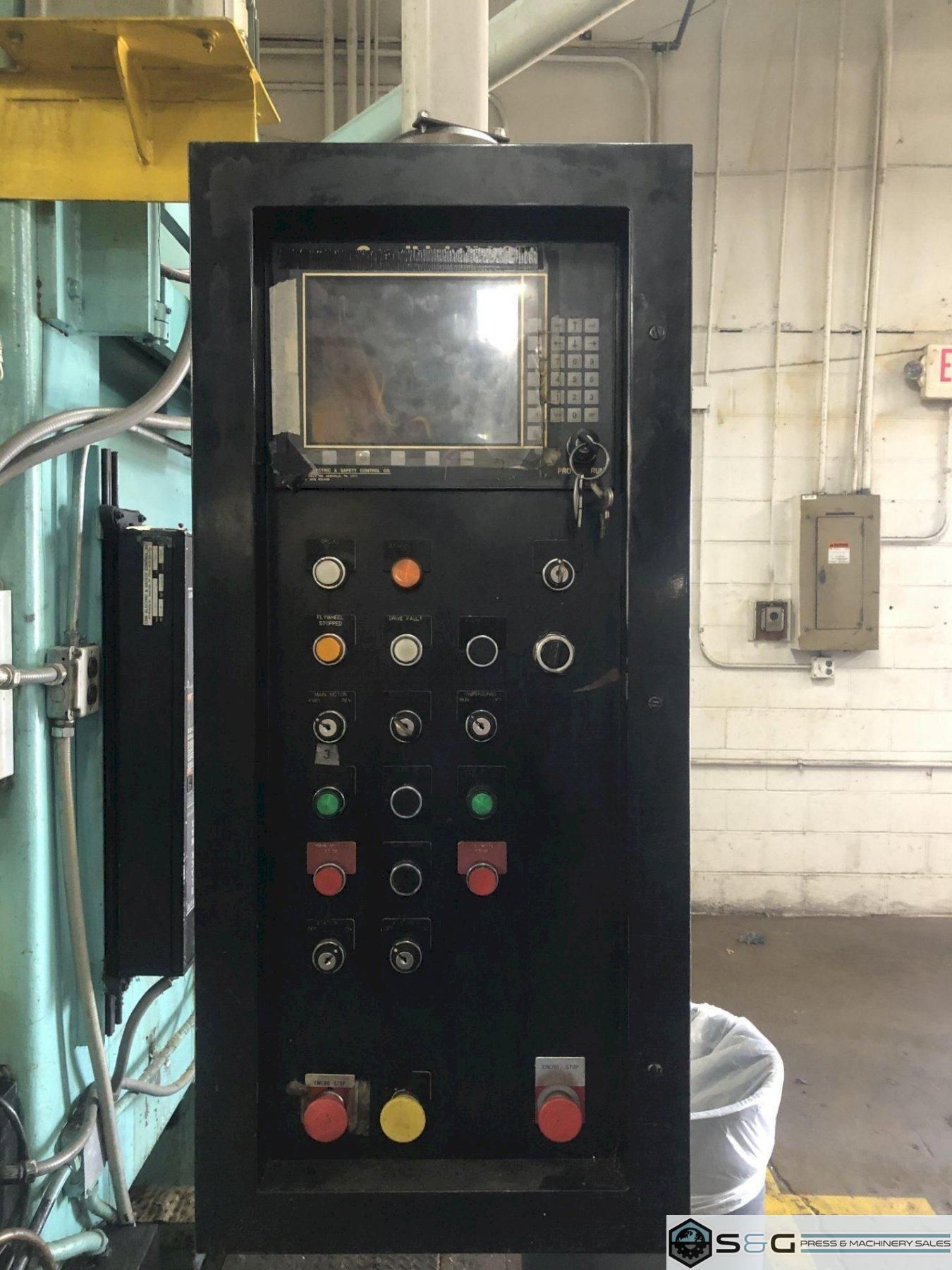

Updated Omni Link Press Controls
Black Max Light Curtains
Vibro Dynamic Floor Pads
T-Stand Palm Buttons
25" Wide Windows (Confirmed)
Floor Standing
16' Overall Height

Can be seen under power in our Livonia Warehouse!

Attachments

200 ton Clearing Niagara SE2-200-72-42 stock#2625.pdf Download
200 ton Clearing Niagara SE2-200-72-42 stock#2625 electrical Drawings.pdf Download
