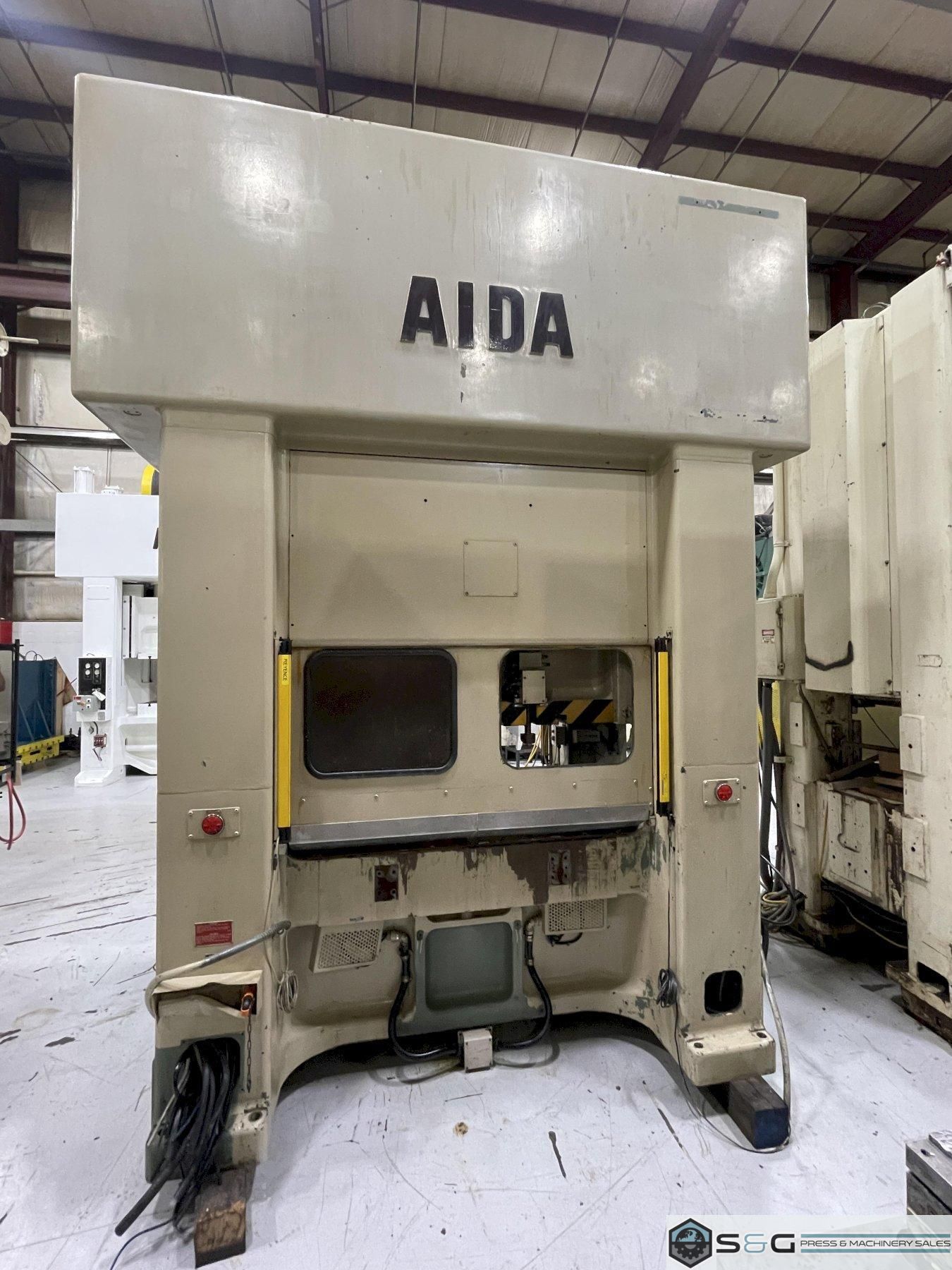

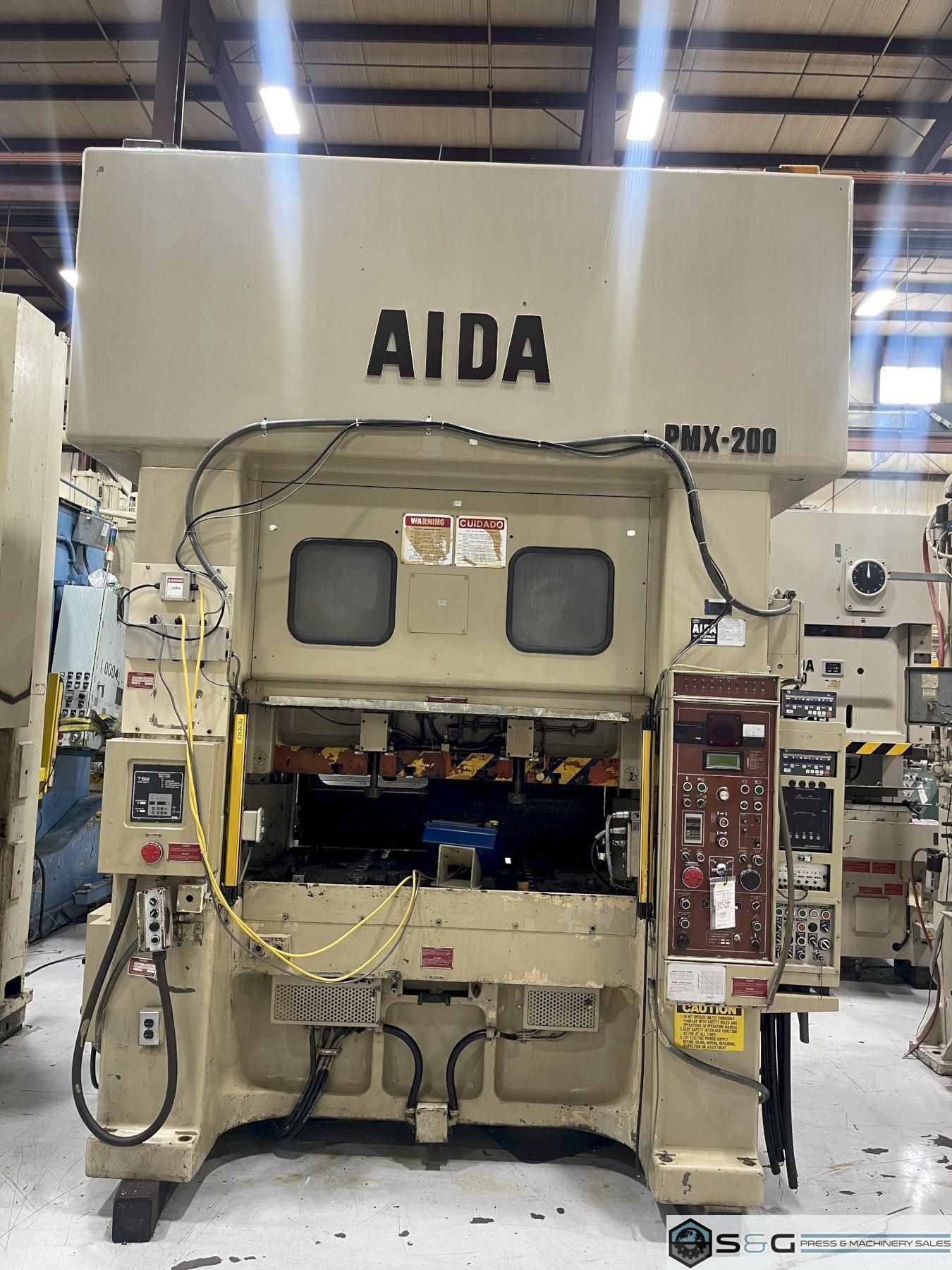

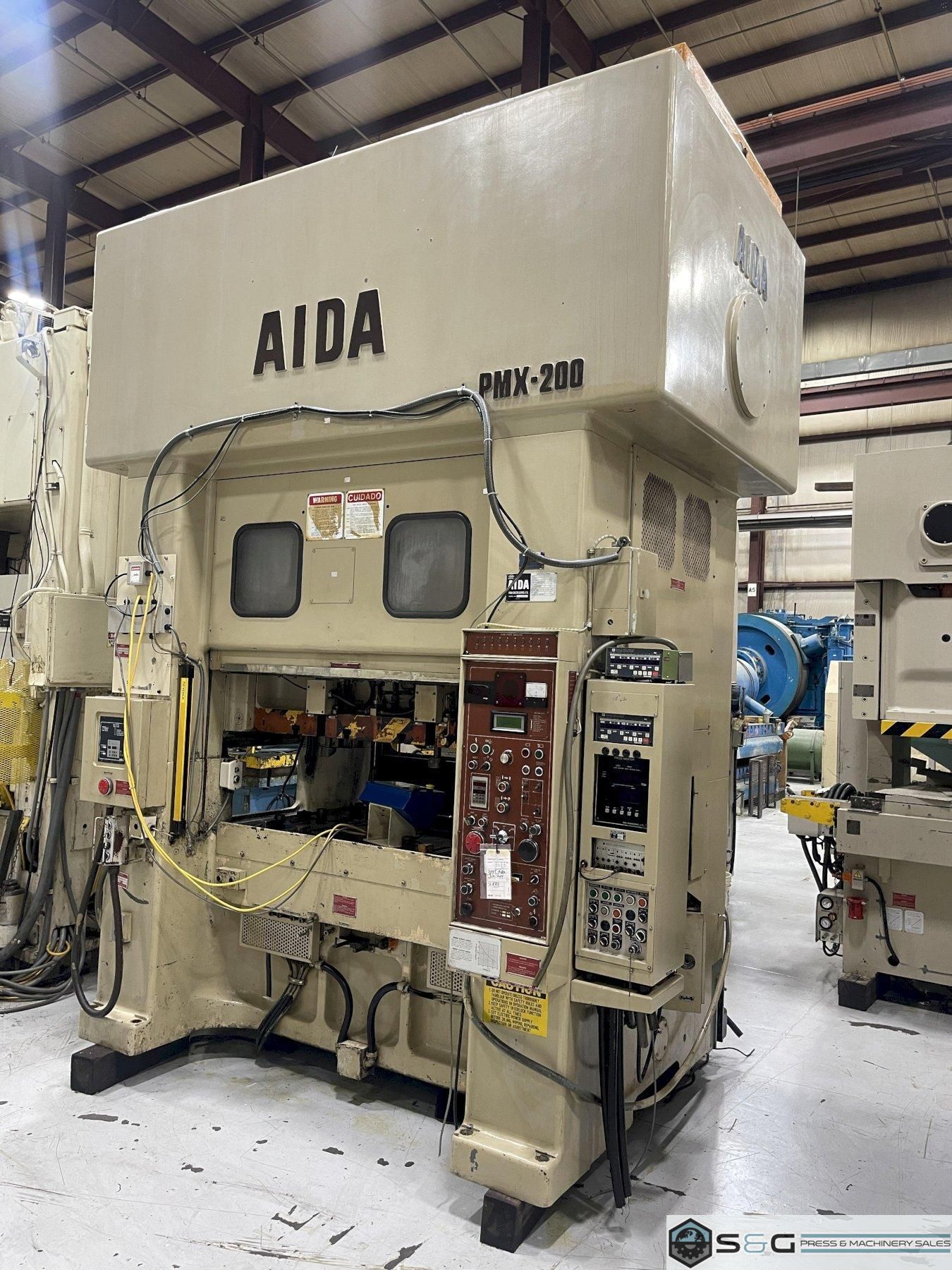

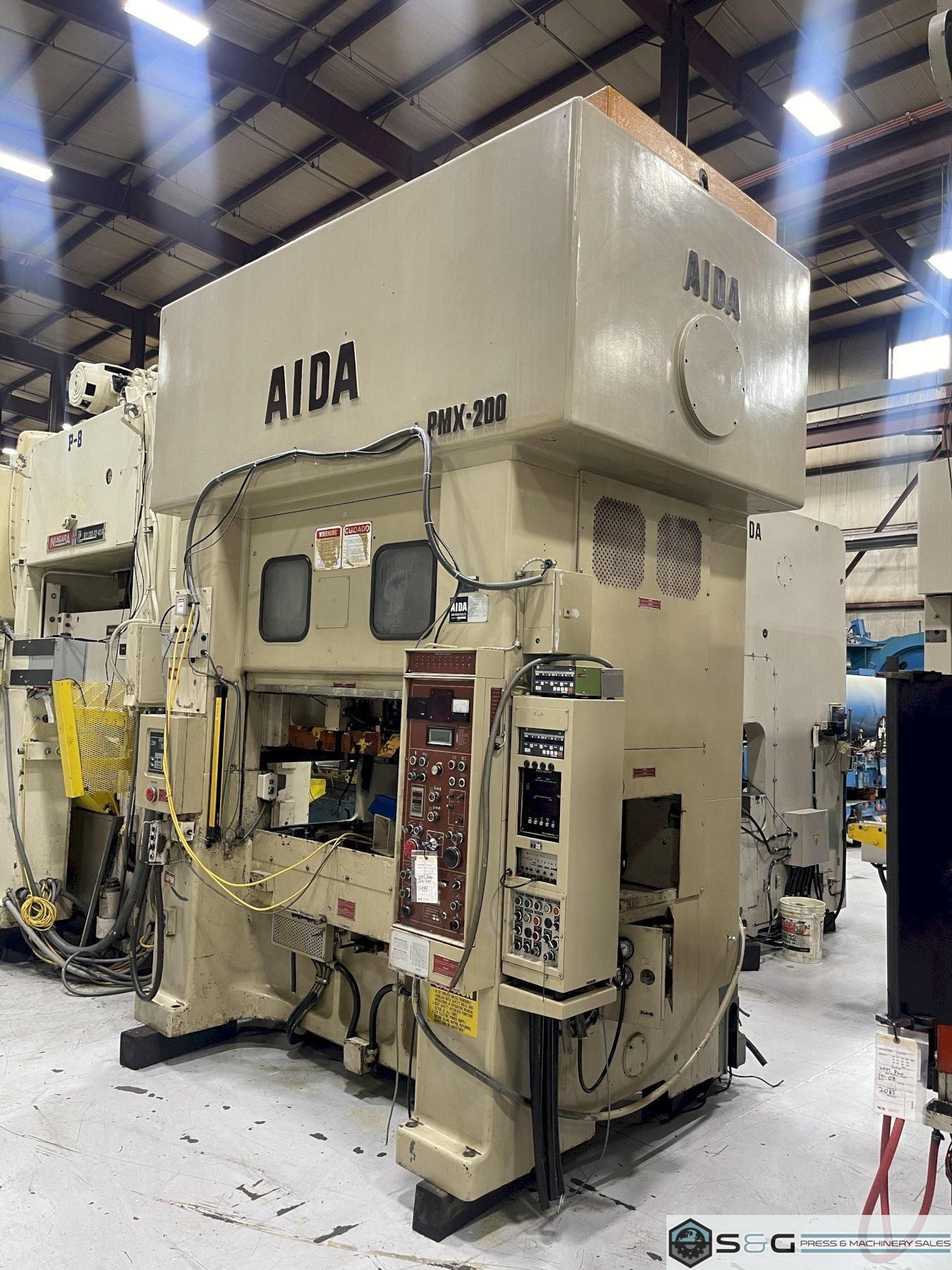

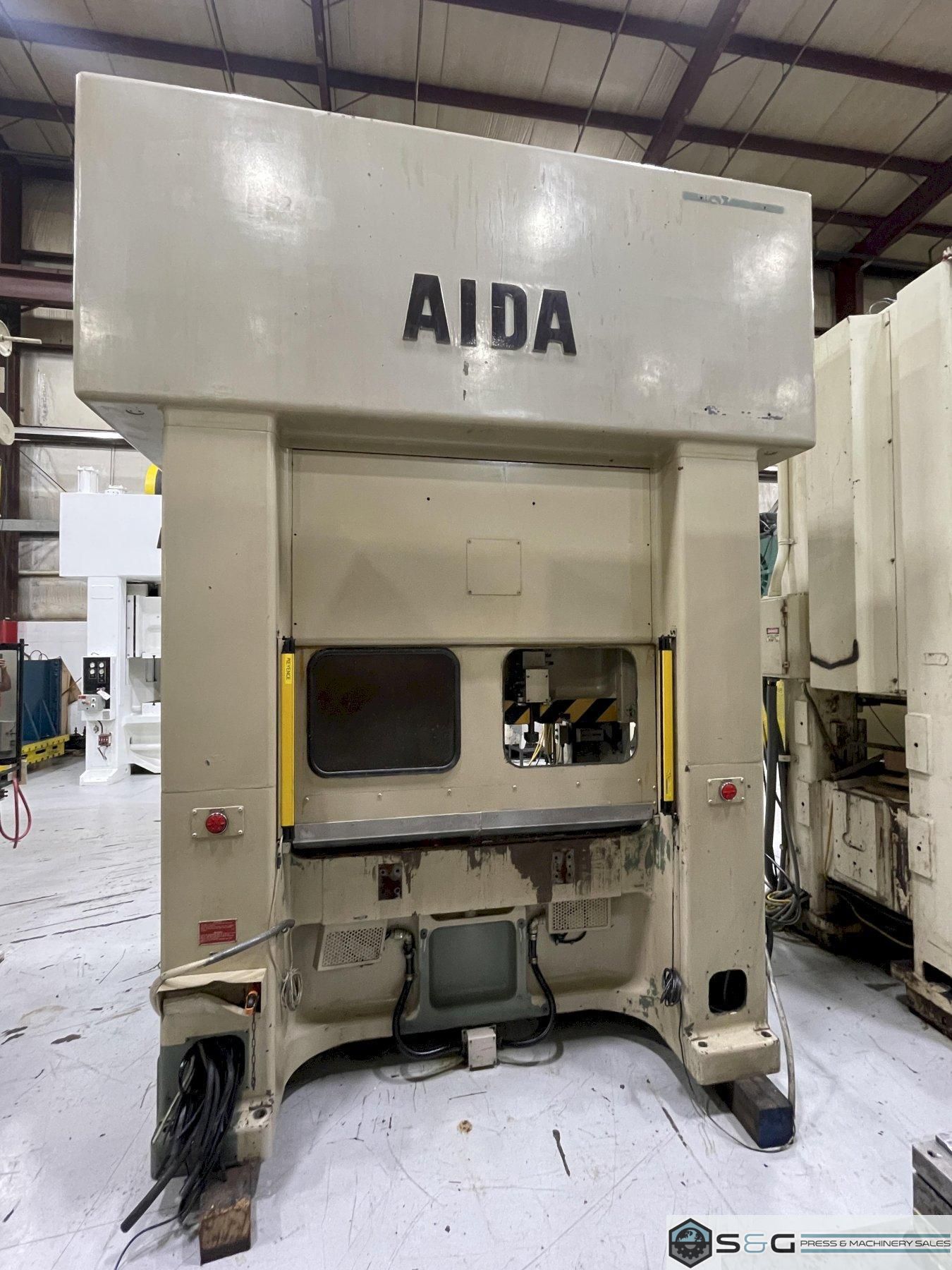

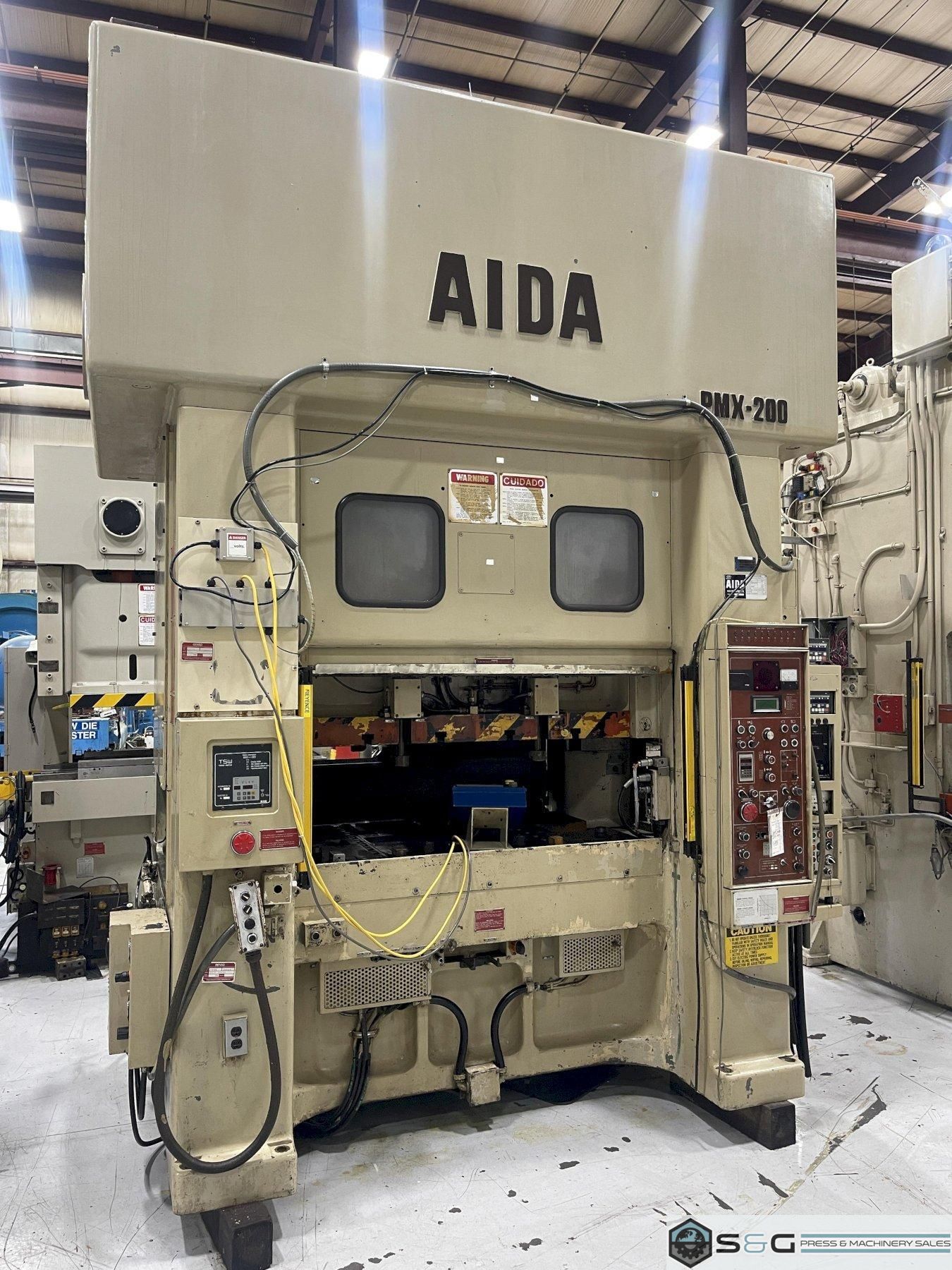

200-TON AIDA PMX-L2-200(1) USED MECHANICAL METAL STAMPING PRESS FOR SALE, YEAR 1990

Type

Presses, Straight Side, Double Crank (Single Action)

Brand

AIDA

Model

PMX-L2-200(1)

Year

1992

Stock #

2885

Condition

Used

Request a Quote
More 200-250 ton presses
Let's Talk

Specifications
Tonnage

200

Stroke

7.87 inches
Shut Height

28.6 inches
Adjustment

5.9 inches
Bed Size

61" LR x 37.4" FB

Ram Area

61" LR x 32.6" FB

SPM

40-80 VSPM

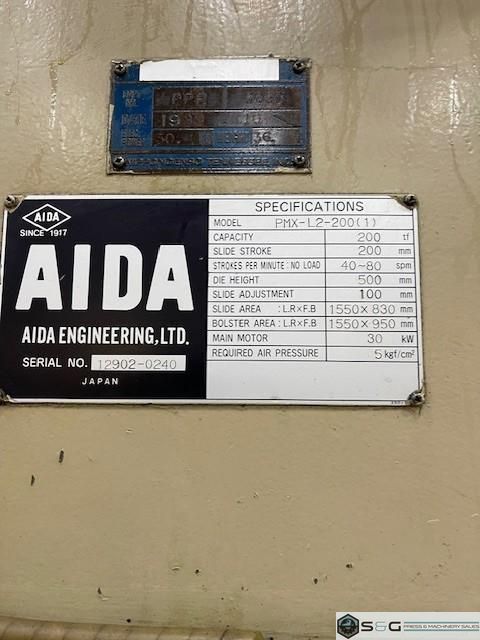

Standard Specifications

Used Aida PMX-L2-200(1)
Serial Number 12902-0240
Progressive Die Link Drive Stamping Press
200 ton Metric Capacity
220 ton US Capacity
7.87" Stroke
19.6" Die Height Over Bolster
28.6" Shut Height Over Bed
5.9" Adjustment
61"  LR x 37.4" Bed Area
61" LR  x 32.6" Slide Area
40-80 VSPM

Equipment and Features
Air Clutch and Brake
Progressive Link Motion Drive
- Reduces Snap-through
- Increases Time in the Forming Portion of Stroke
Dynamic Slide Balancing
Automatic Recirculating Lube System
Hydraulic Overload Protection
38" Floor To Top of Bolster
8-Point Oil Film Slide Guide System
Micro Inch Capability
40 HP Main Motor, 460V 60HZ
11.8" Thick T-Slotted Bolster
T-Stand Palm Buttons
33.5" Wide Windows
Safety Doors Front and Back
Flush Floor Standing

Weight 79,360 lbs.
Overall Height:  16' 10" Tall
Shipping Dimension: 9' 8.5" Wide

This Used 200-ton Aida PMX Press can be seen underpower in the S&G Press Livonia Michigan Warehouse.

The 200-ton Aida PMX Press delivers precise control throughout the stroke and maximizes material flow in the forming zone, ensuring consistent quality in metal stamping. Its durable build reduces downtime and maintenance costs, while high-speed operation enhances productivity, meeting deadlines efficiently. Versatile for progressive stampings, forming, and blanking operations, it's an ideal choice.

Aida Link Drive Mechanical Metal Stamping Press For Sale

Attachments
220-ton Aida PMX-L2 Stamping Press Line Layout.pdf Download

Machine Tags
Used Aida Press For Sale, 200 ton Aida Straight Side Press, Aida Mechanical Stamping Press For Sale, Used Aida Mechanical Press, Used 200 ton Press For Sale, 200 ton Straight Side Press, Used Mechanical Metal Stamping Press, Metal Stamping Progressive Die Press
