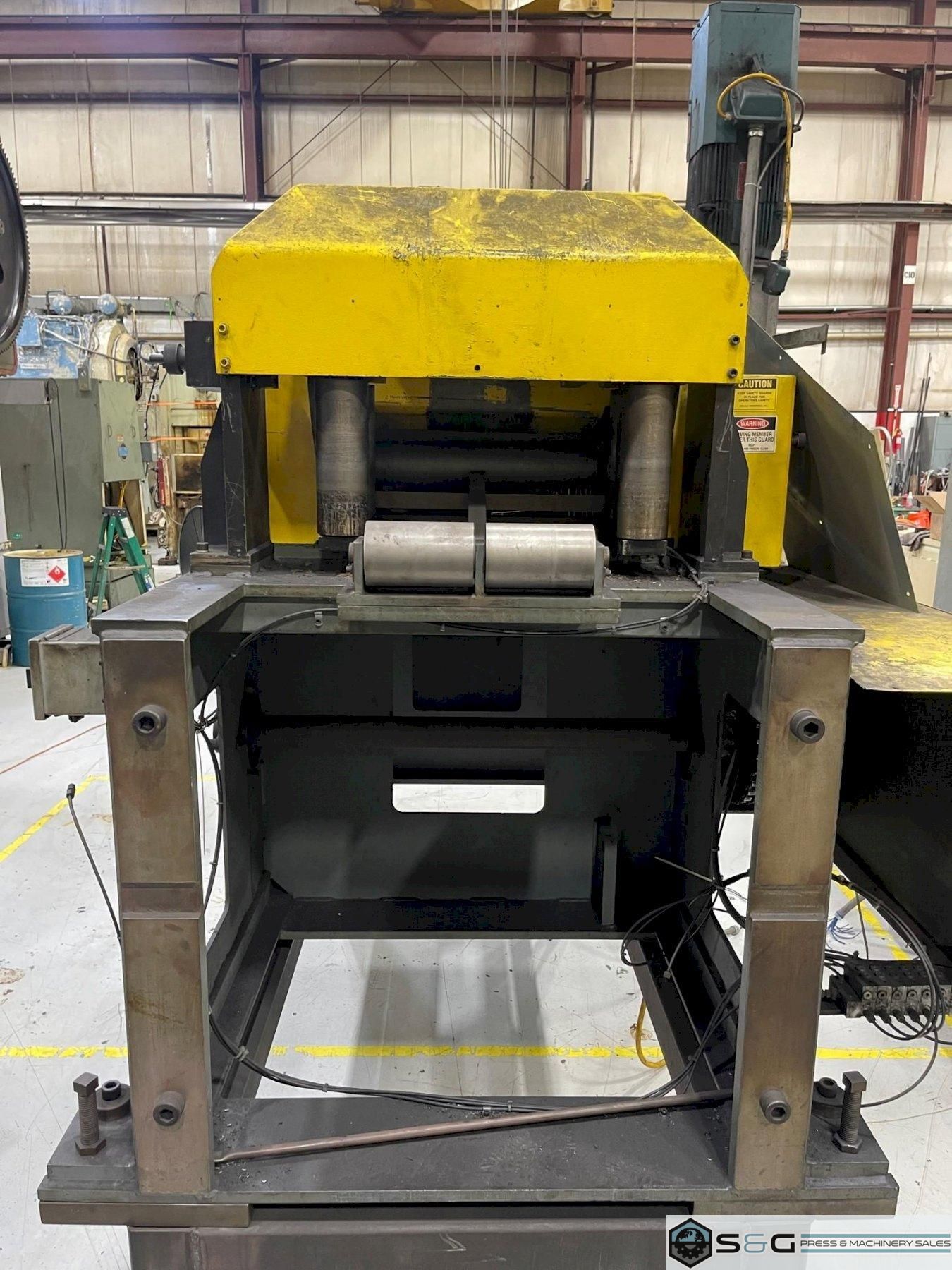

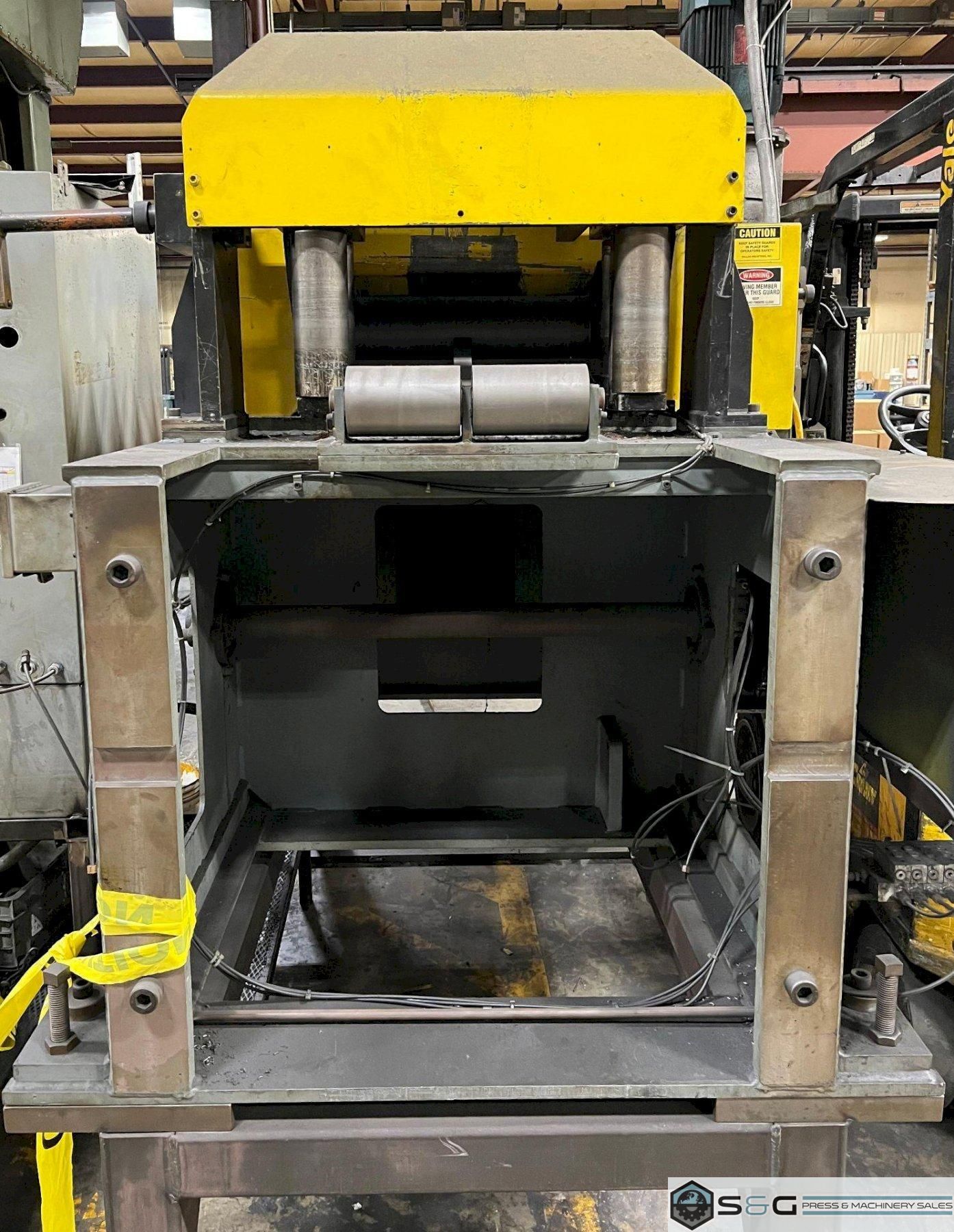

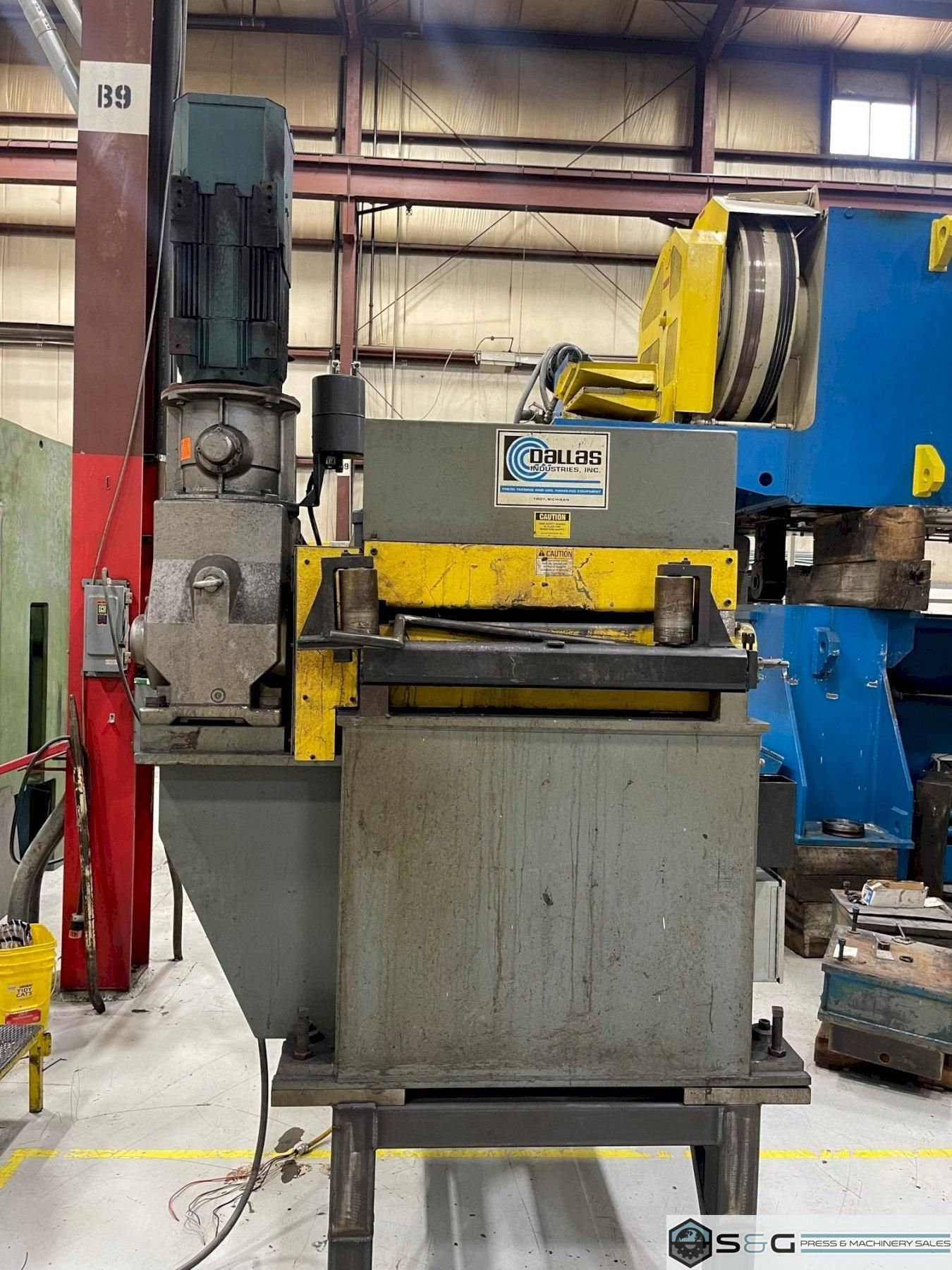

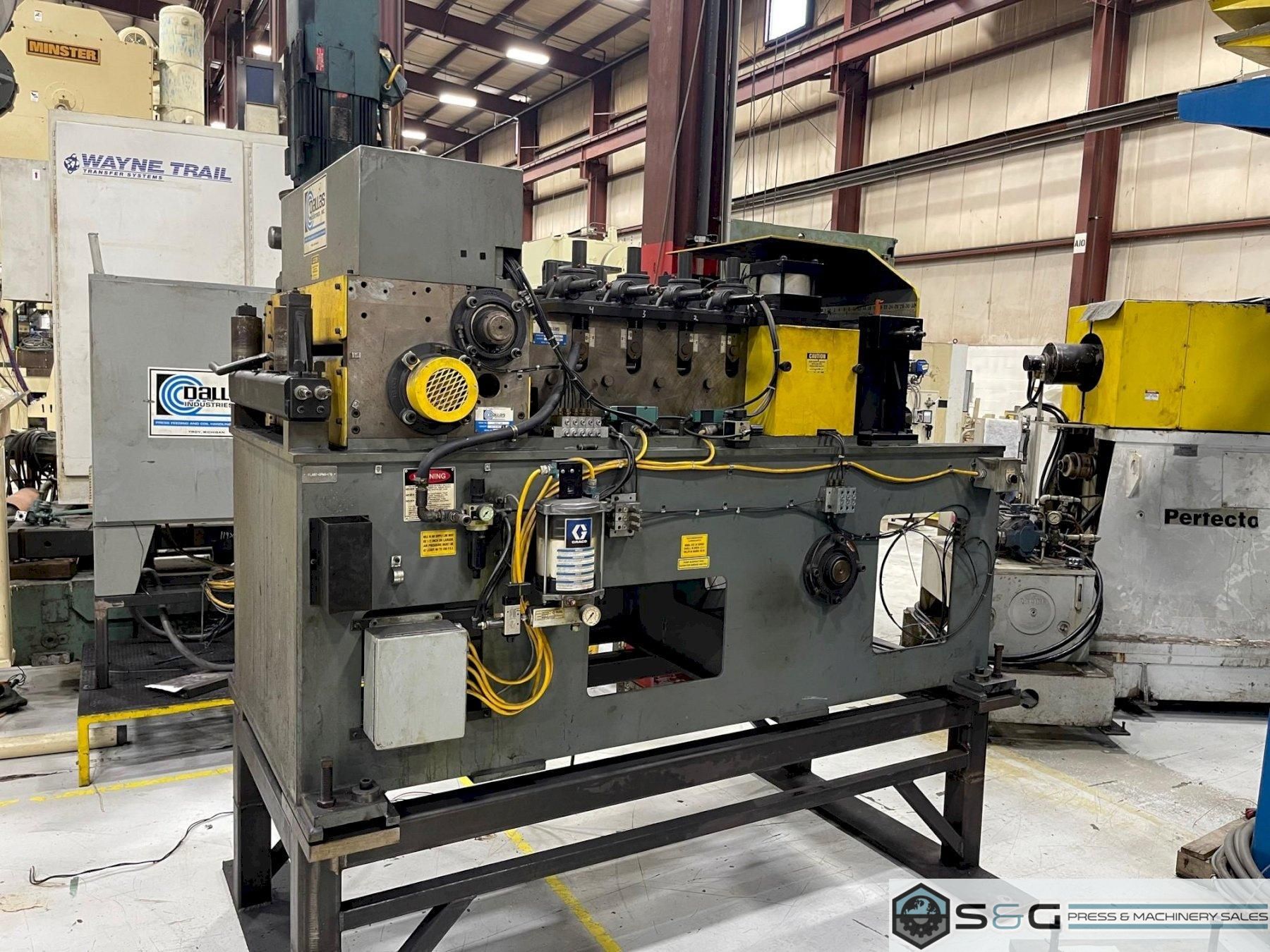

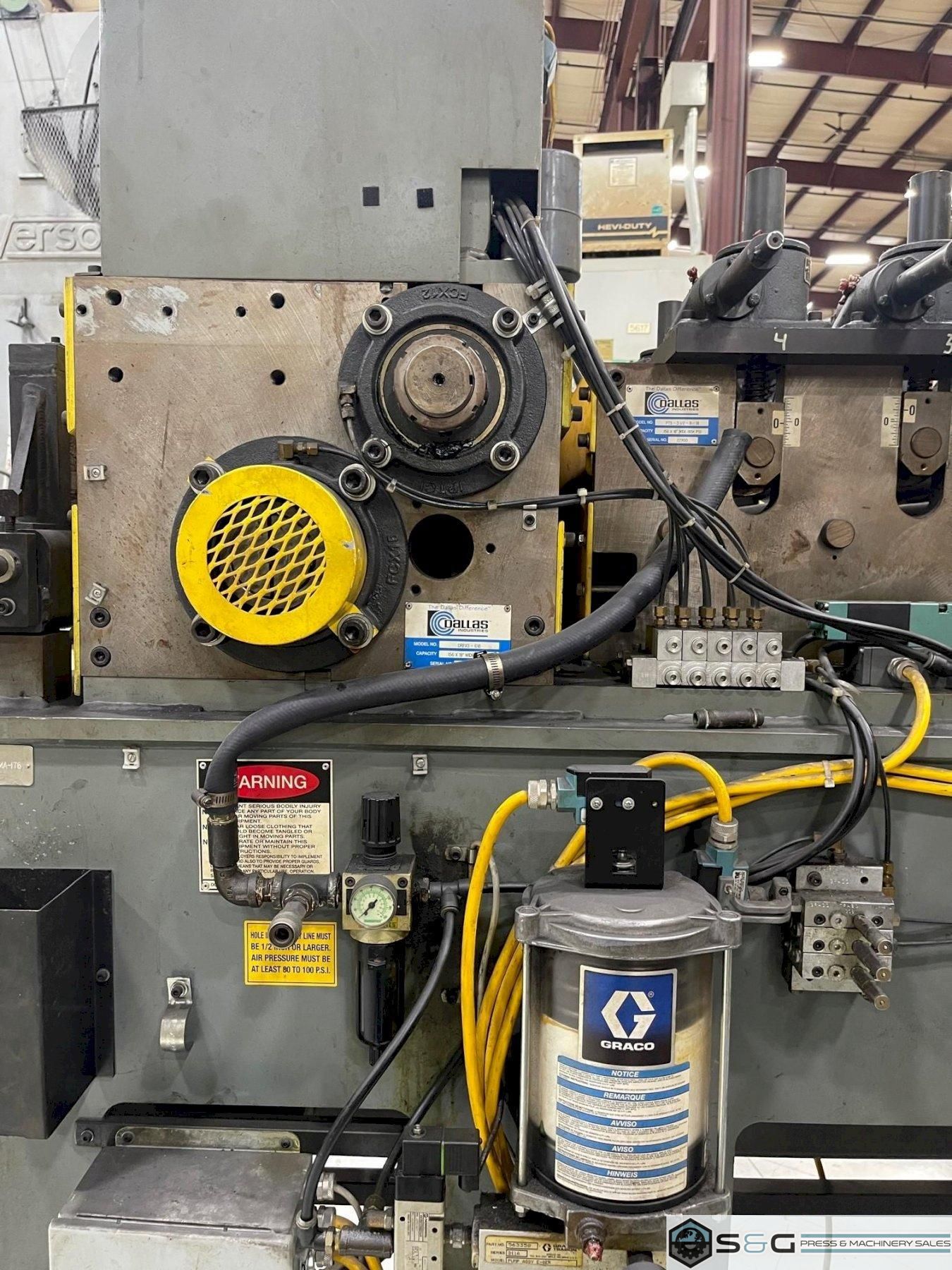

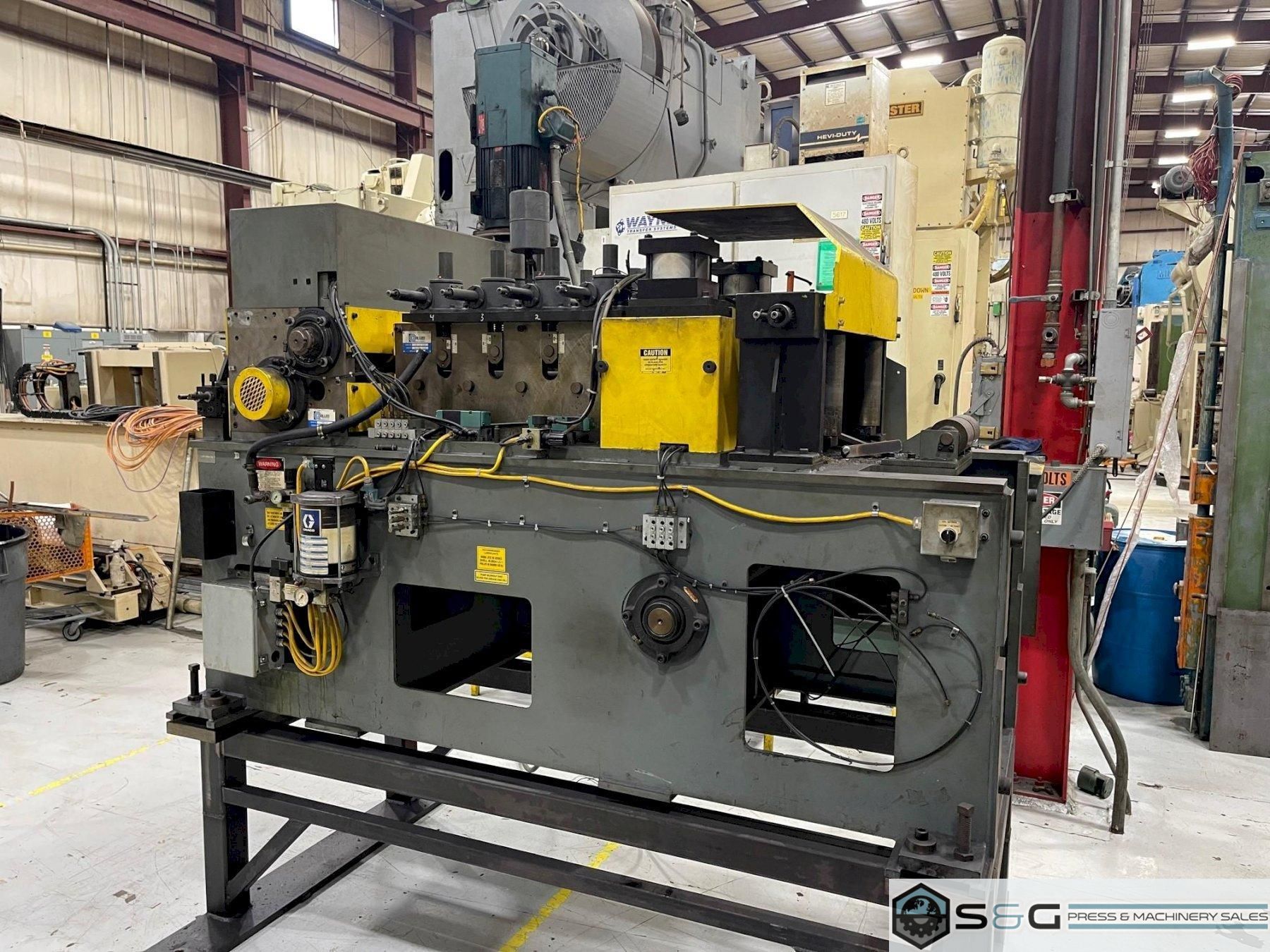

18" Dallas Servo Feed Straightener (High Strength Material) Model #DRFXS-618

18" Dallas Servo Feed Straightener (High Strength Material) Model #DRFXS-618

Type

Feeding & Straightening Machines

Brand

DALLAS

Model

DRFXS-618

Year

2011

Stock #

2772

Condition

Good

Let's Talk

Specifications
Coil Width	18 inches
Coil Thickness	.156 inches
Standard Specifications: Dallas Servo Feed Model # DRFXS-618 18" Max Coil Capacity 18" @ .156" Thickness Capacity (@ 85k PSI) .375" Maximum Material Thickness .065" Minimum Material Thickness sn/ 22899 / 22900 Equipment and Features Dallas Pull Thru Straightener Model # PTS 3.5-9-18 9 Roll Pull Thru Straightener Right To Left Feed Direction Cabinet Base Mounted Heavy Duty Pass Line Adjustment Six inch diameter full width upper and lower feed rolls Outboard Drive for Feed Rolls 30 HP AC Drive Assembly @ 1750 RPM Matte chrome finish on upper and lower feed rolls Heavy duty hand crank stock width edge guides Nine straightening rolls x 3.5 inch diameter with screw jack adjustments 7” Centerdistance Air operated upper pinch roll adjustment Air clutch pinch roll engagement Out board lubrication points Motors and Controls Remote pendant control for jog forward and reverse Emergency Stop

Specifications

Coil Width

18 inches

Coil Thickness

.156 inches

Standard Specifications:

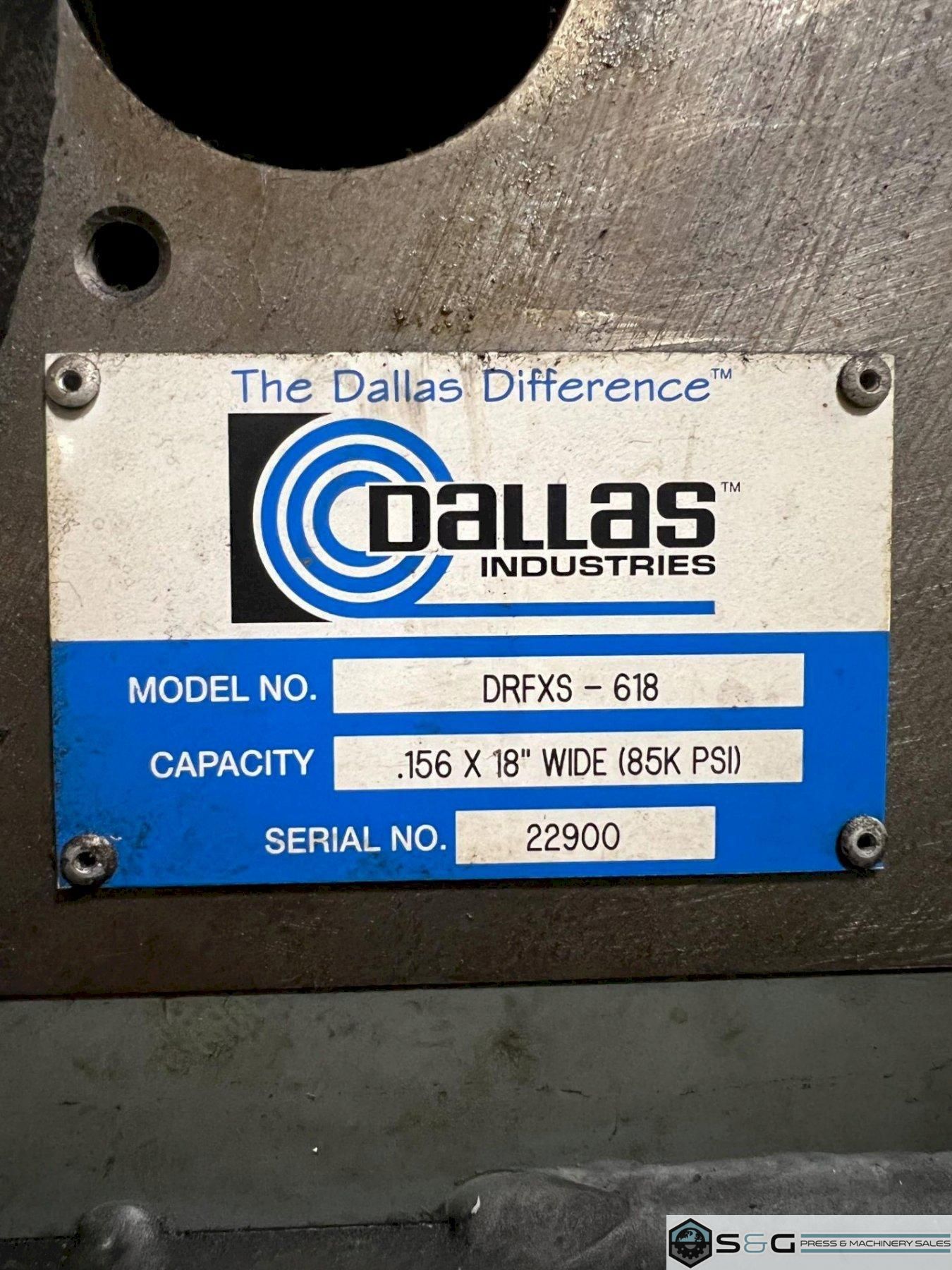

Dallas Servo Feed Model # DRFXS-618
18" Max Coil Capacity
18" @ .156" Thickness Capacity (@ 85k PSI)
.375" Maximum Material Thickness
.065" Minimum Material Thickness
sn/ 22899 / 22900

Equipment and Features

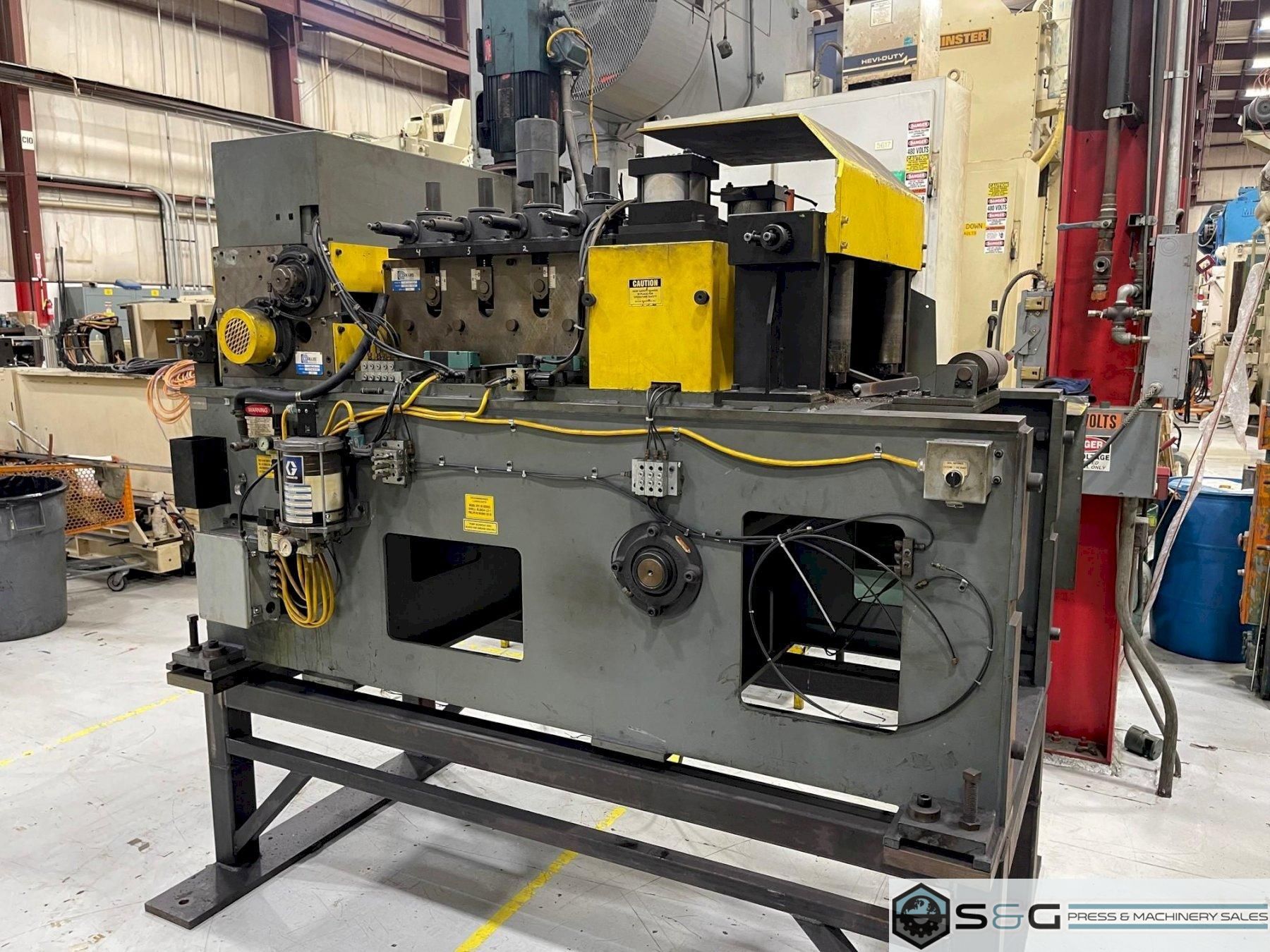

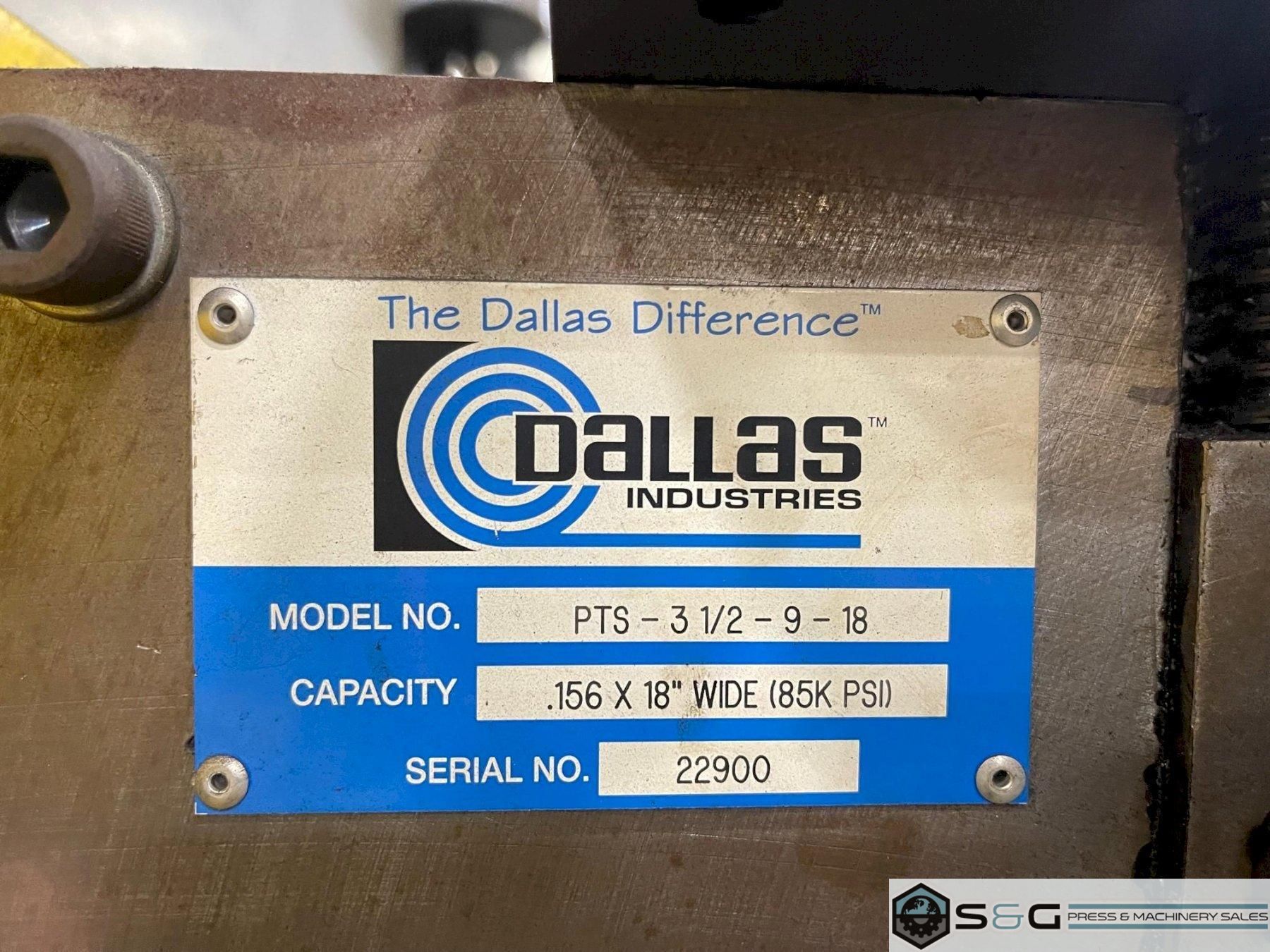

Dallas Pull Thru Straightener Model # PTS 3.5-9-18
9 Roll Pull Thru Straightener
Right To Left Feed Direction
Cabinet Base Mounted
Heavy Duty Pass Line Adjustment

Six inch diameter full width upper and lower feed rolls

Outboard Drive for Feed Rolls

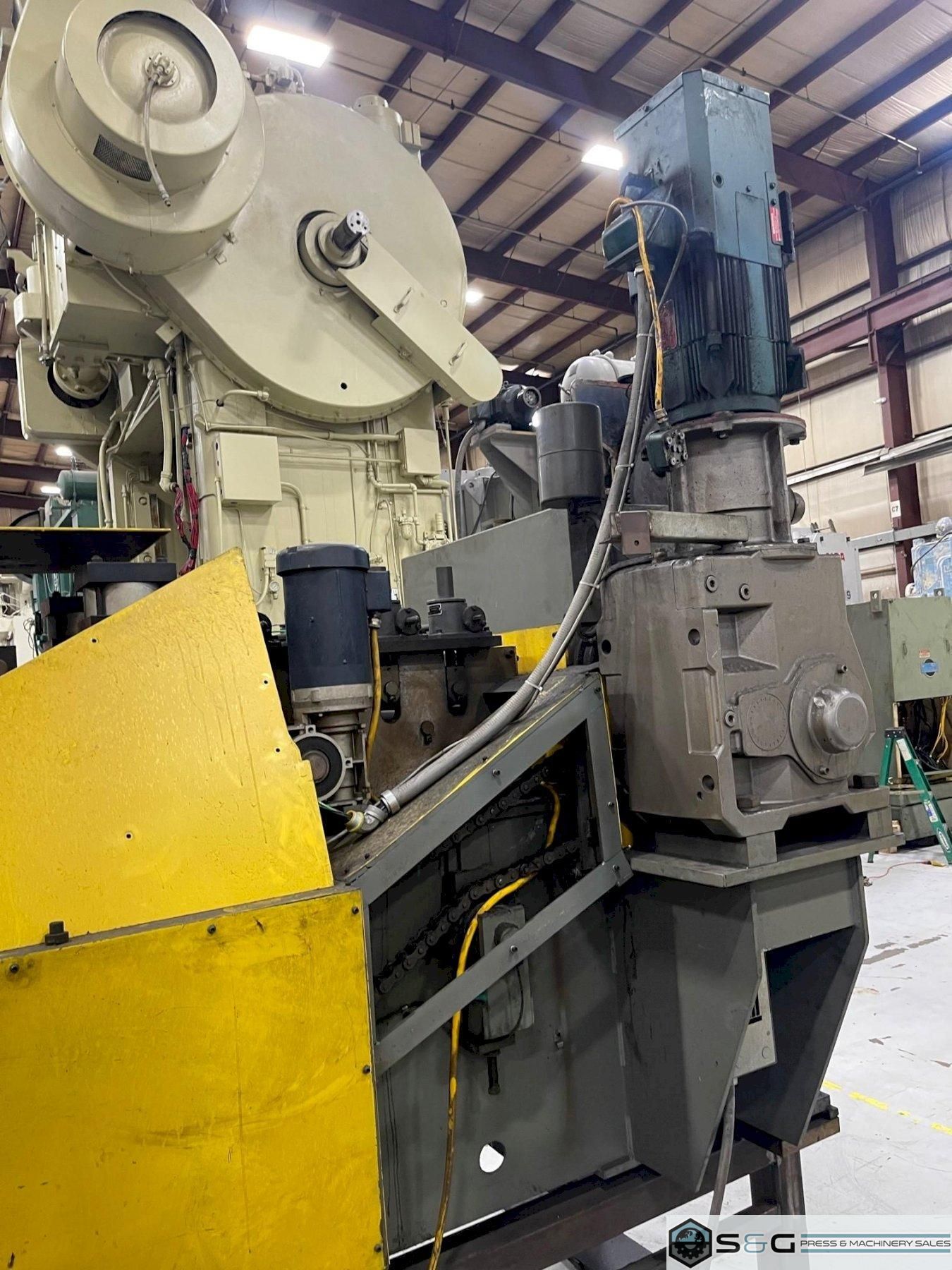

30 HP AC Drive Assembly @ 1750 RPM

Matte chrome finish on upper and lower feed rolls

Heavy duty hand crank stock width edge guides

Nine straightening rolls x 3.5 inch diameter with screw jack adjustments

7” Centerdistance

Air operated upper pinch roll adjustment

Air clutch pinch roll engagement

Out board lubrication points

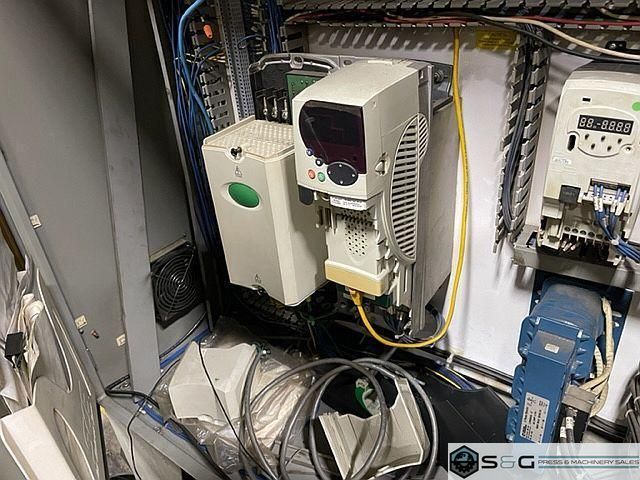

Motors and Controls

Remote pendant control for jog forward and reverse

Emergency Stop

Attachments
18 inch Dallas Servo Feed with HSLA Pull Thru Straightener.pdf	Download
