CPRF-330 / CPPS-PO-300-30 / CPR-DE-PO-15030
1995
2812
Very Good
Specifications |
|||
|---|---|---|---|
| Coil Weight | 15000 pounds |
||
| Coil Width | 30 inches |
||
| Coil Thickness | .090 inches |
||
|
Standard Specifications
15,000 lbs Max Coil Capacity
30" Maximum Coil Width
.090" @ 30" Material Thickness at Full Width
.125" @ 18" Maximum Material Thickness
Right to Left Feed Direction
Serial Number 11470 and Associated

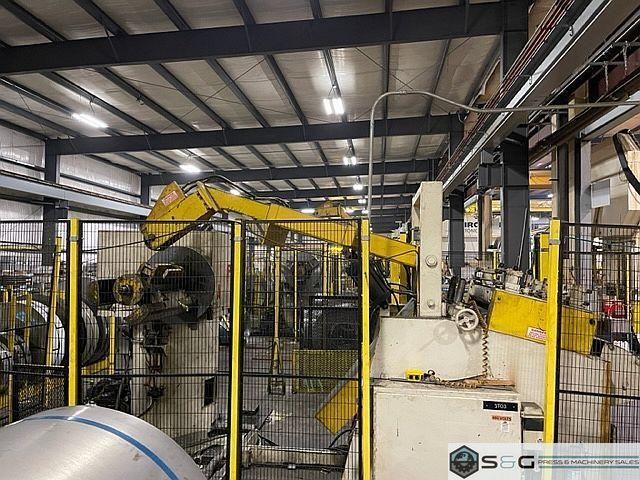

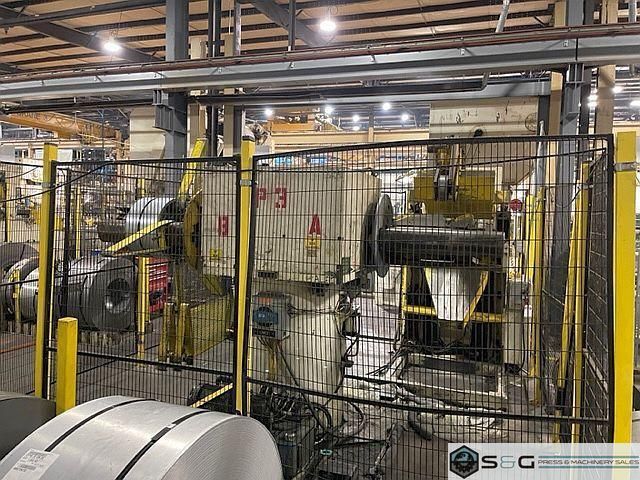

Coe Conventional Complete Coil Feed Line Equipment and Features:

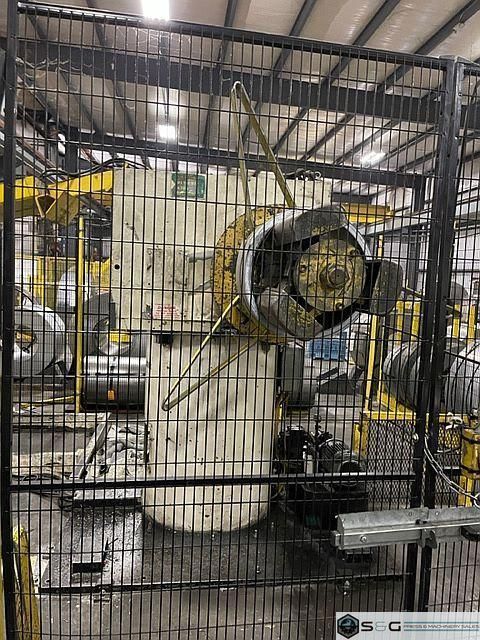

Coe Coil Reel Un-coiler Model No. CPR-DE-PO-15030
Double End Reel
20-24" I.D. Expansion Range
72" Maximum Coil O.D.
Three Leaf Mandrel Pad Assembly
Hydraulic coil reel mandrel expansion
Hydraulic Mandrel Indexing
Hydraulic Threading Drive
Air Brake with pressure regulators
Jog, Forward and Reverse
Remote Reel Jog Pendant with Coil Cord
Hydraulic Controls solenoid operated
Foot Pedal release for arbor rotation
Adjustable coil reel keeper arms
Full Set of Coil Keepers

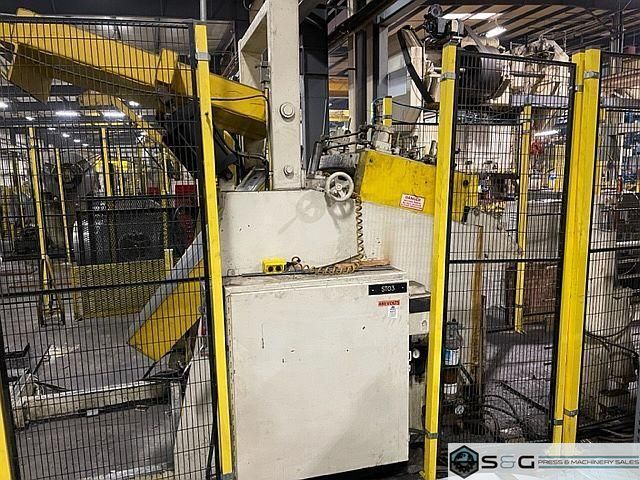

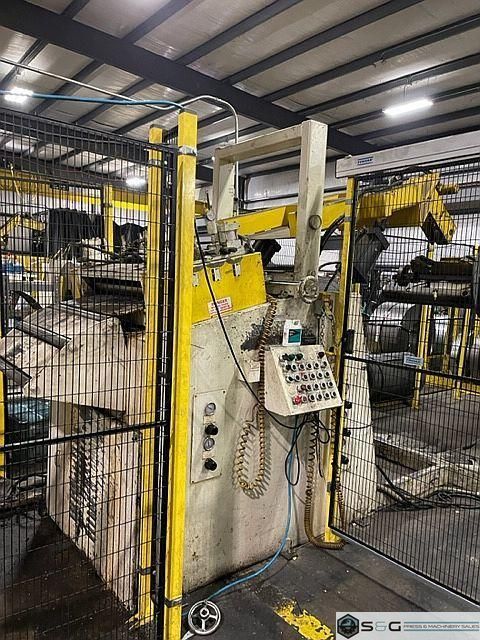

Coe Powered Coil Straightener Model No.: CPPS-PO-300-30
Entry and exit powered coil straightener pinch rolls
Air operated entry upper powered coil straightener pinch roll adjustment
Air operated exit upper powered coil straightener pinch roll adjustment
Seven coil straightening rolls x 3" diameter
3-over-4 design with first/last lower rolls doubling as pinch rolls
Mild steel only – 40KSI max yield
Individual upper coil straightening roll adjustments
Automatic Lube System
Entry stock width edge guides with self-centering
Hand held pendant control for jog forward and reverse

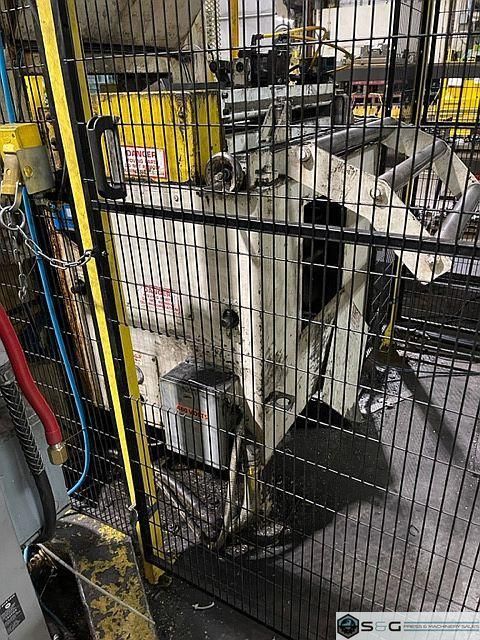

Peeler / Threader / Hold down Station with Motorized End Wheel
4 Position Stock Peeler
10 H.P. Eddy Variable speed powered coil straightener drive system
Exit cascade loop support rollers
Sonar Loop control System
Coe Press Equipment Single Side Thread Table Model CPTT-30-10
10' long Threading Table
30" Wide, Single Side
Bomb Bay Style
Air Raise and Lower

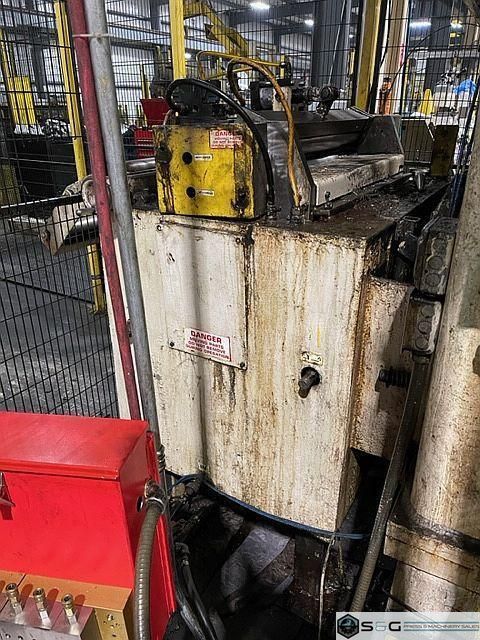

Coe Press Feed Equipment No.CPRF-330
3 inch diameter upper and lower servo feed rolls
Air operated upper servo feed roll lift/pilot
Adjustable stock width edge guides
Entry cascade loop support rollers
Free standing Cabinet base with adjustable pass line height
49" Pass Height +/- 5"
AC servo roll feed drive and controls
Job memory micro adjust batch count etc.

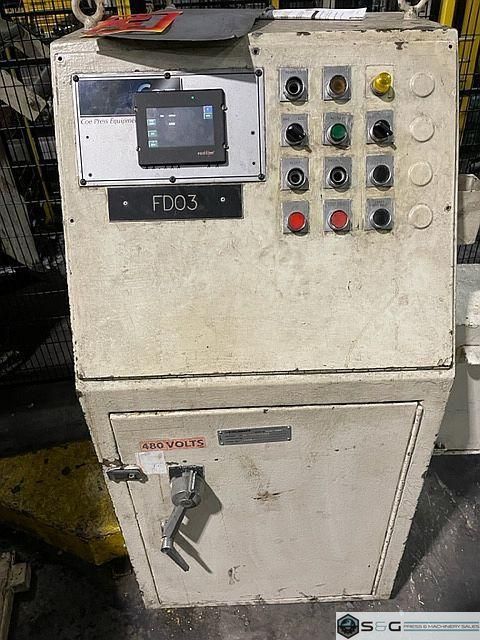

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Coe Press Equipment Conventional Complete Coil Feed Line Equipment For Progressive Die Metal Stamping |
|||
