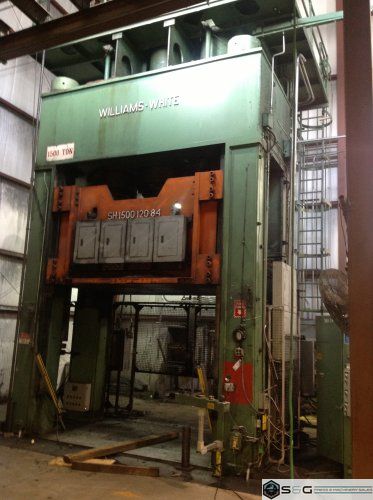

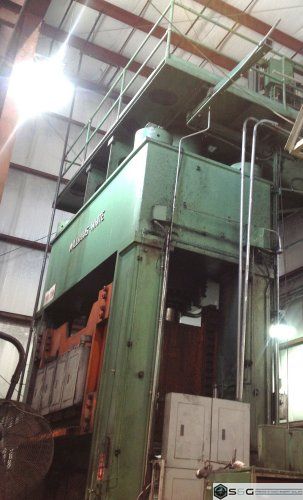

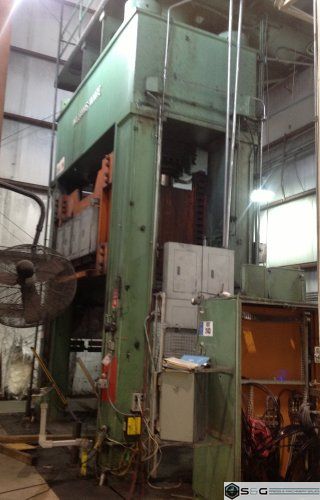

1500 Ton WILLIAMS & WHITE Hydraulic Press

Standard Specifications
1500 ton Capacity Pressing
30 tons US( Net Lift @ fast Open)
84" Stroke
107" Day Light Opening (Between Slide and Bed Bolster)
23" Shut Height
120" LR x 84" FB Bed Area
120" LR x 84" FB Slide Area

Operating Speeds
925 IPM Fast Close
9-90 IPM Intermediate
3-33 IPM Pressing
4-45 IPM Fast Pressing
9-90 IPM Stripping
650 IPM Fast Open

Equipment and Features
Gib Guided Constructions
Self Leveling Guided Ram
50" Wide Openings in Side Columns
900 Gallon Oil Reservoir

Height Above Floor 27\'6" tall
Overall Height 35\'10"
Weight 636,000 lbs
