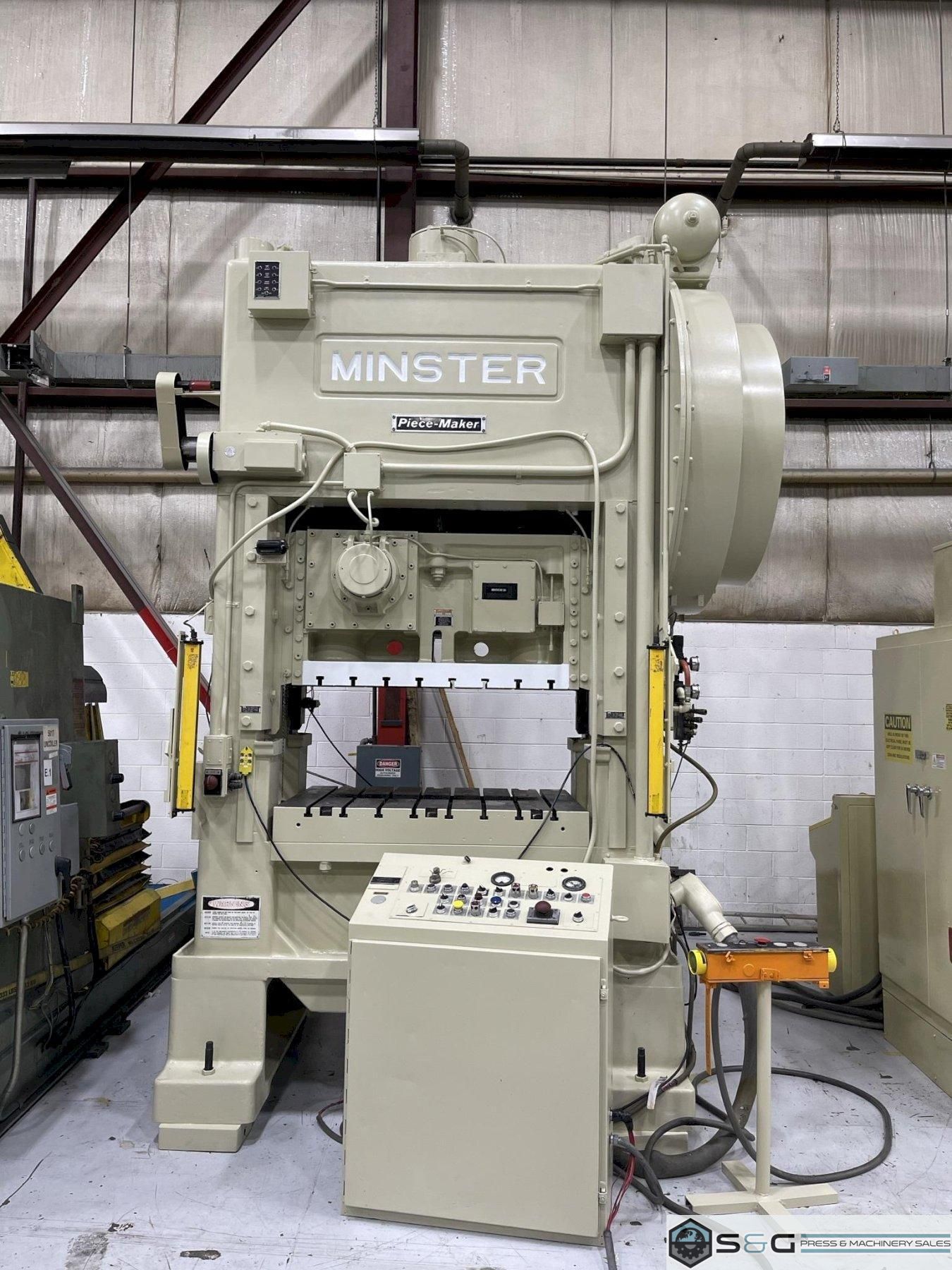

150 ton Minster P2-150-54 Piece-Maker Used High Speed Mechanical Press For Sale

Type

Presses, Straight Side, Double Crank (Single Action)

Brand

MINSTER

Model

P2-150-54

Year

1977

Stock #

2774

Condition

Used

More 100-150 ton presses
Let's Talk

Specifications
Tonnage

150

Stroke

6 inches
Shut Height

23 inches
Adjustment

4 inches
Bed Size

54" x 40"

Ram Area

54" x 23"

SPM

45-90 VSPM

Standard Specifications
150 ton Minster Press
Model# P2-150-54 Piece-Maker
Serial Number 22967
150 ton Capacity
6" Stroke
23" Shut Height
4" Motorized Adjustment
54" LR x 40" FB Bed Area
54" LR x 23" FB Slide Area
45-90 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Monitor Flow Lubrication System
Motorized Slide Adjustment
Free Standing Operators Control Console
Dual Palm Buttons
6" Thick Bolster Plate
56" Distance Between Gibs
42" Distance from Floor to Top of Bed
T-Slotted Ram and Bolster
Light Curtains
20" Wide Windows
Palm Buttons
Floor Standing

Overall Height:  13' 2" Tall (158 inches)

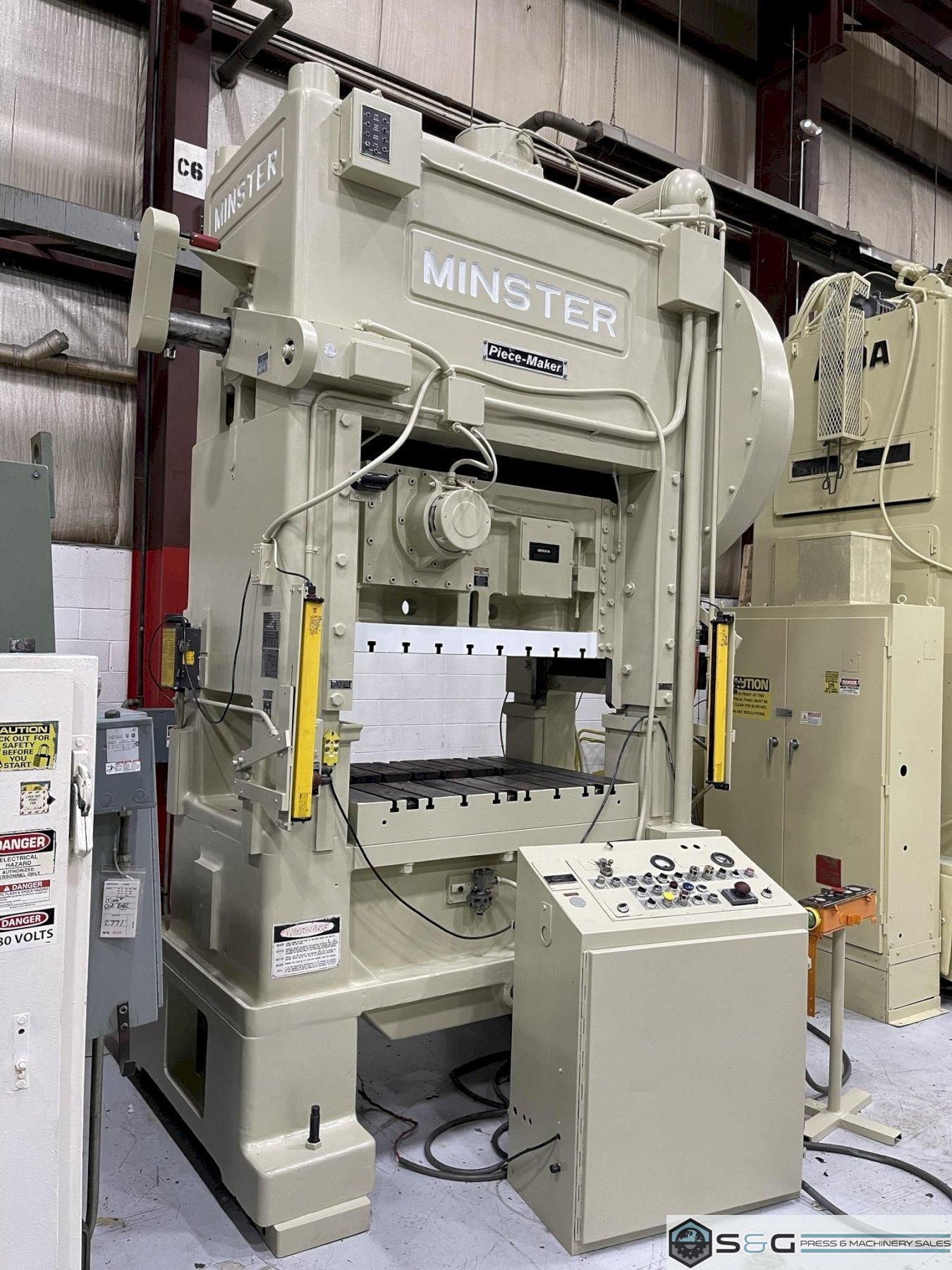

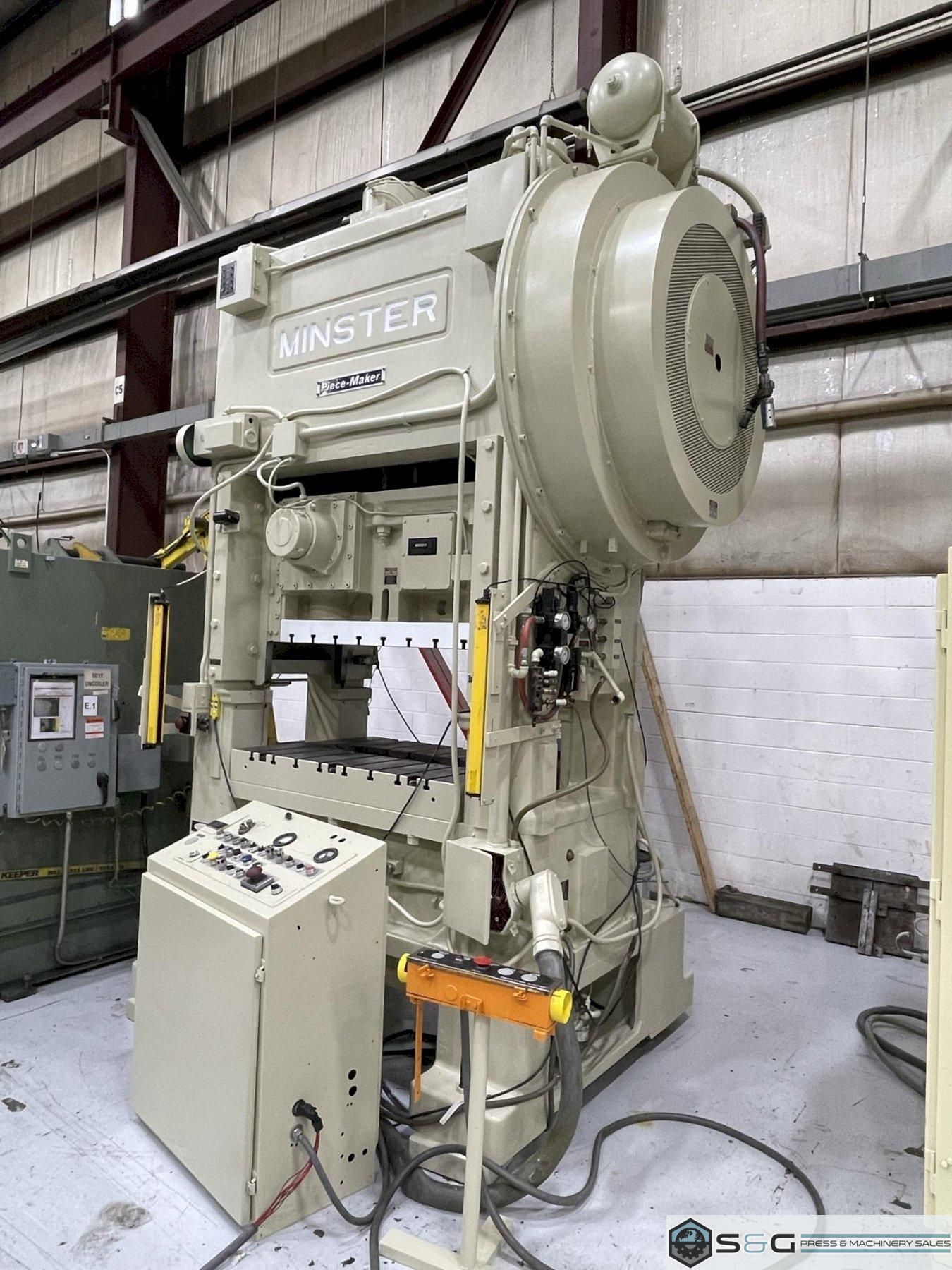

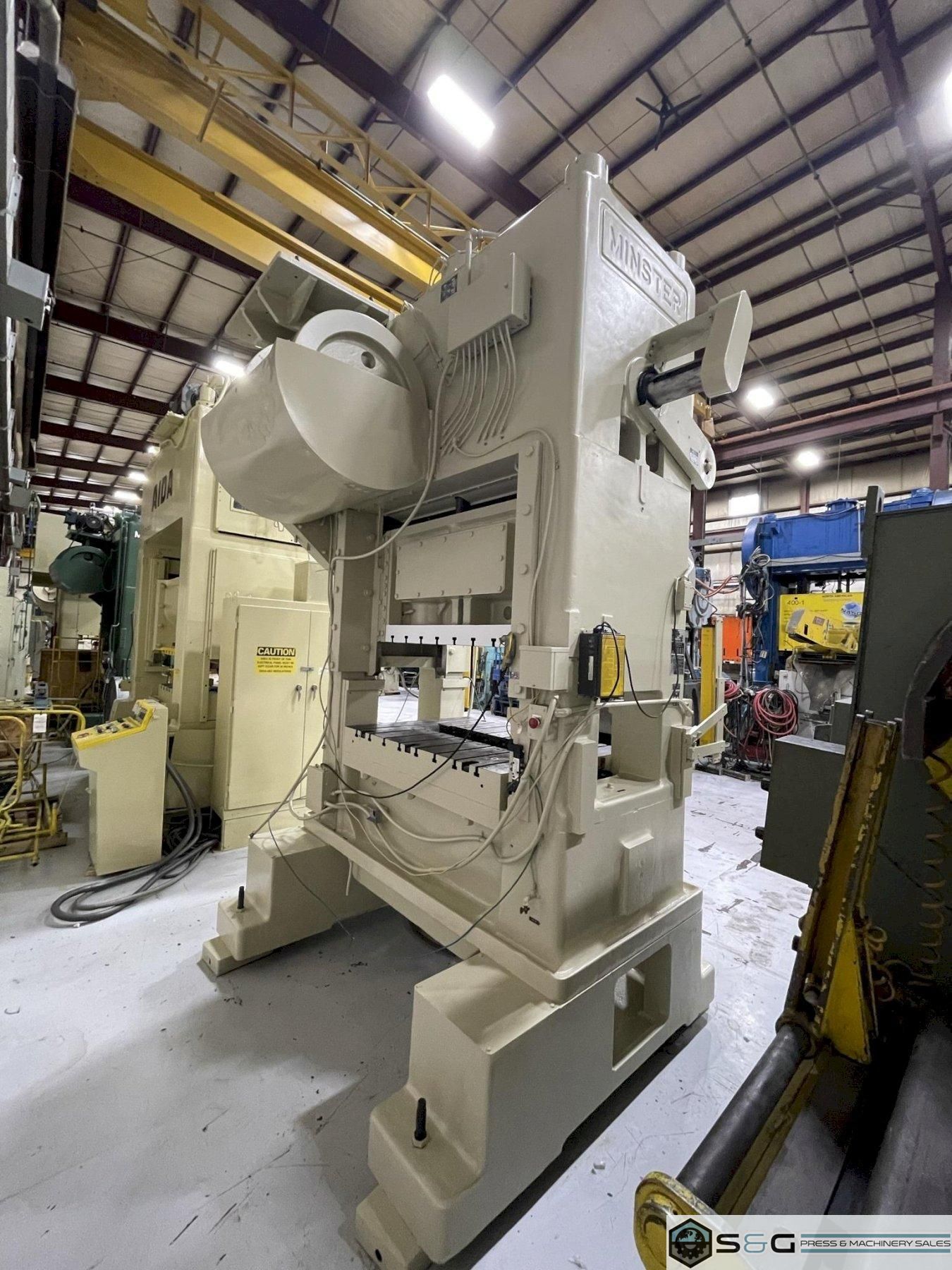

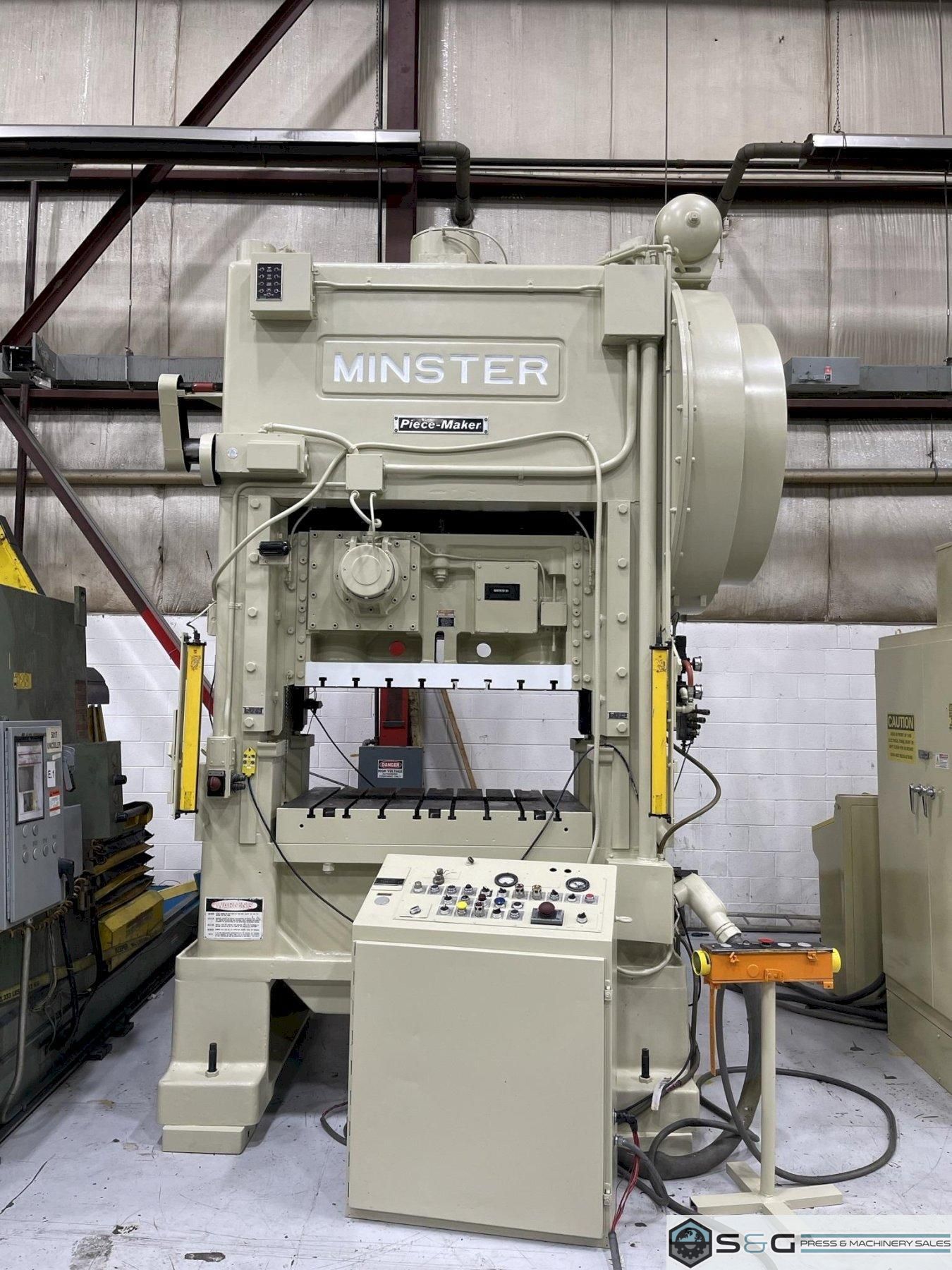

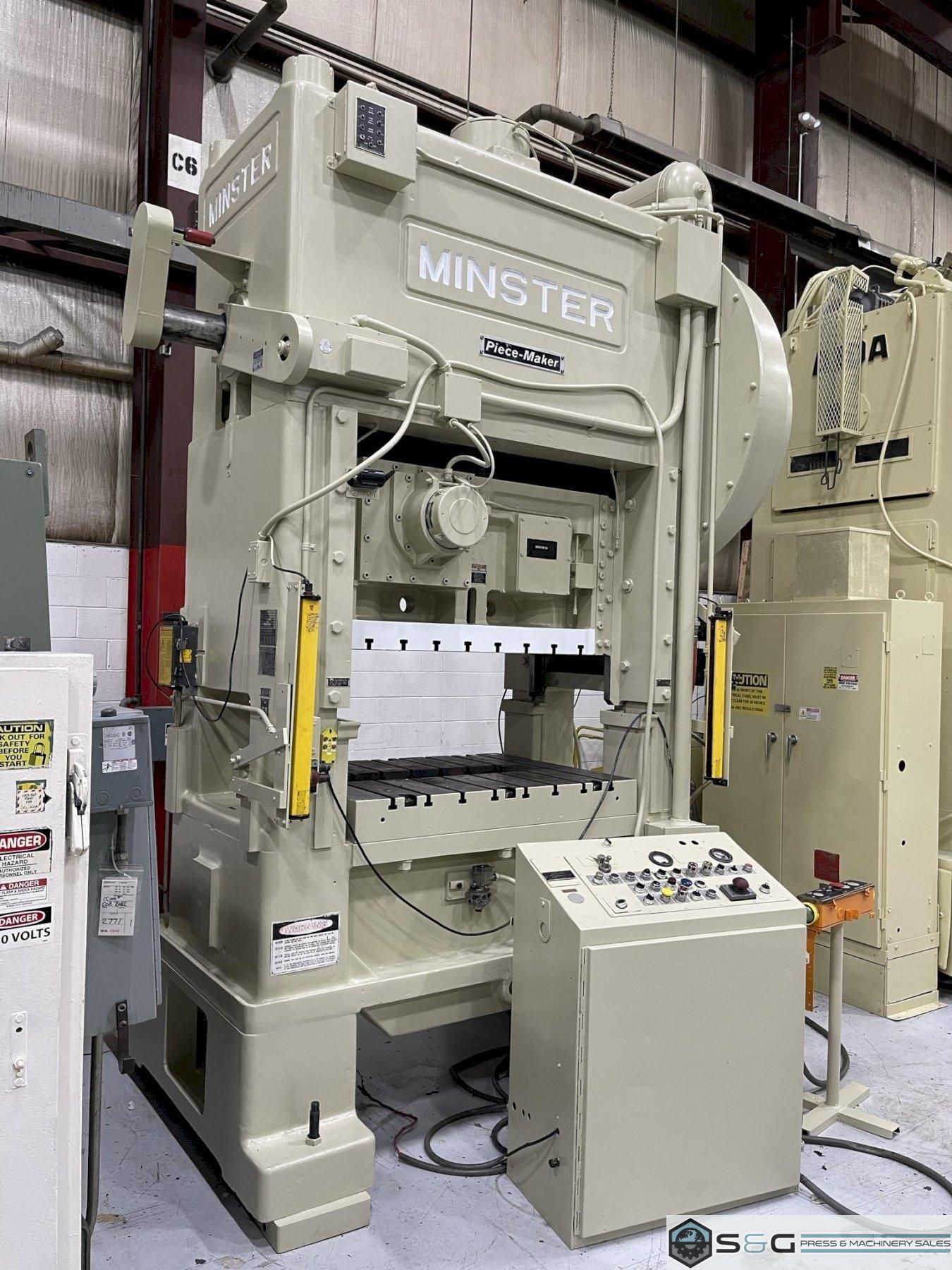

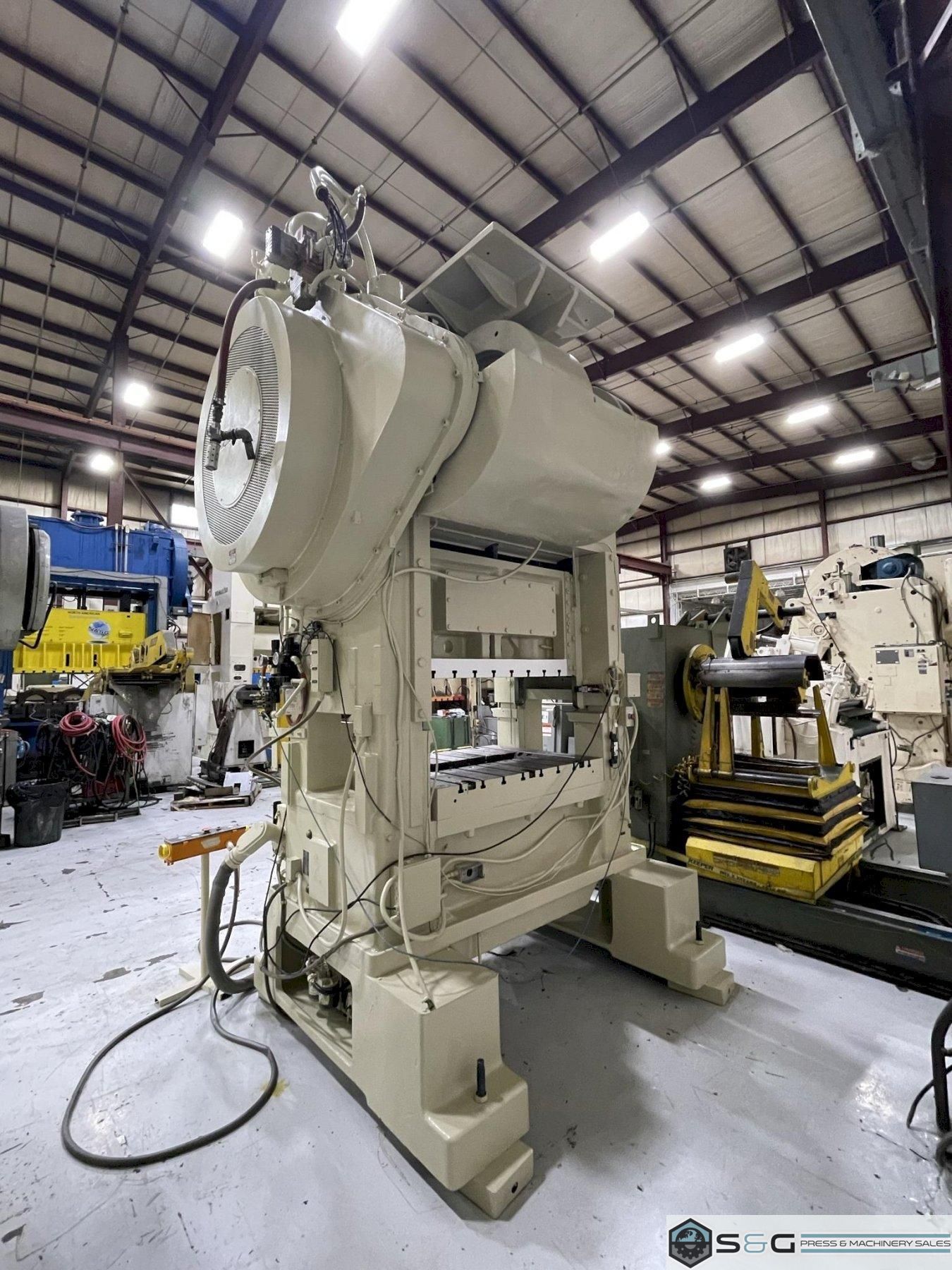

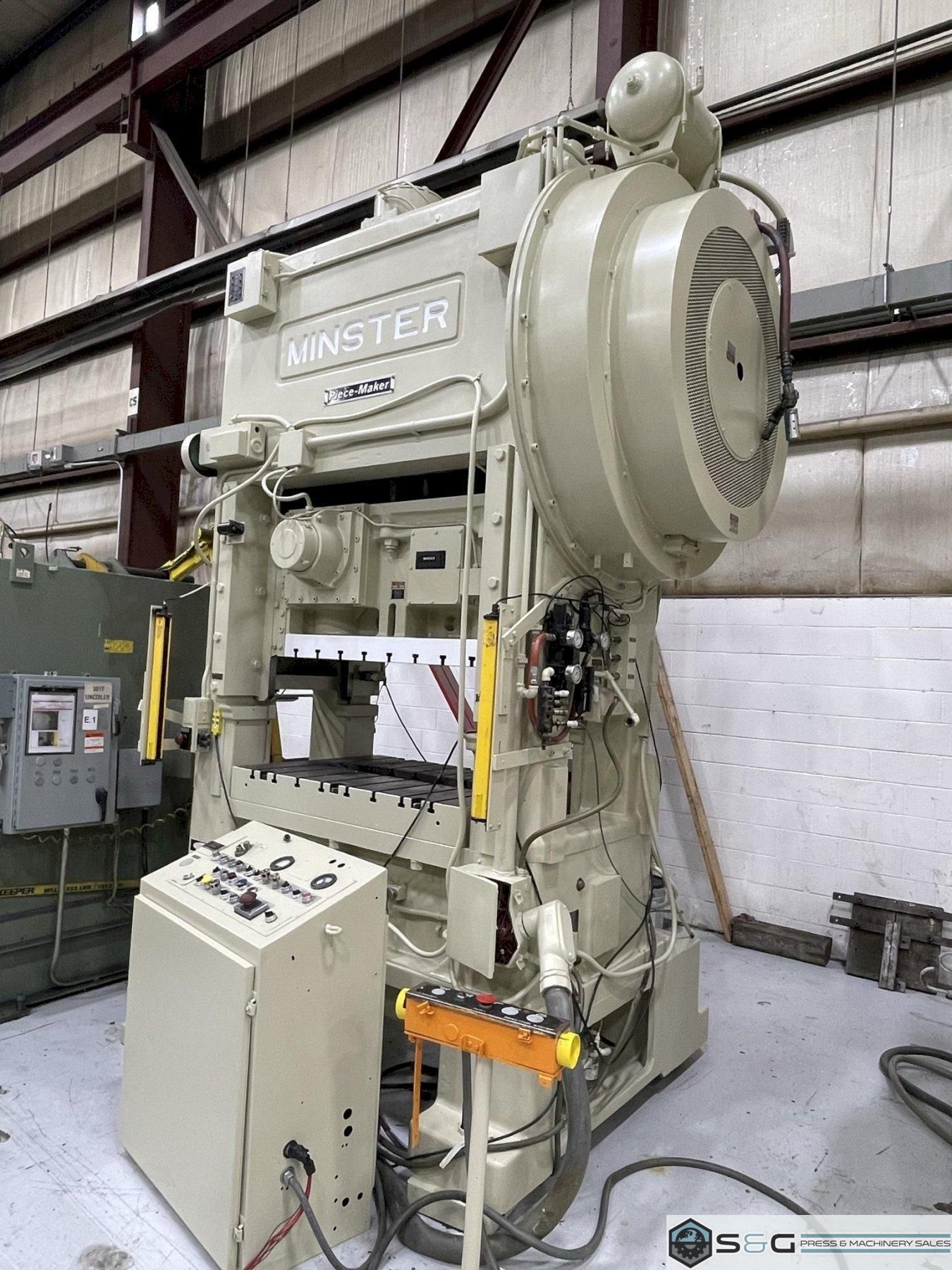

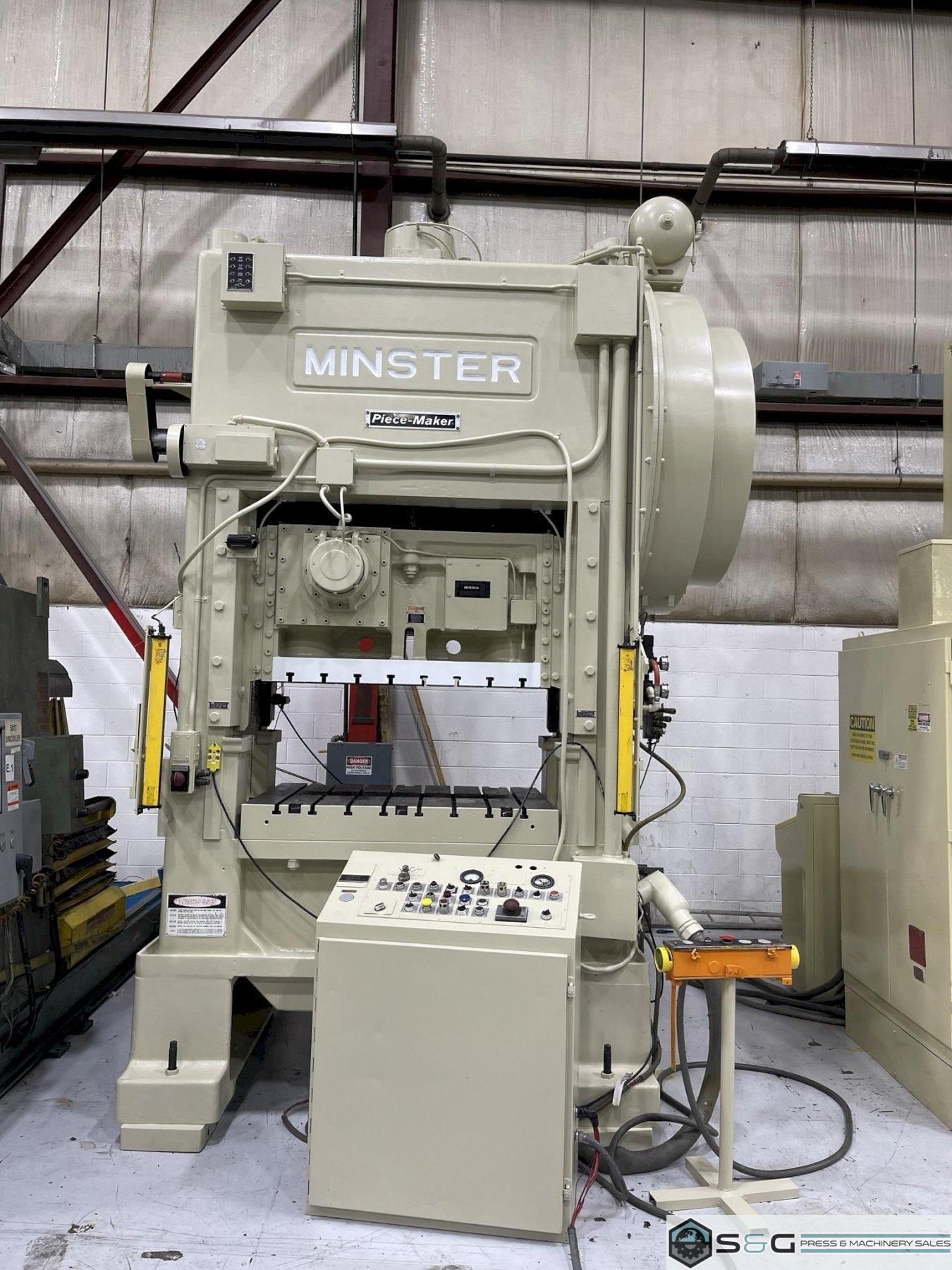

This used 150 ton Minster Piece-Maker press can be seen under power in the S&G Press Livonia MI Warehouse upon request!

Used Straight Side Double Crank 150 ton Minster P2-150-54 Mechanical High Speed Press For Sale

Attachments
150 ton Minster Preliminary Inspection Report 2774.pdf Download
150 ton Minster P2-150-22967 General Assembly Drawing.pdf Download

Machine Tags
P2-150 Piecemaker, Used Minster Press, Used Press For Sale, Straight Side Double Crank Press, 150 ton Minster, Used Mechanical Press, Minster Press For Sale, Highspeed Press, Minster Press
