150 Ton AIDA NC1-150(2) Gap Press For Sale, Year 2000

Brand

AIDA

Model

NC1-150(2)

Year

2000

Stock #

2856

Condition

Used

Specifications

Tonnage

150

Stroke

7.87 inches

Shut Height

20 inches

Adjustment

3.93 inches

Bed Size

48" LR x 28.8" FB

Ram Area

27.5" LR x 22.8" FB

SPM

30 - 55 VSPM

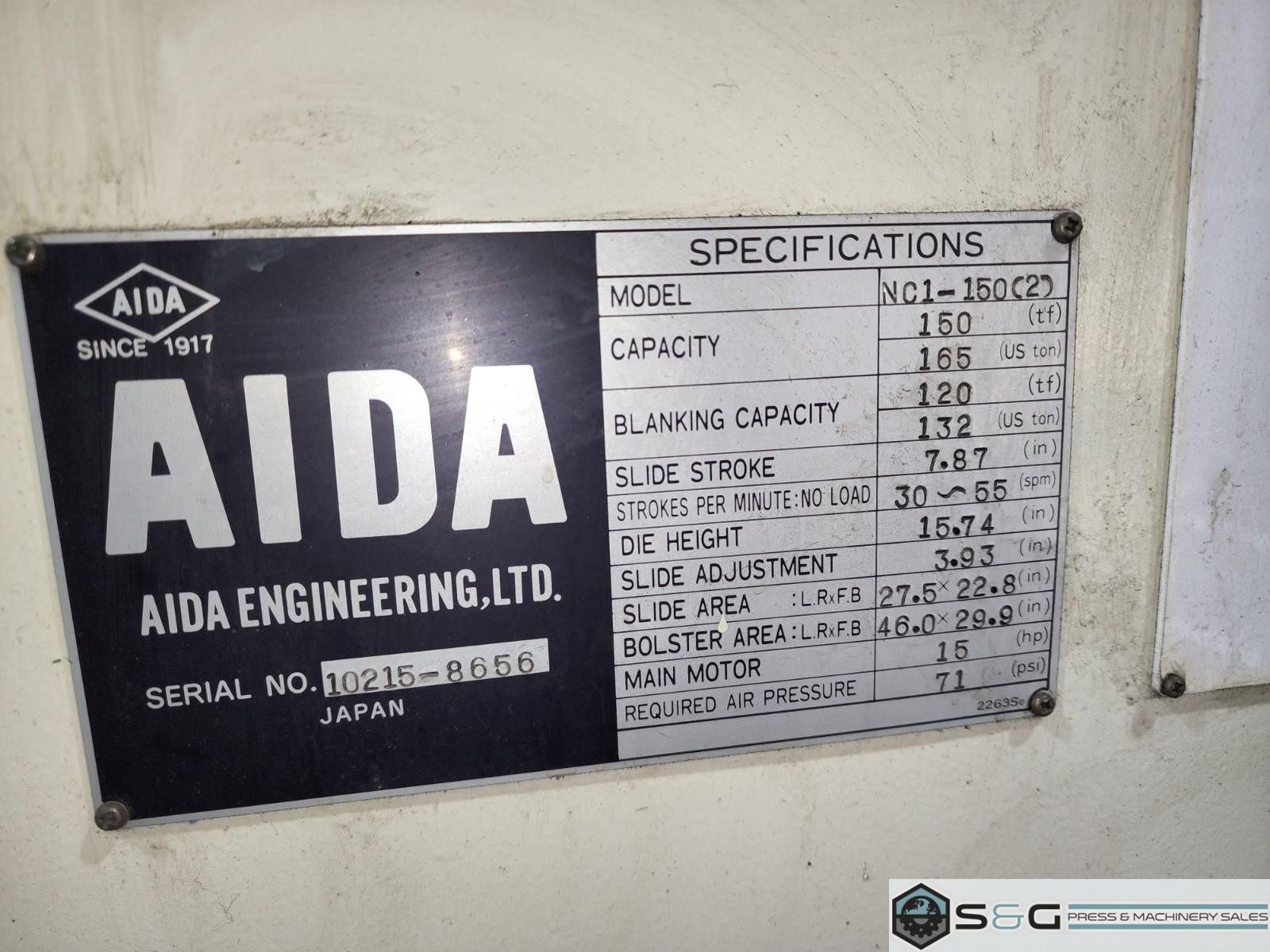

Standards Specifications
Aida OBS Press Model NC1-150(2)
150 ton Metric Capacity
165 ton US Capacity
7.87" Stroke
20" Shut Height on Bed
15.74" Die Height On Bolster
3.93" Motorized Adjustment
48" LR x 28.8" FB Bed Area
27.5" LR x 22.8" FB Slide Area
30-55 VSPM

Equipment and Features
Aida Wet Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Hydraulic Overloads
Wintriss Smart Pak Press Controls
Wintriss AutoSetPac
Wintriss Programmable Cam Out Put
AC Variable Frequency Drive
Quill mounted flywheel
Taper fit of main gear to crankshaft
Ball Socket Connection Configuration
Floor Standing

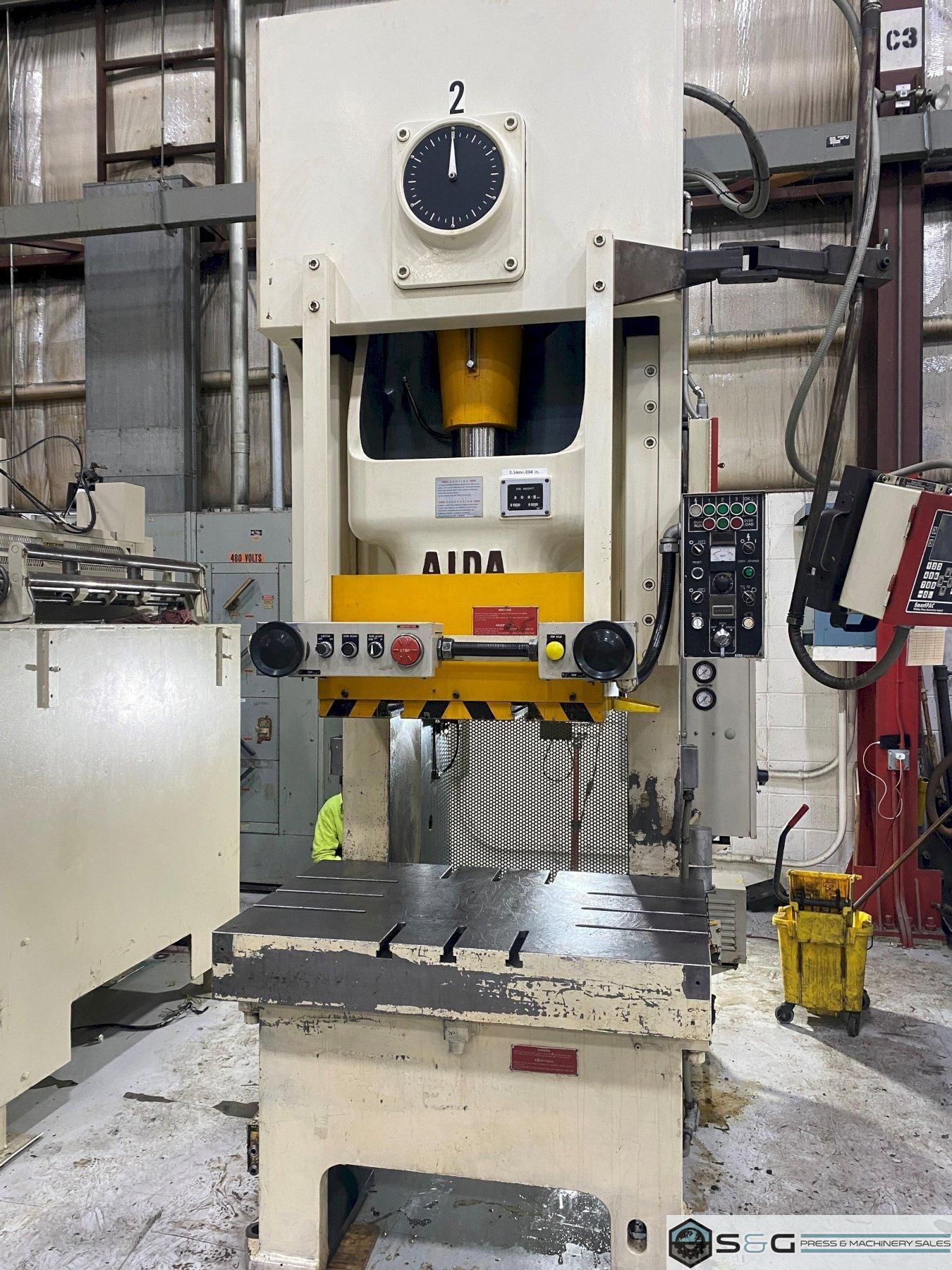

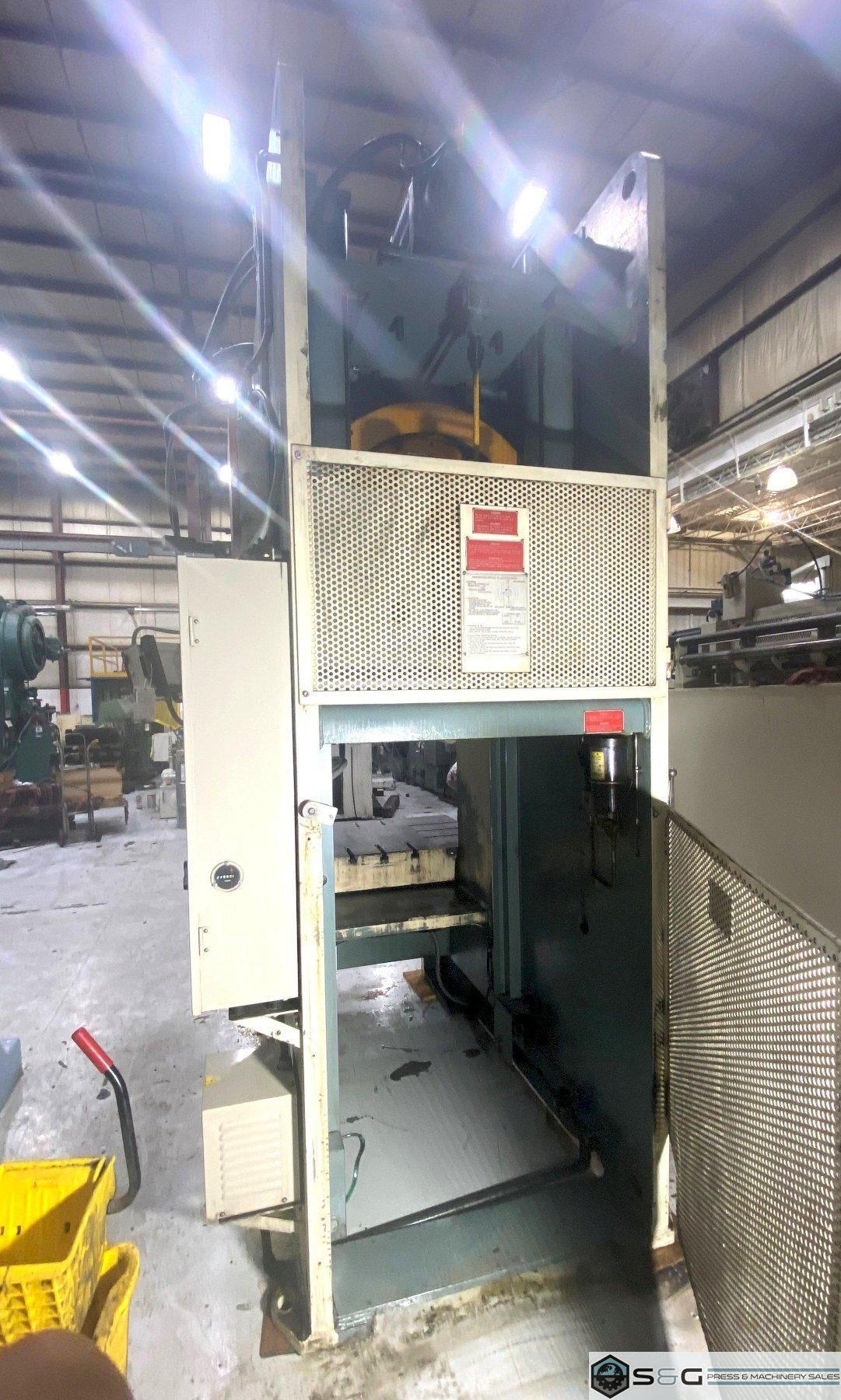

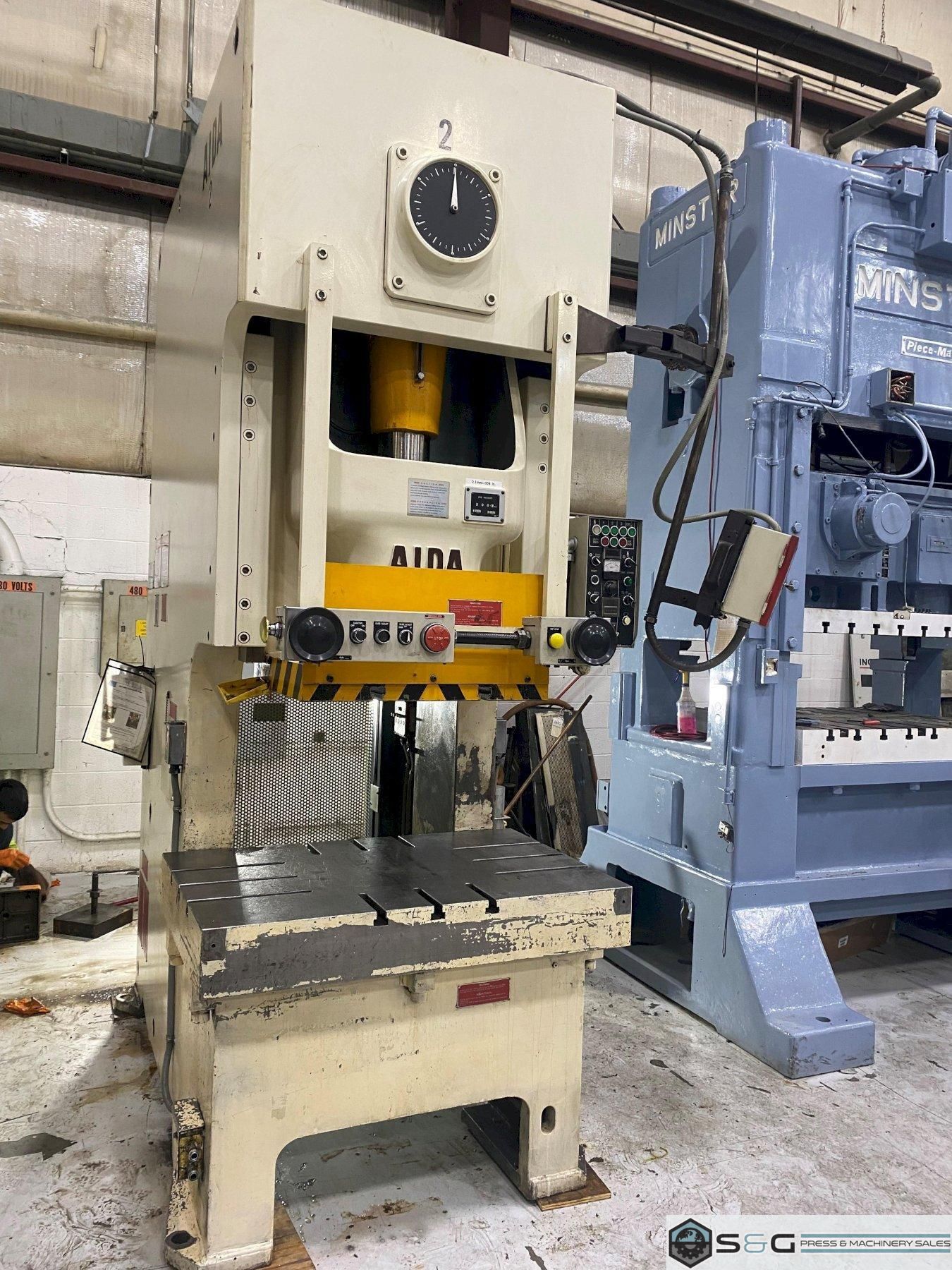

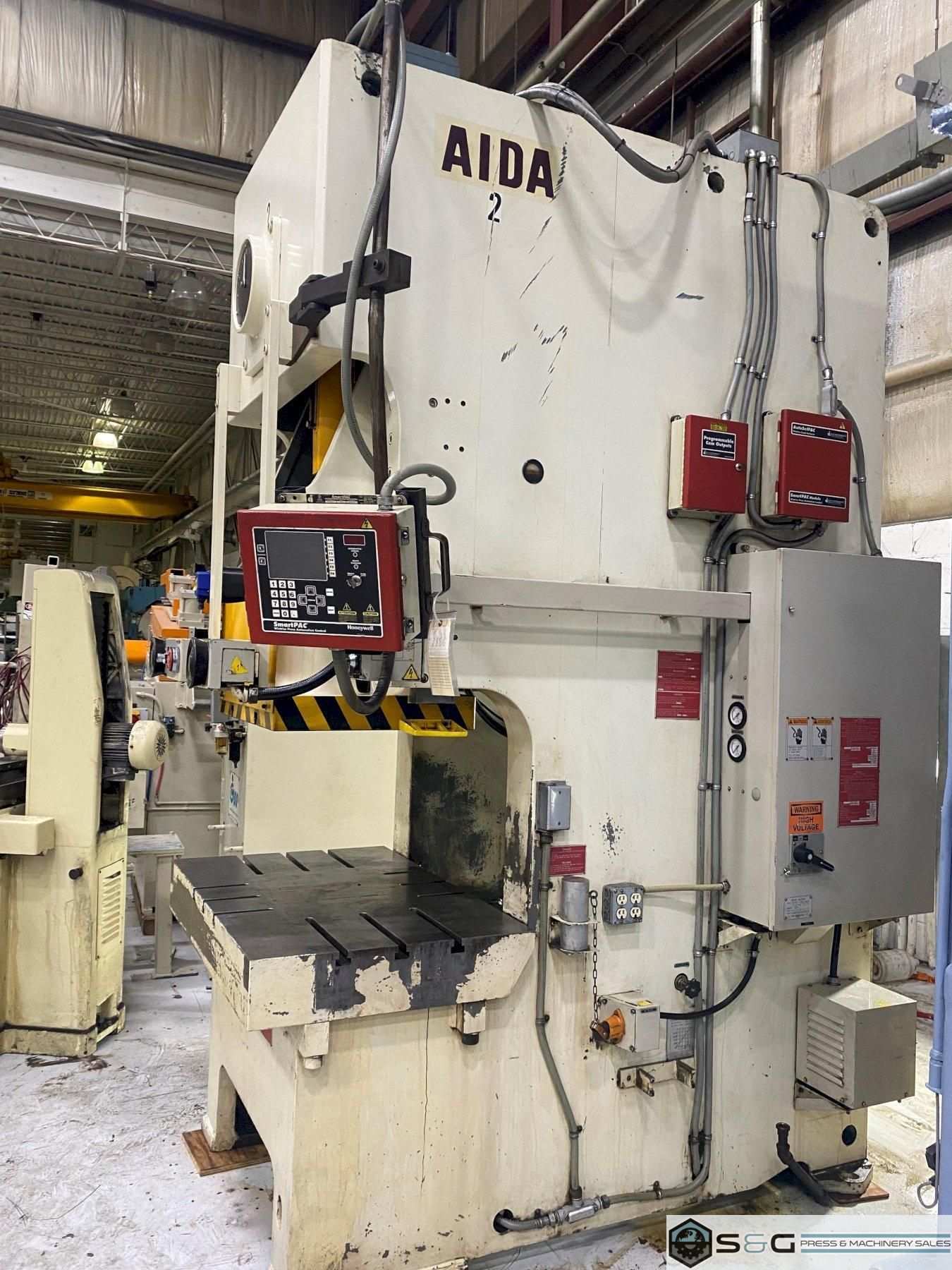

This 150 ton Aida NC1-150 (2) OBS Press can be seen under power in our Livonia Michigan Warehouse!

150 ton Aida Metal Stamping Press For Sale
