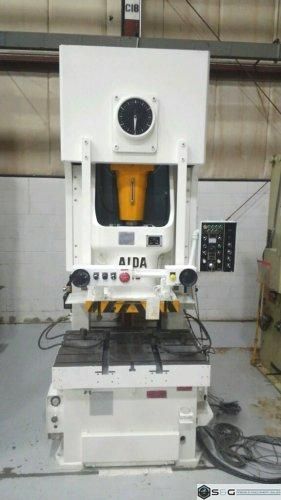

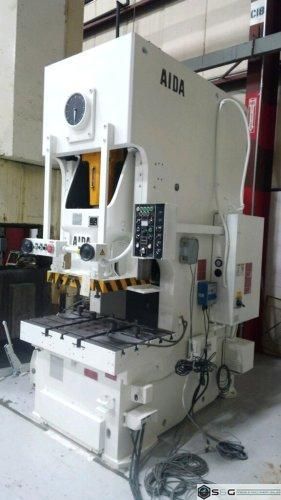

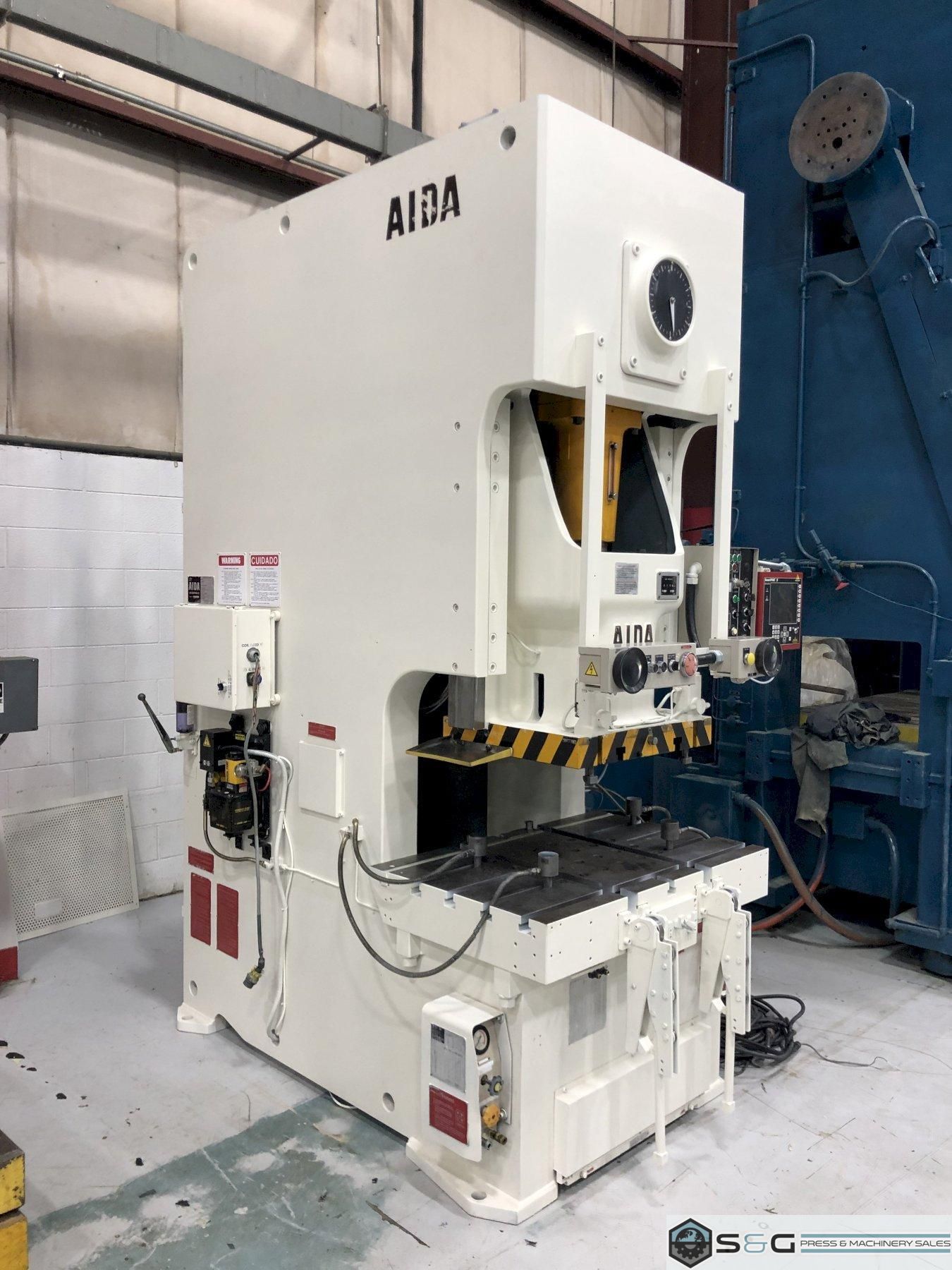

150 Ton AIDA NC1-150(2) OBS Press

Standards Specifications
150 Ton AIDA NC1-150(2) OBS Press For Sale
150 ton Metric Capacity
7.87" Stroke
15.74" Die Height
3.93" Motorized Adjustment
48" LR x 28.8" FB Bed Area
27.5" LR x 22.8" FB Slide Area
30-55 VSPM

Equipment and Features
Aida Wet Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Hydraulic Overloads
AC Variable Frequency Drive
Quill mounted flywheel
Taper fit of main gear to crankshaft
Ball Socket Connection Configuration
Floor Standing

Overall Height:  10'3" Tall

Can be seen under power!

150 Ton AIDA NC1-150(2) OBS Mechanical Metal Stamping Press For Sale
