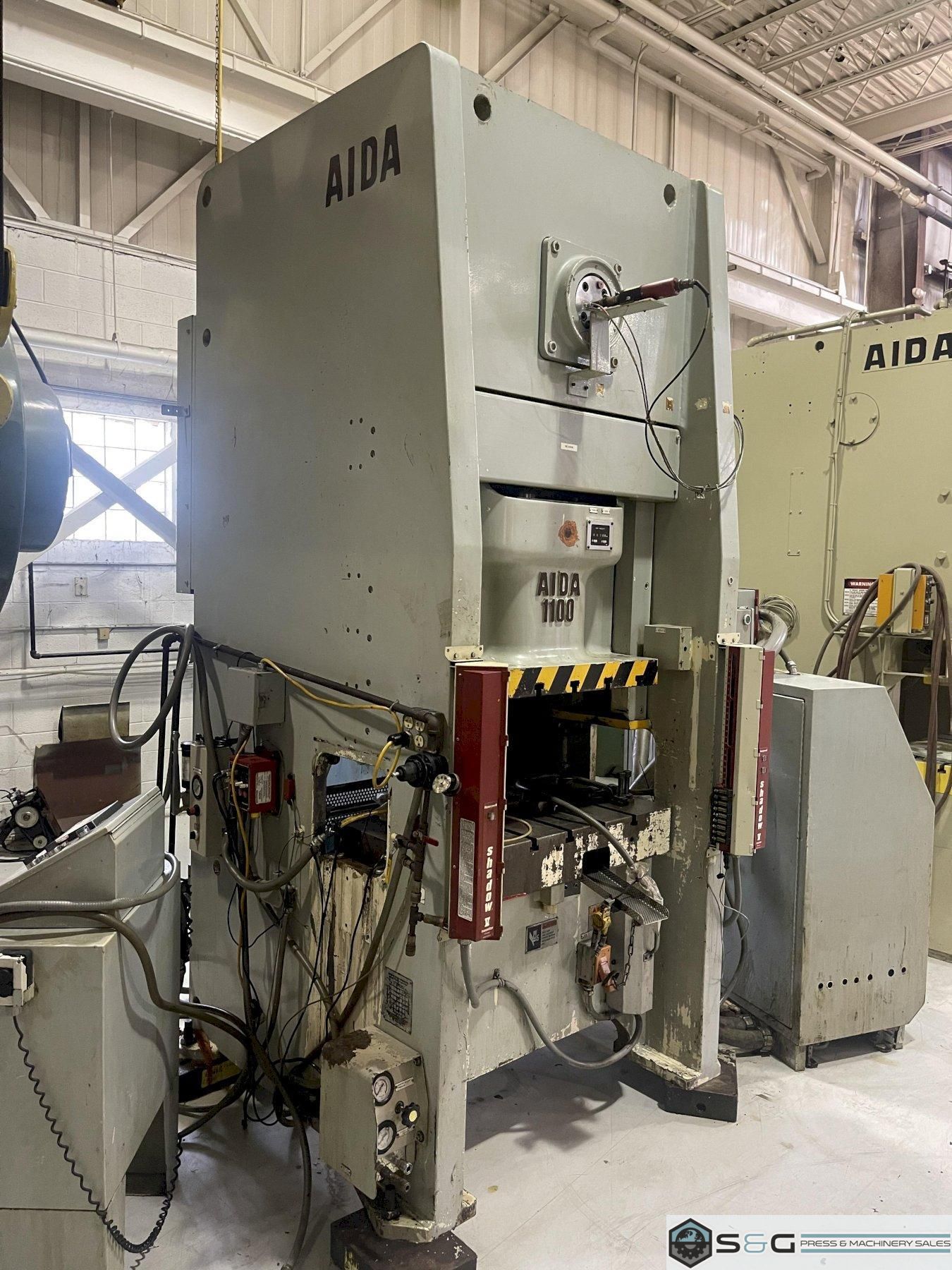

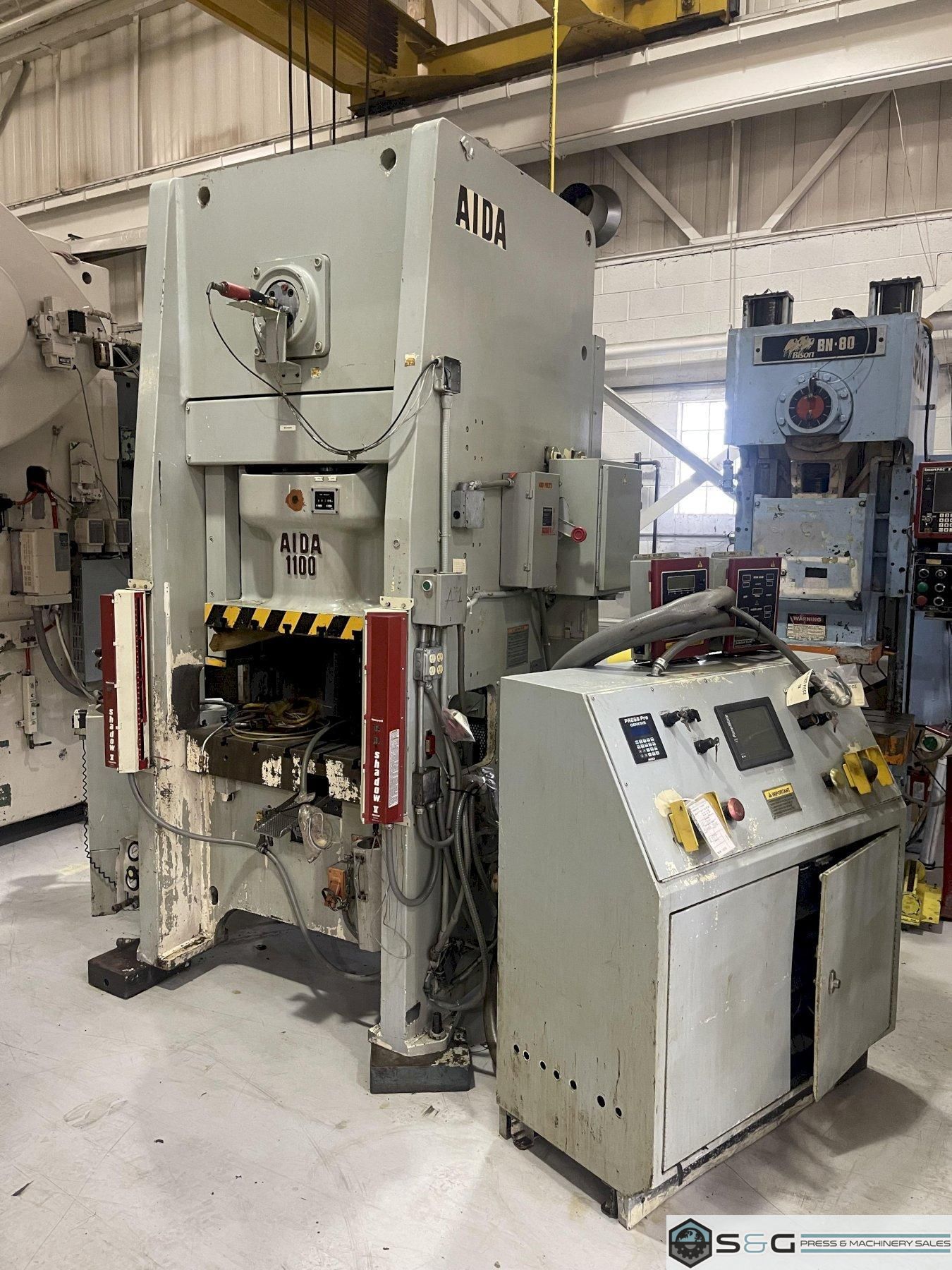

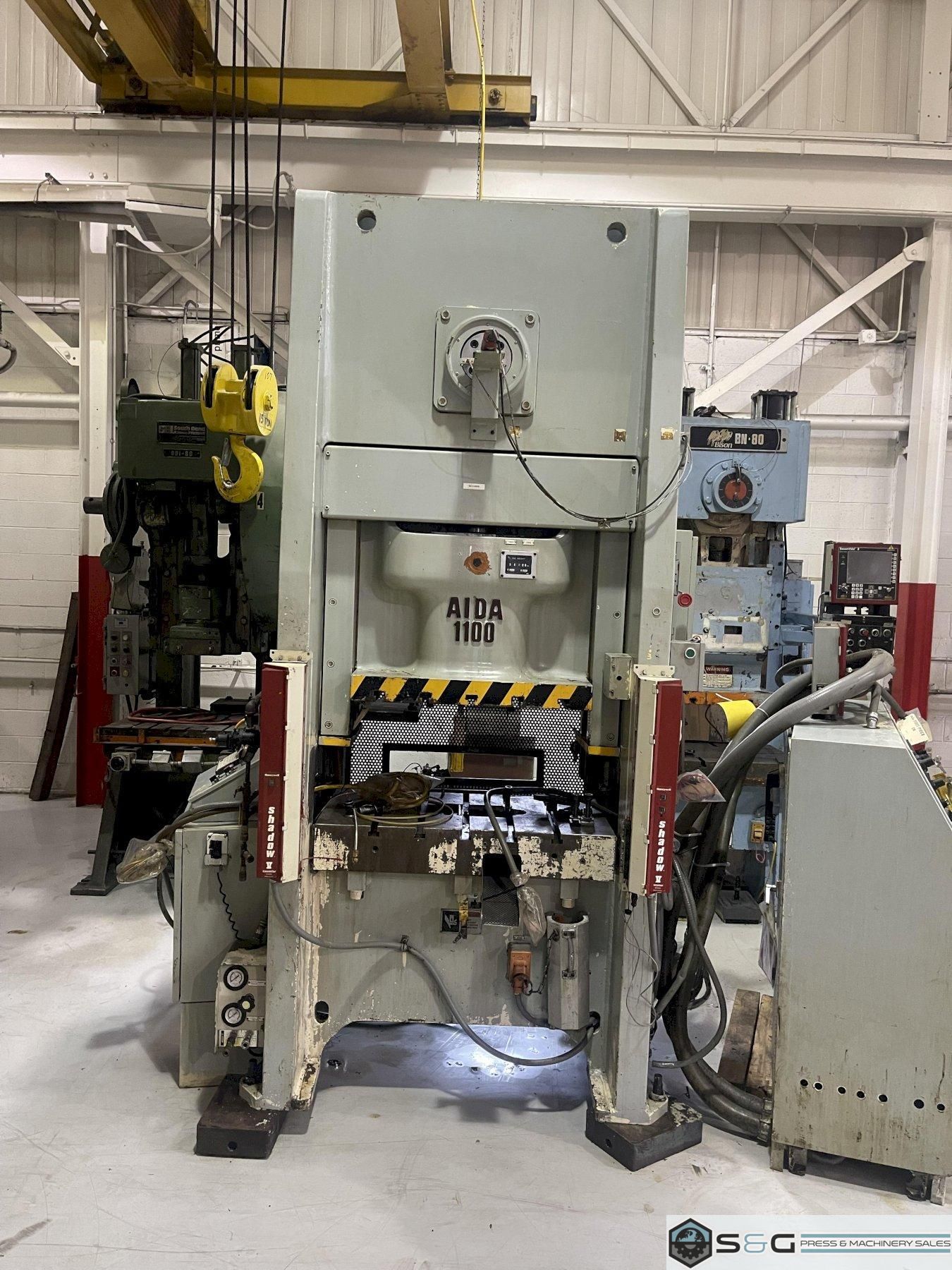

121 ton Aida NS1-1100 Single Point Eccentric Geared Straight Side Mechanical Metal Stamping Press, New 2001

Standard Specifications
Aida NS1-1100 Single Point Eccentric Geared Straight Side
110 ton Capacity (Metric)
121 ton Capacity (US Ton)
4.33" Stroke
12.6" Die Height On Bolster
3.54" Motorized Adjustment
39.4" LR x 20.5" FB Bed Area
31.5" LR x 20.5" FB Slide Area
50-100 VSPM

Equipment and Features
Aida Wet Clutch and Brake
Air Counterbalances
Hydraulic Overloads
19.6" Wide Windows
6.1" Thick Bolster Plate
Max Upper Die Weight 770 lbs.
15 HP Main Motor
Floor Standing

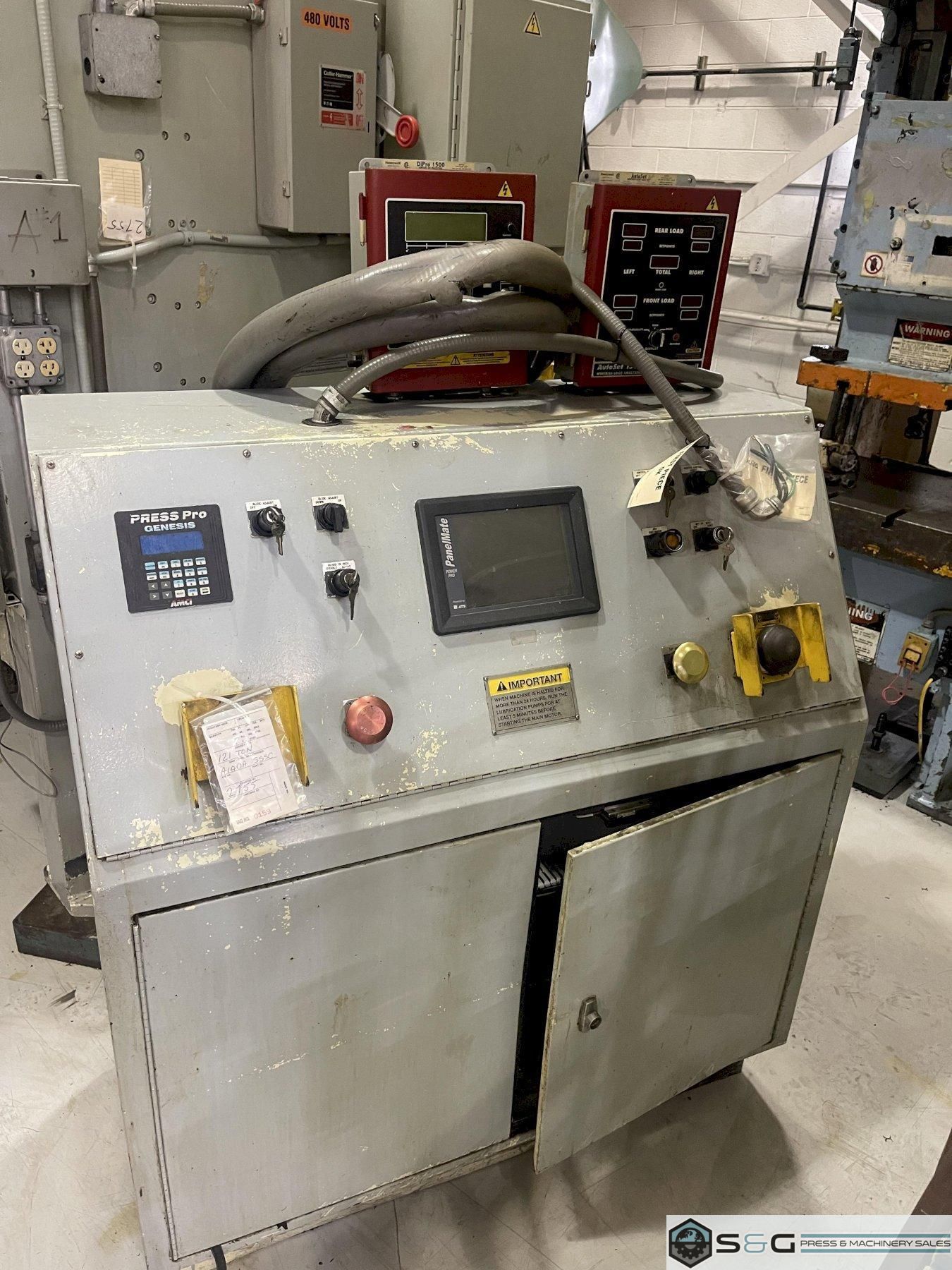

Wintriss Die Pro 1500
Wintriss Autoset 1504 load analyzer
Palm Buttons
Shadow V Light Curtains

This used Aida Straight Side Mechanical Metal Stamping Press Can Be Seen Under Power in the S & G Press Warehouse!
