110 ton Komatsu Single Crank Gap Frame Press Model OBS-110-61, Year 2013

Type

Presses, Gap Frame, Single Crank

Brand

KOMATSU

Model

OBS 110-61

Year

2013

Stock #

2906

Condition

Very Good

Request a Quote
Let's Talk

Specifications
Tonnage

110

Stroke

5.91 inches
Shut Height

20.9 inches
Adjustment

3.94 inches
Bed Size

43.3" LR x 16.1" FB

Ram Area

24.4" LR x 15.9

SPM

36-72 VSPM

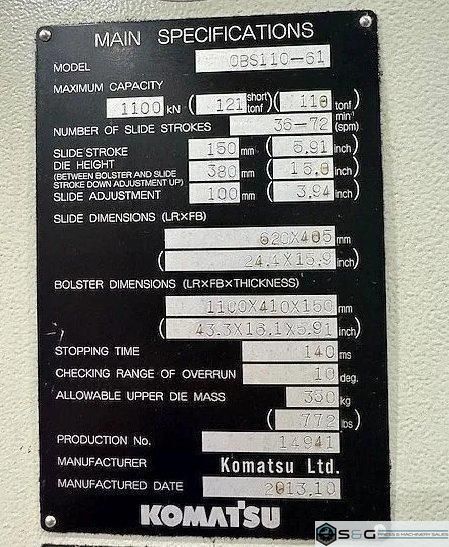

Standard Specifications

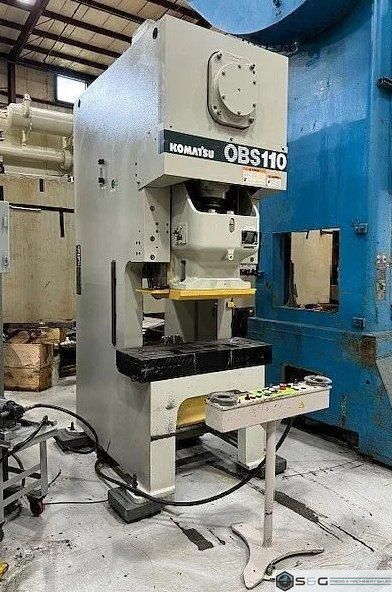

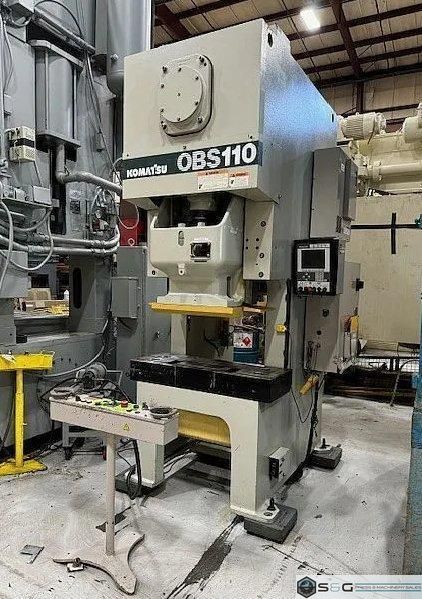

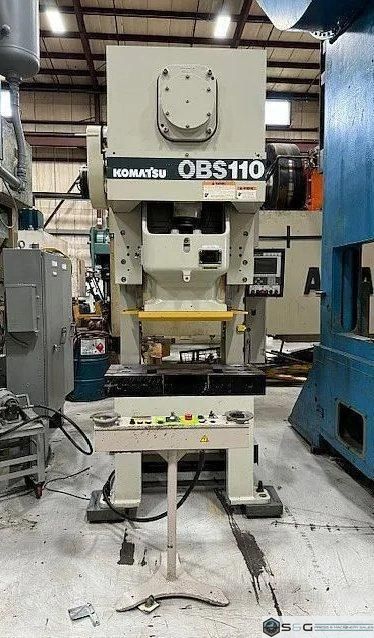

Komatsu OBS Mechanical Press
Single Point Gap Model OBS110-61
Serial Number: 14941, Year New 2013
110 ton Metric Capacity
121 ton US Capacity
5.9" Stroke
15" Die Height Over Bolster
20.9" Shut Height Over Bed
3.94" Motorized Adjustment
43.3" LR x 16.1" FB Bed Area
24.4" LR x 15.9" FB Slide Area
36-72 VSPM

Equipment and Features

Air Clutch and Brake (Wet Type)
Keyless Splined Eccentric Main Shafts
Air Counterbalances
Hydraulic Overload Protection

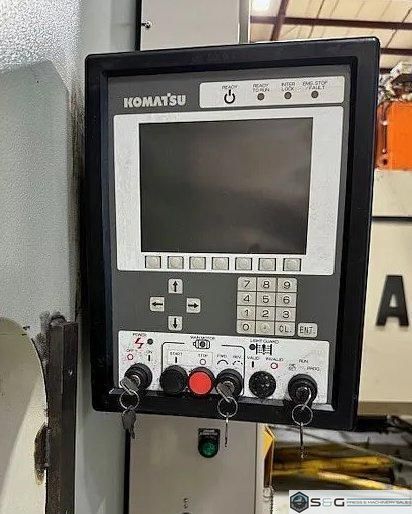

SIT-IV Press Conrol System- Komatsu Controls
Includes Job Memory
Pre Designed Expansion Capability for On Board Automation
Precision Helical Gearing
Plunger Guided Slide
Trabon Recirculating Lube System
Motorized Slide Adjustment
AC Inverter Drive

This Late Model Komatsu OBS Mechanical Press is an industrial workhorse and CAN BE SEEN UNDER POWER IN THE S&G PRESS WAREHOUSE.

With a capacity of 110 Metric tons, this press can handle a wide range of metalworking tasks, from stamping simple parts to forming complex components. Its robust construction and advanced features ensure precision, reliability, and efficiency in all manufacturing environments.

110 ton Komatsu OBS / Gap Frame Mechanical Metal Stamping Press For Sale


Attachments
Komatsu-OBS-Catalog.pdf Download

Machine Tags
Used Komatsu Press For Sale, Komatsu Gap Frame Press For Sale, Komatsu Metal Stamping Press, Used Komatsu Mechanical Metal Stamping press, 110 ton Komatsu OBS Press, 121 ton Komatsu Mechanical Press For Sale, Used Mechanical Metal Stamping Press
